Description

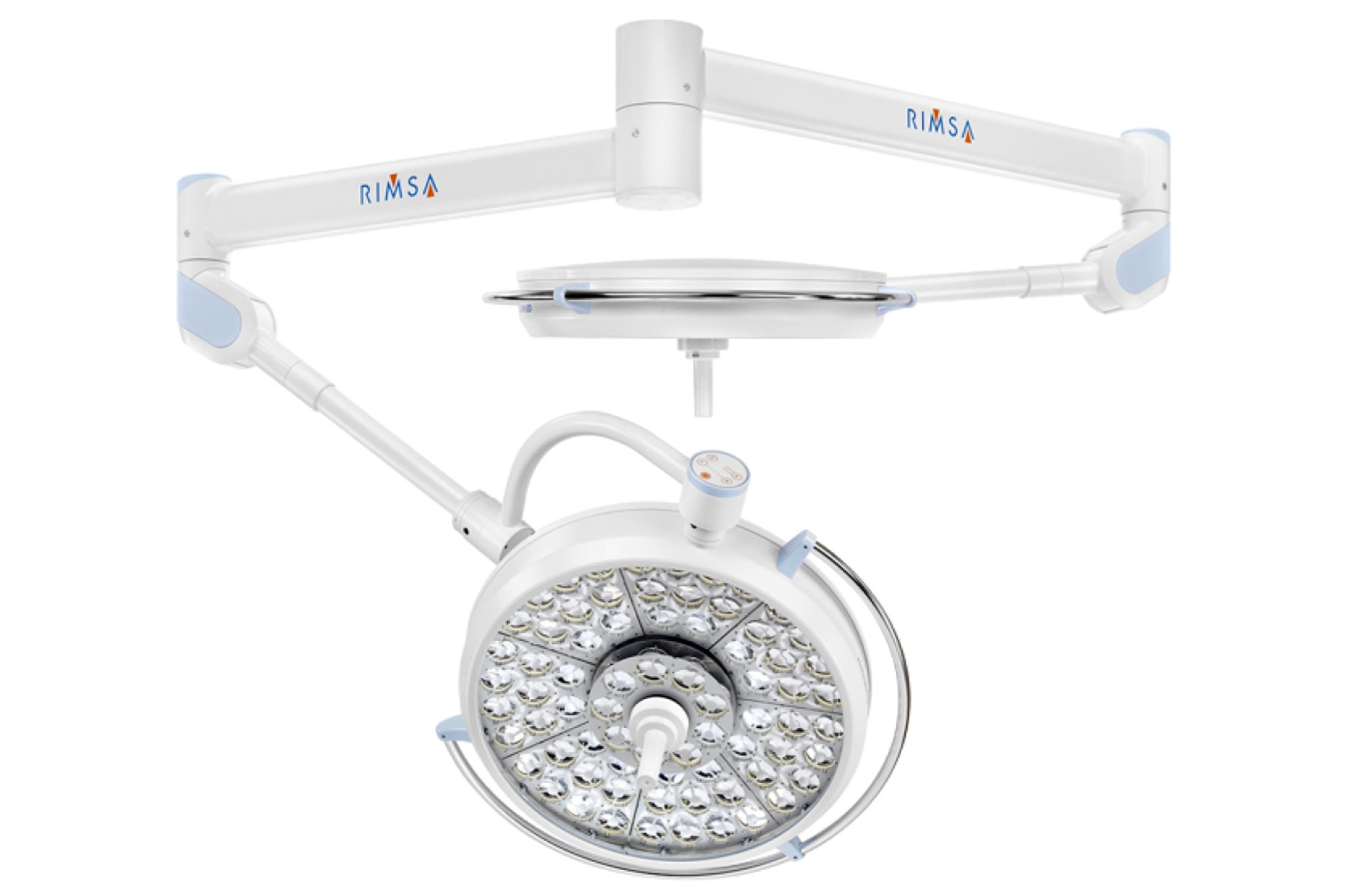

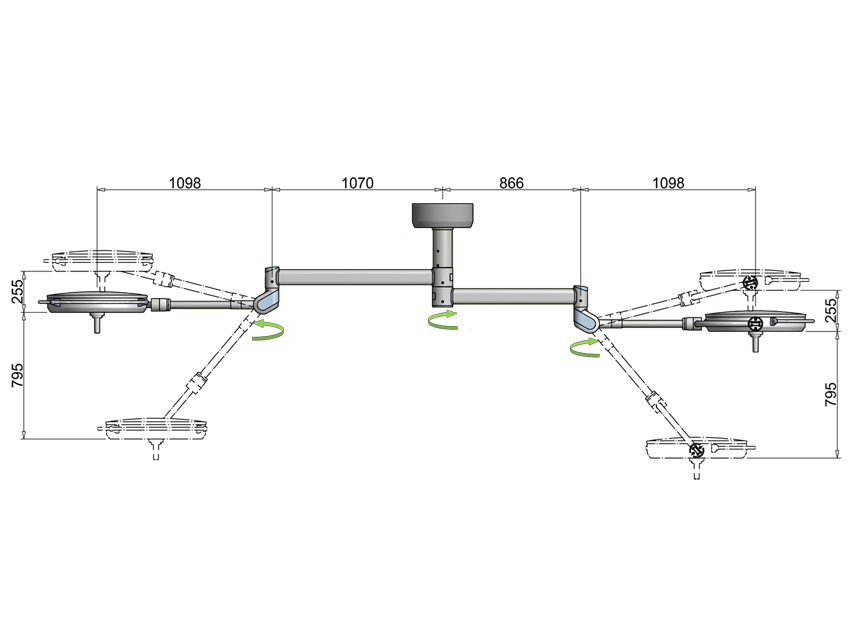

Pentaled 63N surgical lamp, crafted with a double arm of ergonomic design to provide shadowless illumination of the surgical area thanks to the combination of the two domes, which can be placed at different heights and angles. It allows the diameter of the light field to be adjusted by rotating the handle located in the center of each dome, which can be removed and sterilized for better asepsis.
High-performance LED lighting:

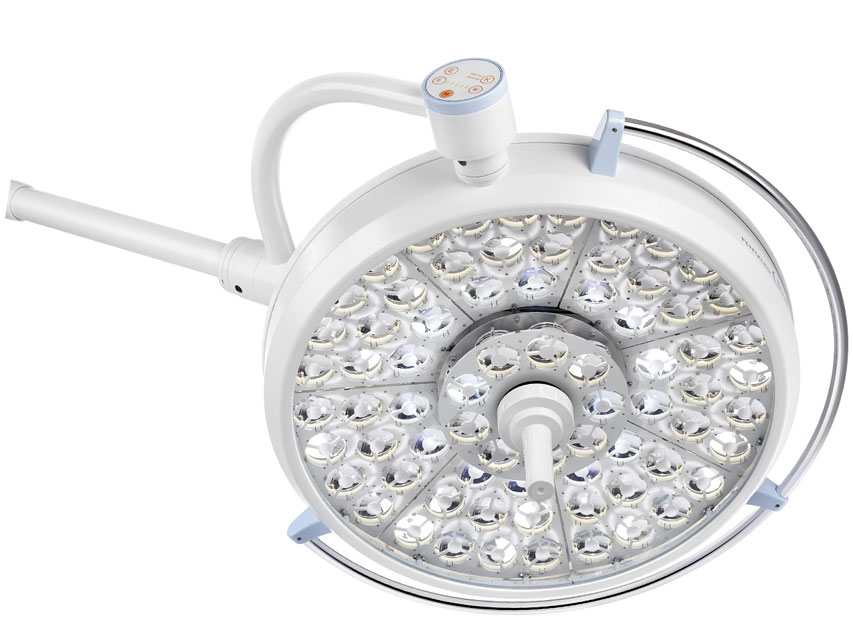

The Pentaled 63N has been developed with the latest generation LED lighting technology, optimal for providing powerful and homogeneous light. It incorporates 72 LEDs distributed in 8 modules of 9 lenses each to create individualized light fields that together achieve higher luminous performance.
Multiple functionalities:

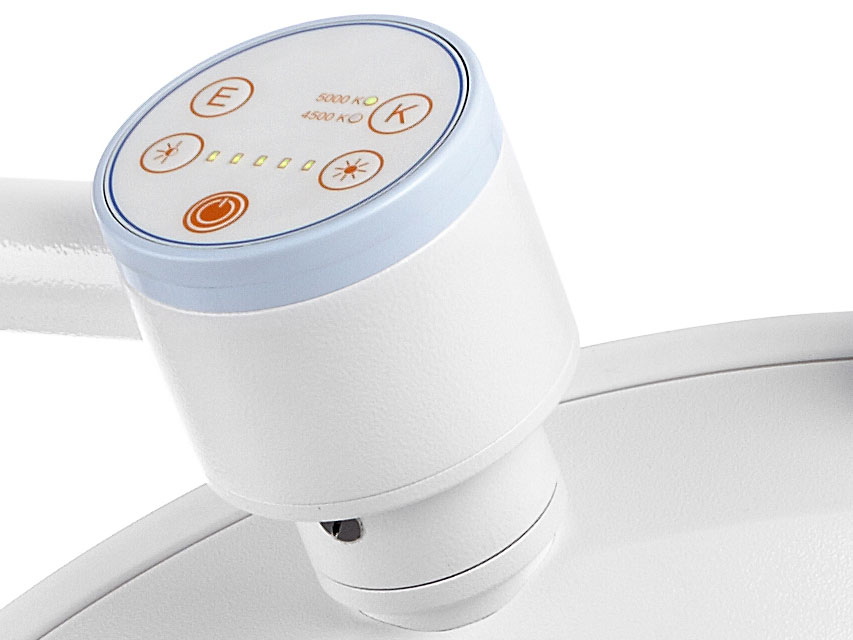

It offers a luminous intensity of 160,000 lux at 1 m that can be adjusted between 5 and 100% depending on the type of surgery and the preferences of the medical professional. It also allows the selection of the color temperature between two options depending on whether a neutral light or a cooler light is needed. In addition, it incorporates the innovative Endoled (E-Deep) function, developed to turn on only one LED module and configure the luminous intensity and color temperature of that group only. This function achieves greater depth in lighting and allows working with a more powerful and concentrated light.
Certificates: CE Class I medical device in accordance with Directive 93/42/EEC, standard IEC 60601-2-41.
Technical specifications for each arm:
- Luminous intensity: 160,000 lux at 1 m.
- Dome diameter: 63 cm.
- Color temperature: 4,500-5,000ºK.
- Diameter adjustment: manual.
- Color rendering index: 96 Ra.
- Illuminated field diameter: 160 - 300 mm.
- 60% illumination depth: 56 cm.
- 20% illumination depth: 108 cm.
- Total radiated energy: 580 W/m².
- LED lifespan: over 60,000 hours.
- Luminous intensity adjustment: 5 - 100%.
- Power consumption: 59 W-70 VA.
- Weight: 79 kg.
Support: ceiling mount up to 3 m.
*Installation not included.
