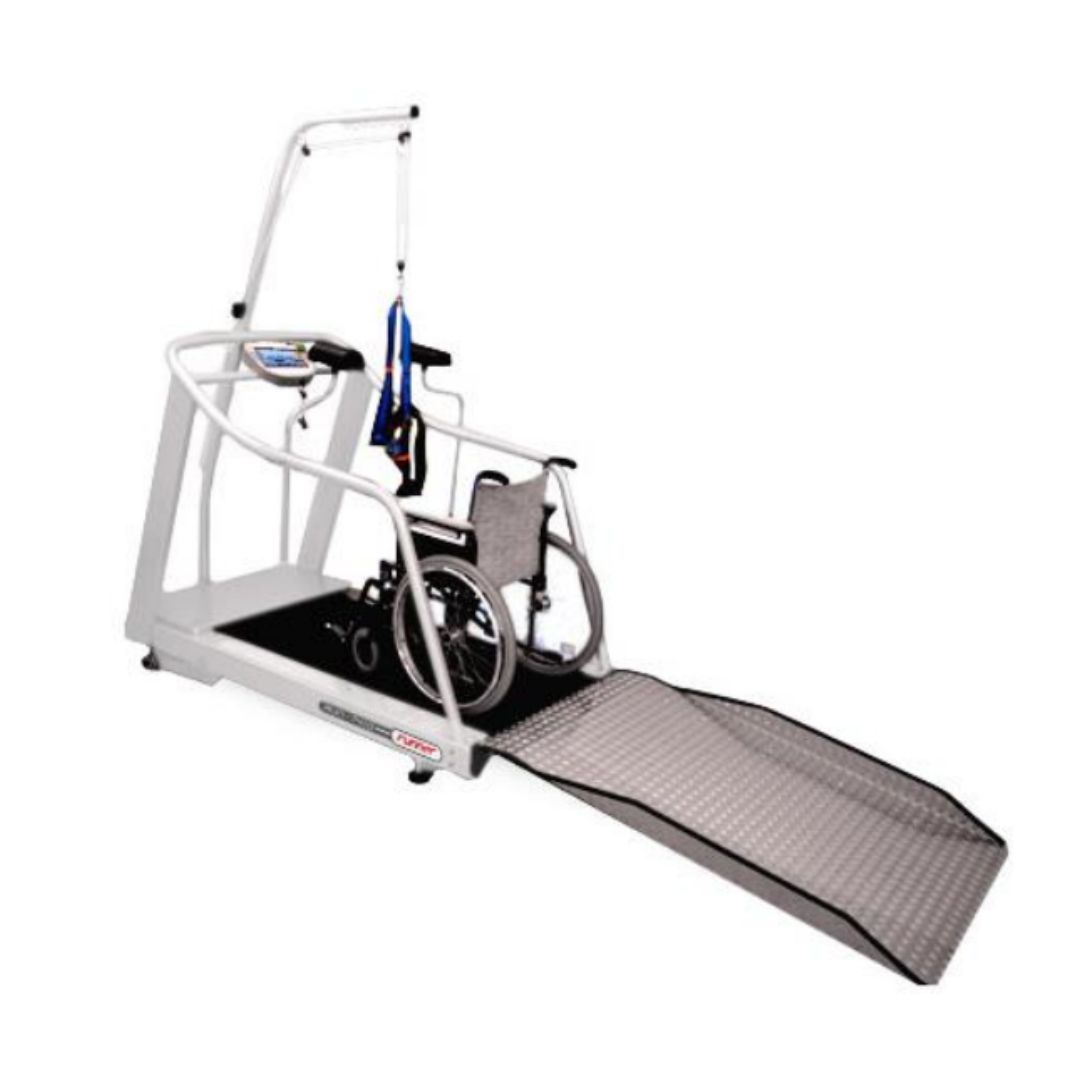

RUN7410/TJ XL-PC wide treadmill with programmable console, 105 x 210 x 150 cm

Treadmill with a wide walking surface designed for stress tests in the healthcare sector. Manufactured according to the EC directive 93/42/EEC, this model incorporates a new motor capable of reaching 20 kilometers per hour and supporting a maximum weight of 220 kilograms, making it one of the most versatile and efficient options on the market. Its design includes a remote and manual use console that, in addition to allowing the adjustment of parameters according to the patient's needs, also offers the possibility of programming endurance tests such as VAMEVAL, Bruce, Ellestad, ACIP and Cooper. Moreover, it is compatible with the vast majority of electrocardiogram devices available in the professional field and has an exceptionally low noise emission level, making it an ideal equipment for medical diagnosis in facilities such as clinics, healthcare centers and outpatient clinics.

The RUN7410/TJ XL-PC model has been classified as a Class IIa medical device and comes with a 10-year warranty on its external structure and 2 years on its mechanical, electrical and electronic systems. In addition, it has been certified for quality under the ISO13485, ensuring high performance and maximum efficiency.

General Features
- Width: 105 cm
- Length: 210 cm
- Height: 150 cm
- Weight: 240 kg

Technical Specifications
- Rugged 10.1" touchscreen
- PC iMX6 DL 1 GB, Micro SD 8GB, S.O. Linux
- Analog RS323 interface with optical isolation for connection with ECG through Trackmaster protocol (compatible with ECG Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara)
- Double direction of travel (forward/backward)
- Forward speed range: 0.1 - 20 km/h
- Backward speed range: 0.1 - 5 km/h
- Inclination: 0%, +25%
- Speed increment: 0.1 km/h
- Inclination increment: 0.5 - 1%
- Electronic variation of speed and inclination
- Belt autocentering system
- Belt autolubrication system
- Walking surface: 154.5 x 72 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 2.2 kW
- Power supply: 220~240Vac, 50/60Hz, 12Amp
- Auxiliary circuit for incline: 18 Vac
- Console auxiliary circuit: 12 Vdc
- Motor: 3 HP AC
- Power absorbed at maximum speed: 2500 VA
- Nominal power absorbed: 2000 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 220 kg
- Button and pull with magnet for emergency stop
- CE conformity certificate 93/42/EEC
- Compatibility with Polar H7, H9 and H10 BLE chest bands (Bluetooth Low Energy) through certified dongle (not included). The band can only be used if an ECG device is available.

Standard Accessories (included)
- Wheels to move the treadmill
- Service equipment
- Power cord
- RS232 cable

Optional Accessories (not included and at an additional cost)
- Long handrails (maximum weight 150 kg) (Ref. 4063EE0634)
- Axillary support (maximum weight 150 kg) (Ref. 4063EE0622)
- Harness system for long handrails (maximum weight 150 kg) (Ref. 4063EE0640)
- Special support and vest for harness system (maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp (maximum weight 220 kg) (Ref. 4063EE0682)
- Bluetooth dongle for Polar chest band (Ref. 4063EE0713)

Console Functions
- Remote use through the RS232 interface
- Manual use and indicator of time, distance and calories
- 10 profiles (default)
- 100 free profiles
- Adjustment for Cooper, VAMEVAL, ACIP, Modified Astrand, Bruce, Modified Bruce, Ellestad and free tests (Test 01 - Test 116)
