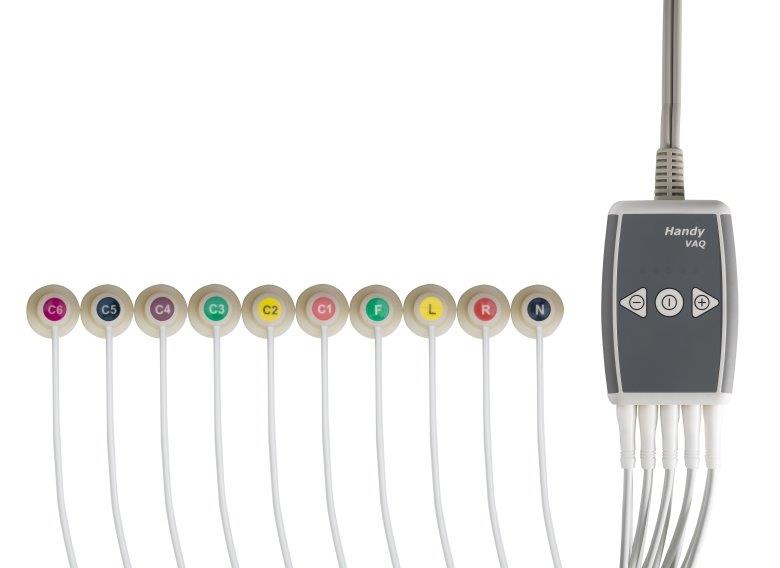

Handy VAQ system for electrode fixation by suction

Electrode aspiration system for use in combination with Cardioline's stress test and resting ECG systems. The device is powered by an included power source or via a USB connection. The ECG connector allows direct connection to AR series ECG devices, and a specific adapter is provided for HD+ devices.

The compact and versatile solution, the HandyVAQ, is possibly the smallest ECG aspiration unit on the market. The quiet, powerful, and maintenance-free pump is directly integrated into the compact control housing. Thanks to the non-slip side inserts, you can hold this lightweight device with one hand. Despite being compact, it offers a wide range of functions. The HandyVAQ can be used easily and comfortably with just three buttons, which allow you to adjust the suction power in five levels.

With the universal accessory, it can be connected directly to ergometers, treadmills, carts or even directly to a patient, allowing a wide range of applications. The all-in-one, flexible and easy-to-use solution makes your work easier and is attractive thanks to an excellent price-performance ratio.

Features:
- Compact and versatile, the HanyVAQ Aspiration System is small and has a powerful and quiet pump.
- Very high signal quality with very low noise level.
- Easy to use. The device can be fully controlled with just three buttons. LED lights show the current status. The unit can choose from five suction powers.
- A connectivity is used to connect the HandyVAQ to ECG systems through a 15-lead D-sub-plug. A 5 V power supply is provided through a USB cable or from a wall outlet using an adapter.
- Shutdown function.
- The complete assembled unit can be sterilized with a sterilizing gas.

Compatible Cardioline devices: ClickECG, HD+ and AR series ECG.

Includes:
- HandyVAQ aspiration/control unit device, 3.5 m with connection cable (USB/15-pin D-Sub).
- 10 terminals.
- Wall plug USB adapter.
- Cable support.
- 24 months warranty.

Technical specifications:
- Dimensions: 78 x 117 x 27 mm. (Without cables).
- Ambient temperature: from 10 to 40 °C.
- Air pressure: from 700 to 1050 mbar.
- Max. suction pressure: 250 mbar.
- Suction options: 100 / 130 / 170 / 210 / 250 mbar.
- Relative humidity: from 20 to 95% without condensation.
- Volume: 2.6 l/min.
- Weight: 950 g, with long cable set.
- Defibrillation protection: 10 kΩ.
- Power supply: USB 2.0 or higher, 5 V, 600 mA, 3 W.
- ECG connection: 15-pin D-sub, 3.5 m long.
- Electrode cables: Chest wall (x6) Extremities (x4).
- Electrodes: Ag/AgCl, silicone suction cups.
- CE: Class I Medical Directive.
