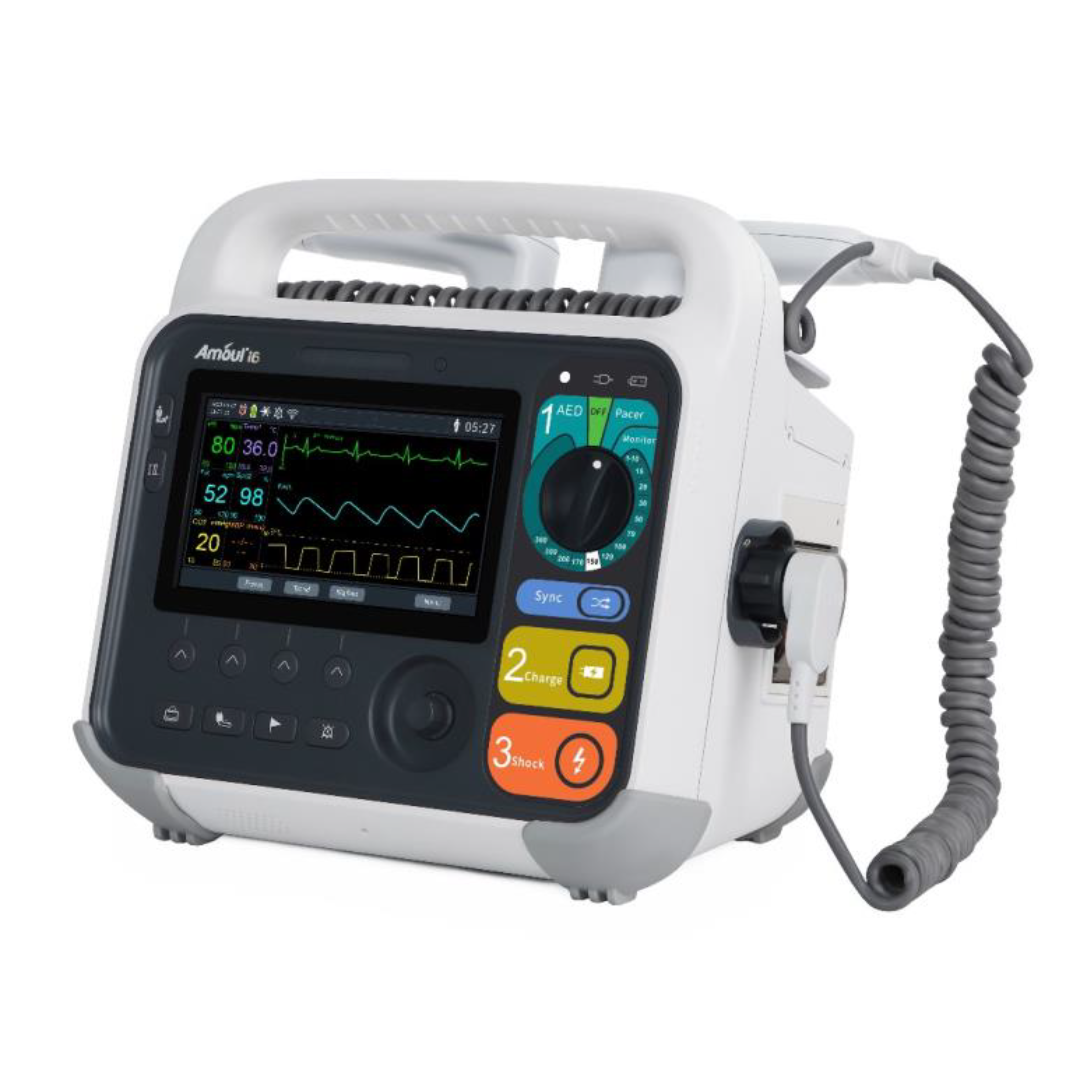

i6 Plus Defibrillator-Monitor with pacemaker and printer (12-lead ECG, Resp, SpO2, NIBP, Temp)

The i6 Plus is a state-of-the-art monitor-defibrillator designed to assist in the cardiac resuscitation process and provide accurate monitoring of vital signs. Its operating system can perform measurements of various parameters, including body temperature, blood pressure, respiratory rate, and blood oxygen saturation level, making it ideal for outpatient monitoring of the patient's health.

The i6 Plus also incorporates a 12-lead electrocardiograph and a defibrillator capable of delivering shocks in AED mode and in manual mode, both synchronously and asynchronously. In addition, it includes pacemaker function and multiple customizable alarms designed to alert the user of abnormal monitoring values, making it suitable for ambulances, intensive care units, and emergency consultations.

General features
- Compact, lightweight design with handle, easy and comfortable to carry, even with one hand
- Large HD color screen for clear parameter viewing

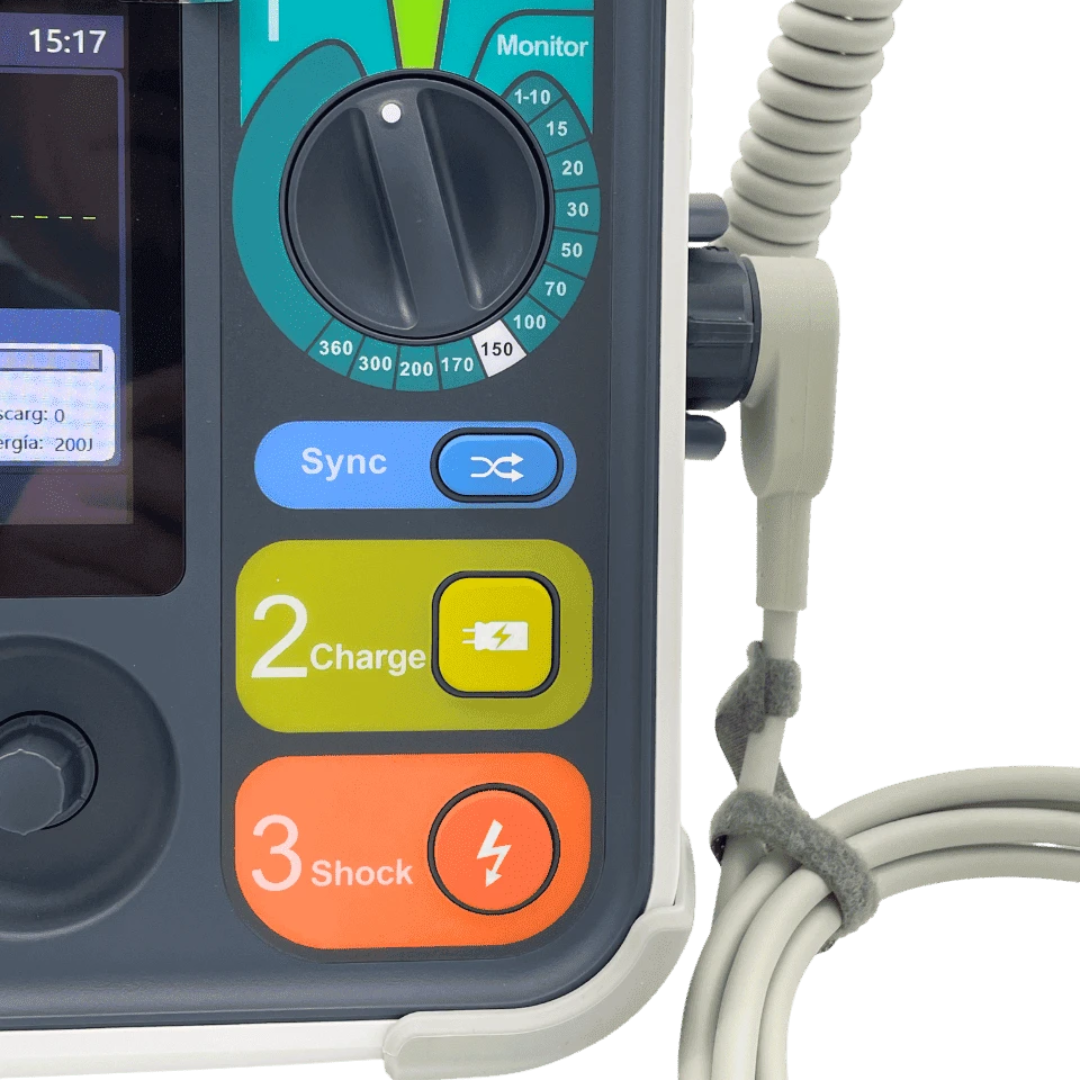

- Front panel control buttons for easy access to main functions
- Integrated thermal printer, allows to keep physical results obtained during monitoring
- Simple 3-step defibrillation via external paddles, internal paddles or disposable electrodes
- Integrated pediatric defibrillation paddles within adult paddles with energy selection, charge and discharge buttons
- Option for exportable self-test to PC and printable
- Includes holding hooks to keep attached to bed rails and rails
- Customizable alarms to alert the user of abnormal values in all monitoring parameters

General technical specifications
- Waveform: truncated exponential biphasic, automatically adjusted to patient impedance
- Display screen: 7" HD color LCD (TFT) screen with a resolution of 800 x 480 pixels and anti-shock and scratch protection
- Power supply: 100 - 240 V, 50/60 Hz
- Battery: rechargeable internal lithium battery with 5 hours/+100 discharges of autonomy
- Battery charging time: less than 3 hours
- Defibrillation modes: asynchronous manual, synchronous manual, AED
- Operating modes: AED, monitoring, pacemaker, manual defibrillation
- Charge time: 200 J (in less than 5 seconds), 360 J (in less than 8 seconds)
- Degree of protection: IP54
- Operating temperature: 0 - 50°C
- Storage temperature: -30°C - 70°C
- Connectivity: WiFi, 4G
- Dimensions: 290 x 208 x 297 mm
- Weight: 5.8 kg

AED mode specifications
- CPR aid protocol included
- Aid adjusted to the latest AHA and ERC guidelines
- Audible and visual guidance for efficient discharging
- Discharge through disposable defibrillation electrodes

Monitoring mode specifications
- 3 curve screen monitoring

Pacemaker mode specifications
- Simple and quick activation by mode selection wheel
- Discharge through defibrillation electrodes
- Fixed and on-demand modes
- Configurable stimulation frequency between 40 and 170 bpm (±1.5%)
- Configurable output current from 0 to 200 mA (±5% or ±5mA, the greater)

Manual defibrillation mode specifications
- Selectable energy steps of 1, 2, 3, 4, 5, 6, 7, 8, 9, 10, 15, 20, 30, 50, 70, 100, 150, 170, 200, 300, and 360 J
- Discharge via paddles or defibrillation electrodes

SpO2 specifications
- Measurement range: 0% - 100%
- Accuracy: ± 2 %
- Recovery after defibrillation: < 5 s
- Pulse frequency measurement range: 30 – 240 bpm
- Pulse frequency accuracy: ±3 bpm
- Pulse frequency resolution: 1 bpm
- Standard adhered: ISO 80601-2-61

PANI specifications
- Measurement modes: manual, automatic and continuous
- Automatic measurement intervals: 1, 2, 3, 4, 10, 15, 20, 30, 60, 90, 120, 180, 240, 480 min
- Measurement range: 0 - 300 mmHg
- Accuracy: ± 3 mmHg
- Resolution: 1 mmHg
- Recovery after defibrillation: < 5 s
- Protection: against overpressure
- Standard adhered: IEC 80601-2-30

ECG specifications
- 12-lead cable (10 electrodes/12 channels): I, II, III, aVR, aVL, aVF, V1, V2, V3, V4, V5, V6
- Sweep speed: 50, 25, 12.5, 6.25 mm/s
- Therapy mode bandwidth: 1 - 20 Hz
- Monitoring mode bandwidth: 0.5 - 40 Hz
- Diagnostic mode bandwidth: 0.05 - 150 Hz
- Common mode rejection: > 105 dB
- Power line frequency rejection: ≥ 20 dB
- Baseline recovery after defibrillation: < 5 s
- HR measurement range: 15 - 300 bpm (adult patients), 15 - 350 bpm (pediatric patients)
- HR accuracy: ± 1 bpm
- Pacemaker detection: displayed as marker on ECG
- Pacemaker filtering: inhibition of stimulation signals according to (standard IEC 60601-2-27)

Resp specifications
- Measurement range: 0 - 120 rpm
- Accuracy: ± 2 rpm or ± 2 %
- Resolution: 1 rpm
- Apnea alarm: 10s, 15s, 20s, 25s, 30s, 35s, 40s

Temp specifications
- Measurement range: 0°C - 50°C
- Accuracy: ± 0.1°C
- Resolution: 0.1°C
- Recovery after defibrillation: < 5 s

Standard accessories (included)
- Power cord
- Rechargeable battery
- Holding hooks
- Pacemaker

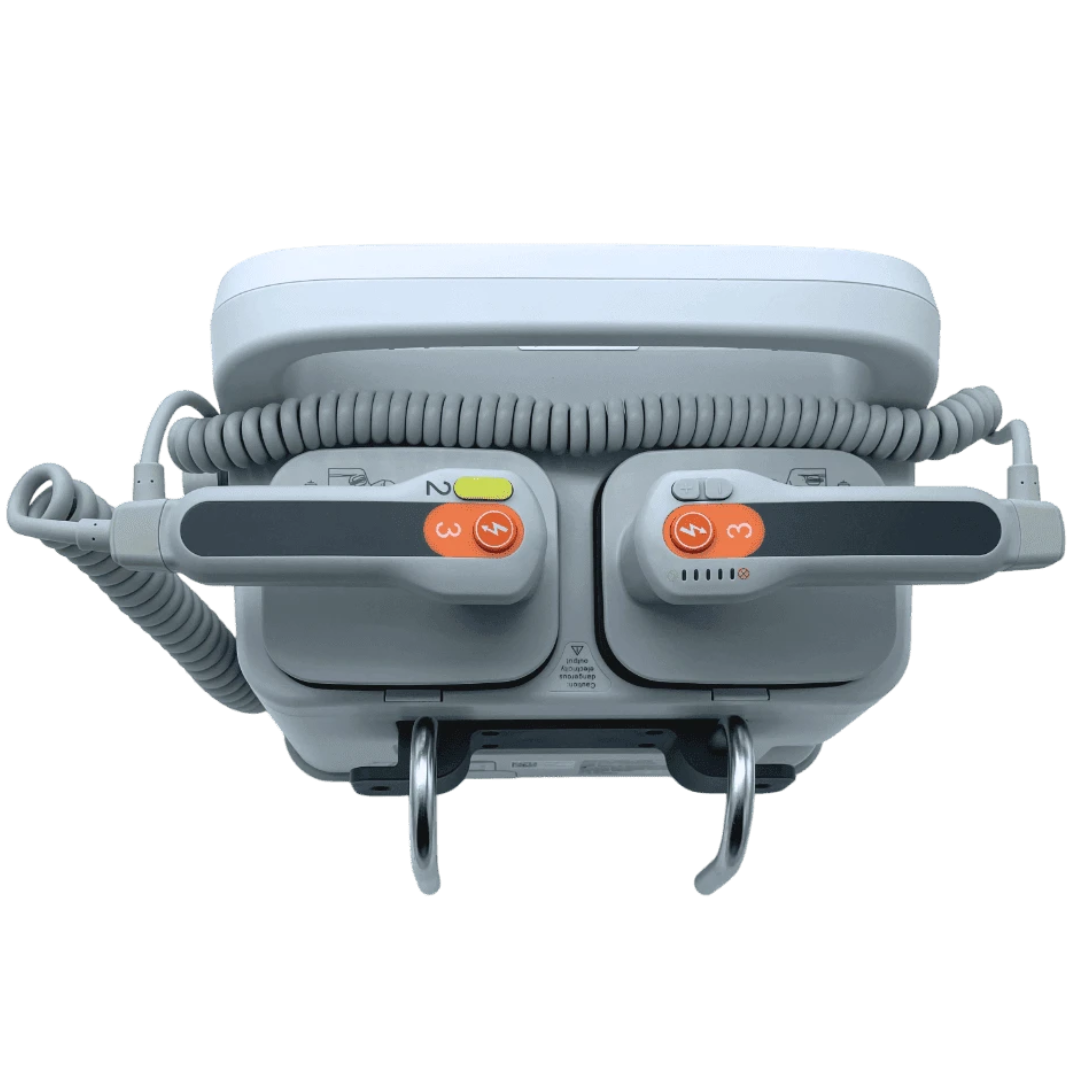

- External paddles (for adult and pediatric patients)

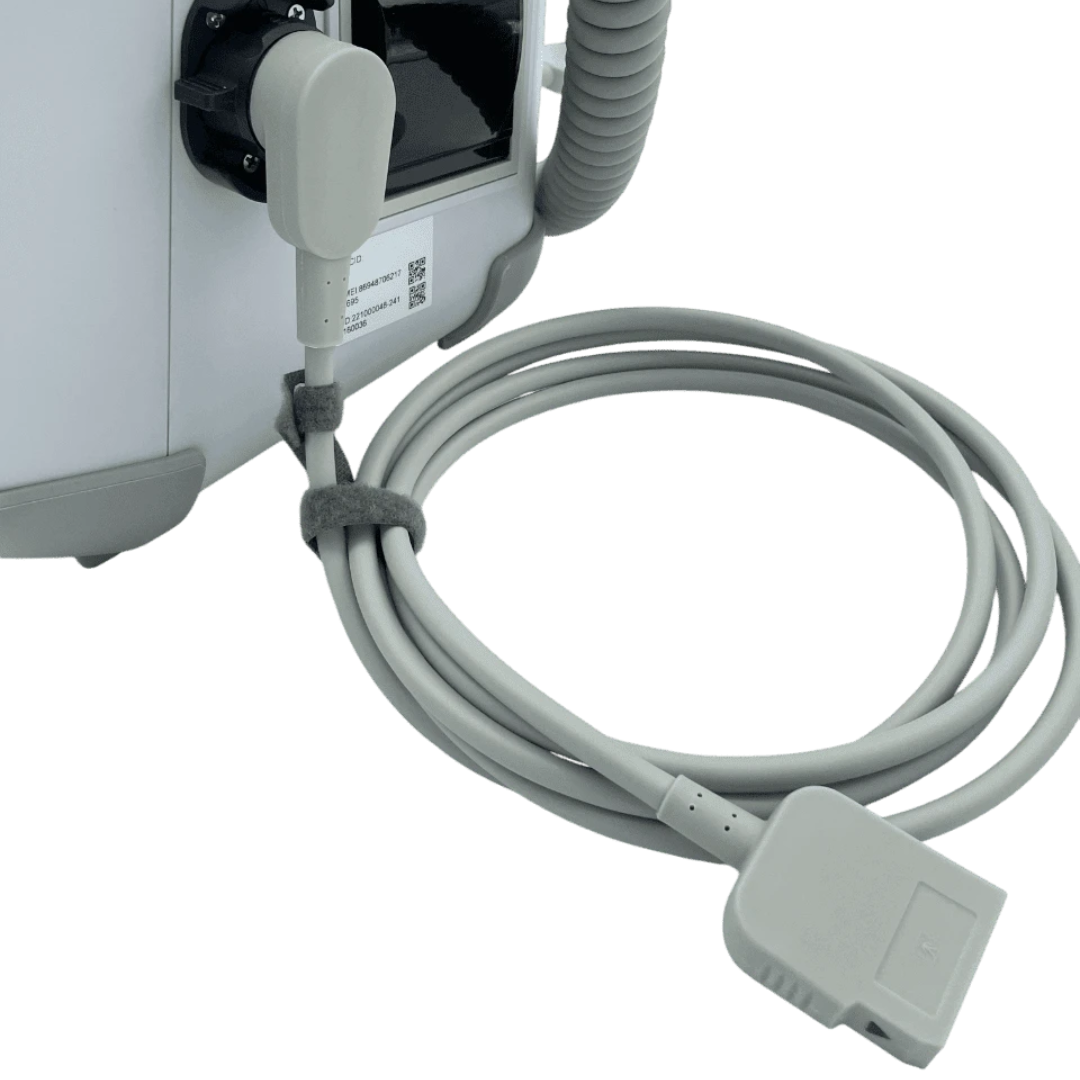

- Defibrillation electrode cable
- Defibrillation electrodes (for adult and pediatric patients)
- Thermal paper for printer

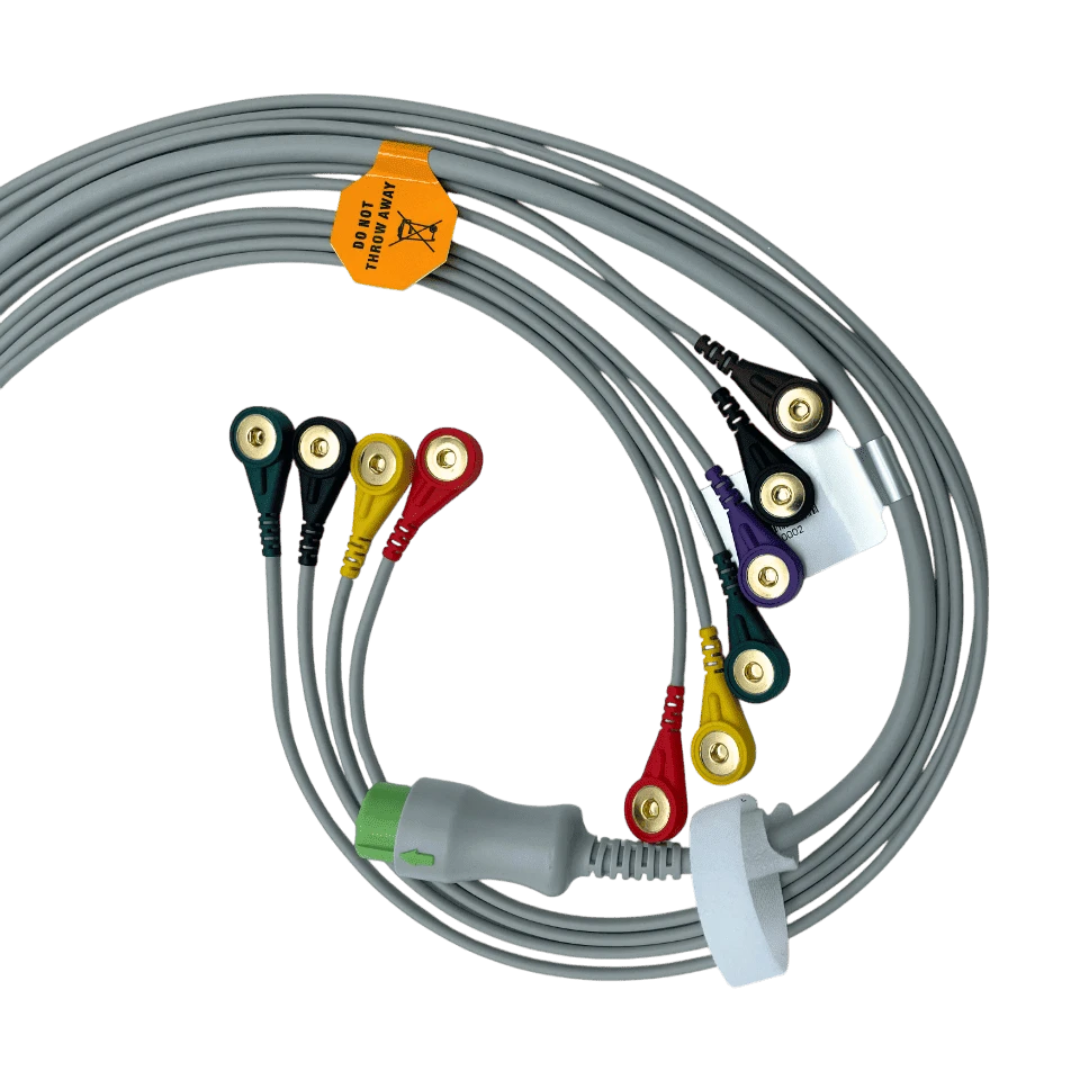

- 12-lead ECG cable

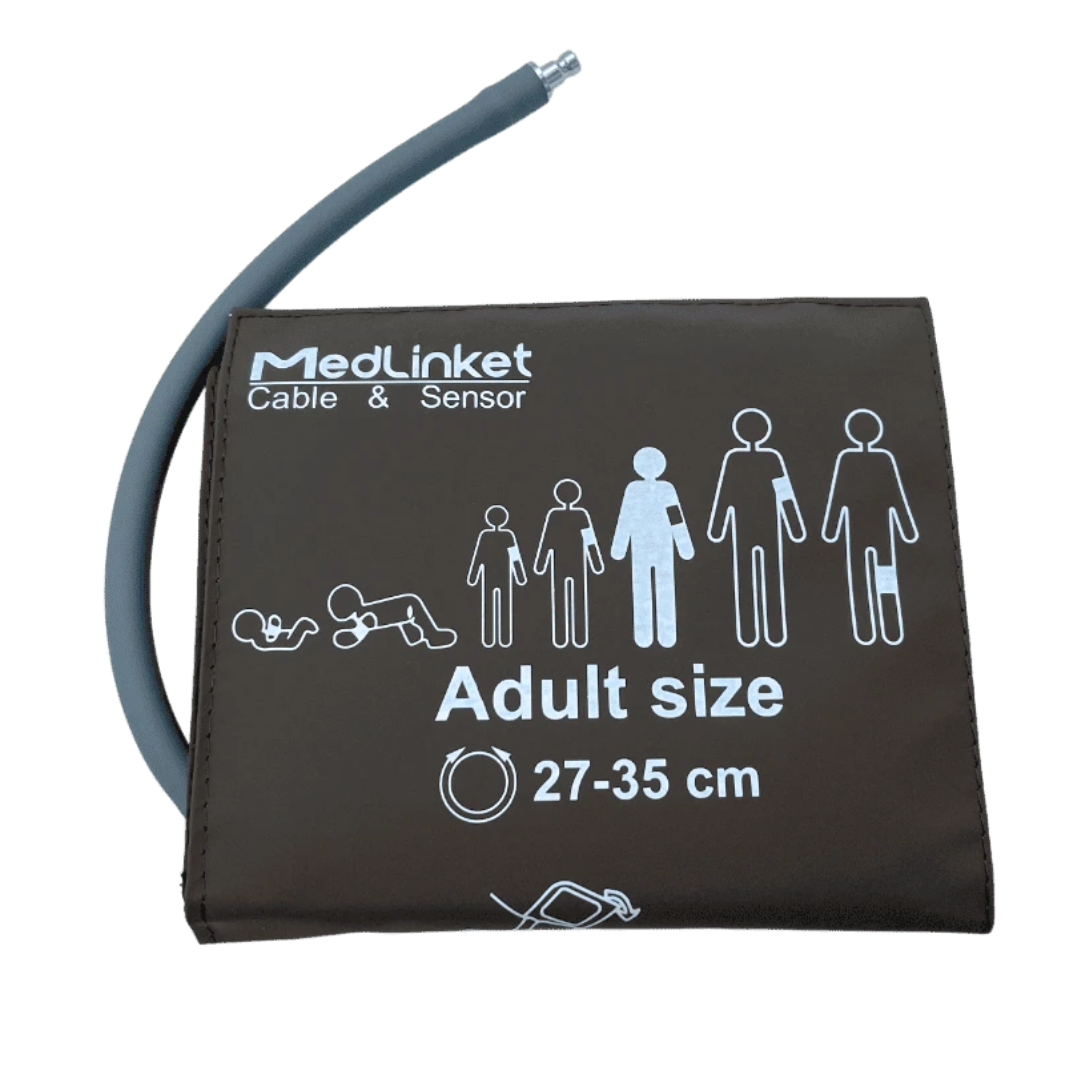

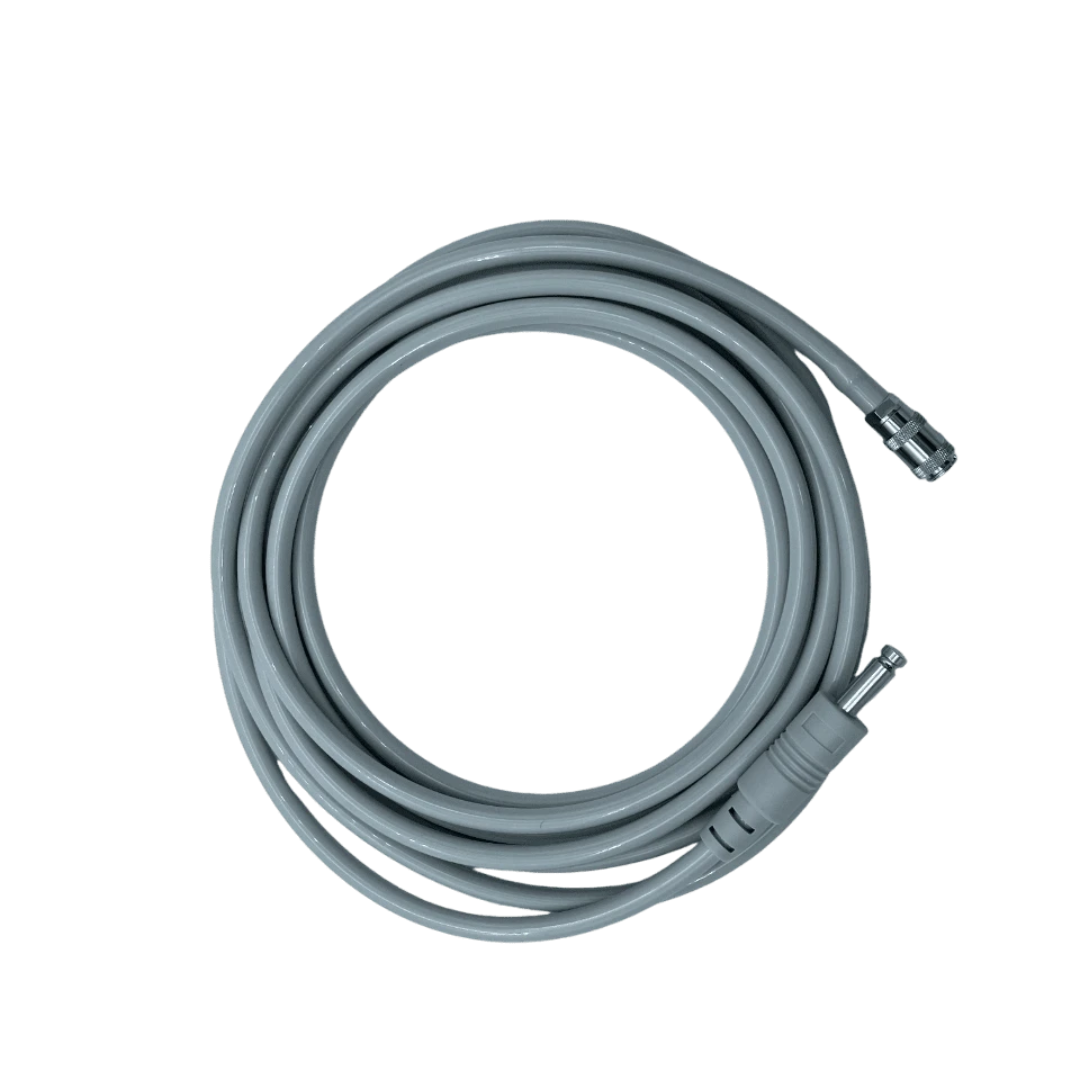

- Extension cord and standard size adult PANI cuff
- Adult SpO2 sensor

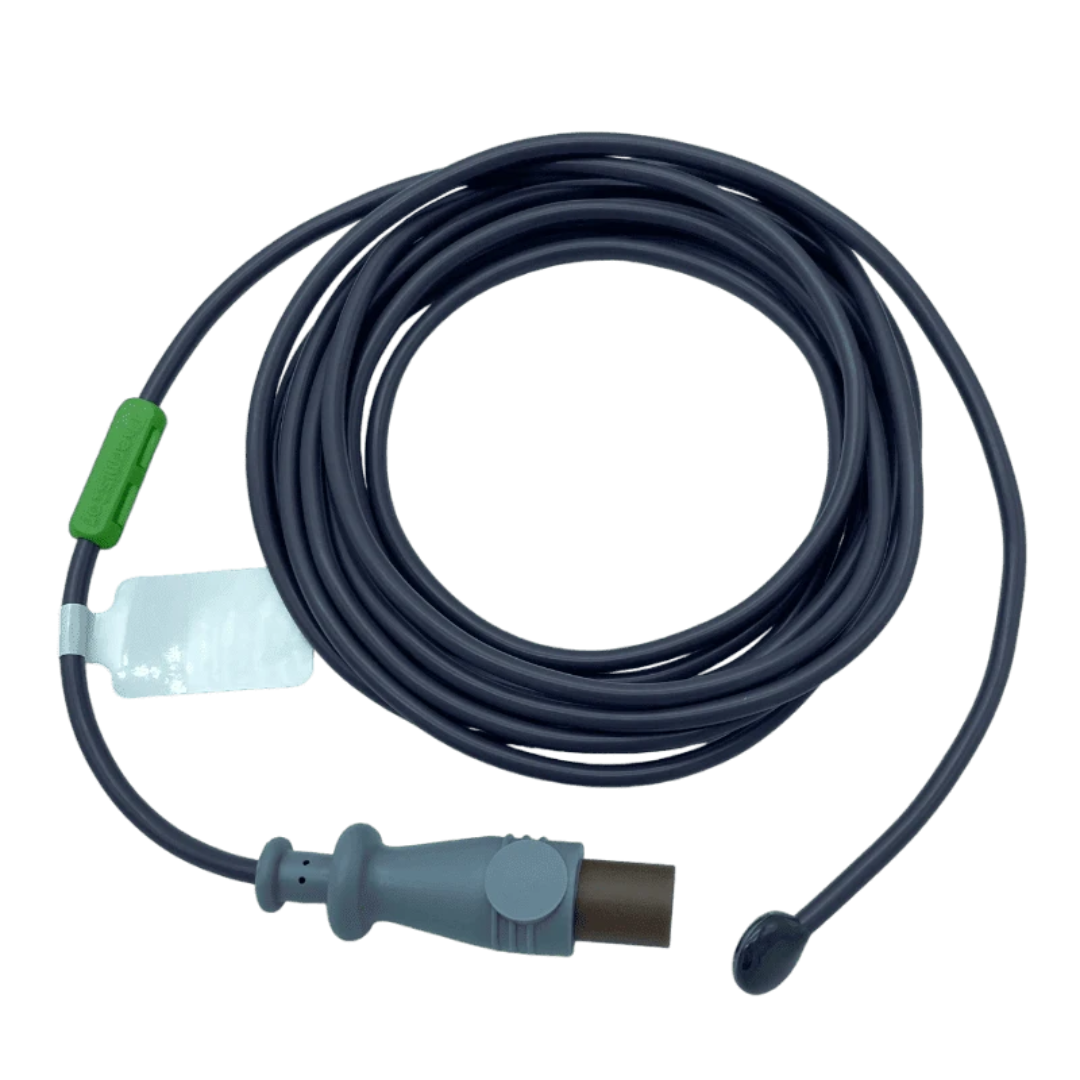

- Skin temperature probe

Optional accessories (not included and with additional cost)
- Carrying bag
- CPR depth sensor
- Rolling stand
- Stop trolley
- PC software for patient and exam management (with real-time visualization)
- Internal paddles (for adult, pediatric or neonate patients)
- Defibrillation electrodes (for adult, pediatric or neonate patients)
- 3-channel ECG cable (Ref. 1090DA-CP3I2I6)
- Adult SpO2 clip sensor (Ref. 1090DA-OXAI6)
- Adult SpO2 thimble sensor (Ref. 1090DA-OXISAI6)
- Small adult PANI cuff (Ref. 1090DA-MANAPI6)
- Standard adult PANI cuff (Ref. 1090DA-MANAI6)
- Large adult PANI cuff (Ref. 1090DA-MANAGI6)
- Adult CO2 adapter (Ref. 1090DA-ADPCO2A)
