Reference. 1129AM4113TL-M40

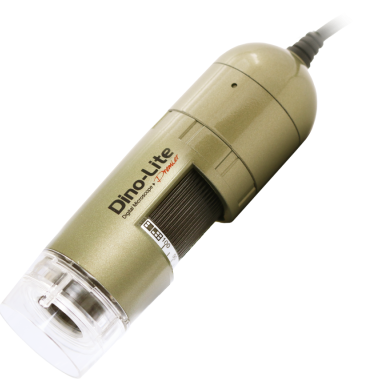

Dino-Lite USB Digital Microscope, 1.3MP, 5x-40x, LWD
Dino-Lite USB Digital Microscope, 1.3MP, 5x-40x, LWD
Personal advice
Description
The AM4113TL-M40 model from Dino-Lite is a standout choice for generic applications, thanks to its versatility and performance. This microscope offers a resolution of 1.3 megapixels and features a magnification lock, ensuring stability during observations.
With a magnification range of 5 to 40x and a long working distance, it is ideal for various tasks that require precision and visual clarity.
The special version AM4113TL-M40 is part of the long-distance series, designed to offer a lower magnification rate, making it perfect for applications that do not require high levels of magnification.
Technical specifications:
Illumination:
Light/ LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut-off filter >650 nm
Diffuser available: No
Emission filter: No
Polarizer: No
Optics:
Magnification 5-40x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 1.3 megapixels (2592x1944)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and higher
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Finishes:
Housing material: Plastic housing
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105gr
Cable length: 1.8m
Features:
Special function: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information:
Package content: Microscope, carrying bag, software CD, calibration, objective, user manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
With a magnification range of 5 to 40x and a long working distance, it is ideal for various tasks that require precision and visual clarity.
The special version AM4113TL-M40 is part of the long-distance series, designed to offer a lower magnification rate, making it perfect for applications that do not require high levels of magnification.
Technical specifications:
Illumination:
Light/ LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut-off filter >650 nm
Diffuser available: No
Emission filter: No
Polarizer: No
Optics:
Magnification 5-40x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 1.3 megapixels (2592x1944)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and higher
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Finishes:
Housing material: Plastic housing
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105gr
Cable length: 1.8m
Features:
Special function: No
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information:
Package content: Microscope, carrying bag, software CD, calibration, objective, user manual
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
