Reference. 1129AM4515ZTL

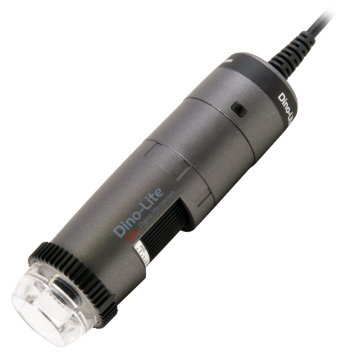

Dino-Lite Edge Digital Microscope USB, 1.3MP, 10-140x, LWD, Polarized, AMR
Dino-Lite Edge Digital Microscope USB, 1.3MP, 10-140x, LWD, Polarized, AMR
Personal advice
Description
The Dino-Lite Edge models stand out for their exceptional image quality and great flexibility, thanks to their adaptable cap. The built-in adjustable polarizer minimizes glare and reflections on shiny surfaces.
The Automatic Magnification Reading (AMR) facilitates and speeds up measurements. This microscope comes with several interchangeable caps, making the Dino-Lite Edge perfect for any professional application. With a working distance that can reach up to 23 centimeters, it is ideal for situations where real-time images are crucial, such as when working with printed circuit boards and other tiny objects.
Technical specifications:
Lighting:
Light/LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut filter >650 nm
Available diffuser: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics:
Magnification 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 1.3 megapixels (2592x1944)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and higher
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires WF-10 WiFi streamer (optional)
Finishes:
Housing material: Plastic housing
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105g
Cable length: 1.8m
Features:
Special function: Automatic magnification reading (AMR), Flexible LED control (FLC).
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information:
Package content: Microscope, carrying bag, software CD, calibration, objective, user manual, N3C-O- Open Cap, N3C-CClosed Cap, N3C-D- Diffuser Cap, N3C- Extension Cap, N3C-L- Long Cap, N3C-S- Side light cap
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
The Automatic Magnification Reading (AMR) facilitates and speeds up measurements. This microscope comes with several interchangeable caps, making the Dino-Lite Edge perfect for any professional application. With a working distance that can reach up to 23 centimeters, it is ideal for situations where real-time images are crucial, such as when working with printed circuit boards and other tiny objects.
Technical specifications:
Lighting:
Light/LED type: White
Number of LEDs: 8
Switchable LED on/off: Yes
Infrared filter: IR cut filter >650 nm
Available diffuser: Yes (N3C-D included)
Emission filter: No
Polarizer: Yes, linear
Optics:
Magnification 10-140x
Macro zoom: No
Working distance: Long
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 1.3 megapixels (2592x1944)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.9 and higher
Software: DinoCapture 2.0 (Windows), DinoXcope (MacOS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Compatible video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Compatible video formats (MacOS): MOV (max. 1.3 MP)
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires WF-10 WiFi streamer (optional)
Finishes:
Housing material: Plastic housing
Dimensions: 10.5cm (L) x 3.2cm (D)
Weight: 105g
Cable length: 1.8m
Features:
Special function: Automatic magnification reading (AMR), Flexible LED control (FLC).
Measurement: Yes
Calibration: Yes
Microtouch sensor: Yes
ESD safe: No
Information:
Package content: Microscope, carrying bag, software CD, calibration, objective, user manual, N3C-O- Open Cap, N3C-CClosed Cap, N3C-D- Diffuser Cap, N3C- Extension Cap, N3C-L- Long Cap, N3C-S- Side light cap
Warranty information: 2 years European warranty
Regulatory approval: CE, FCC, ROHS
