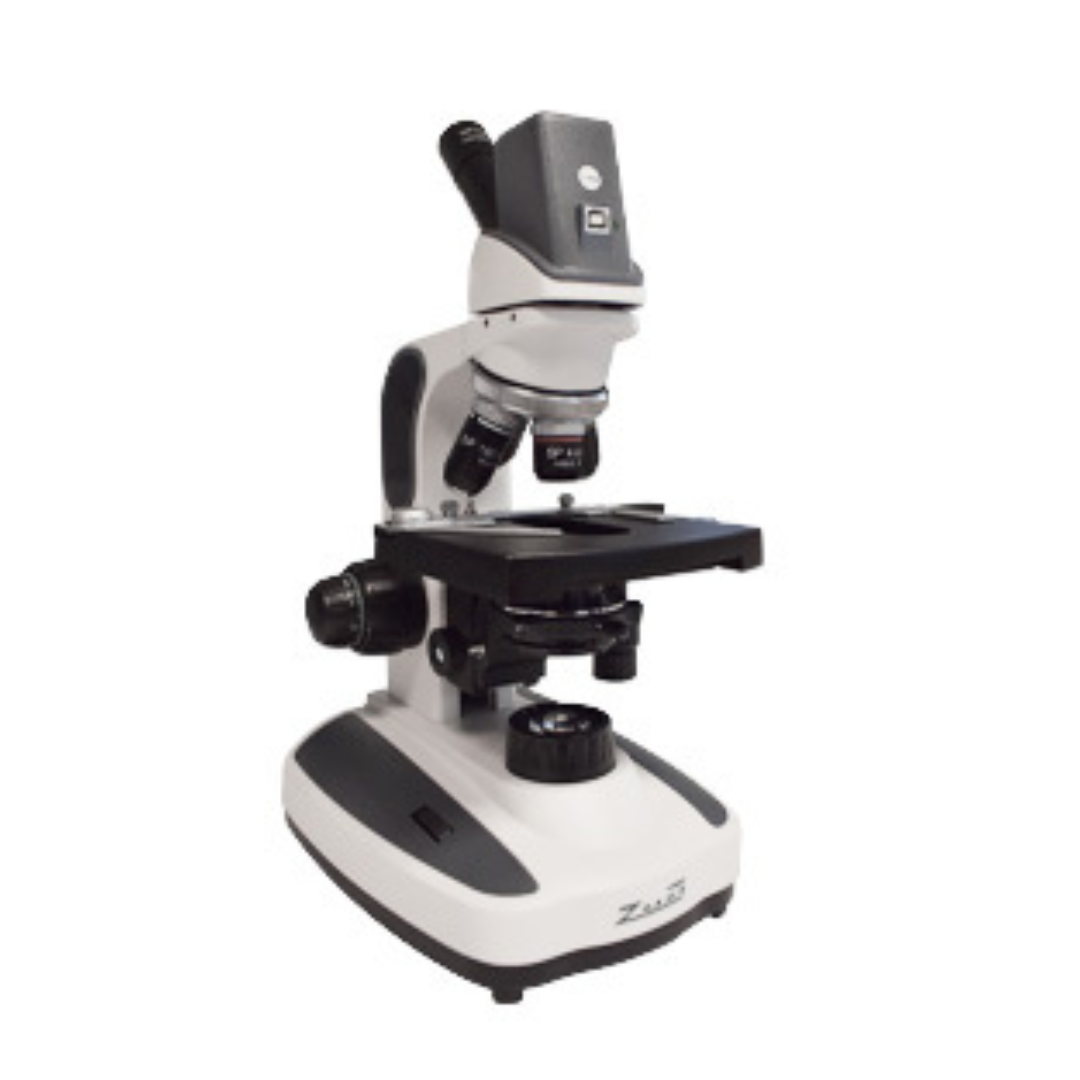

Digital monocular microscope with 1.3 MP camera, model 400NS-130. Objectives 4X - 100X

Monocular microscope with a digital visualization system designed for professional use. Equipped with a coaxial focus adjustment, semi-flat achromatic objectives, and a rotating head.

Personal advice

Digital monocular microscope with 1.3 MP camera, model 400NS-130. Objectives 4X - 100X

475,00€ (574,75€ VAT INCLUDED)

Secure payment

Approximate delivery time of 10 to 20 days

Inquiry about the product

Description

The 400NS-130 digital microscope is a milestone for its multiple features and its simple and intuitive design. Manufactured with a coaxial adjustment focus, it is capable of reproducing highly accurate and detailed images. In addition, it comes with semi-flat achromatic objectives, which guarantee a clear and aberration-free visualization.

The 400NS-130 model incorporates a high-power LED light system and an Abbe condenser, a unique combination that illuminates the sample more clearly and allows for more accurate results. All this is accompanied by a head able to rotate up to 360º designed to be used from any angle, making it exceptionally comfortable and practical to use for laboratory professionals.

General features
- Sturdy plastic base supported by rubber feet
- Robust stand design with hole for easy transport
- Inverted quadruple turret for quick and safe objective change
- Semi-flat achromatic objectives for an optimized image
- 360º rotating head for use from any angle
- Integrated Abbe N.A. 1.25 condenser with diaphragm and Ø 32 mm filter holder
- Coaxial adjustment focus for a clear image
- Supports portable use thanks to its battery compartment
- In compliance with Directive 2014/35/EU and standard EN 61010-1:2010

Technical specifications
- Head: monocular
- Head tilt: 45º
- Integrated camera: CMOS 1.3 MP (software included)
- Eyepiece: WF10X (20 mm)
- Maximum resolution: 1280 x 960
- Turret: quadruple
- Objectives: semi-flat achromatic 4X, 10X, 40X(R) and 100X(R) (oil)
- Stage: double-layer mechanical 130 x 130 mm (x-axis: 0 - 70 mm; y-axis: 0 - 3 mm)
- Condenser: Abbe N.A. 1.25
- Focus: coaxial macro/micro adjustment
- Light source: LED 1 W
- Power supply: 100 - 240 V AC/50 - 60 Hz or rechargeable batteries
- Batteries: 3 1.5V AA batteries
- Weight: 3.55 kg
- Dimensions: 183 x 235 x 390 mm

Standard accessories (included)
- Clear plastic cover
- Oil bottle
- Blue Ø 32 mm filter
- Power supply
- Allen keys for assembly
