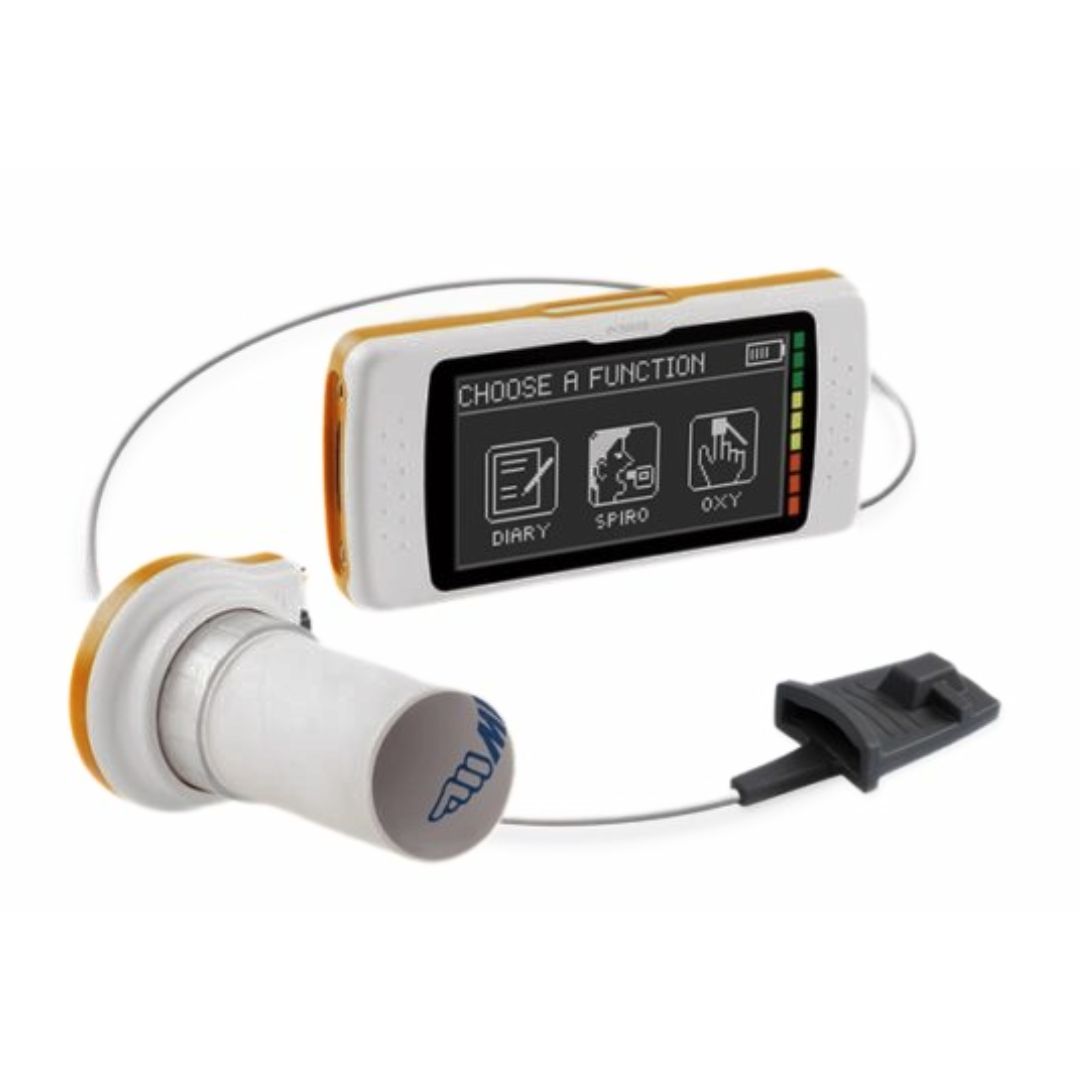

Diagnostic Spirometer with Spirodoc Oxy Oximeter. Various options.

Spirodoc is an innovative medical instrument that combines four essential functions into a single compact and easy-to-use device. With its advanced technology and ergonomic design, Spirodoc simplifies and optimizes the diagnosis and monitoring process for patients with respiratory conditions.

Cutting-edge Spirometer:
This device features an intuitive touchscreen that allows for precise lung function tests, including FVC, VC, IVC, MVV, and PRE-POST. Thanks to the disposable FlowMIR turbines, Spirodoc ensures maximum accuracy and 100% hygiene. Additionally, it provides an accurate interpretation of spirometry results, even after bronchodilation, and can store up to 10,000 exams.

3D Accelerometer for Oxygen Prescription:
Following the ATS recommendations on COPD, Spirodoc quantifies exercise capacity during monitoring and respiratory rehabilitation. It also complies with the European Union Commission guidelines for Telemedicine in COPD, integrating respiratory functionality, saturation analysis, symptom questionnaire, and physical activity.

Questionnaire:
Spirodoc allows for an easy and quick input of symptoms through its touchscreen. It offers a broad configuration and customization of questions about quality of life, which are automatically stored in the patient's diary.

Spirometry Option:
It features a turbine flow and volume meter for spirometry, ensuring a robust and secure connection.

The data collected by Spirodoc can be easily transmitted via USB or Bluetooth to teleassistance centers for a more accurate diagnosis. Moreover, it has been designed with different usage modes: advanced parameters for specialists, reduced options for screening, and a simplified version for home use.

Includes:
- WinspiroPRO software PC CD.
- USB Cable.
- Lithium-Ion rechargeable battery set.
- Nose Clip.
- Belt with plastic case.
- Reusable "soft" oximetry sensor.
- CD with user manual.
- Carrying case.
- 12-month warranty.

Technical Specifications:
- Backlit LCD touchscreen 128 x 64 pixels.
- Power supply: 3.7V, 1100 mA Lithium-Ion rechargeable battery.
- 60 disposable turbines that comply with ATS/ERS standards.
- Data transmission: USB 2.0 On-The-Go and Bluetooth 2.1.
- Accelerometer: triaxial +/- 2g, 400 Hz sampling.
- Dimensions: 101 x 48 x 16 mm.
- Weight: 99 g.
- Detachable turbine holder head: 46 x 47 x 24 mm, 27 g.
- SpO2 range: 0-99%.
- SpO2 accuracy: +/- 2% (70-99% SpO2).
- Pulse range: 30-254 ppm.
- Pulse frequency accuracy +/- 2ppm or 2%, whichever is greater.
