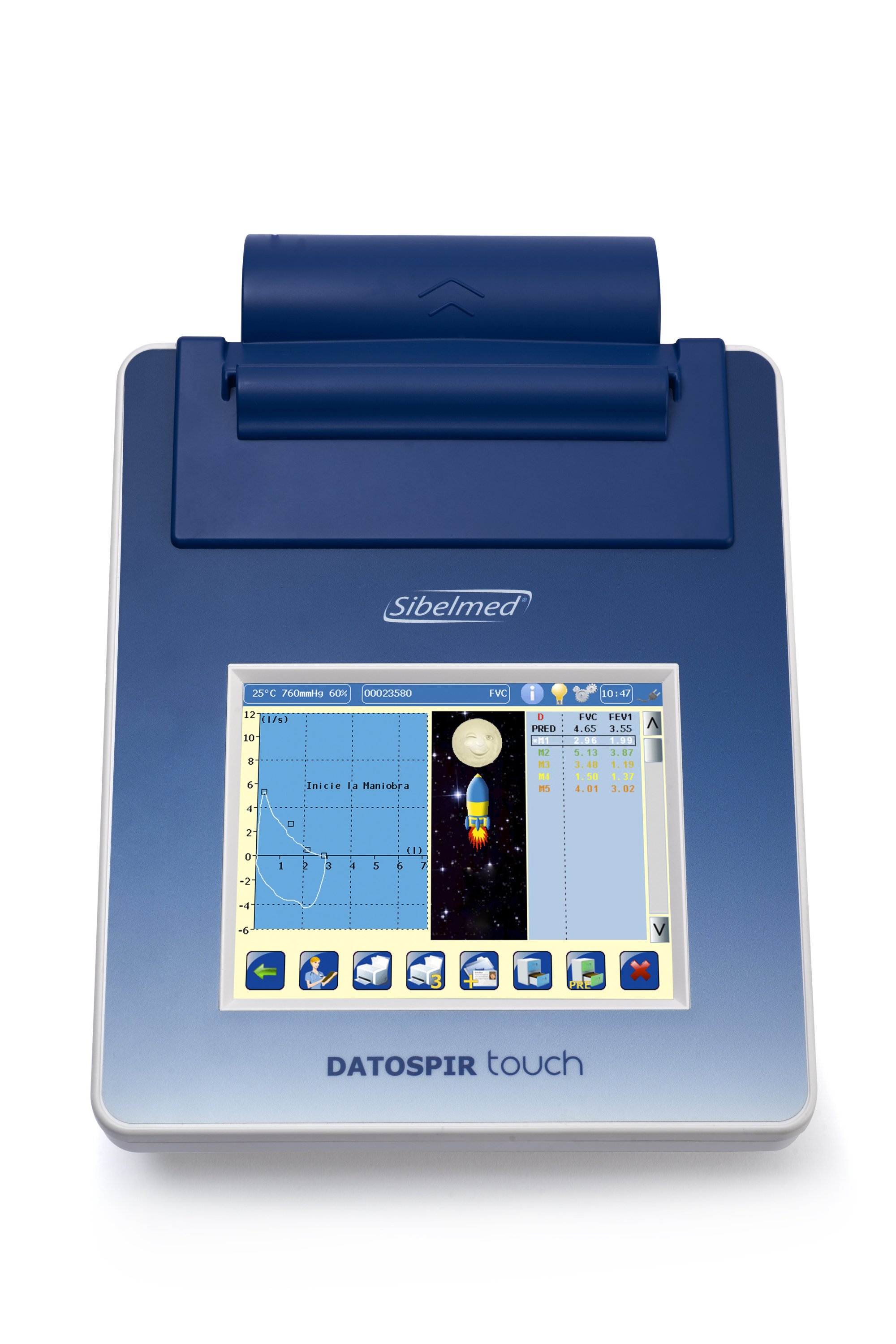

Datospir Touch Easy tabletop spirometer, with turbine and W20s software

Datospir Touch is a desktop spirometer with a touch screen that complies with the latest ATS/ERS and SEPAR recommendations and incorporates new international references. It includes a turbine transducer.

Main Features
• High-resolution color touchscreen.

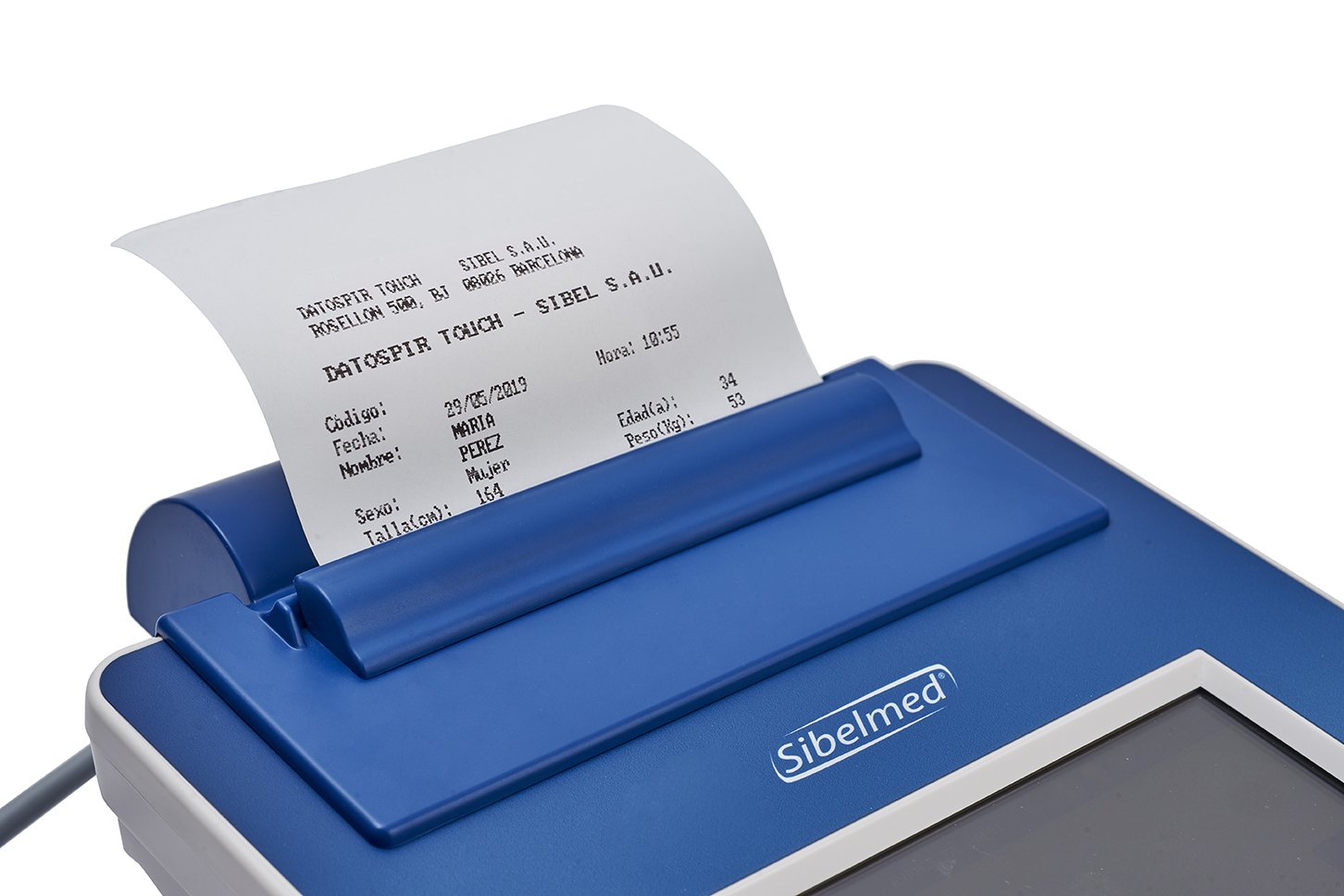

• Internal printer.
• Rechargeable battery.

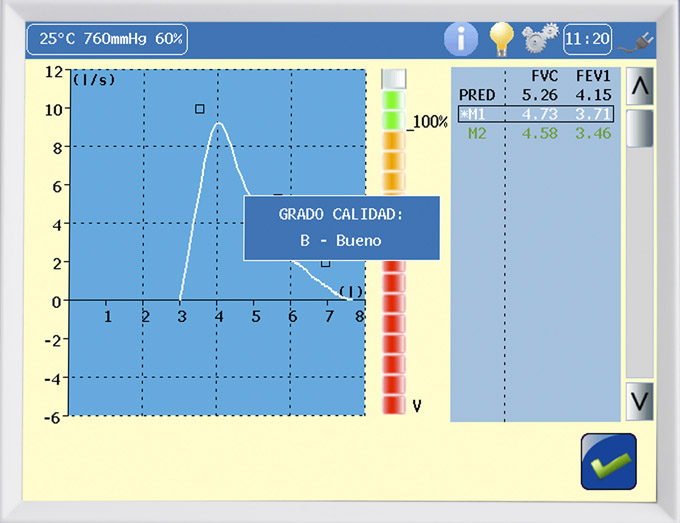

• Spirometry quality control program: quality grades of tests, accuracy verification and calibration program.
• Database of more than 3000 tests with graphics.
• Tests: FVC, VC, MVV, Bronchodilation.

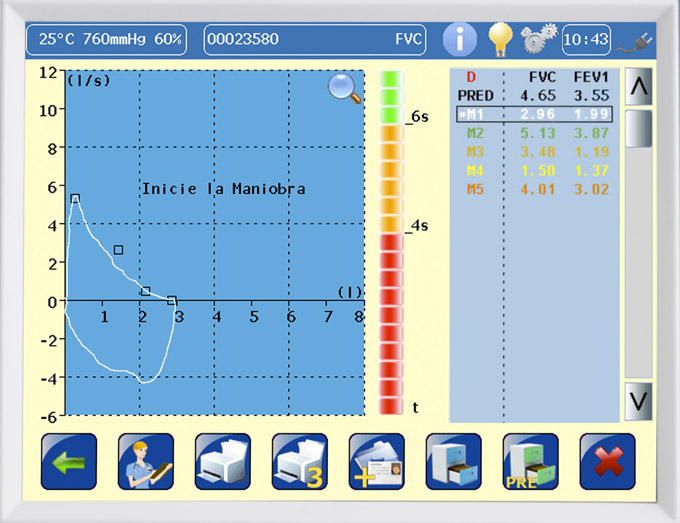

• Simultaneous F/V and V/T graphs.

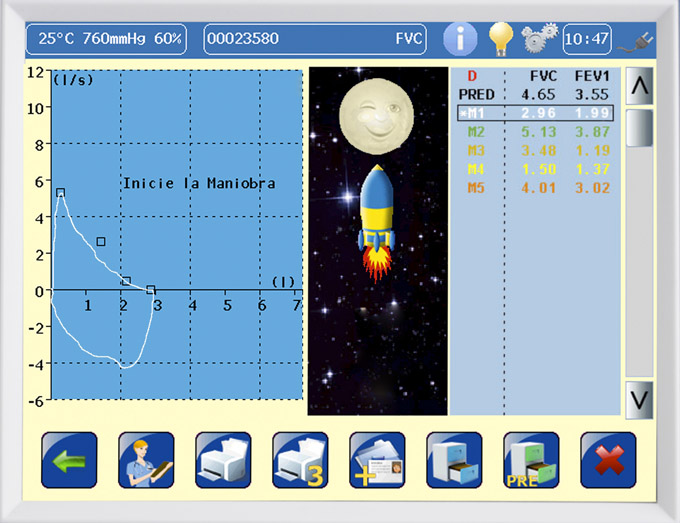

• Adult and pediatric graphic incentives.
• On-screen help.
• Integrated temperature sensor.

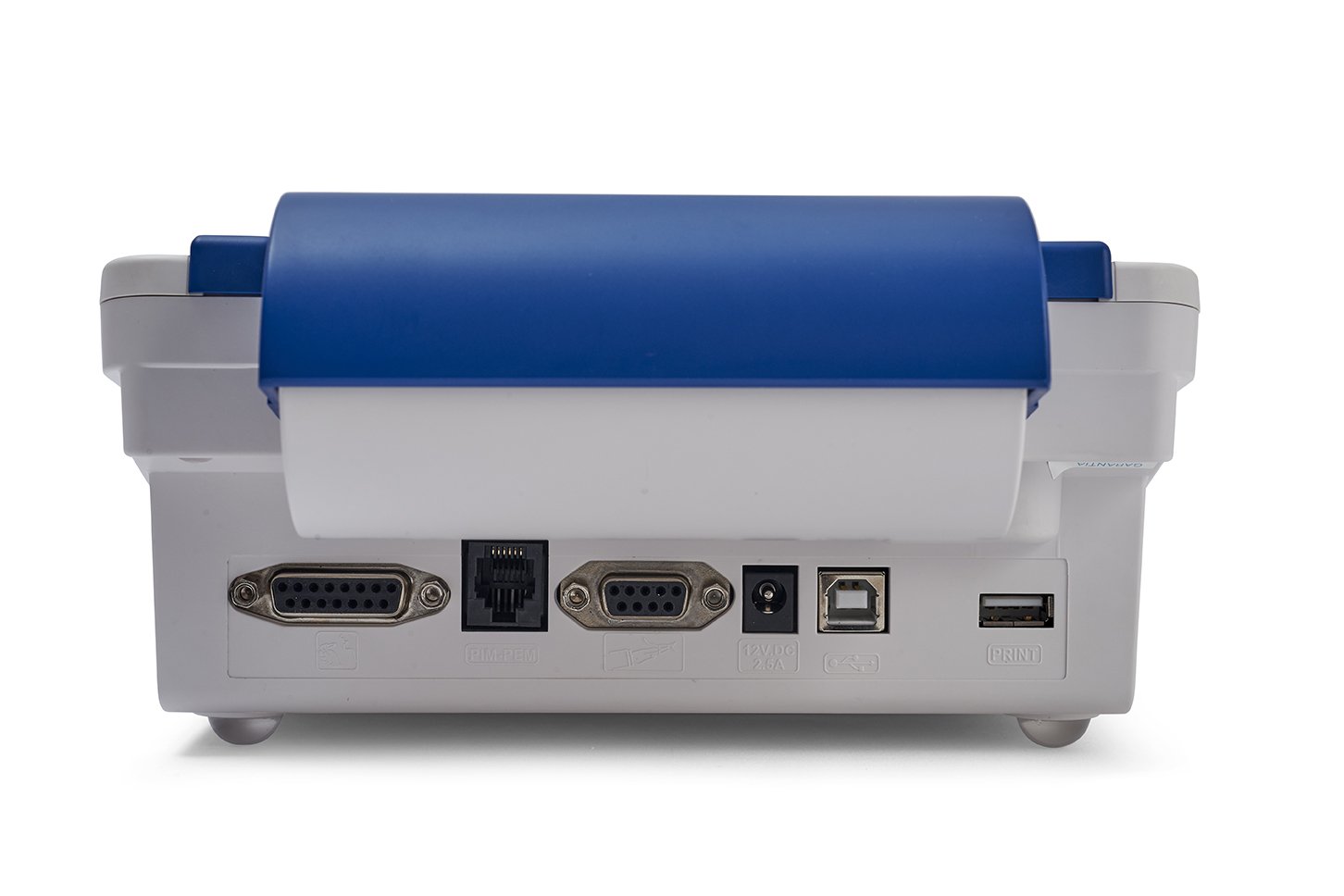

• Connectivity via USB.
• Interoperability compatible with HL7(Spirometry CDA). HL7: Health Level Seven is an international standard for the interoperability of health information systems. (Using W20s software).
• Suitable for telemedicine.
• It has a PIN code (for compliance with the Organic Law on Data Protection, LOPD).

Software
Datospir Touch comes standard with SIBELMED W20s software, with which you can perform quality spirometries in a simple and intuitive way:
• Tests: FVC/ Bronchodilation, VC, MVV.
• Simultaneous F/V and V/T graphs.
• Graphic incentives.
• Selection of different automatic diagnoses.
• More than 20 international references.
• Includes Quanjer 2012-GLI reference values with LLN and Z-score.
• Includes the Quanjer 2012-GLI graph on screen and in report.
• Spirometry quality control.
• Trend report to visualize patient evolution.
• Data export in XML or PDF.
• Management of different databases.
• Compatible with Windows XP, VISTA, 7, 8.1 and 10.

Technical Specifications

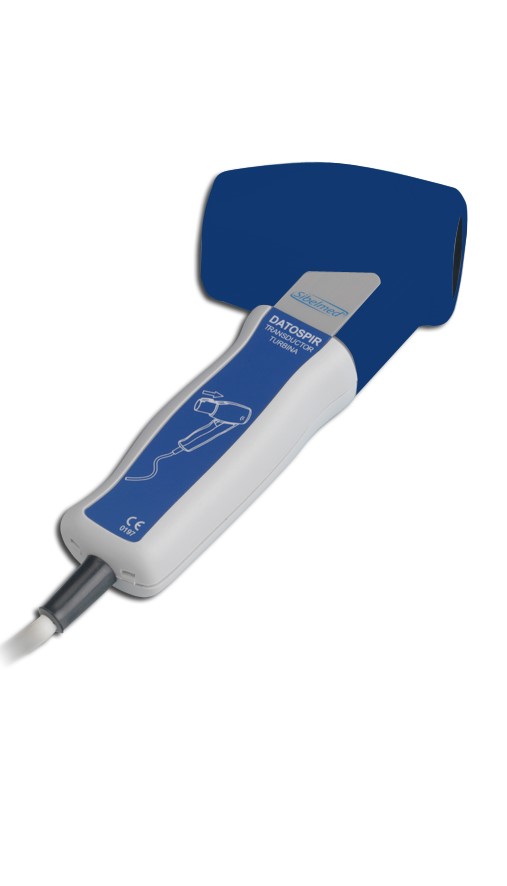

• Flow transducer: turbine
• Dimensions: 195 x 270 x 100 mm.
• Weight (without battery or accessories): 1.25kg.
• Screen: high-resolution color touchscreen VGA 640x480px and 5.7 inches

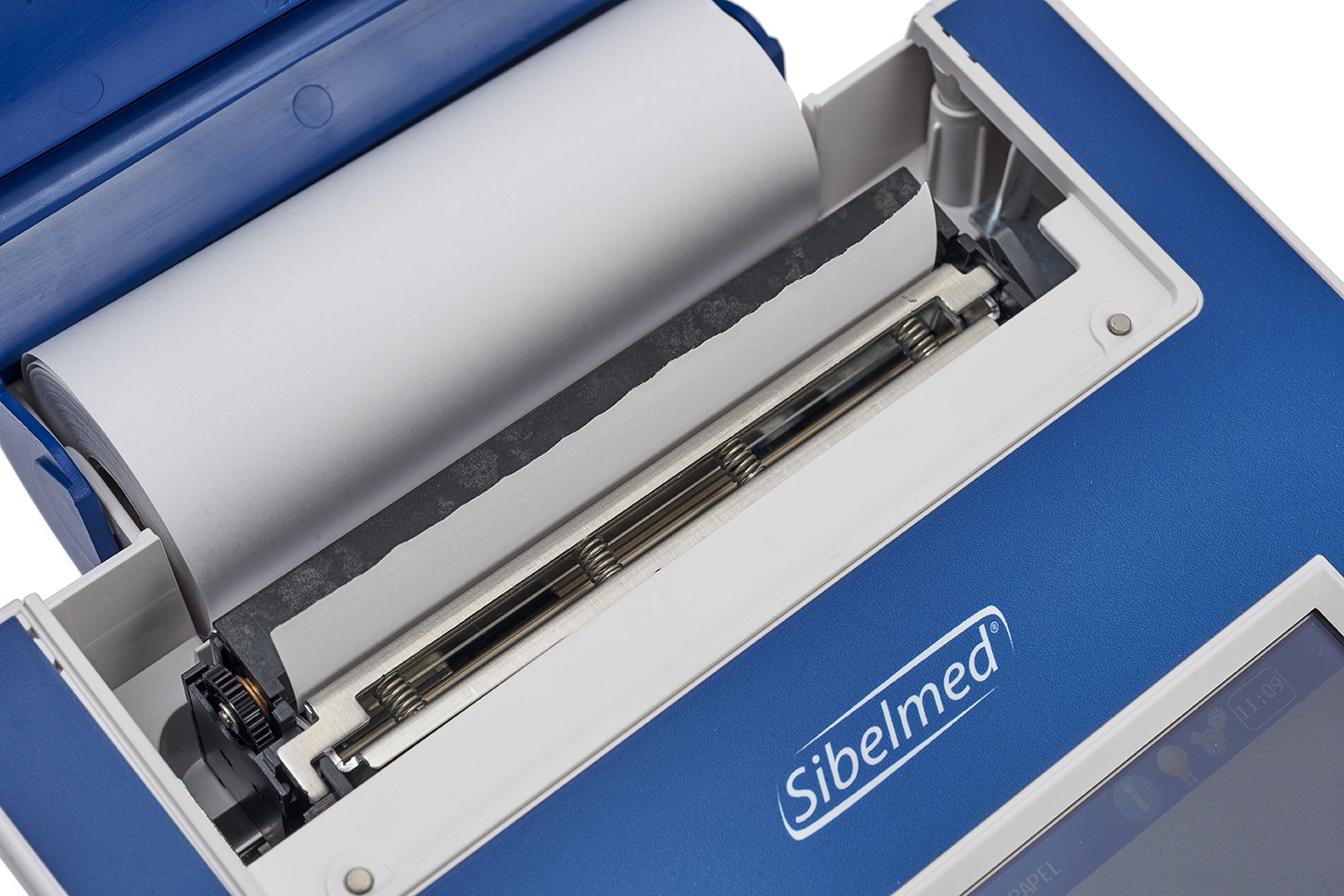

• Printer: Thermal and graphic of 112 mm.
• Rechargeable battery: Ni-Mh 9.6V > 2000 mAh. Autonomy of 1.5h approx.
• Power supply: 100 to 240V, 50 to 60Hz.
• Power: 30W
• Measurement range (BTPS):
- Flow: 0 to ±16 l/s
- Volume: 0 to 10 l
• Dynamic resistance: < 1.47 hPa (1.5 cmH2O) / (l/s) at 14 l/s
• Measurement accuracy (BTPS)
- Volume: 3% or 50 ml
- Flow: 5% or 200 ml/s
- PEF: 10% or 170 ml/s
• Temporal accuracy: 0.50%
• Volume resolution: <10 ml
• Sampling frequency: 100Hz

Parameters
• FVC / Bronchodilation:
FVC (l), FEV1 (l), FEV1/FVC (%), PEF (l/s), FEF50%(l/s), FEF25-75% (l/s), FEV6 (l), FEV1/FEV0.5 (-), PEFT (s), Vext (l), FIVC (l), FIF50%, FEF50/FIF50, QC Grade, FEV.5 (l), FEV3 (l), FEV.5/FVC (%), FEV3/FVC (%), FEV1/VC (%), FEV1/FEV6 (%), FEV1/PEF (%), FEV1/FIV1 (-), PEF/PIF (-), FEF25% (l/s), FEF75% (l/s), FEF75-85% (l/s), FET25-75 (s), FET100 (s), FIV1 (l), FIV1/FIVC (%), PIF (l/s), MTT (s), MVVInd (l/min), COPD Index (%), Lung Age (years).
• VC:
VC (l), TV (l), ERV (l), IRV (l), IC (l), Ti (s), Te (s), Tt (s), Ti/Tt (%)
• MVV:
MVV (l/min), Br./min (Br/min)

Certificates
• Directive: 93/42/EEC for Medical Devices, Product Class IIa
• Standards: EN ISO 13485:2016+AC:2018, EN ISO 9001:2015, EN ISO 14971:2012, EU 2016/679, EN 60601-1:2006 + AC:2010 + A11:2012 + A1:2013 + AC:2014, EN 60601-1-2:2015, EN ISO 10993-1:2009 + AC:2010, EN 60601-1-6:2010+A1:2015, EN 62366:2008+A1:2015, EN ISO 26782:2009 + AC:2009, EN ISO23747:2015, EN 62304:2006 + AC:2008 + A1:2015, EN ISO 80601-2-61:2011, EN 60721:1995, EN 60068:1999, EN 1041:2008, EN ISO 15223-1:2016, EN980:2008.

Standard Accessories
1 Plastic mouthpiece
1 Nose clip
1 CD with W20s Software
1 user manual
1 USB Cable (PC connection)
1 Bag of cardboard mouthpieces (25u.)
