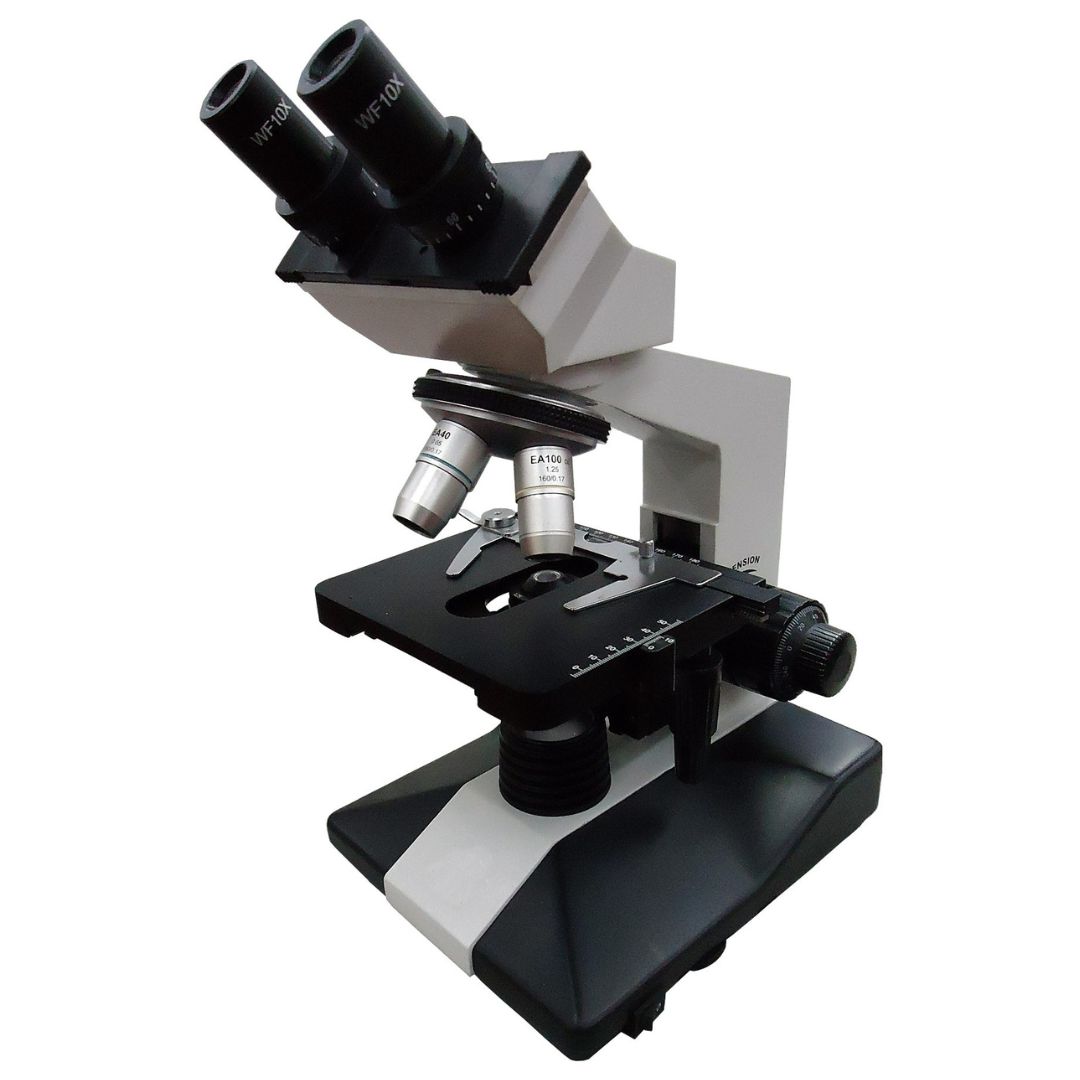

Binocular Microscope 701 LED

Binocular Microscope 701 LED

FEATURES

Binocular head inclined at 45° and 360° rotation.

Adjustable interpupillary distance between 52 and 72 mm.

Diopter adjustment of ±5 dp in both eyepieces, to compensate for differences in visual acuity.

Pair of DIN wide-field eyepieces WF 10x (18 Ø) and WF 16x (11 Ø).

DIN achromatic objectives of bright field 4x (A.N. 0.10), 10x (A.N. 0.25), 40x (A.N. 0.65) retractable and 100x (A.N. 1.25) oil immersion and retractable; color-coded for quick identification.

Total magnification: 1600x.

Quadruple revolving nosepiece with rotation in both directions and click stops.

Large size stage, 135x145 mm, adjustable in height, by rack and pinion mechanism, by coaxial bilateral focus controls, micrometer graduated in 0.002 mm and macrometric with tension adjustment (travel 30 mm).

Pre-set safety stop displacement limiter.

Mechanical stage (mobile carriage), with 0.1 mm graduation scale, composed of a smooth displacement mechanism (x-y), by rack and pinion, longitudinal of 40 mm and transversal of 80 mm.

Abbe condenser of 1.25 A.N. with iris diaphragm and filter holder. Adjustable in height by rack and pinion.

Transmitted illumination (diascopic), with removable condenser lens and precenterable 3W LED low voltage lamp with adjustable intensity or illumination by fork device, through flat-concave mirror reflector for optimal illumination by external source.

Sturdy stand that incorporates the illuminator, intensity potentiometer and power switch in its base.

Measurements in mm: height 370 x width 200 x depth 225.

Weight 6 Kg.

Supplied with set of blue filters, frosted glass filter, spare fuse, immersion oil bottle and plastic protective cover.

Power supply: 110/220 V-50/60Hz
