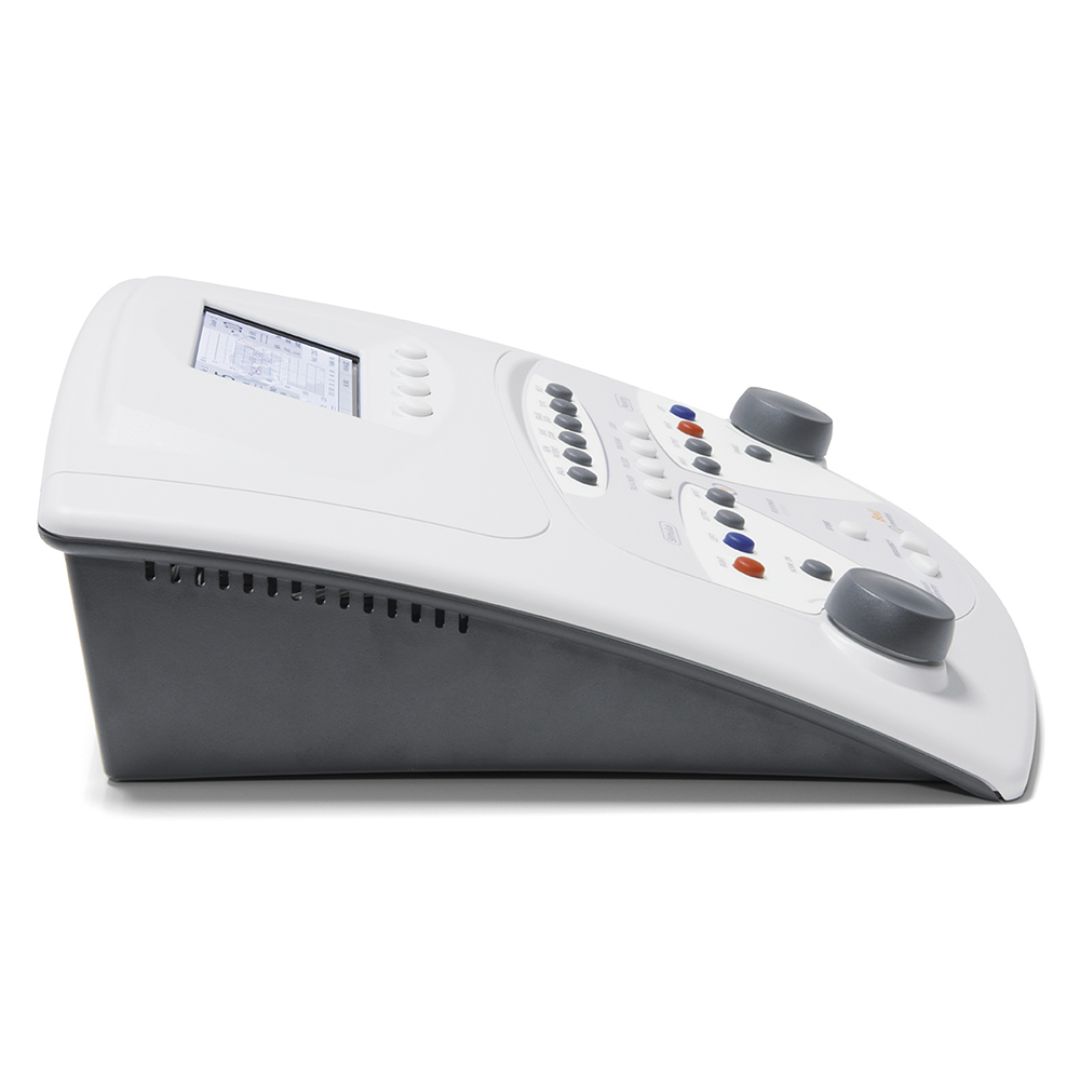

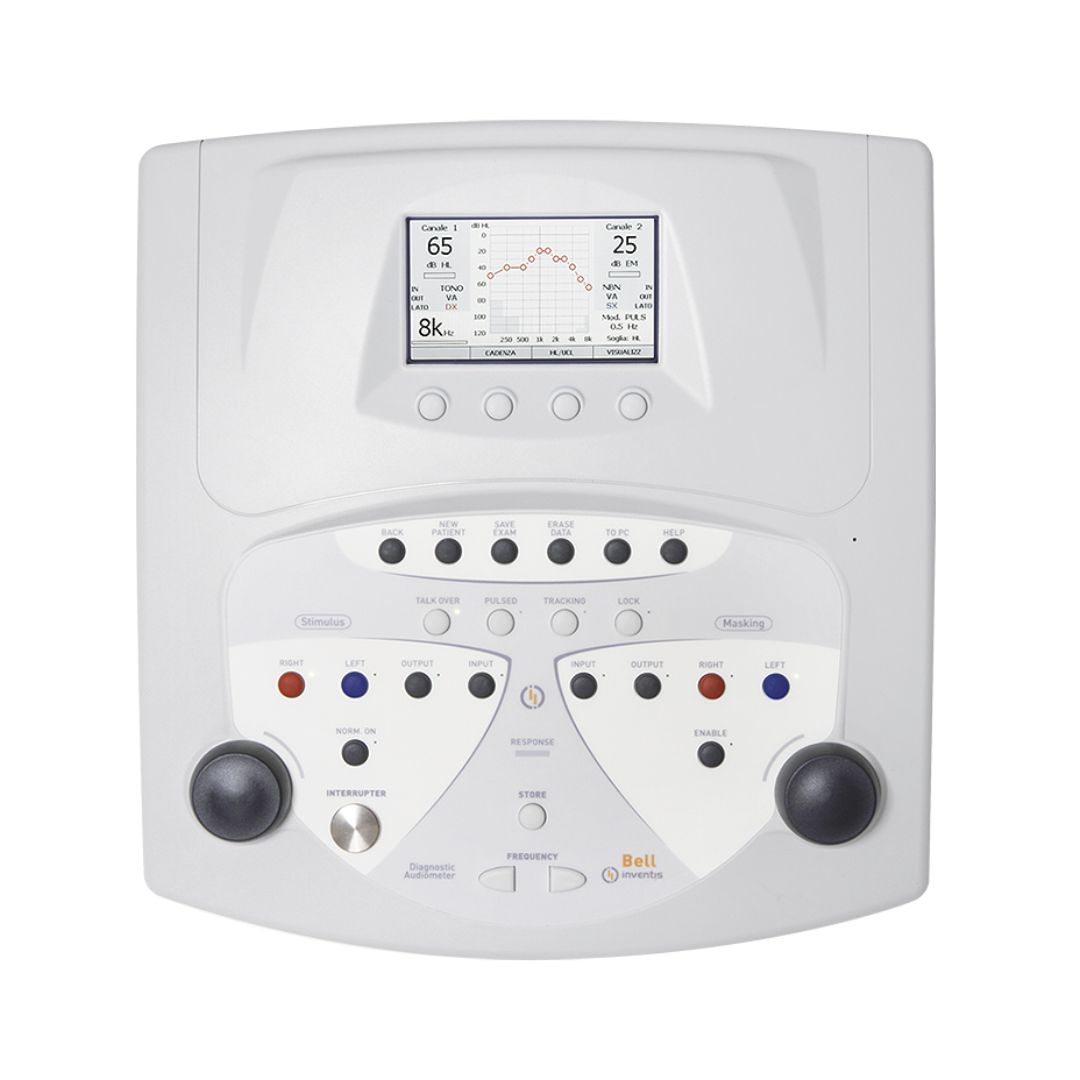

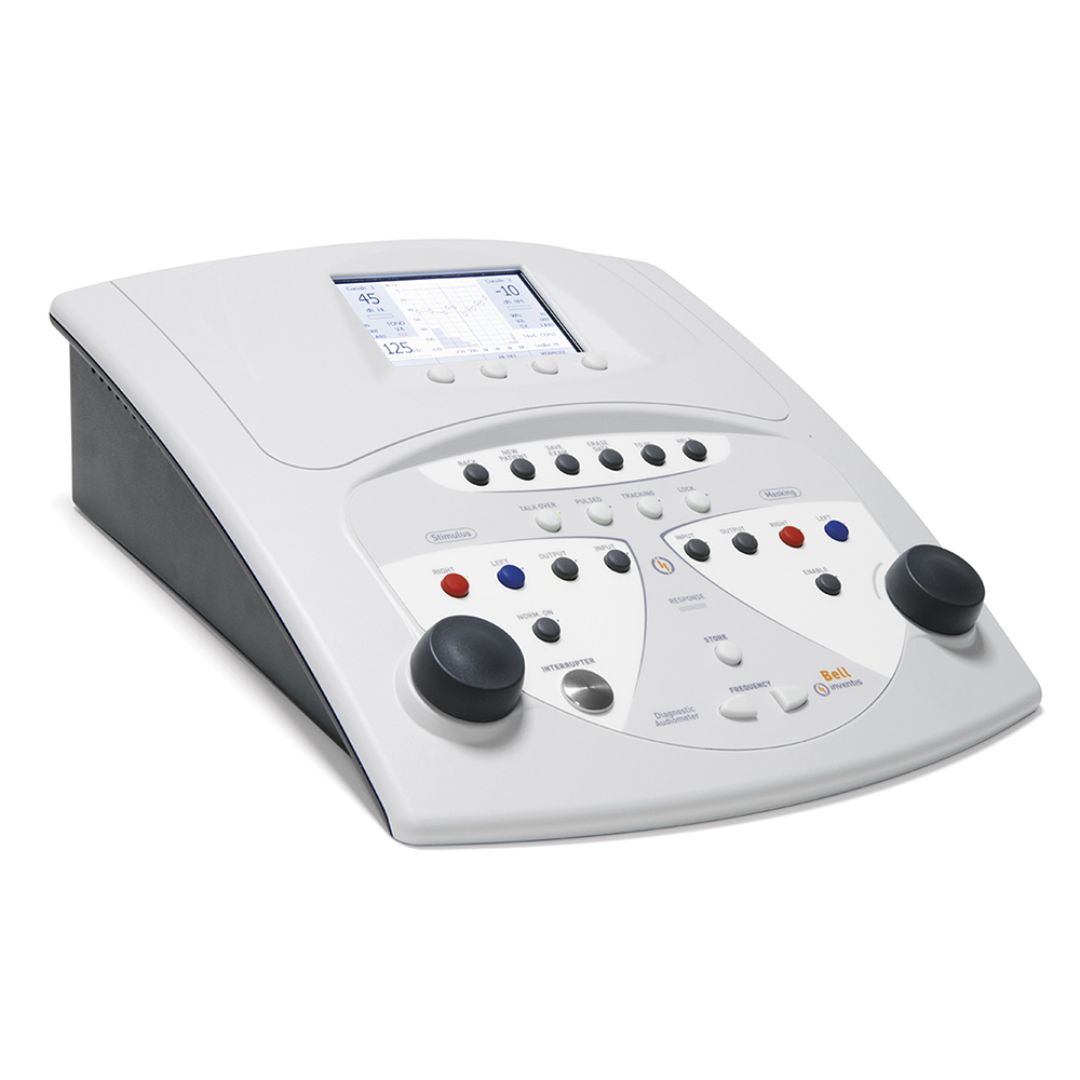

Basic Bell Diagnostic Audiometer

The Bell Basic audiometer is characterized by its simple operation and easy-to-use interface, making it ideal for private clinics, multi-specialist clinics, and occupational medicine applications.
Its easy portability and compact design make it a versatile and practical instrument.

The Bell Basic is specifically configured for air conduction, distinguishing it from the Bell Plus model, which also includes bone conduction.

The Bell Basic audiometer incorporates Inventis Hy-Tech technology, which allows it to be operated in two ways: in traditional standalone mode or controlled through a computer. This versatility increases its usefulness in different clinical settings.

It can be connected to a computer via USB without the need for drivers, allowing test results to be transferred to Maestro or Noah databases. The live visualization function allows a wide view of the ongoing exam on the computer screen.

Technical Specifications:
- Available signals:
    • Stimulus: pure tone, warble tone.
    • Masking: NBN, WN.
- Signal specifications:
    • Attenuator step: 5 dB.
    • Presentation: Continuous, pulsed (0.5, 1 and 2 Hz).
    • Warble: 5 Hz sinusoidal wave modulating signal.
- Available outputs and transducers:
    • AC: TDH-39 / DD45 headphones, ER-3 / IP30 insert headphones.
- Available tests:
    • Pure tone audiometry.
    • Automatic threshold (modified Hughsone-Westlake).

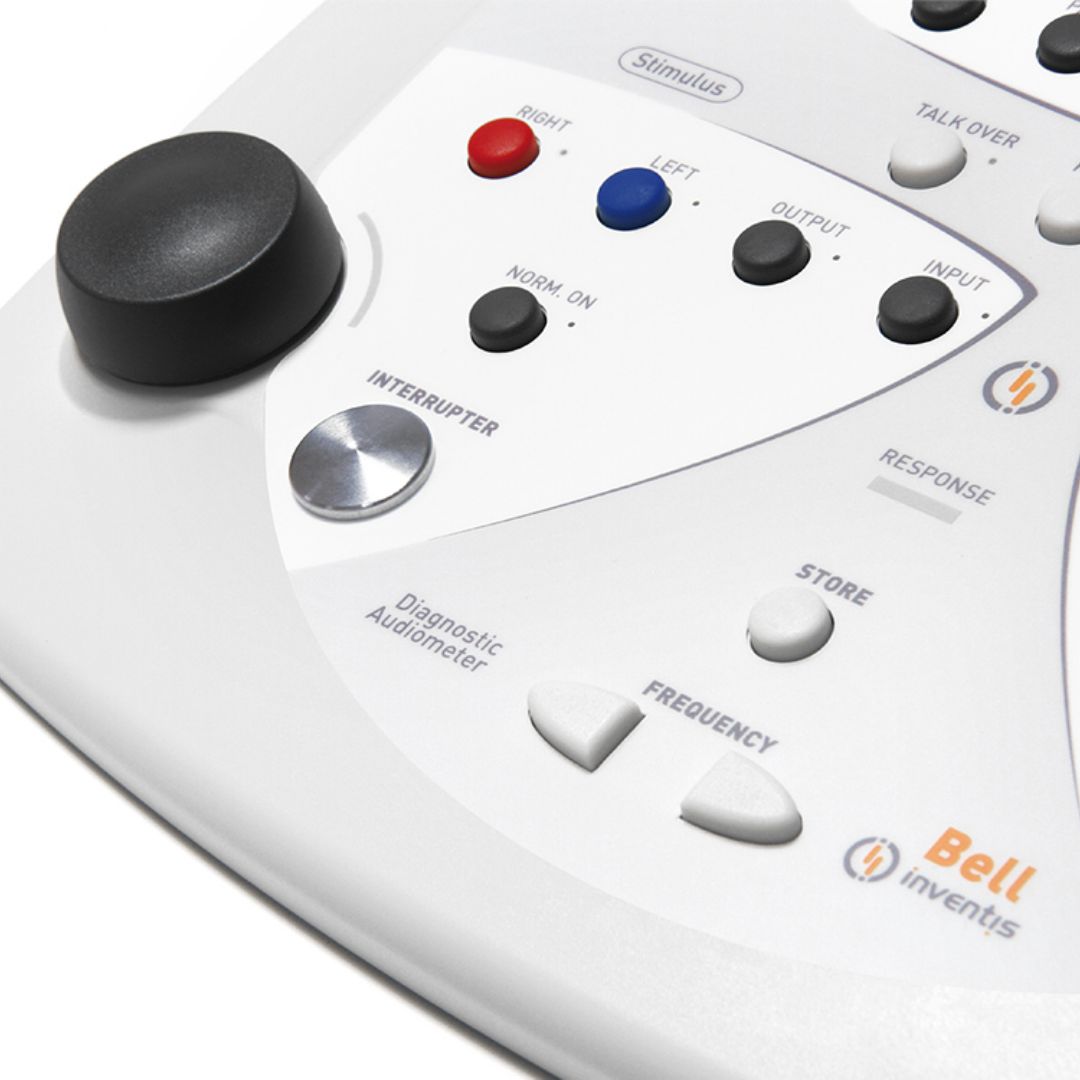

- Patient-operator communication:
    • Talk over: built-in or external microphone (optional).
    • Patient response trigger.
- Internal database:
    • Up to 100 patients with AC and BC thresholds.
- Calibration:
    • Validity: 12 months.
    • All parameters configured through the device software.
- Computer interface:
    • Connection: USB (driverless).
    • Compatible software: Inventis Maestro.
- Hybrid technology:
    • Description: Bell can be operated as an independent audiometer or PC controlled.
    • Requires Inventis Maestro software.
- Screen

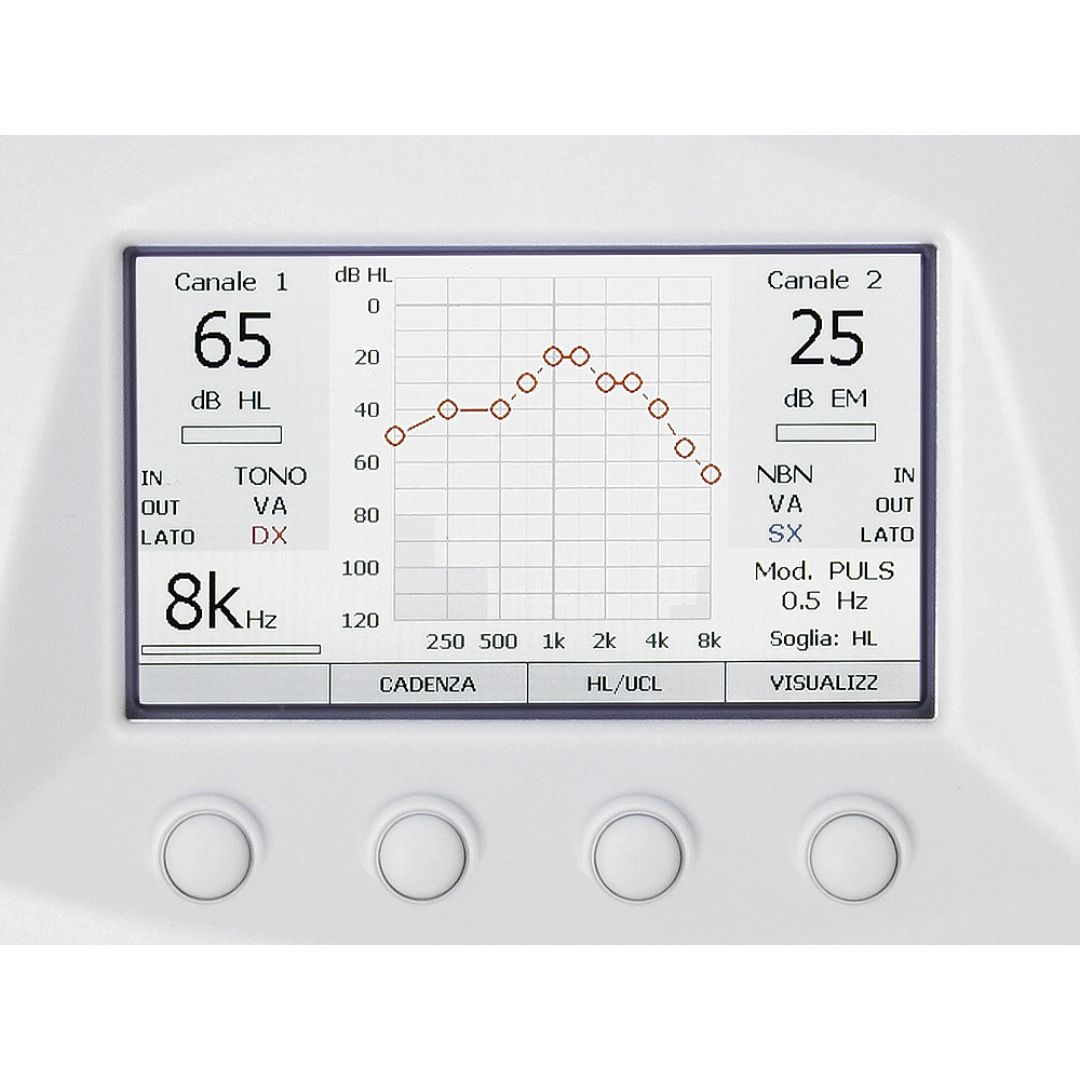

    • Displays the full audiogram during the test.
    • Type: Color TFT LCD graphic.
    • Size: 4.3" diagonal, 95 mm x 54 mm.
    • Resolution: 480 x 272.
- Power supply:
    • Maximum consumption: 8 Watts.
    • Power: 6V, 2A cont., through an external medical grade power supply 100-240 Vac 50/60 Hz.
- Mechanics:
    • Size: 32 x 32 x 9 cm.
    • Weight: 1.8 Kg.
