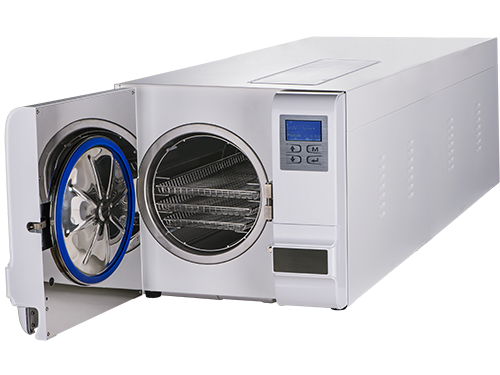

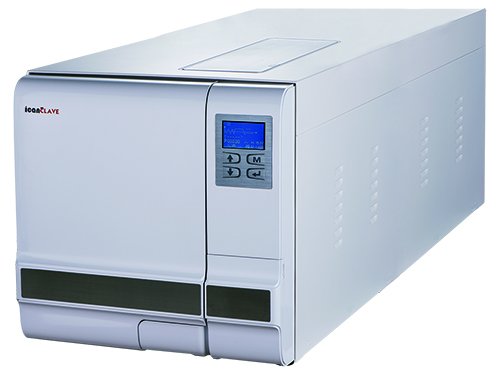

29 liter class B IcanClave autoclave with printer
29 Liter Class B Autoclave
29 Liter Class B Autoclave with USB and double safety lock, with a greater length that allows sterilization of instruments up to 600mm. Technical Specifications • Nominal Voltage: 220-110 V; 50/60 Hz • Nominal Power: 2500 W • Chamber Dimensions: 247 x...
Description
29 Liter Class B Autoclave
29 Liter Class B Autoclave with USB and double safety lock, with a greater length that allows sterilization of instruments up to 600mm.Technical Specifications
• Nominal Voltage: 220-110 V; 50/60 Hz
• Nominal Power: 2500 W
• Chamber Dimensions: 247 x 625mm
• Tray Measurements:
Tray 1: 185x570 mm
Tray 2: 213x570 mm
Tray 3: 227x570 mm
• Sterilization temperature: 121 °C / 134 °C
• Operating relative humidity: Max. 80%, non-condensing
• External dimensions: 480 x 455 x 850 mm
• Net Weight: 58 kg
• Operating atmospheric pressure: 76kPa / 106 kPa
• Maximum noise level: <70 dB
Components
• Door with automatic locking system
• Opening and closing handle
• LCD screen
• Control panel
• Distilled water tank
• USB port
• Included printer
• Key for draining distilled and used water
• Safety valve
• Ventilation grill
• Power cord
Included Accessories
• 3 Stainless steel instrument trays
• Tray base
• Tray extraction handle
• 2 Drainage hoses
• Door adjustment tool
• Instruction manual
Installation
• The sterilizer should be placed on a flat, level surface with a minimum load capacity of 60 Kg
• To ensure proper air circulation, leave at least 10cm of free space around the device on the sides and 20cm on the top
• The sterilizer should be located in a properly ventilated enclosure
• Do not install the sterilizer near sources of water and/or heat
• Do not cover the condenser fan's air outlet grille, nor block the side outlets
Regulations
This Icanclave sterilizer has been designed and manufactured in accordance with the following directives and standards:
• Directive 97/23 / EC on pressure equipment
• Directive 93/42 / EEC on Class II-a medical devices
• EN13060 regulation related to small steam sterilizers
• EN61010-1 regulation for laboratory equipment safety
• EN 61010-2-040 regulation for medical material sterilizer safety
• EN 61326-1 regulation on electromagnetic compatibility
Extras:
Without internal printer 4024STE23T
With internal printer 4024STE23TI
Alternative products
Autoclave 29 liters class B IcanClave, without printer
3.300,00€(3.993,00€ VAT INCLUDED)
