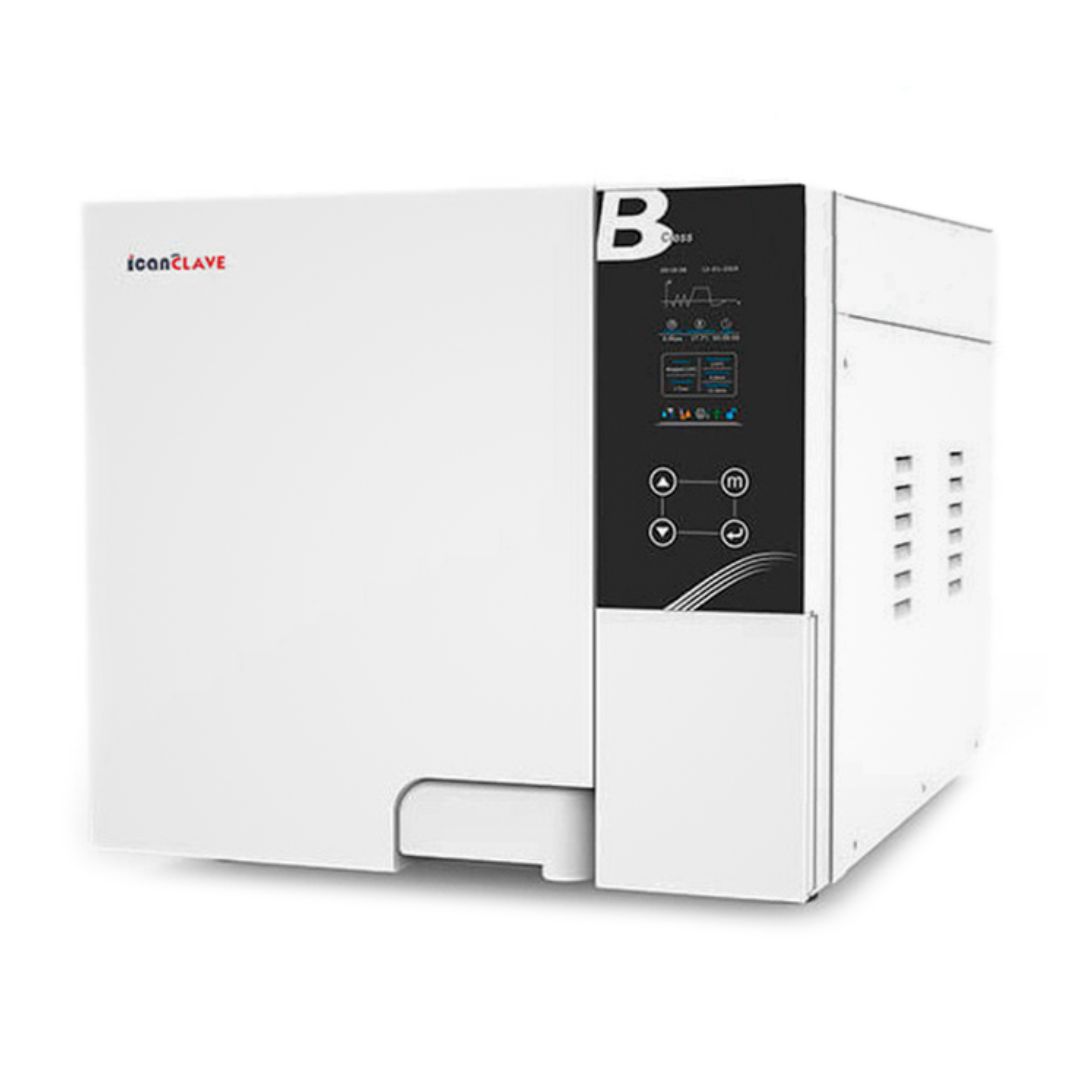

Autoclave 12 liter class B IcanClave, with printer
Description
Buy Autoclave 12 liters class B
Class B 12-liter Autoclave with USB and double safety lock. This sterilizer offers complete, stable, and lasting performance. It features a powerful steam generator and a fast sterilization speed, in addition to new functions such as "Delayed Start" and "Descaling", which enhance the user experience for medical and health professionals.Features:

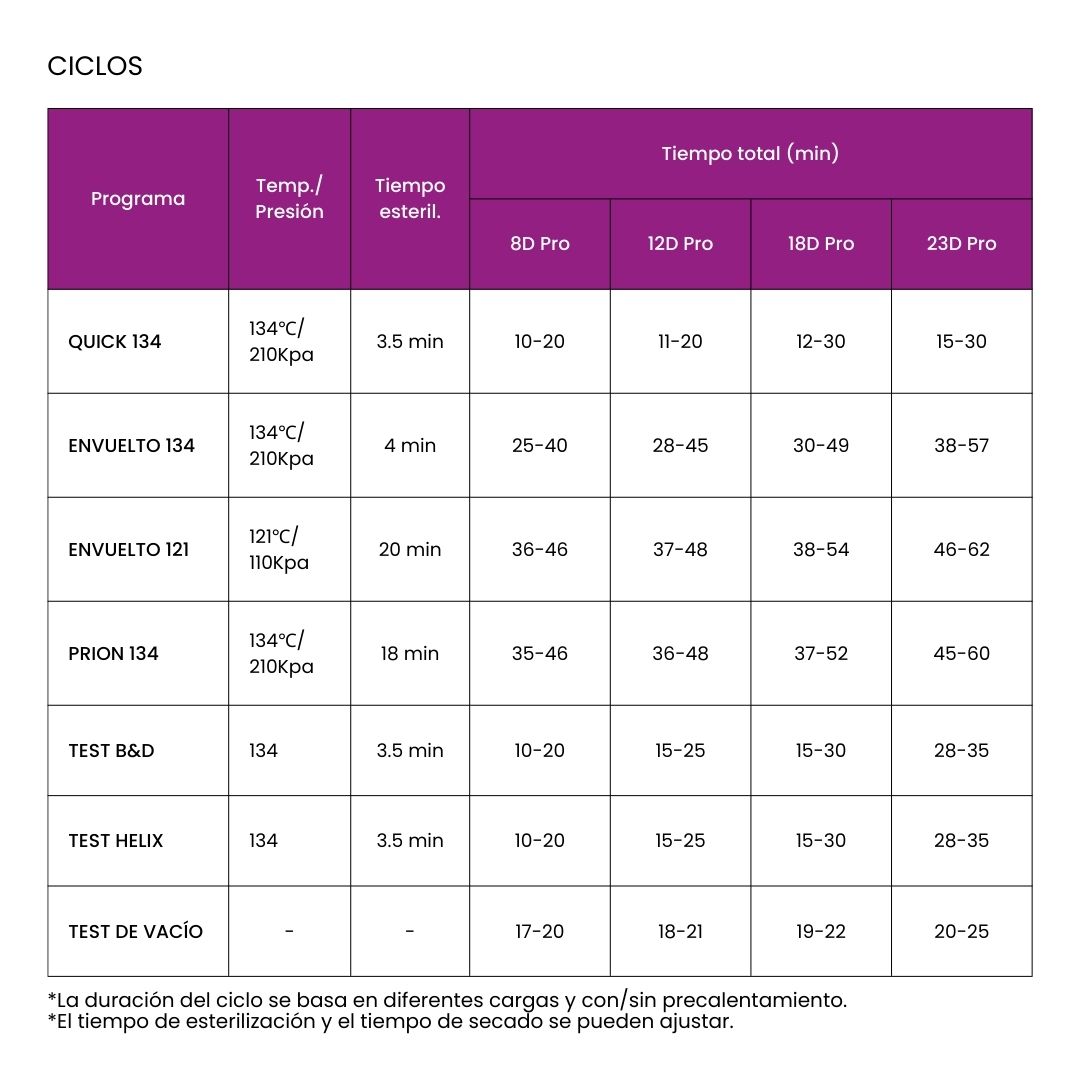

- Preprogrammed cycles: Quick 134°C, Wrapped 134°C, Wrapped 121°C, Prion 134°C, B&D Test, Helix Test, Vacuum Test.
- Additional cycles: Delayed start and descaling for cleaning the steam generator and tube.
- Steam generator: Built-in with 2300W of rated power.
- Water management: 2.5L distilled water tank and separate waste water tank.
- Water quality control: Prevents the start of the cycle if the water quality is inadequate.
- Color LCD display: Shows process cycle, time, temperature, pressure, alerts and error codes.
- Touch button: Glass with backlight, modern design and easy handling.
- Warning system: Alerts about lack of water, full tank, water quality, open door and lack of paper in the printer.
- Atmospheric pressure identification: Automatic.
- Overpressure safety valve.
- Overtemperature switch.
- Door safety lock system.
- Protection against short circuits and overcurrent.
- Automatic maintenance warning.
- Internal printer.
- USB port: For automatic export of sterilization data.
- Internal memory: Stores more than 10,000 cycles, with printing option.
Technical Specifications
- Rated Voltage: 220/110V; 50/60 Hz.
- Rated Power: 2300 W.
- Chamber dimensions: Ø200 x 360 mm.
- Tray dimensions: 160 x 315 mm.
- Chamber Volume: Approx. 12 L.
- Sterilization temperature: 121 °C / 134 °C.
- Operating temperature: 5°C ~ 40°C.
- Circuit breaker: F16A / 400V.
- Relative operating humidity: Max. 80%, non-condensing.
- External dimensions: 420 x 370 x 595 mm.
- Distilled water tank capacity: 2.5L.
- Net Weight: 40 kg.
- Operating atmospheric pressure: 76kPa / 106 kPa.
- Maximum noise level: <70 dB.

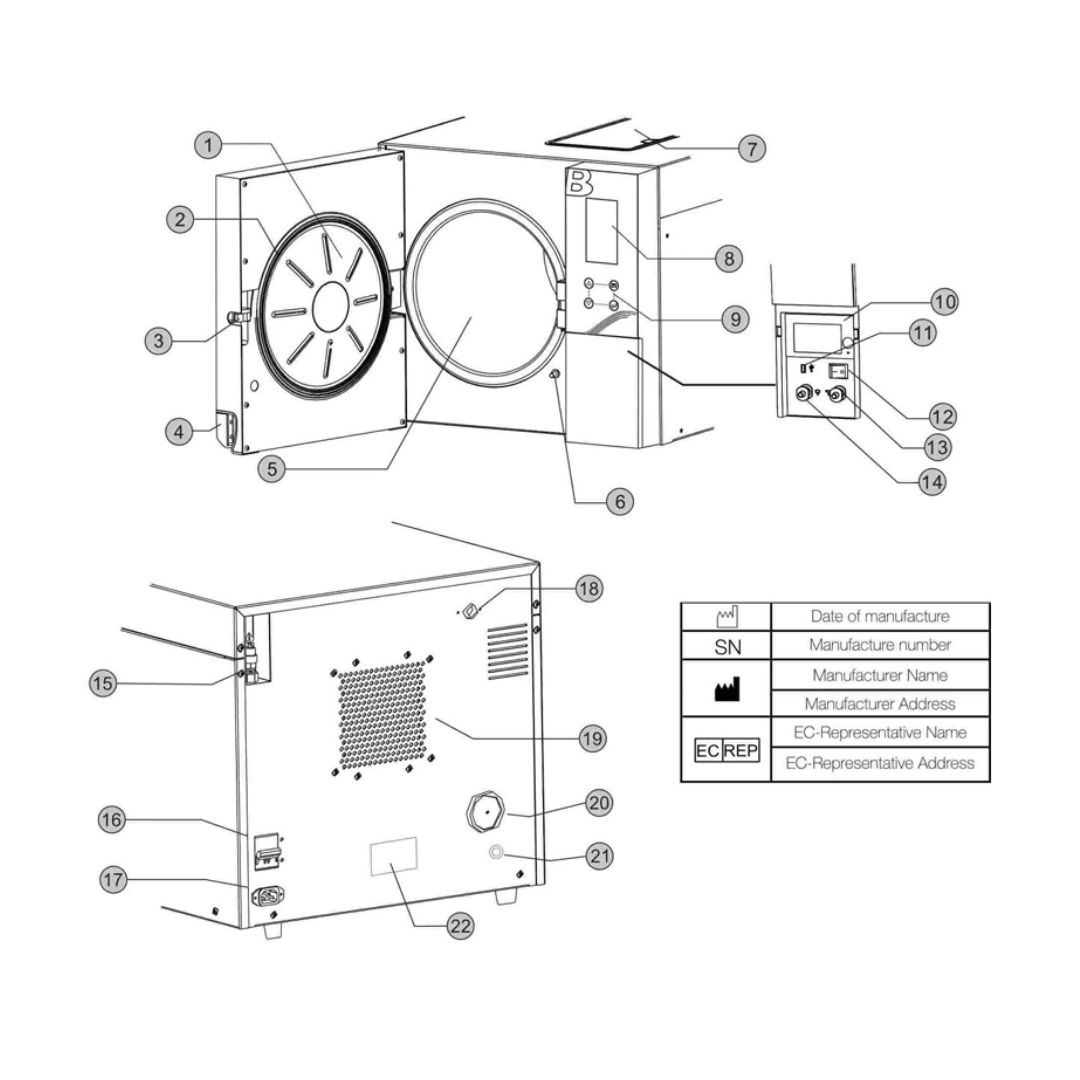

Components
1. Door.
2. Door seal ring.
3. Door lock.
4. Door handle.
5. Chamber.
6. Door interlock.
7. Distilled water tank.
8. Display.
9. Touch panel.
10. Printer.
11. USB port.
12. Main switch.
13. Distilled water tank vent.
14. Used water tank vent.
15. Safety valve.
16. Automatic switch (circuit breaker).
17. Power plug.
18. Steam outlet.
19. Condenser vent.
20. Bacterial filter.
21. Used water tank vent (optional).
22. Nameplate.
Included Accessories
- 3 Aluminum instrument trays.
- Tray base (rack).
- Tray removal handle.
- 2 Drain hoses.
- Door adjustment tool.
- Door seal ring.
- Instruction manual.
Installation
- The sterilizer must be placed on a flat, level surface with a minimum load capacity of 60 Kg
- To ensure correct air circulation, a free space of at least 10cm on the sides and 20cm on the top should be left around the device
- The sterilizer must be located in a properly ventilated enclosure
- Do not install the sterilizer near sources of water and/or heat
- Do not cover the air outlet grill of the condenser fan, nor block the side outlets
Regulations
This Icanclave sterilizer has been designed and manufactured in compliance with the following directives and standards:
- Directive 93/42/EEC on medical devices.
- Directive 2014/68/EU on pressure equipment.
- EN 13060 Small steam sterilizers.
- EN 61326, EN 61000 Electromagnetic compatibility.
- EN 61010-1, UL 61010-1 Safety requirements.
- EN 61010-2-040, IEC 61010-2-040.
- RoHS Directive 2011/65/EU.
