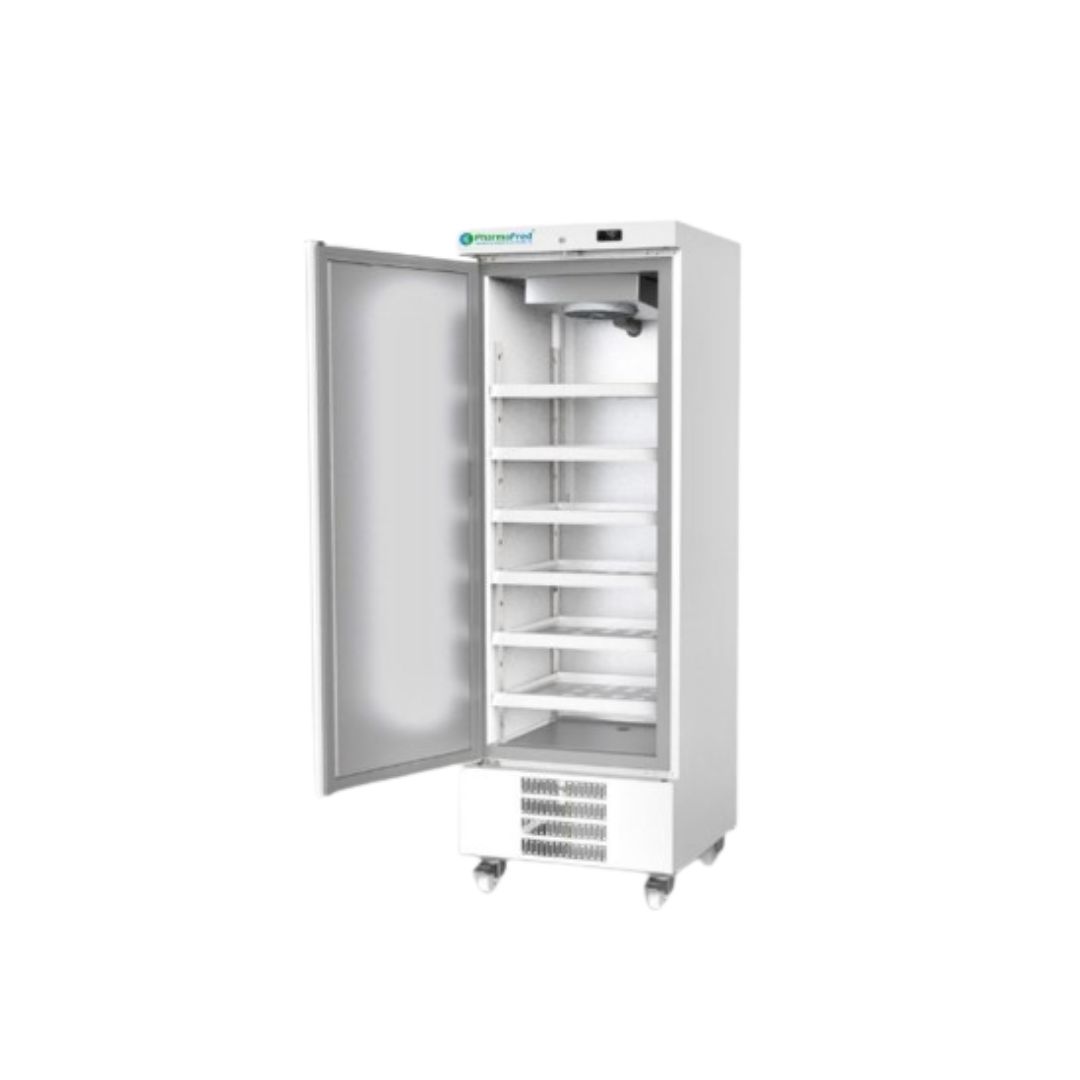

Refrigerator with a capacity of 505L with an opaque door and 6 removable shelves

The unit is made of epoxy steel combined with stainless steel and thermoformed ABS. It has 6 adjustable shelves and an opaque door. It uses a state-of-the-art refrigeration system based on the use of R290, a hydrocarbon gas used in refrigeration with low environmental impact. It comes with installed low-consumption compressors and fans, so it has reduced energy costs and noise level compared to other similar models on the market.

The refrigerator can maintain an internal temperature of between +2°C / +16°C constantly, so it is especially suitable for the preservation of laboratory samples. It also has built-in climate control mechanisms that trigger an alarm if the interior temperature exceeds the indicated limits. It also has alerts that are issued in case of probe failure and prolonged door opening.

General Features
- Opaque door
- White plasticized steel finish
- 6 adjustable 40mm drawers
- Uniform temperature throughout the interior
- Corner with curves for easy cleaning
- Rack and rail system in stainless steel ASI-304 adjustable 100mm
- Steel sheet drawers with epoxy coating and label holder
- Double LED lighting
- Door with automatic self-closure
- Heated door perimeter frame
- Lock with key
- Easily removable rubber gasket
- Floating contact (tension free)
- Ventilated refrigeration system (forced draft)
- Automatic defrost
- Optimized defrosts
- High precision digital controller 0.1°C
- Optical and acoustic alarms
- High and low temperature alarm
- Door open alarm with timer
- Probe failure alarm
- High condensation temperature alarm
- Set of 4 wheels (2 with brakes)
- Calibration standards adhered to ISO/IEC 17025

Technical Specifications
- Nominal capacity liters: 505 liters
- Adjustable temperature range: +2°C / +16°C
- External measurements: 680 x 730 x 2145 mm
- CFC free insulation thickness: 70 mm
- Zero GWP and zero ODP thermal insulation density: 40 kg/m2
- Interior depth: stainless steel AISI-304 18/8
- Distributed load capacity: 100 kg/m3
- Noise level: <60 db
- Components according to ATEX 014/34/EU
- Ecological refrigerant gas: R290
- Consumption W/h: 264
- Electrical supply; 230V/1/50Hz

Accessories (not included)
There are optional accessories that are not included in the purchase of the refrigerator. The following accessories can be purchased at an additional cost:
- USB Datalogger temperature recorder.
- WIFI Datalogger temperature recorder.
- Modbus RS485 communication port.
- Graphic panel with USB.
- Additional 40mm drawer with guides
- 70 mm drawer with telescopic guides.
- Set of wheels
- Set of legs (90 mm; 135 mm)
- 20 mm regulator
- Display shelves.
- Internal electrical socket for equipment connection.
- AISI 304 stainless steel finish
- HACCP functions, record of the last 3 alarms
