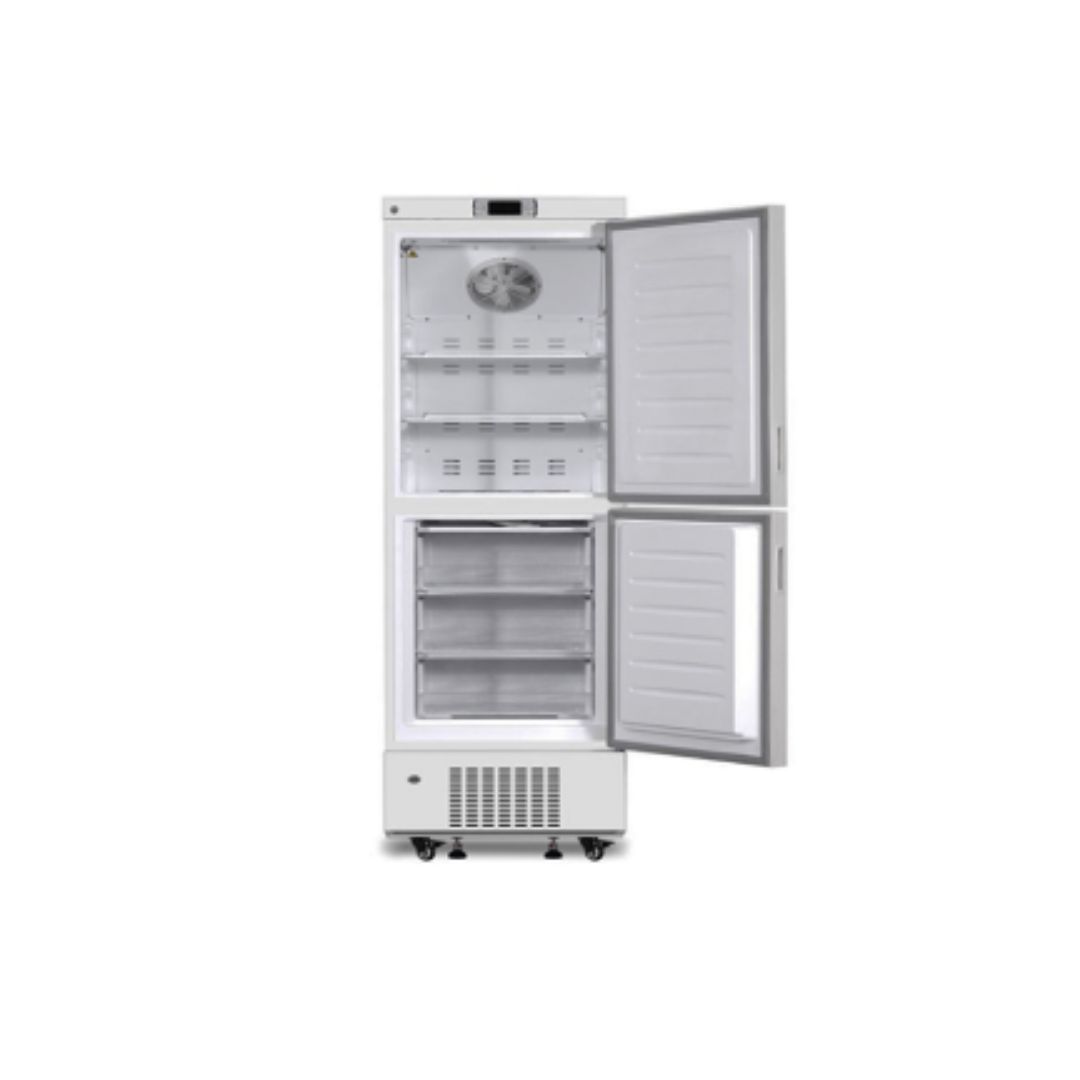

198L refrigerator with 102L freezer, 650 x 620 x 1980 mm

Combined unit consisting of a 198 liter capacity refrigerator and a 102 liter freezer. It has a dual chamber to separate spaces, dual display and dual control system. In addition, each part has its own individual compressor and cooling system, allowing the temperature of each of the compartments to be adjusted independently.

The top part has two adjustable shelves and the freezer has three drawers. Ventilation is carried out through uniform suction and the device includes acoustic and optical alarms for probe failure situations, sharp increase or decrease in temperature, power supply failure and thermostat failure. In emergency cases, it has a backup battery with a 12-hour autonomy to monitor its internal temperature even if there is no power supply.

The forced air circulation system at the top ensures minimal temperature fluctuation in the refrigerator, only oscillating between 3 and 5 degrees. On the other hand, the evaporator coil allows the refrigerant to be distributed evenly around the equipment, allowing the temperature to be uniform throughout the chamber.

General features
- Dual chamber
- Quick defrosting without condensation
- High performance evaporator and easy maintenance
- Suction circulation system with powerful fans for better uniform temperature
- Door with key lock
- LED display, easy to observe and operate
- Built-in USB
- Precise temperature control with a margin of 0.1°C
- Optical and acoustic alarm
- Probe failure alarm
- High/low temperature alarm
- Power supply failure alarm
- Thermostat failure alarm
- Interior with adjustable shelves and drawers
- CFC-free and energy-saving refrigerant
- 12-hour backup battery (only for monitoring temperature)

Technical specifications
- Cooling method: R: Forced cooling / C: Direct
- Defrosting: R: Automatic / C: Manual
- Shelf/Drawers: R: 2 Shelves / C: 3 Drawers
- Temperature range: R: +2℃/+8℃; C: -10℃/-25℃
- Ambient temperature: +10 / +32 ℃
- Noise level: 49 db
- Temperature controller: Microprocessor
- Sensor type: NTC
- Display: Digital
- External material: white plasticized galvanized steel
- Internal material: white plasticized galvanized steel
- Capacity: R:198L C:102L
- Refrigerant: R290
- Voltage and frequency: 220V 50Hz/60Hz
- Power (W): 349
- Current (A): 2.5A
- Energy consumption: 3.3kWh/24h
- Packaging dimensions: 720 x 695 x 2015 mm
- External dimensions: 650 x 620 x 1980 mm
- Internal dimensions: R: 565 x 480 x 759 mm; C: 461 x 465 x 600 mm
- Net weight: 100 kg
- Gross weight: 120 kg
- Wall pass-through: 2/25 mm
- Volume: 0.96 m3
