Reference. 1250CE0150ABR70X

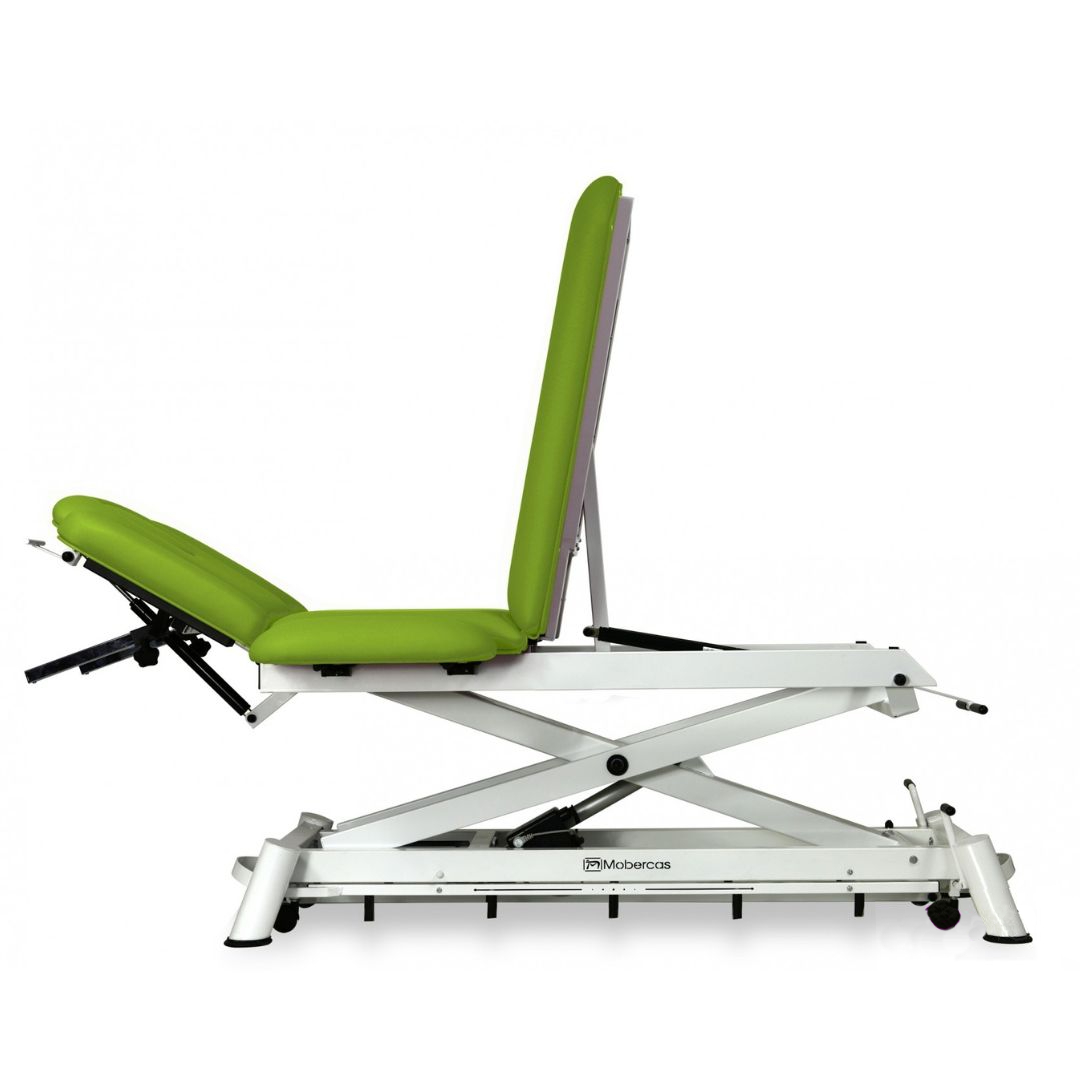

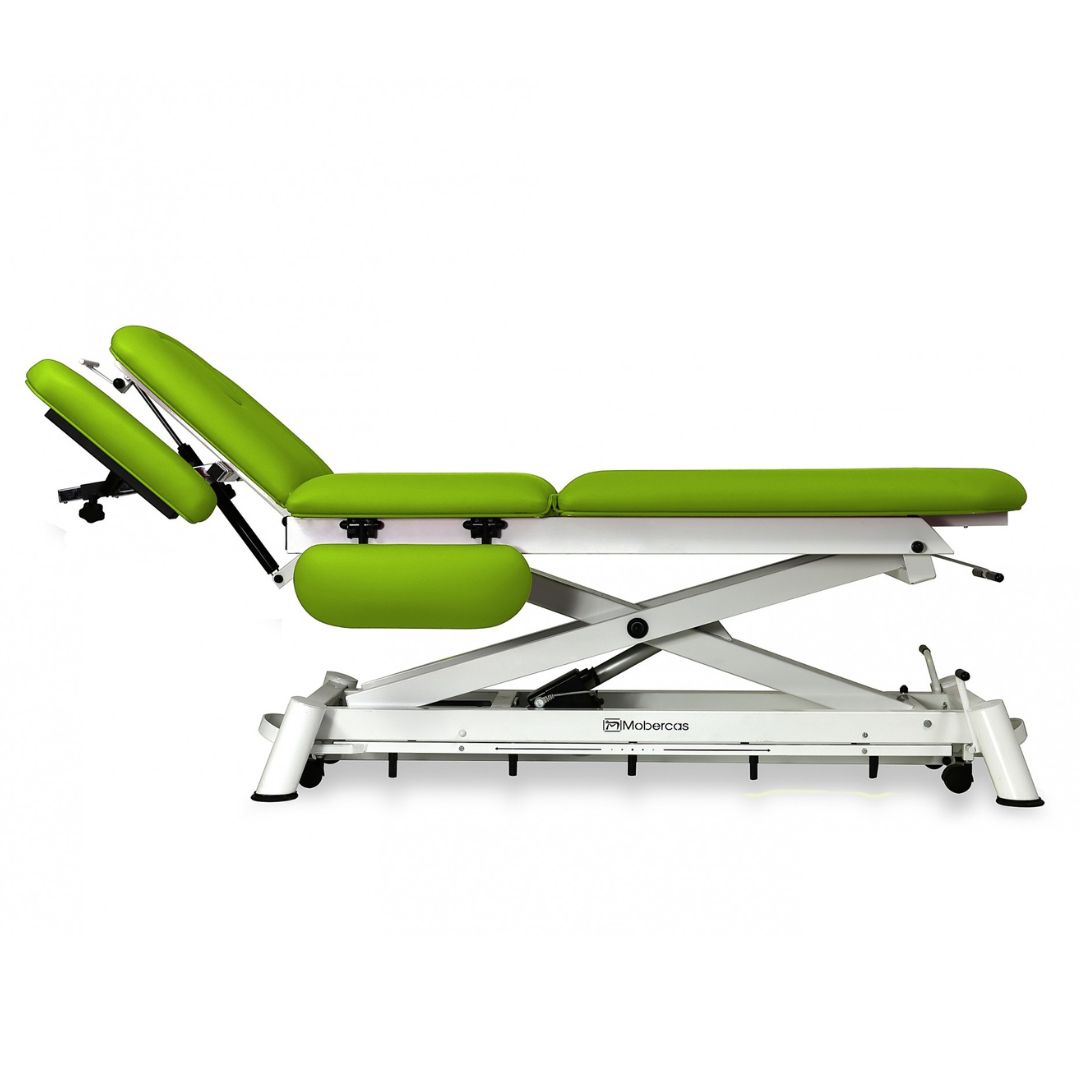

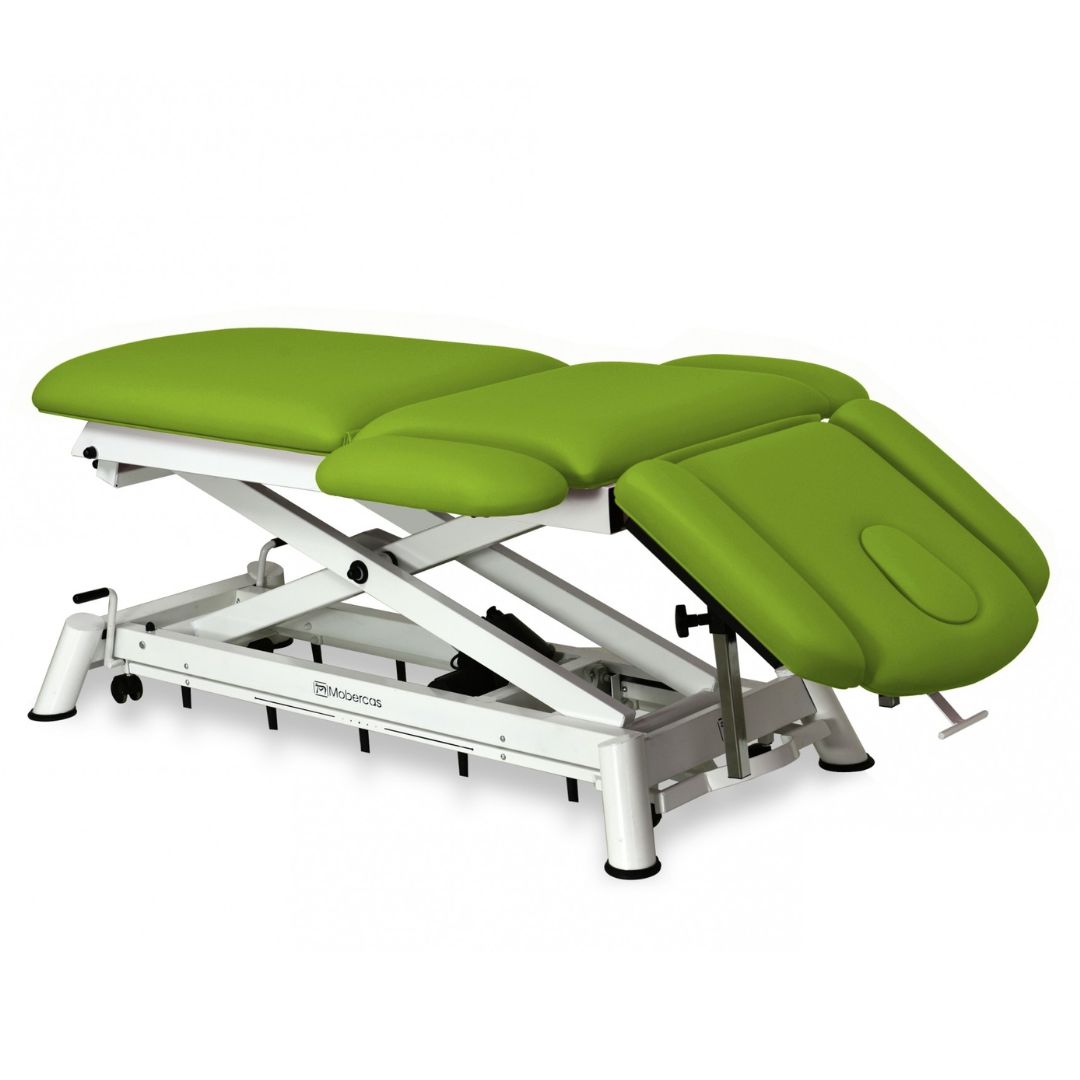

5-section electric stretcher, scissor style. 70x191cm. Various colors.
5-section electric stretcher with reclining backrest in negative and straight rise. Dimensions: 70 x 191 cm.
Personal advice
Description
5-section electric stretcher with negative reclining backrest and straight rise without lateral displacement. Includes base roll holder, adjustable height and width armrests on the backrest, flat upholstered armrests, facial plug, and retractable wheels.
General Features:
- Headrest with hole and facial plug.
- Negative incline/decline.
- Armrests at backrest height adjustable in height and width, in addition to foldable flat armrests.
- Elevating/reclining footrest (third body).
- Facial hole, hand control 1, base roll holder, and facial plug.
Functionalities:
- 1 electric motor.
- Motorized height (adjustable).
- Gas piston folding/reclining backrest.
- Footrest (third body) using two gas pistons.

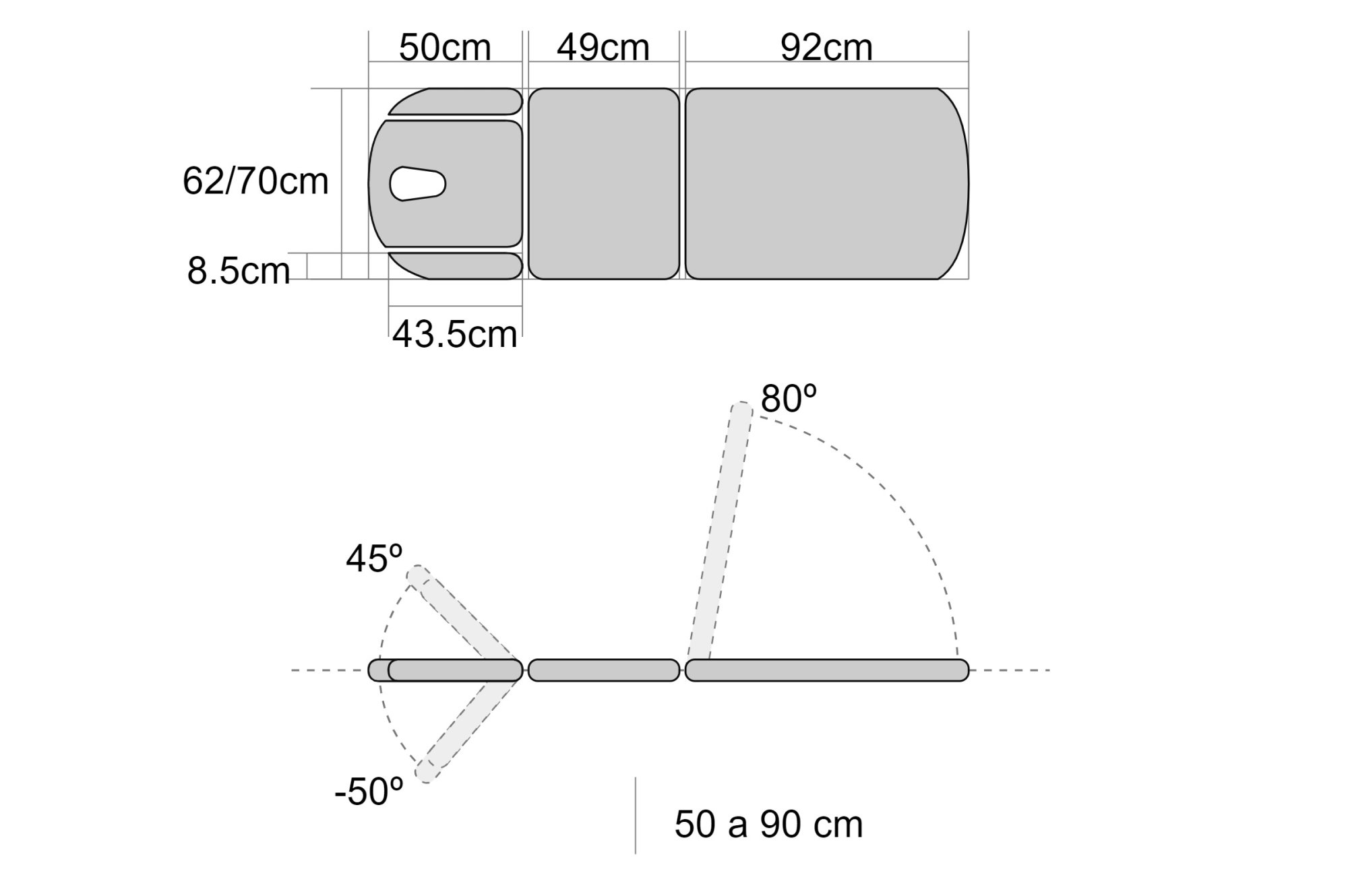

Technical Specifications:
- Scissor structure, with straight rise.
- Backrest length: 50 cm.
- Seat length: 49 cm.
- Legrest length: 92 cm.
- Total length: 191 cm.
- Width: 70 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Adjustable height: 50 to 90 cm.
- Legrest incline angle: 80º.
- Structure material: epoxy powder coated steel tube, baked at 210ºC.

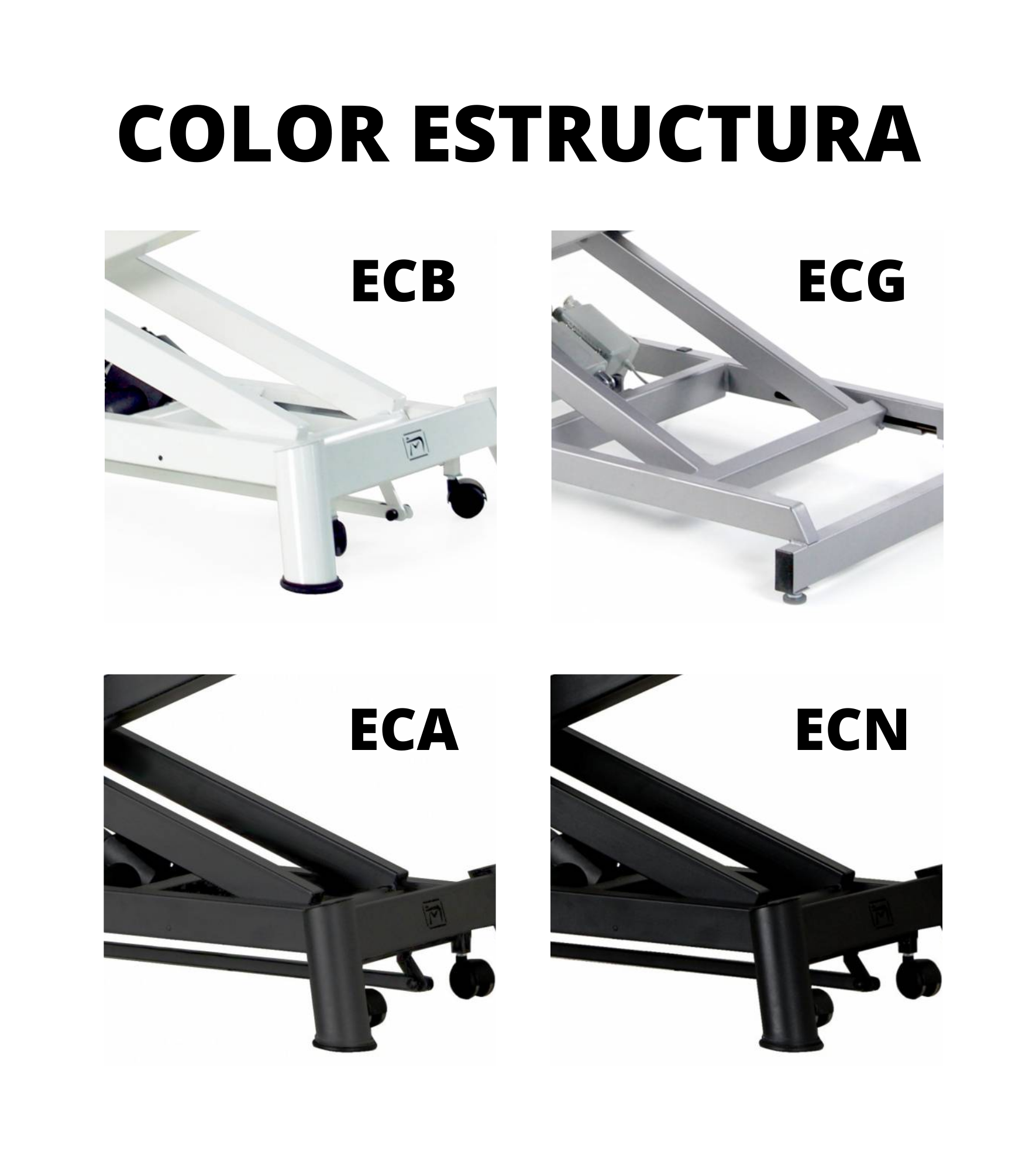

- Structure color: to choose.
- Maximum load: 180 kg.
- Double retractable wheels via single pedal Ø 50mm.
Upholstery Features:
- Fire-retardant material (consult the attached image for the regulations on fire-retardant materials that it meets).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High resistance to abrasion.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oils.
- Stain-resistant surface.
- Also complies with UNE EN/71-3 standard (Toy Safety).
Upholstery Cleaning Instructions:
- Any stain, spill or dirt must be quickly cleaned from the upholstery to avoid permanent staining.
- Mild soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Consult the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you want more complete cleaning instructions, please contact us.
Foam Options:
If you wish, you can purchase your stretcher with a different type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³
Regulations and Certifications:
- CE PRODUCT Made in Spain.
- ISO 13485 Quality management system applicable to medical devices.
Transport:
Material delivery is at street level. It is not the transporter's obligation to enter the goods inside the customer's facilities.
