Reference. 1250CE0150ABR62X
5-section electric scissor bed. 62x191cm. Various colors.
5-section electric stretcher with reclining backrest in negative and straight rise. Dimensions: 62 x 191 cm.
Personal advice
Description
5-section electric stretcher with negative reclining backrest and straight lift without lateral displacement. Includes base roll holder, adjustable armrests in height and width, flat upholstered armrests, facial plug and retractable wheels.
General Features:
- Headboard with hole and facial plug.
- Negative proclivity/declivity.
- Armrests at the backrest height adjustable in height and width, in addition to foldable flat armrests.
- Footrest (third body) elevable/reclining.
- Facial hole, hand control 1, base roll holder and facial plug.
Functionalities:
- 1 electric motor.
- Motorized in height (adjustable).
- Backrest foldable/reclining by means of gas piston.
- Footrest (third body) by means of two gas pistons.
Technical specifications:
- Scissor structure, with straight lift.
- Backrest length: 50 cm.
- Seat length: 49 cm.
- Legrest length: 92 cm.
- Total length: 191 cm.
- Width: 62 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Adjustable height: 50 to 90 cm.
- Legrest inclination angle: 80º.
- Structure material: steel tube coated with epoxy powder, baked in oven at 210ºC.
- Structure color: to choose.
- Maximum load: 180 kg.
- Double retractable wheels by means of single pedal Ø 50mm.
Upholstery features:
- Fire-retardant material (please refer to the attached image for the regulations on fire-retardant materials that it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High abrasion resistance.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oils.
- Stain-resistant surface.
- Also complies with UNE EN/71-3 standard (Toy Safety).
Foam options:
If you wish, you can purchase your stretcher with another type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³
Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to prevent permanent staining.
- Mild soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Please refer to the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you want more complete cleaning instructions, please contact us.
Regulations and certifications:
- CE PRODUCT Made in Spain.
- ISO 13485 System of quality management applicable for medical devices.
Transport:
The delivery of the material is at street level. It is not the carrier's obligation to bring the goods inside the customer's facilities.
Possibility to add accessories (price not included)
General Features:
- Headboard with hole and facial plug.
- Negative proclivity/declivity.
- Armrests at the backrest height adjustable in height and width, in addition to foldable flat armrests.
- Footrest (third body) elevable/reclining.
- Facial hole, hand control 1, base roll holder and facial plug.
Functionalities:
- 1 electric motor.
- Motorized in height (adjustable).
- Backrest foldable/reclining by means of gas piston.
- Footrest (third body) by means of two gas pistons.
Technical specifications:
- Scissor structure, with straight lift.
- Backrest length: 50 cm.
- Seat length: 49 cm.
- Legrest length: 92 cm.
- Total length: 191 cm.
- Width: 62 cm.
- Foam thickness: 5 cm.
- Foam density: 30 k/m³.
- Adjustable height: 50 to 90 cm.
- Legrest inclination angle: 80º.
- Structure material: steel tube coated with epoxy powder, baked in oven at 210ºC.
- Structure color: to choose.
- Maximum load: 180 kg.
- Double retractable wheels by means of single pedal Ø 50mm.
Upholstery features:
- Fire-retardant material (please refer to the attached image for the regulations on fire-retardant materials that it complies with).
- Antimicrobial protection.
- Antibacterial protection.
- Antifungal protection.
- High abrasion resistance.
- Resistance to perspiration and human saliva.
- Resistant to urine, blood and UV light.
- Waterproof.
- Resistance to sunflower oils.
- Stain-resistant surface.
- Also complies with UNE EN/71-3 standard (Toy Safety).
Foam options:
If you wish, you can purchase your stretcher with another type of foam (at an additional cost).
- 3 cm 30Kg/m³+ 2cm visco
- 5 cm 150Kg/m³
- 3 cm 150Kg/m³
- 4 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 2 cm visco
- 2 cm 60Kg/m³ + 5 cm 30Kg/m³ + 4 cm visco
- 5 cm 30Kg/m³ + 4 cm visco
- 3 cm 60Kg/m³
- 2 cm 60Kg/m³ + 3 cm 30Kg/m³
- 5 cm 60Kg/m³
Upholstery cleaning instructions:
- Any stain, spill or dirt should be quickly cleaned from the upholstery to prevent permanent staining.
- Mild soapy solutions or special vinyl fabric cleaning products should be used to remove stains from the material surface. Please refer to the compatible cleaning solutions specified in the attached image.
- It is recommended to clean only with damp white cloths.
- Lacquers, strong cleaners, detergents, xylene-based liquids, acetone and MEK cause immediate damage and contribute to the deterioration of the material.
If you want more complete cleaning instructions, please contact us.
Regulations and certifications:
- CE PRODUCT Made in Spain.
- ISO 13485 System of quality management applicable for medical devices.
Transport:
The delivery of the material is at street level. It is not the carrier's obligation to bring the goods inside the customer's facilities.
Possibility to add accessories (price not included)
Alternative products
Foldable railings for stretcher. 2 units
219,87€(266,04€ VAT INCLUDED)
5-section electric stretcher, scissor style. 70x191cm. Various colors.
2.280,86€(2.759,84€ VAT INCLUDED)
Roll holder for stretcher base compatible with rolls up to 60 cm
54,46€(65,90€ VAT INCLUDED)
110cm side guides
175,96€(212,91€ VAT INCLUDED)

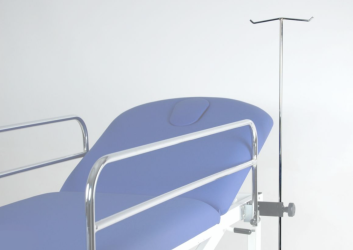

Drip stand with double arm
