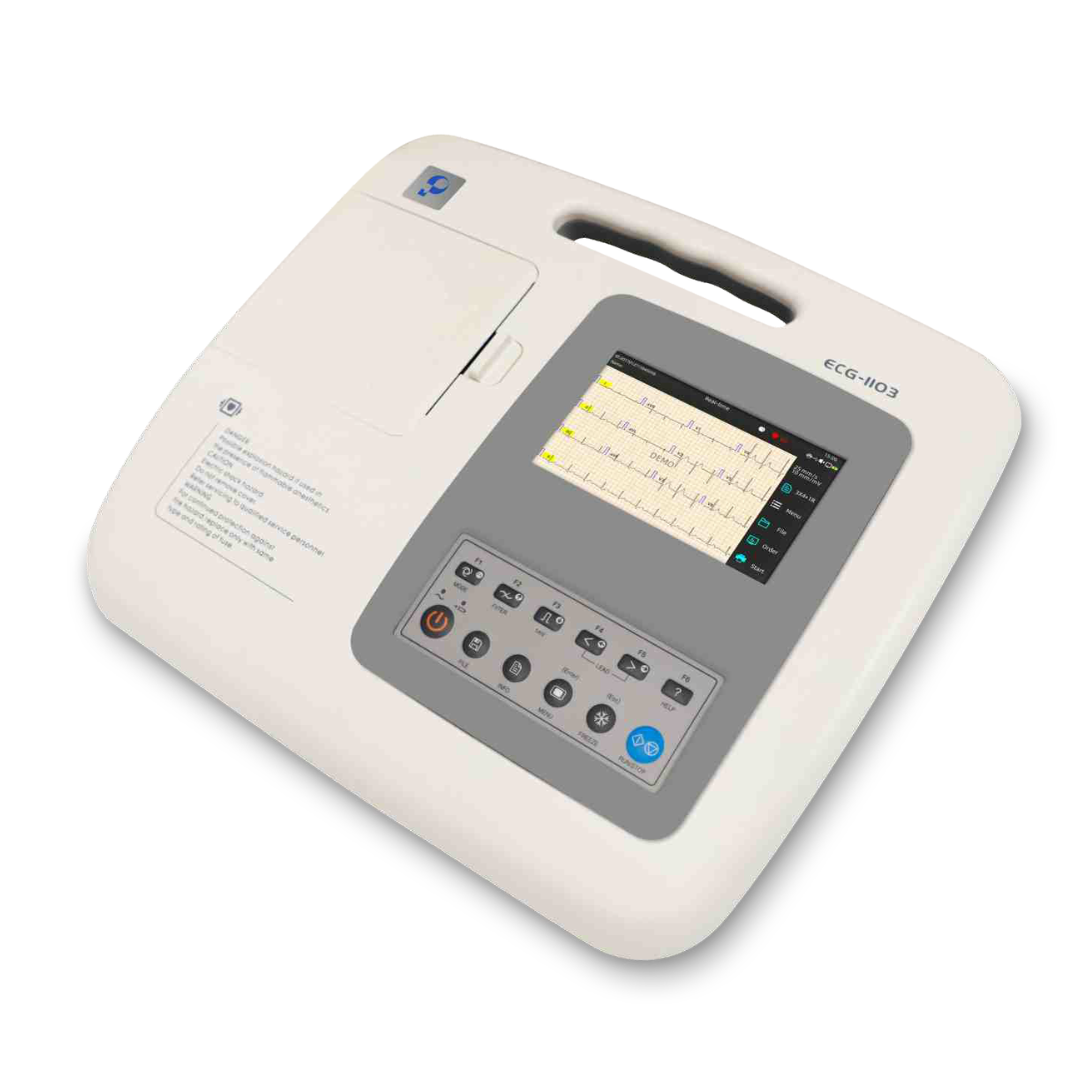

3-channel and 12-lead ECG electrocardiograph with printer

This state-of-the-art electrocardiograph allows for precise readings of heart electrical activity. Its operating system, powered by the Carewell algorithm, interprets the readings obtained during measurement to assist in the diagnosis of cardiovascular diseases, proving exceptionally accurate and practical for medical professionals to use.

The device has a 5-inch touchscreen from which you can comfortably adjust its parameters and has an integrated thermal printer to print the readings made. It also has data conversion software to store measurements in PDF, XML or JPEG format and has high connectivity, being able to transmit data to other devices such as computers via LAN cable or printers via USB connection.

General Features

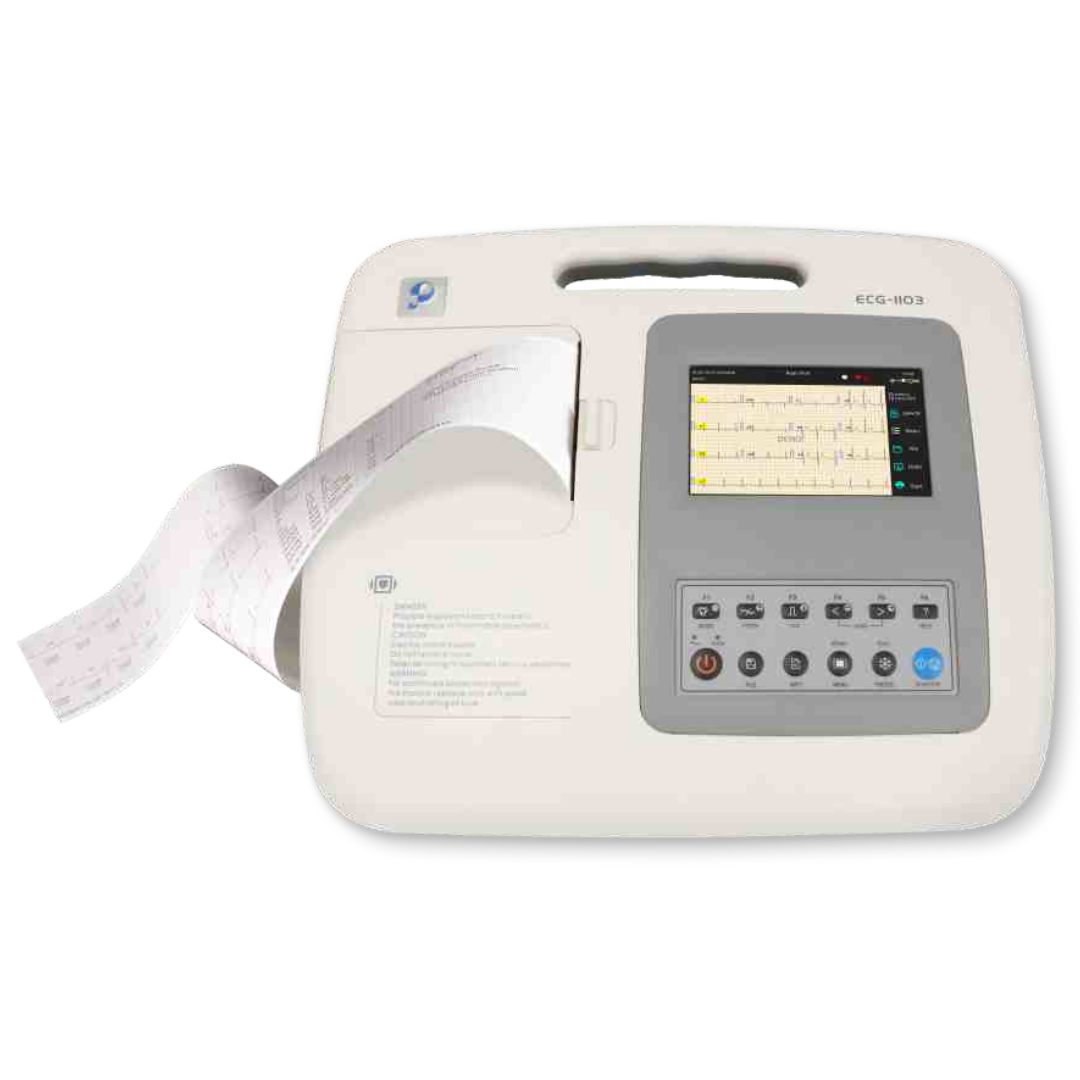

- 3-channel electrocardiograph with included thermal printer
- 5" color touchscreen for clear parameter visualization
- Operates via AC power cable or lithium battery
- Can perform 6, 9 and 12 lead ECG readings
- Automatically detects heart pulse and pacemaker impulses
- Avoids baseline drift and minimizes EMG interference
- Can freeze the ECG wave on the screen to thoroughly analyze readings
- Generates reading data in DAT, XML, JPEG, PDF and Hl7 formats
- Allows to store, preview, export and print patient data
- Includes autosave function to automatically save data after printing

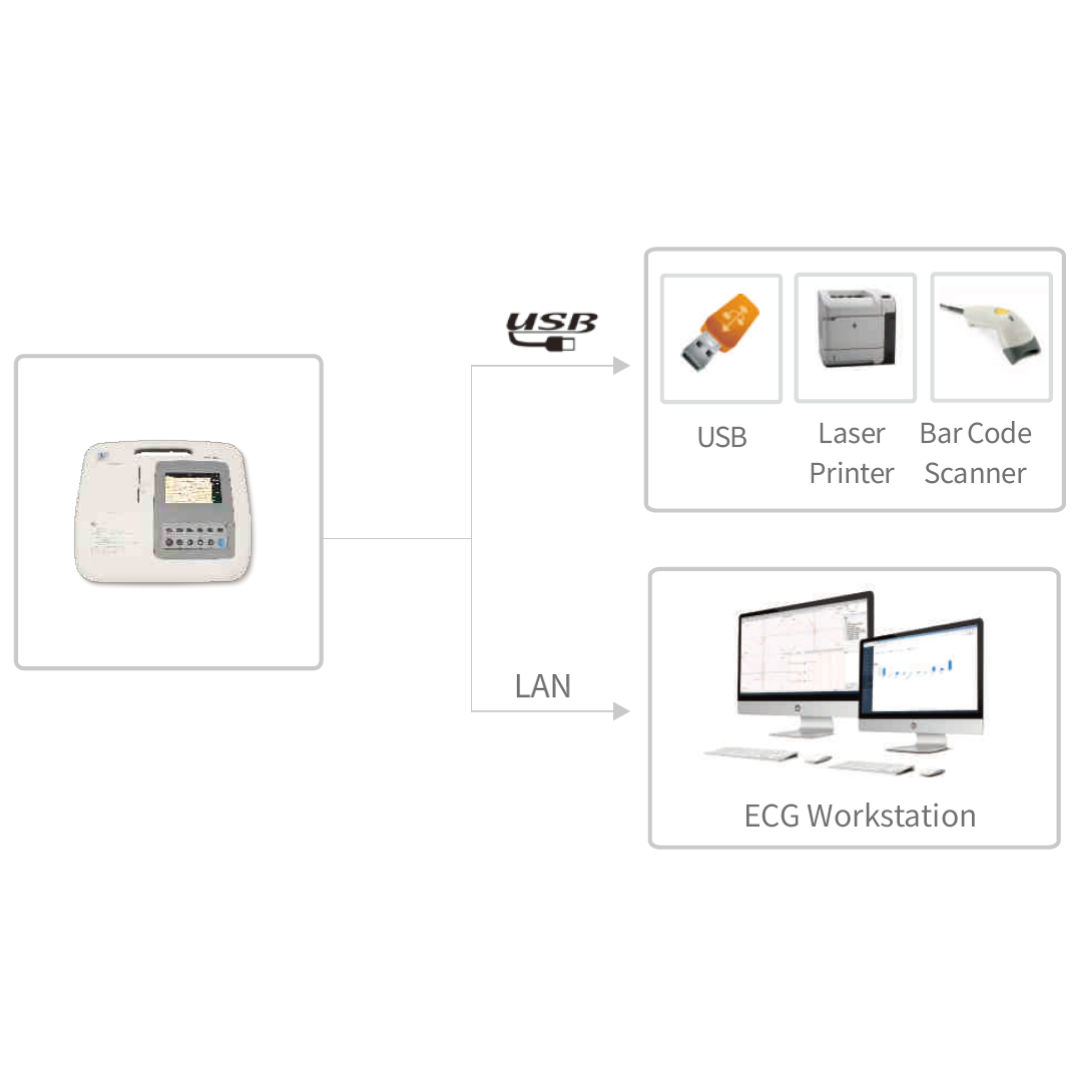

- Can transmit gathered information between devices via LAN connection cable
- Includes the Carewell algorithm for assisting in the diagnosis of cardiovascular diseases

Technical Specifications
- Dimensions: 345 x 300 x 80 mm
- Weight: 2.5 kg (excluding battery and ECG paper)
- Screen: 5" color touch LCD screen and 800 x 480 Mp
- Leads: 12 standard leads
- Operating modes: automatic, manual, and R-R
- Sampling modes: pre-sampling, real-time sampling, periodic sampling, and trigger sampling
- Storage capacity: 1500 files
- Sampling rate: 8000 points/s per channel (maximum)
- A/D conversion: 24 bits
- Time constant: ≥ 5 s
- Common mode rejection: ≥140 dB (AC filter on, common mode voltage of 450 Vp-p), ≥120 dB (AC filter off)
- Frequency response: 0.01 Hz ‒ 350 Hz
- Sensitivity: automatic; 2.5 mm/mV; 5 mm/mV; 10 mm/mV; 20 mm/mV; 40 mm/mV; 10/5 mm/mV; 20/10 mm/mV (±5% accuracy)
- Paper speed: 5 mm/s; 6.25 mm/s; 10 mm/s; 12.5 mm/s; 25 mm/s; 50 mm/s (±3% accuracy)
- Filters: AC filter (50 Hz, 60 Hz or off), ADS filter (0.01 Hz, 0.05 Hz, 0.32 Hz or 0.67 Hz), EMG filter (25 Hz, 35 Hz, 45 Hz or off) and low pass filter (75 Hz, 100 Hz, 150 Hz, 300 Hz or off)
- Input impedance: ≥100 MΩ (10 Hz)
- Calibration voltage: 1 mV±2%
- Depolarization voltage: ±900 mV, ±5%
- Input circuit current: ≤10 nA
- Input voltage range: ±5mVp-p
- Supply voltage: 100 - 240 V
- Supply frequency: 50/60 Hz
- Battery voltage: 14.4 V
- Battery capacity: 4400 mAh
- Battery life: ≥8 hours (without printing)

Printer Technical Specifications
- Recording method: dot matrix thermal mode
- Paper compatibility: 80 mm ECG paper
- Printing speed: 5 mm/s; 6.25 mm/s; 10 mm/s; 12.5 mm/s; 25 mm/s and 50 mm/s (automatic and manual modes) and 25 mm/s (R-R mode) (±3% accuracy)

Standard Accessories (included)
- Pear electrodes

Optional Accessories (not included and at an additional cost)
- Clip electrodes
