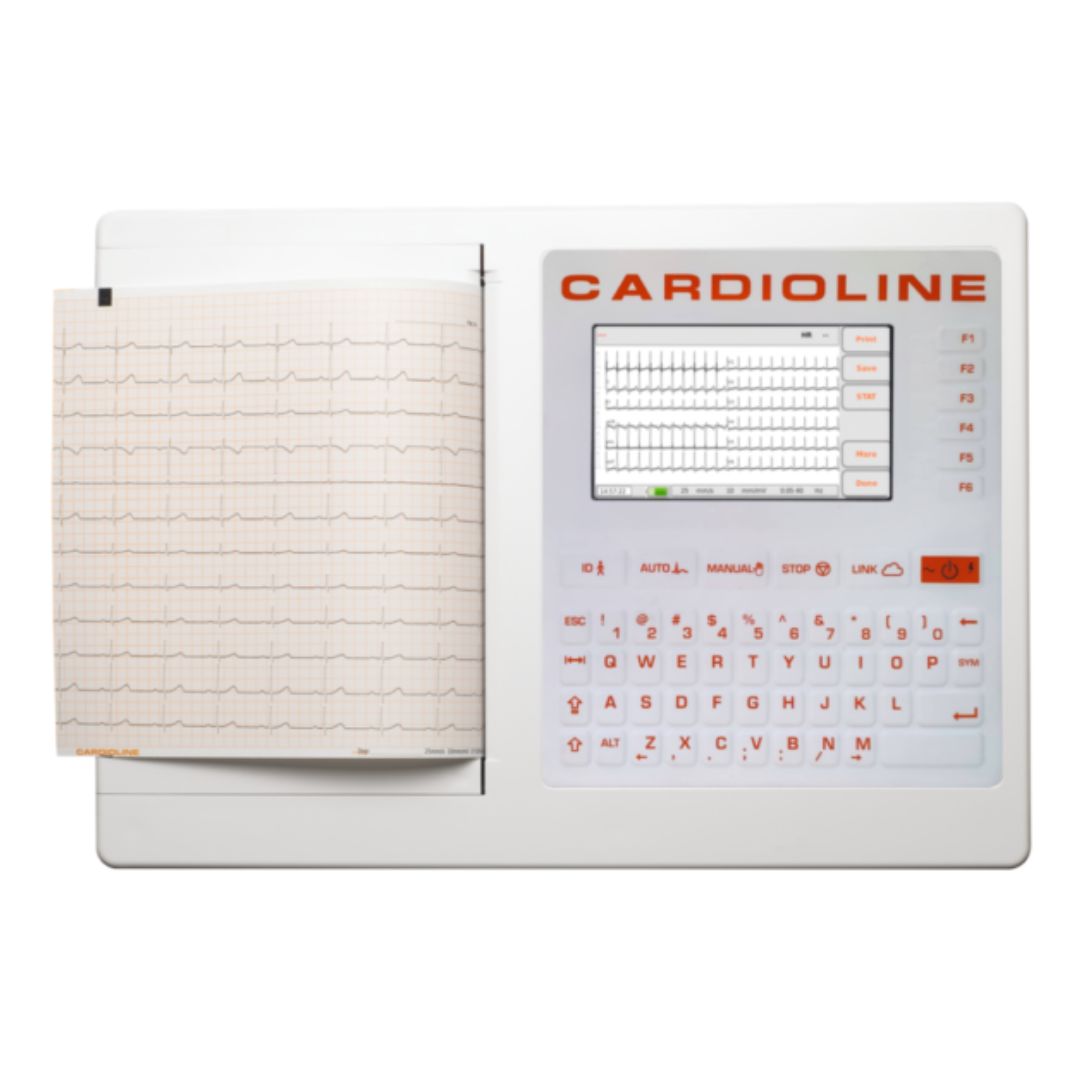

12-channel ECG200+ Electrocardiograph

The ECG200+ electrocardiograph offers a comprehensive and intuitive user interface. With dedicated buttons that provide instant access to the main functions.

Personal advice

Glasgow ECG Interpretation

Installation and basic training

2.640,00€ (3.194,40€ VAT INCLUDED)

Secure payment

Check availability

Inquiry about the product

Description

The ECG+ series electrocardiographs are part of the new Cardioline device family, designed for both private doctors and healthcare facilities. The ECG+ series has been designed to provide high-quality features at a reasonable price. The ECG200+ includes a high-resolution A4 printer, a 7-inch widescreen color display, and a full keyboard, making it a perfect instrument even for professional use in a clinical environment where intensive use is required. Its long-lasting rechargeable internal battery and its unique ECG acquisition technology guarantee daily use in a clinical setting with bedridden patients.

The long-lasting rechargeable battery and ECG acquisition technology ensure its use in environments with bedridden patients. ECG200+ includes two options for connecting it to the most common data management interfaces (DICOM, HL7, XML). It is fully integrated into the existing workflows in healthcare facilities. Additionally, it can be linked to the centralized patient databases, allowing for automatic insertion of patient data.

The device is optionally supplied with the Glasgow 12-lead resting ECG interpretive algorithm, with specific criteria for age, sex, and race. If this option is enabled, the algorithm provides a complete interpretation of the ECG in short or extended format, including neonatal, pediatric interpretation, and acute myocardial infarction recognition with ST-segment elevation.
ECG200+ is easy to use, thanks to the simple and intuitive graphic interface.

-Full alphanumeric keyboard
-Specific keys to activate main functions
-7-inch color screen, allowing real-time and high-definition viewing of ECG traces.

Furthermore, it is possible to retrieve the exams stored in the device's internal memory for future consultation, or to download them to a personal computer (via USB).

Technical specifications:
-ECG leads: 12-leads (I, II, III, aVR-L-F, V1-6)
-Patient cable: Standard 15D, 10-terminal patient cable
-CMRR: > 100dB
-DC Input Impedance: 100ΜΩ
-A/D Sampling: 32000 samples/second/channel
-ECG Resolution: >1μV/LSB
-Dynamic range: +/- 400 mV
-Bandwidth: Equivalent performance to 0.05-300Hz
-Pacemaker detection: Hardware detection combined with a digital convolution filter
-Filters: AAMI/IEC standards
Diagnostic high-pass digital filter, linear phase (compliant with 60601-2-252nd.Ed)
Digital adjustable filter against AC interferences (50/60Hz)
Digital low-pass filter at 25/40Hz (for printing and display)
-Defibrillator protection: AAMI/IEC standards
-Acquisition modes: Automatic (12-lead), Manual (3/6-lead), STAT (12-lead)
-Front-end performance: ANSI/AAMI IEC 60601-2-25:2011
-Lead configuration: Standard or Cabrera
-Lead contact recognition: Autonomous on all leads
-ECG interpretation: Glasgow interpretive program for Adults and Children, STEMI

Standard equipment:

User manual
IEC ECG patient cable, 10 wires, 4 mm plug
Male/female 4 mm adapters, 10 pieces
Disposable ECG electrodes, tab, pack of 100 pieces
Z-fold ECG paper pack, 210 x 295 mm x 180 sheets
ECG200+ device cover
Medical AC/DC power supply
10A power cable
24-month warranty

*If you need installation and basic training on how to operate the device, please contact us.
