PCECG-500 Pocket Electrocardiograph of 6/12 channels
The ECG PCECG-500 monitor is a complete and portable solution for ECG acquisition and analysis, ideal for healthcare professionals who require a reliable and easy-to-use device in various clinical environments.
Personal advice
Description

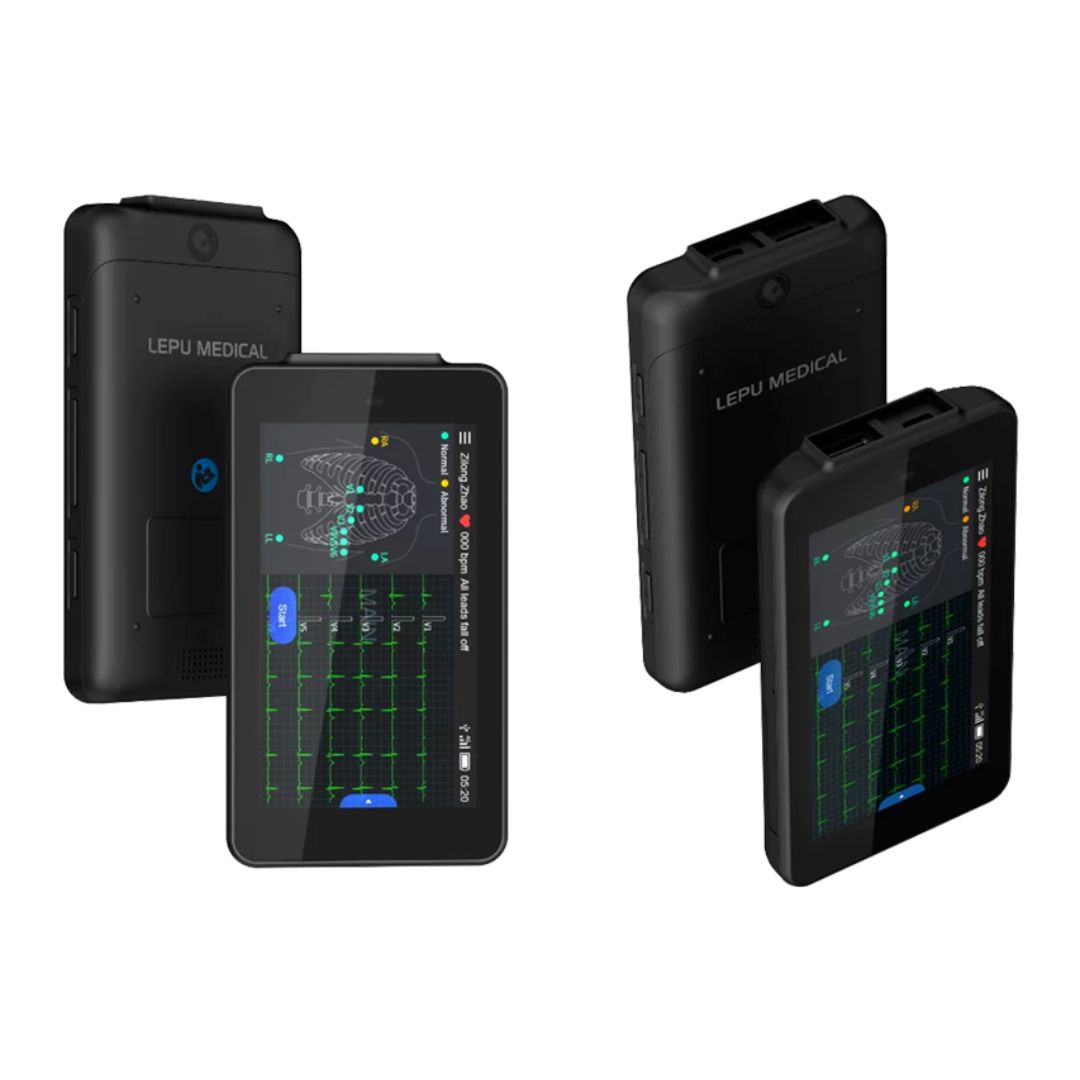

The PCECG-500 is a portable 6/12 lead ECG monitor, lightweight and easy to use. This advanced device offers 12-lead ECG information collection, analysis, storage and transmission, combined with the Glasgow algorithm for a complete and immediate analysis.
Features:
- Glasgow algorithm for automatic analysis of ECG waveform shapes, measurements and diagnostic results.
- Automatic detection and marking of cardiac stimulation.
- Remote data transmission via email and WiFi.
- Connection to external printer via WiFi.

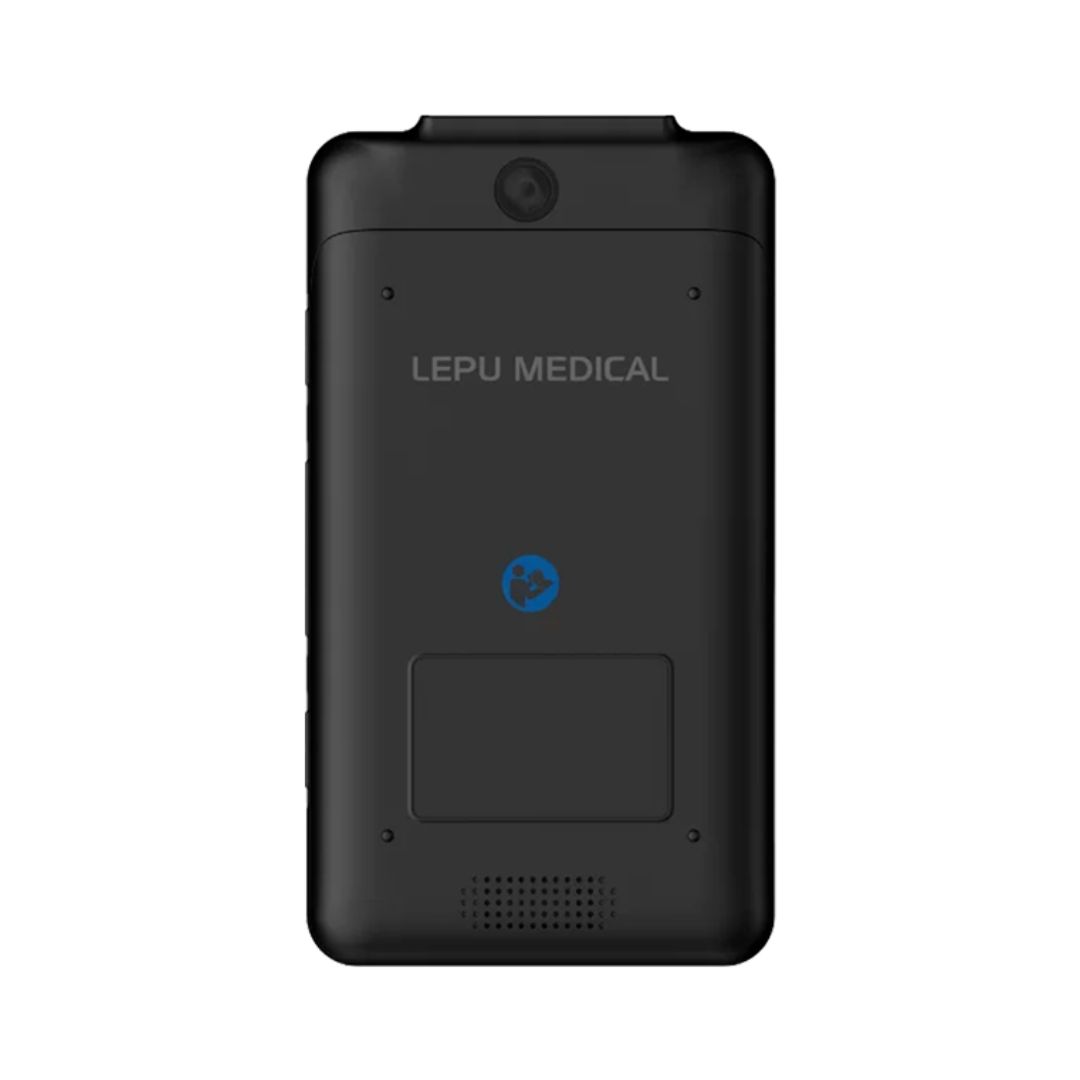

- Integrated HD camera.
- More than 24 hours of continuous operation.

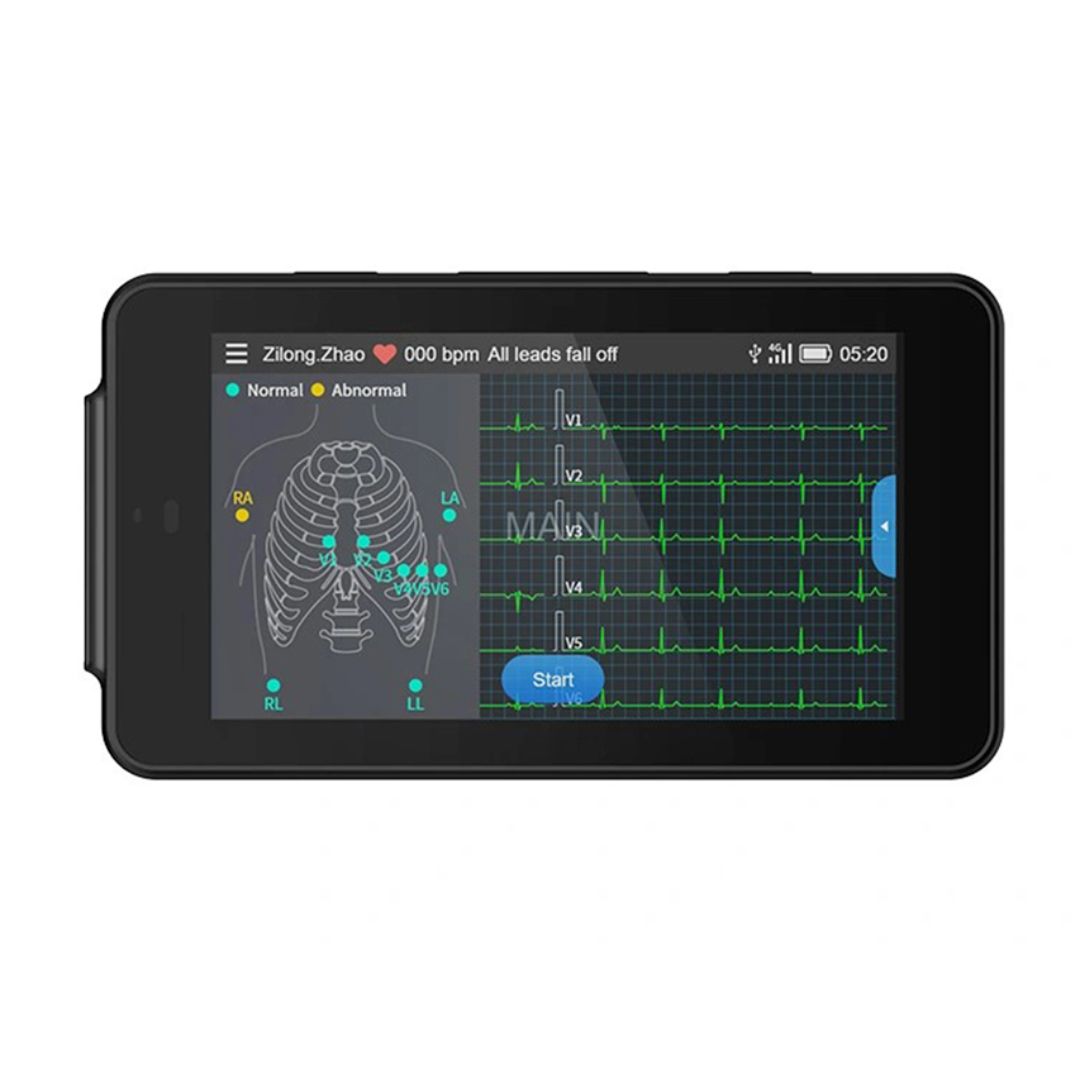

- 4.46" color touchscreen (480x850 pixels).
- Automatic and R-R modes.
Technical specifications:
- Weight: 250 g.
- Dimensions: 134 x 74 x 17 mm.
- Method: Peak-to-peak detection.
- Measurement range: 30-300 bpm; ± 1 bpm.
- Leads: Synchronous acquisition and analysis of 6/12 leads.
- Sensitivity: 2.5, 5, 10, 20 mm/mV; ± 5%.
- Input impedance: ≥50MΩ (10Hz).
- Sampling rate: 2000 samples/sec.
- Sampling modes: Pre-sampling, real-time, periodic, triggered.
- CMRR: ≥100dB (AC filter activated).
- Frequency response: 0.05Hz-150Hz+0.4dB(-3.0dB), 10Hz.
- Time constant: ≥3.2s.
- Filters:
• AC filter: 50Hz, 60Hz, Off.
• EMG filter: 25Hz, 35Hz, 45Hz, Off.
• ADS filter: 0.05Hz, 0.32Hz, 0.67Hz.
• Low pass filter: 75Hz, 100Hz, 150Hz, Off.
- Speed:5, 6.25, 10, 12.5, 25, 50 mm/s; ±3%.
- Built-in rechargeable lithium ion battery (3.8V 6000mAh).
- Charging time: 8 hours.

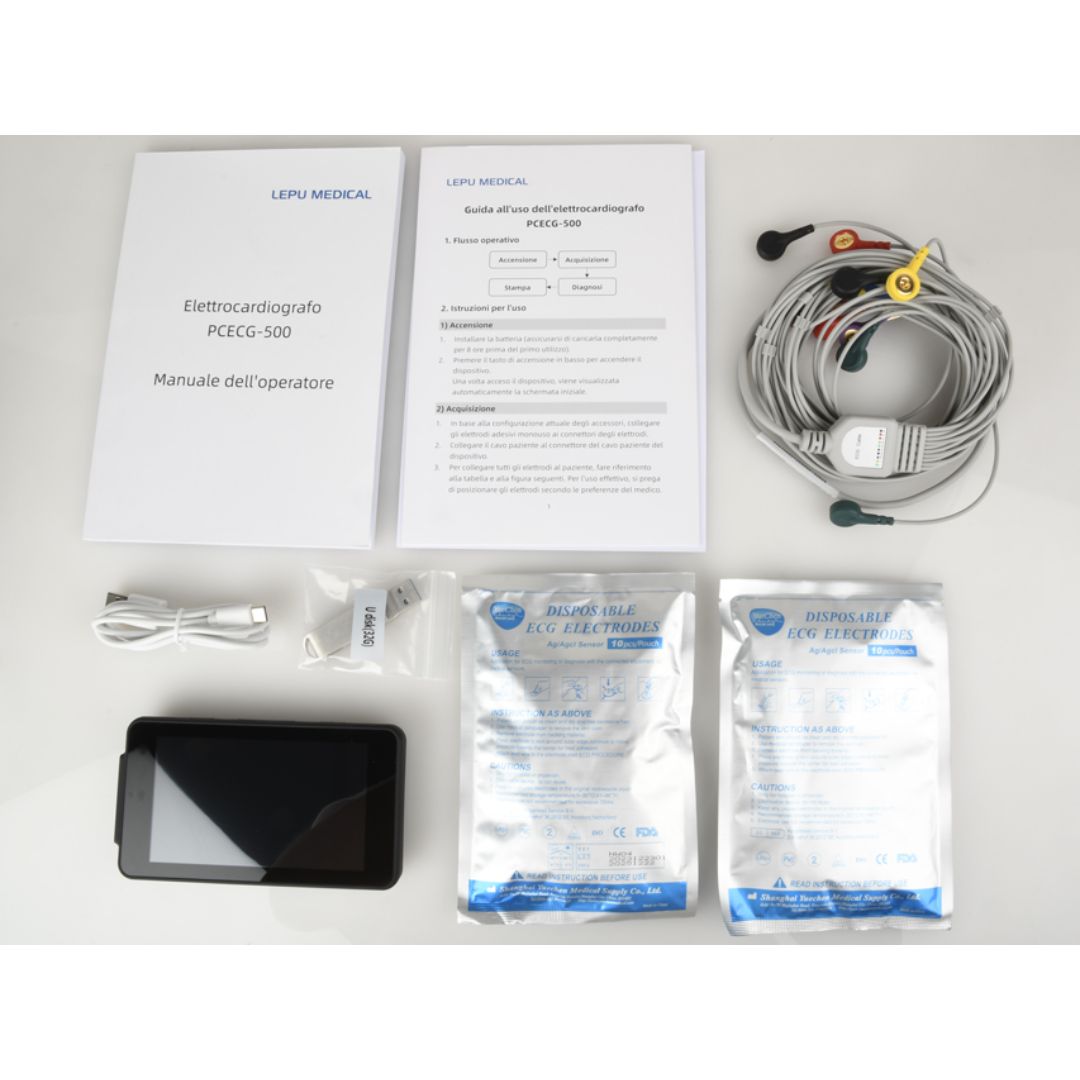

Standard accessories:

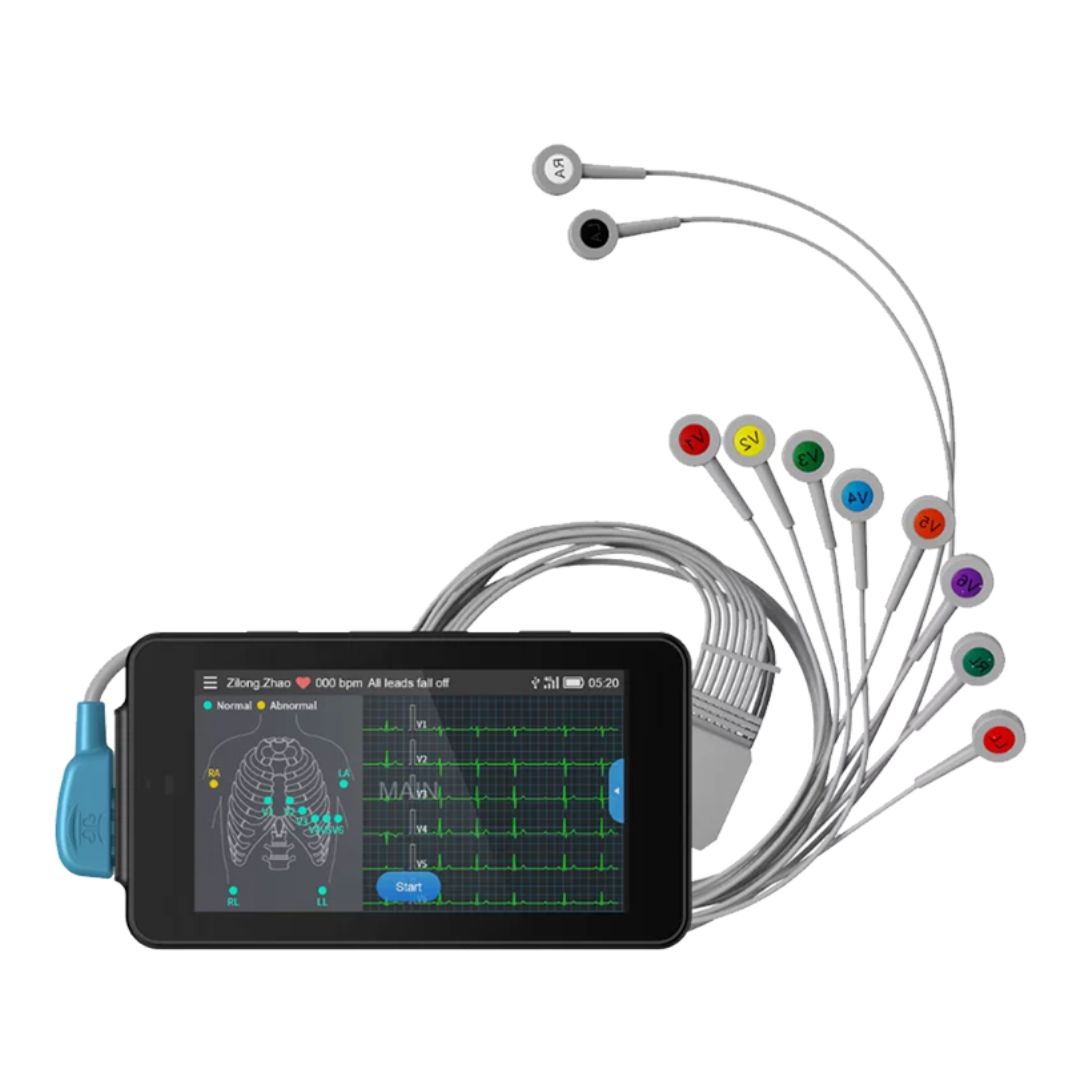

- ECG lead cable.
- USB unit (type C and USB ports).
- Disposable adult ECG electrodes (2 sets of 10 units).
- USB cable.
- Rechargeable lithium ion battery.
- User manual.
