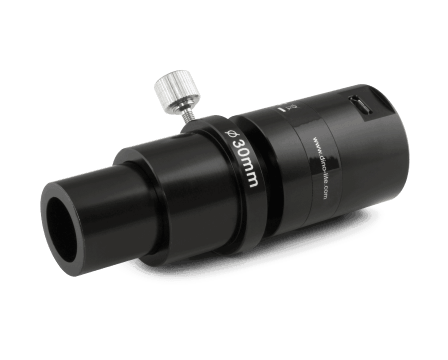

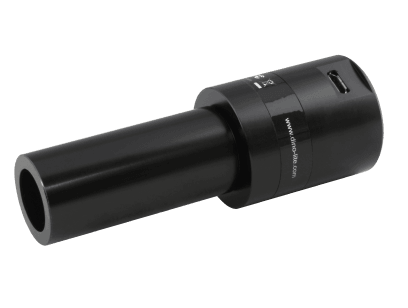

DinoEye Edge 1.3MP Eyepiece Camera, 23, 30&30, 5mm

The DinoEye Edge 1.3MP ocular camera provides exceptional image quality and accurate color reproduction. This makes it ideal for applications where color accuracy is crucial, such as in the analysis of pathological samples and quality control.

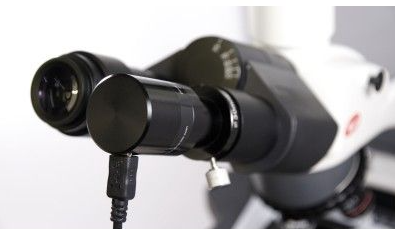

Its wide field of view allows capturing more details in a single image. One of the microscope lenses can be replaced with the DinoEye camera, which has a diameter of 23 mm. Also included are 30 mm and 30.5 mm adapters to ensure a perfect fit.
In addition, it is possible to use the C-mount thread provided with the 30.5 mm adapter to connect the DinoEye to the C-mount adapter (not included) on the trinocular microscope tube. The ocular camera is compatible with most brands and models of microscopes. It includes DinoCapture software for Windows and DinoXope for MAC, which offers measurement functions, annotations, video recording, and more.

Technical Specifications:
Optics:
Magnification: 20x, built-in
Lens type: Anti-reflective coated glass
Sensor:
Sensor type: CMOS
Resolution: 1.3 megapixels (1280x1024)
Maximum frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.12 and above
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Supported image formats (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Supported video formats (Windows): WMV, FLV, SWF
Supported image formats (MacOS): JPEG, PNG
Supported video formats (MacOS): MOV
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires WF-10 WiFi streamer (optional)
Housing:
Housing material: Metal body
Dimensions: 92 mm (H) x 32 mm (D)
Weight: 80 g
Cable length: 1.8 m
Outer ocular diameter: 23, 30, 30.5 mm
Mount type: Inside ocular/tube & c-mount
Features:
Special function: Extended depth of field (EDOF)
Measurement: Yes
Calibration: Yes
Microtouch sensor: No
Information:
Package contents: DinoEye ocular camera, carrying bag, calibration lens, user manual
Warranty information: 2 years European warranty
