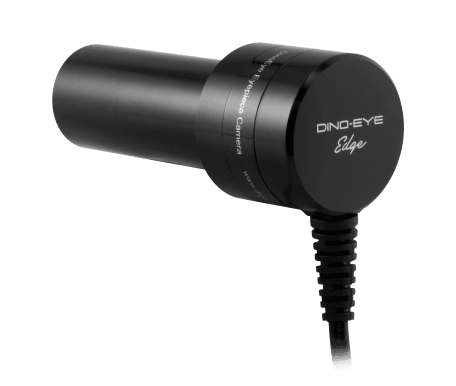

DinoEye Edge 5MP USB Eyepiece Camera, 23, 30 & 30, 5mm

The 5MP ocular camera offers excellent image quality and true color reproduction, making it an ideal choice for demanding applications where color accuracy is crucial, such as in the analysis of pathological samples and quality control.

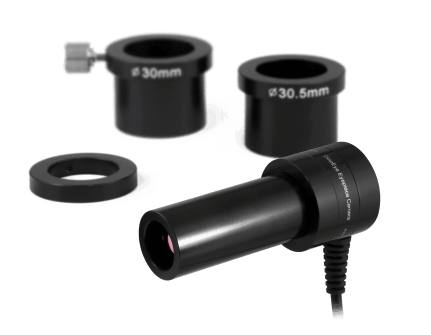

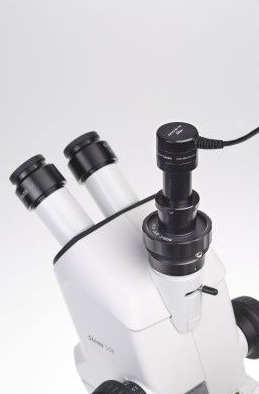

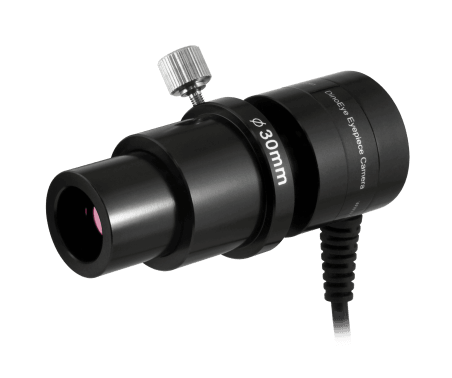

Thanks to its wide field of view, it allows for capturing more details in each image. The DinoEye camera can replace one of the microscope lenses, with a diameter of 23 mm, or adapt using one of the included adapters, of 30 mm or 30.5 mm, for a perfect fit.

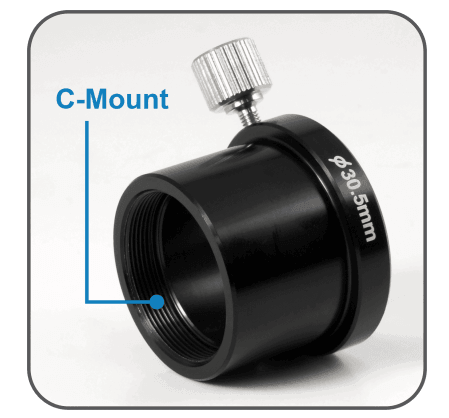

In addition, the C-mount thread provided with the 30.5 mm adapter can be used to connect the DinoEye to the C-mount adapter (not included) on the trinocular tube of the microscope. The camera is compatible with most brands and models of microscopes. It comes with DinoCapture software for Windows and DinoXcope for MAC, offering measurement functions, annotation, video recording, and more.

Technical specifications:
Optics:
Magnification: 20x, built-in
Lens type: Glass with anti-reflective coating
Sensor:
Sensor type: CMOS
Resolution: 5 Megapixel (2592x1944)
Max frame rate: 30 fps
Compatibility:
Interface: USB 2.0
Operating system: Windows 7, 8, 10 and 11, MacOS 10.12 and above
Software: DinoCapture 2.0 (Windows), DinoXcope (Mac OS)
Image formats supported (Windows): BMP, GIF, PNG, JPG, TIF, RAS, PNM, TGA, PCX, MNG, WBMP, JP2, JPC, PGX
Video formats supported (Windows): WMV, FLV, SWF
Image formats supported (MacOS): JPEG, PNG
Video formats supported (MacOS): MOV
Image standards: DirectShow, UVC
Wifi: Wireless-ready, requires the WF-10 WiFi streamer (optional)
Casing:
Casing material: Metal body
Dimensions: 80 mm (H) x 32 mm (D)
Weight: 117 g
Cable length: 1.8 m
Outer eyepiece diameter: 23, 30, 30.5 mm
Mounting type: Inside eyepiece/tube & c-mount
Features:
Special function: Extended depth of field (EDOF)
Measurement: Yes
Calibration: Yes
Microtouch sensor: No
Information:
Package content: DinoEye ocular camera, carrying bag, calibration objective, user manual
Warranty information: 2 year European warranty
