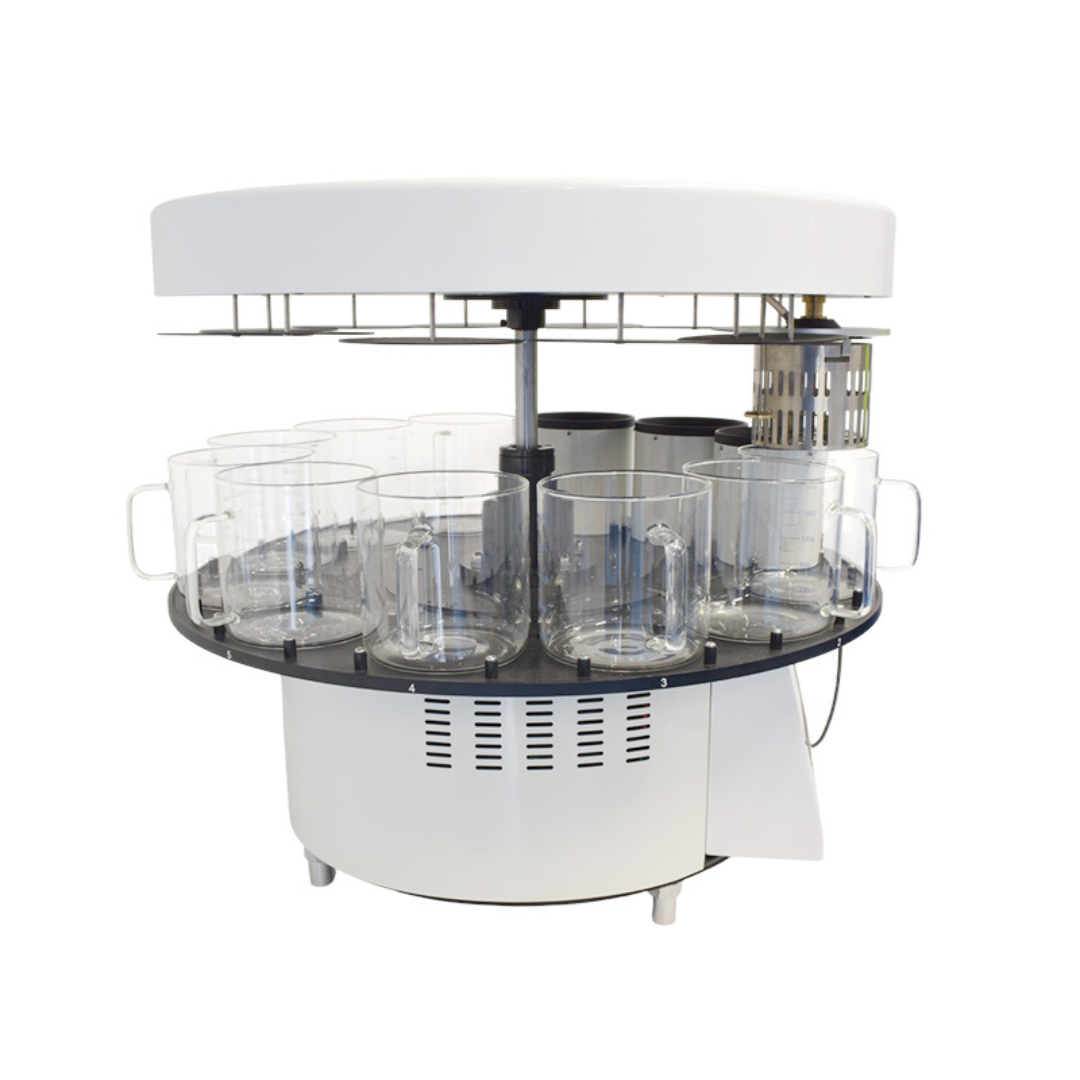

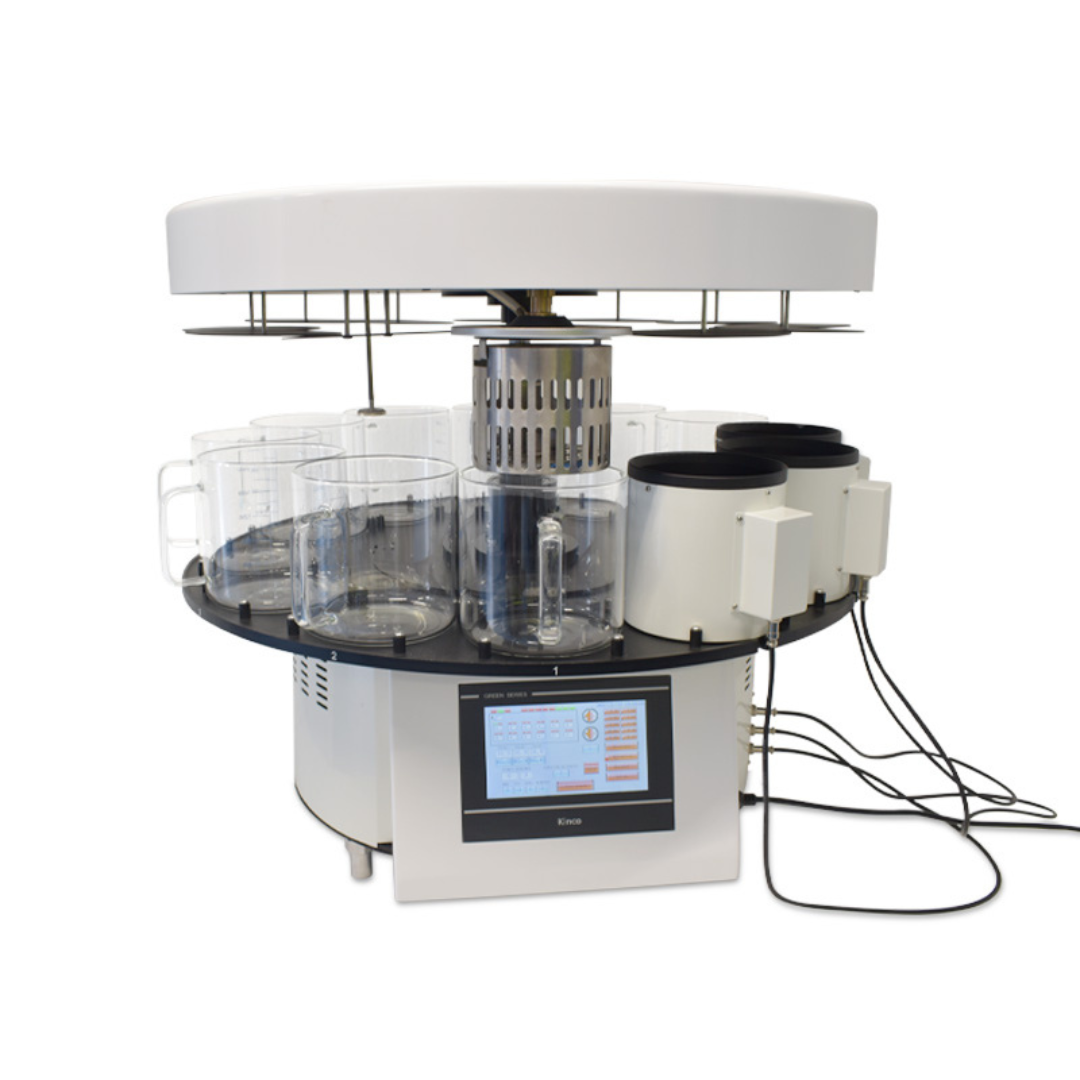

12-station tissue processor

Nahita's tissue processor is a device designed for the preparation of histological samples in the laboratory setting. It consists of 12 stations, including 9 for reagents and 3 for paraffin inclusion, and is capable of fixing, dehydrating, clearing, and immersing tissue samples in the necessary media for adequate analysis.

The device can be easily configured thanks to its intuitive operating interface, which is integrated by an LCD touch screen. In addition, it has 10 pre-recorded programs designed for standard processing, significantly facilitating the sample preparation work for laboratory professionals. All this is accompanied by an emergency battery with 20 minutes of autonomy capable of keeping the essential functions of the equipment active, guaranteeing the integrity of the samples at all times.

General Features
- Microcomputer controlled software, ensures precise and safe operation
- LCD touch screen for optimal sample processing control
- Carousel-type design with 12 stations (9 reagent tanks and 3 paraffin tanks)
- Includes a metal basket for stirring and vacuuming samples
- Paraffin tanks with non-stick Teflon coating for optimal finish
- Programmable immersion times for each station
- 10 selectable pre-recorded programs for standard procedures
- Intuitive operating interface, easy to operate and with easily adjustable parameters
- Possibility of programming sample processing for a specific time and date
- Emergency battery with 20 minutes of autonomy (excluding 220 V functions, such as paraffin tank heating or the lowering, raising and rotating of the equipment)
- Protection systems against electric risk and obstacles
- Audible alerts and error messages in case of operating failure

Technical Specifications
- Basket agitation: ~1 min. duration, >10 times/hour frequency
- Temperature range (paraffin): 30 - 85ºC
- Immersion time per station: min. 0 minutes, max. 2000 minutes
- Maximum vacuum pressure: ~0.5 bar
- Basket size: Ø 120 x 100 mm
- Basket capacity: up to 100 cassettes
- Power supply: 220 VAC, 50/60 Hz, 300 W
- Emergency battery autonomy: 20 min
- Equipment dimensions: Ø 760 x 580 - 700 mm (adjustable height)
- Weight: ~70 kg
