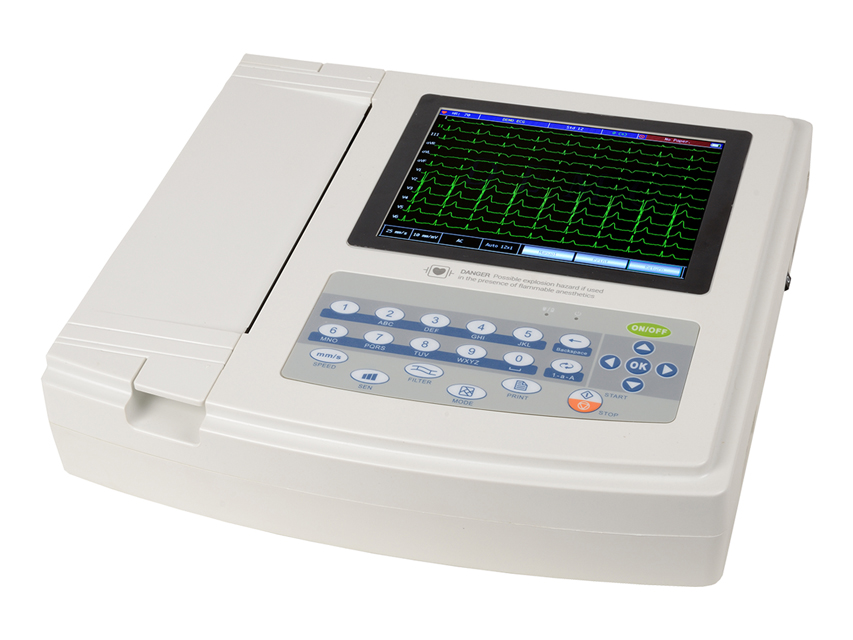

12-channel 1200G electrocardiograph with 8" screen

12-Channel 1200G Electrocardiograph with 8" TFT screen with color LED backlight offering high image resolution with 800x600 pixels.

Features:
- Simultaneous monitoring and visualization of 12 leads.
- Designed with digital signal technique, AC filter, baseline filter, and EMG filter.
- Auto-analysis and auto-interpretation.
- Multimode visualization and printing, such as 12, 6+1 (rhythm), 6, rhythm 12, rhythm 10, rhythm 8, rhythm 6. Manual, freeze, etc.
- Built-in rechargeable lithium battery.

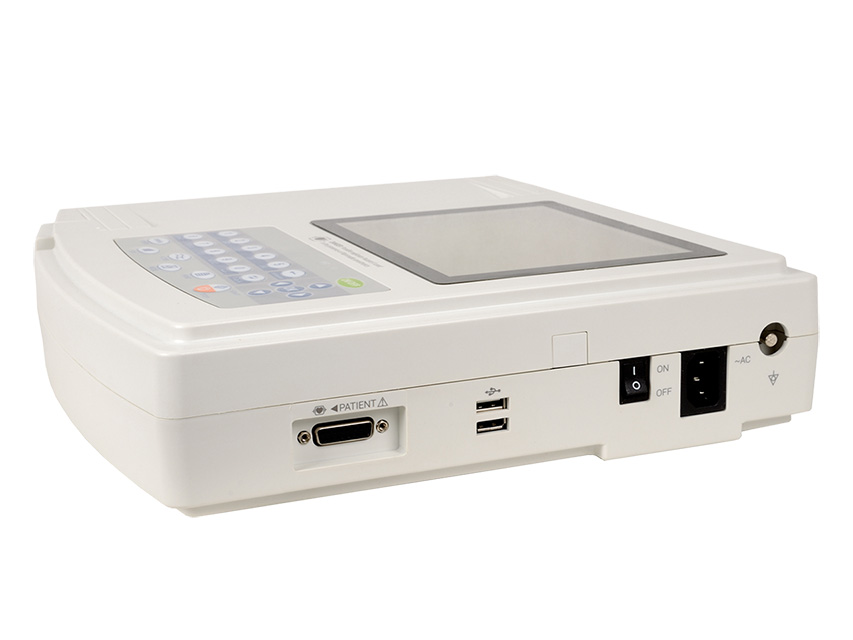

- 2 USB and LAN outputs for sharing data with the PC.
- Built-in flash memory capable of storing more than 1,000 files.
- Internal software in the following languages: GB, FR, IT, ES, PT, PL, SI, TR, RU, KZ, and CN.

Certificates: CE Class II A medical product.

Technical specifications:
- Input format: floating and defibrillation protection.
- 12-lead patient cable.
- Patient leakage current: <10 μA.
- Input impedance: =50 MO.
- Frequency response: 0.05-150 Hz (-3 ±0.4 dB).
- Time constant: =3.2 s.
- CMRR: >60 dB, >100 dB (adding filter).
- EMG interference filter: 25/35 Hz (-3 dB).
- Thermal paper measurements: 210mm x 30m.
- Paper speed:
    • Automatic and rhythm recording: 25, 50 mm/s, ±5%.
    • Manual recording: 5, 6.25, 10, 12.5, 25, 50 mm/s, ±5%.
- Sensitivity selections:
    • 2.5, 5, 10, 20, 40 mm/mV, ±5%.
    • Standard sensitivity is 10 mm/mV ±0.2 mm/mV.
- Automatic record: record setting according to the format and automatic record mode, automatically changing leads, measuring and analyzing.
- Rhythm record: record setting according to the rhythm record format and mode, automatically measuring and analyzing.
- Manual record: record settings according to the manual record format, manual lead change.
- Measurement parameters: FC, P-R interval, P duration, QRS duration, T duration, Q-T interval, Q-Tc, P axis, QRS axis, T axis, R(V5), S(V1), R(V5)+S(V1).
- Safety level: defibrillation and pacemaker protection Class I CF.
- Dimensions: 334x320x85 mm.
- Power supply:
    •  AC: 100-240 V, 50/60 Hz.
    •  DC: 14.8 V, 3700 mAh rechargeable lithium battery.

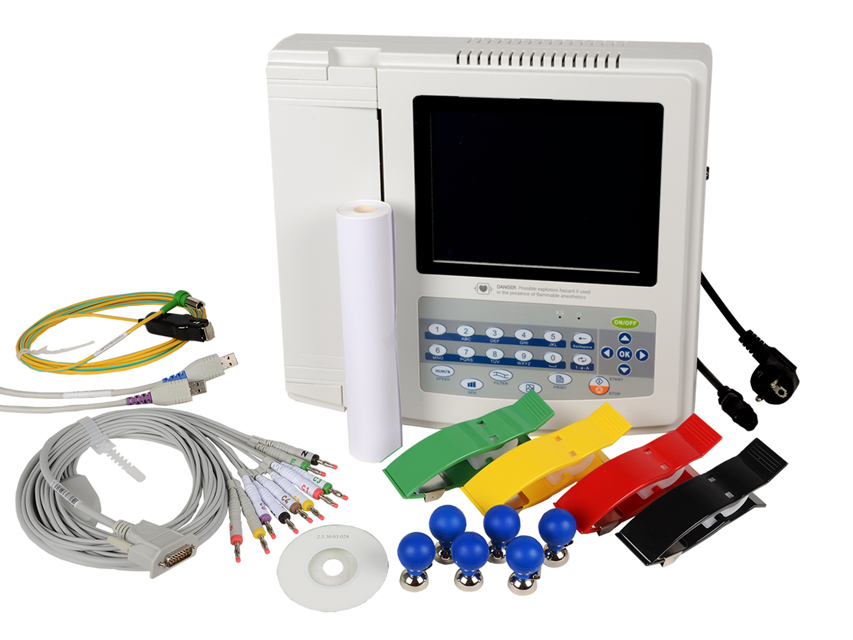

Includes:
- ECG cable.
- Power cable.
- Set of clamp electrodes.
- Roll of thermal paper.
- Set of precordial electrodes.
- Electrical connection.
- USB connection.
- Rechargeable battery.
- Software in the following languages: GB, FR, IT, ES, PT, PL, SI, TR, RU, KZ, and CN.
- Manual in GB and TI.
