Reference. 400133352

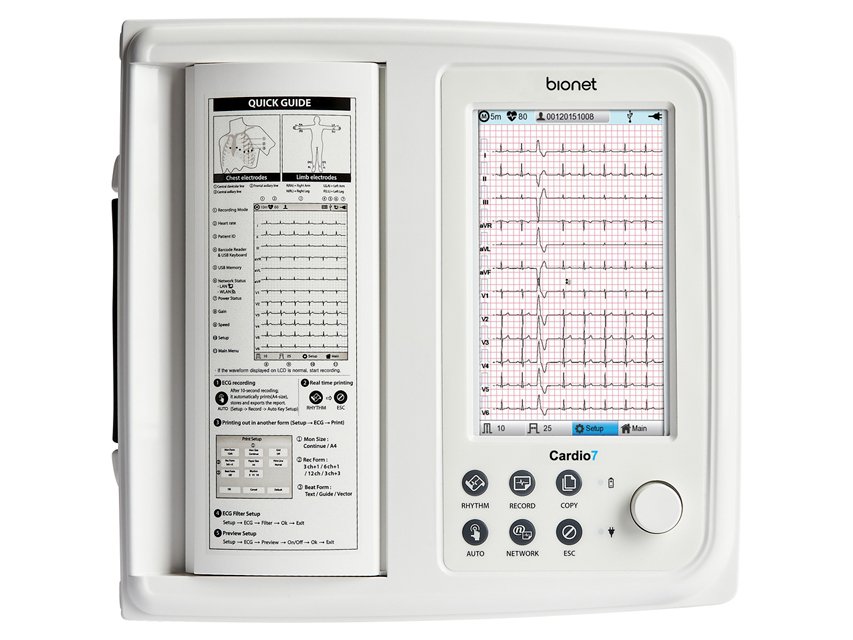

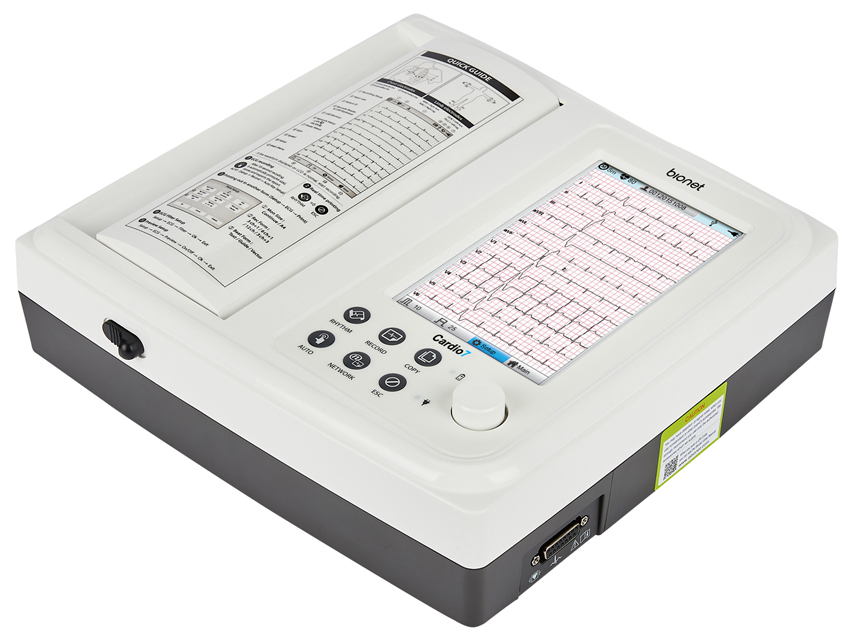

12-channel Cardio 7 electrocardiograph with touchscreen
12-channel Cardio 7 electrocardiograph with touch screen
Personal advice
Description
Cardio 7 is an electrocardiograph capable of measuring and recording 12 channels of cardiac signals in both adult and pediatric patients. It allows you to record and print the results, review them using various display modes, and perform automatic detection of cardiac conditions.
It is possible to manage the results and transfer the stored data to a PC.
Features:
- Supports more than 120 types of interpretation results based on the advanced Minnesota code and HRV (Heart Rate Variability analysis).
- Memory capacity for up to 200 patients.
- Allows real-time preview.
- Compatible with PC via LAN or USB flash drive.
- Selectable multilingual software: GB, FR, IT, ES, DE, PT, PL, RO, TR, RU and KR.
- Pacemaker detection.
- Records 1 channel rhythm for an extended time (1, 5 and 10 minutes) and then prints on letter or A4 size paper.
- 7” color TFT LCD touch screen.
- Full disclosure function.
- Automatic arrhythmia detection.
- Isolated defibrillation and ESU protection.
- Signal quality control: detection of lead failures, signal saturation, and pacemaker pulse.
Certificates:
- CE Class II A medical product.
- Tested safety level: Class I, Type CF, CE, CSA, FDA, KFDA, CFDA and CCC.
Technical specifications:
- 10-lead patient cable.
- LAN cable.
- Roll of paper.
- 4 clip electrodes.
- 6 precordial electrodes.
- 70g ECG gel pot.
- Power cable.
- BM5 Plus battery in GB and IT.
- Rechargeable lithium-ion battery.
- User manual in GB and IT.
It is possible to manage the results and transfer the stored data to a PC.
Features:
- Supports more than 120 types of interpretation results based on the advanced Minnesota code and HRV (Heart Rate Variability analysis).
- Memory capacity for up to 200 patients.
- Allows real-time preview.
- Compatible with PC via LAN or USB flash drive.
- Selectable multilingual software: GB, FR, IT, ES, DE, PT, PL, RO, TR, RU and KR.
- Pacemaker detection.
- Records 1 channel rhythm for an extended time (1, 5 and 10 minutes) and then prints on letter or A4 size paper.
- 7” color TFT LCD touch screen.
- Full disclosure function.
- Automatic arrhythmia detection.
- Isolated defibrillation and ESU protection.
- Signal quality control: detection of lead failures, signal saturation, and pacemaker pulse.
Certificates:
- CE Class II A medical product.
- Tested safety level: Class I, Type CF, CE, CSA, FDA, KFDA, CFDA and CCC.
Technical specifications:
- ECG leads: 12 simultaneous.
- Recording: auto, beat and arrhythmia detection.
- Recording channels: 3 channels + 1 rhythm, 3 channels + 3 rhythms, 6 channels + 1 rhythm, 12 channels, 6 channels + st map 1 channel.
- Gain: 2.5, 5, 10, 20, auto (I~aVF: 10; V1~V6: 5) mm/mV.
- Printing speed: 5, 12.5, 25, 50, 100 mm/s.
- Sampling frequency: 2,000 samples/second.
- Filters
• AC: 50/60 Hz, -20 dB or better.
• Muscle: 25~35 Hz, -3 dB or better.
• Baseline drift: 0.05, 0.1, 0.2 Hz, -3dB or better.
• Lower pass: off, 40 Hz, 100 Hz, 150 Hz.
- Data displayed on screen: HR, ID, date, AC or battery status, sensitivity, speed, number of stored data, printing format and rhythm lead.
- User interface: touch screen (available alphanumeric and symbols), keyboard and rotary button.
- Patient data: ID, name, age, sex, height, weight, smoker and race.
- Base measurements: heart rate, beats, QRS, QT/ATc and P-R-T axis.
- Recorder:
• Thermal printer.
• Operation with A4 sheets.
• Resolution: vertical 8 points/mm, horizontal 16 points/mm.
- Internal noise: 20 uV(p-p) max.
- Input impedance: more than 50 MO.
- Input voltage range: ±5 mV.
- CMRR: greater than 105 dB.
- DC voltage: =± 400 mV.
- Patient current leakage: <10 uA.
- Frequency response: 0.05-150 between -3 dB.
- ECG memory: internal with up to 200 ECG measurements and external via USB memory.
- Power supply: input 100-240 VAC 2-1 A 50/60 Hz, output 60 VA max.
- External connections:
• LAN
• 2 USB ports.
• WiFi (optional with additional cost).
- Supported file formats: PDF, JPG, XML, MFER and DICOM.
- Battery (optional with additional cost):
• Typology: lithium ion, rechargeable and replaceable.
• Duration: 6 hours with continuous use without printing or approximately 2 hours (200 ECG prints).
- External communication:
• RS232
• LAN
• WiFi
• USB memory.
• USB barcode scanner.
- Environmental conditions: humidity 30-85%, temperature 10-40°C.
- Dimensions: 300x299x123 mm.
- Weight: 3.5 kg.
Includes:- 10-lead patient cable.
- LAN cable.
- Roll of paper.
- 4 clip electrodes.
- 6 precordial electrodes.
- 70g ECG gel pot.
- Power cable.
- BM5 Plus battery in GB and IT.
- Rechargeable lithium-ion battery.
- User manual in GB and IT.
