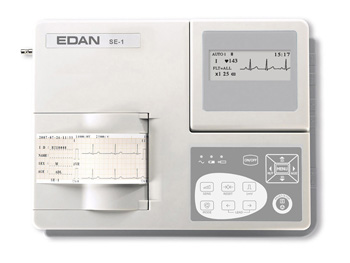

1-channel electrocardiograph with monitor

The best in quality, performance, and price.

They have advanced features, an ergonomic design, and robust construction.

• Single-channel ECG with adjustable graphic display parameters can be adjusted according to user needs.

• High resolution thermal printer

• Powered by mains power or rechargeable lithium battery

• Digital filters, non-slip, AC, muscle EMG with baseline for automatic print line optimization

• RS232 serial port

• Manual / automated operating modes

• Lead electrode positioning

Technical Specifications

• Input circuit: floating input circuit, protection against defibrillation and rhythm maker

• Lead: Standard 12 leads

• Acquisition mode: single

• Time constant:> 3.2 s

• Sensitivity: 2.5, 5, 10, 20, mm / mV

• Input impedance:> 50 M?

• Fight against baseline drift: Automatic

• Filter:

- 35Hz EMG Filter (-3 dB)

- AC / DFT Fliter 50Hz / 60Hz

- Low pass filter 150Hz / 100Hz / 75Hz

- AC filter 50 Hz / 60 Hz

• CMRR:> 90dB

• Recording mode: Auto / Manual

• Rhythm lead: Any selectable lead

• Safety standard: IEC I / CF

• Power supply:

- AC: 100 V-115 V / 220V-240V, 50/60 Hz

- 14.4V rechargeable ion battery

- More than 3 hours of continuous operation on battery power

• Recorder: Thermal printer

• Recording paper: 50 mm x 30 m

• Paper speed: 25 mm / s, 50 mm / s (± 3%)

• Dimensions: 288 mm x 210 mm x 70 mm

• Weight: 2.3 kg (with battery)

• Display: 192 x 64 pixel LCD (wide screen)

• Selectable display language Eng - Ita

• Interface: RS232

Standard Accessories

• Patient Cable

• 1 bottle of gel

• 1 roll of paper

• 4 limb electrodes

• 6 chest limb electrodes

• Battery

• Manual: GB, IT

• Quick Guide: GB, FR, ES, IT
