Description

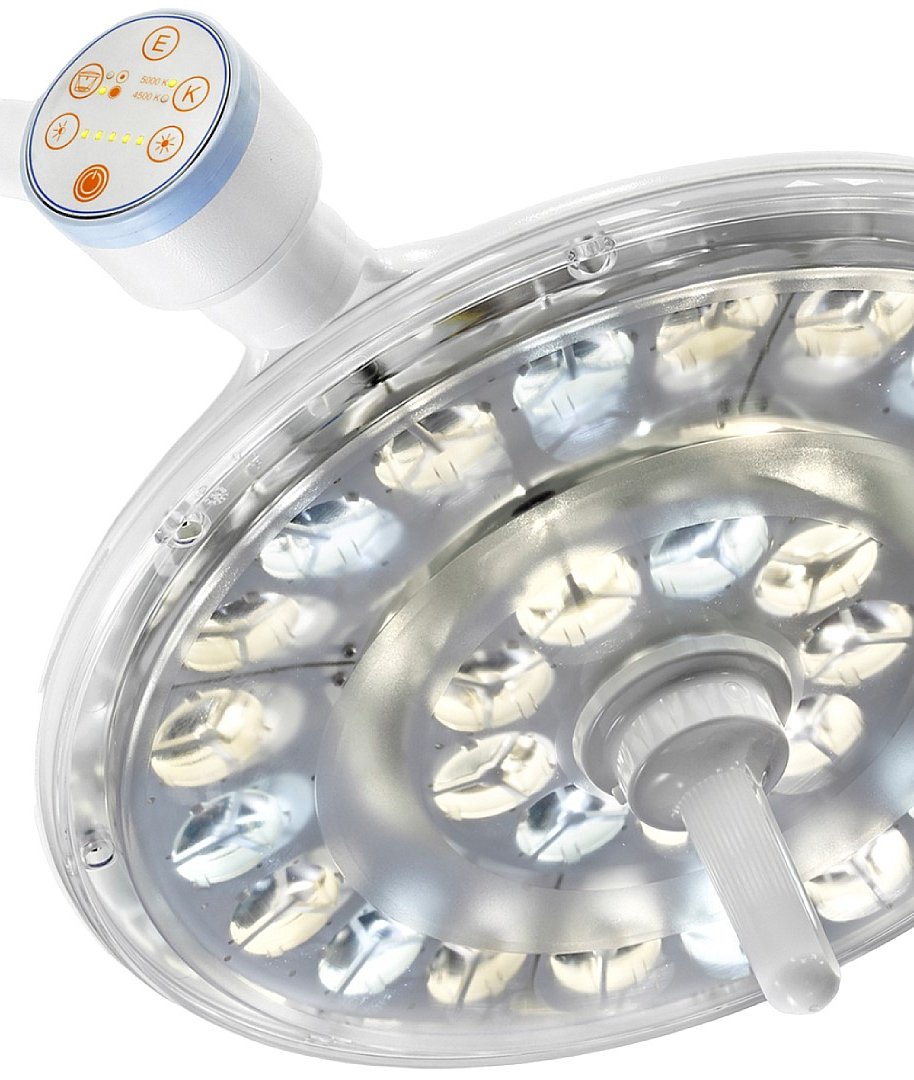

The U29 surgical lamp combines high performance and innovative lighting technology with a sleek design. It has been developed with indirect lighting that ensures an increased light emission surface, thus ensuring the reduction of shadows in the surgical area. This indirect lighting provides a cool, far-reaching and deep light without glare.
Expandable light field:
The U29 is configured with the E-View function, which allows expanding the illuminated field at the edges without affecting the light intensity in the center (Ec). Such an advantage offers especially optimal illumination for the following procedures: thoracic surgery, abdominal surgery, cesarean deliveries, and all those procedures where the surgeon needs to operate with an extended field.
Endoled function:
Developed to specifically turn on the central LED module and only regulate the luminous intensity and color temperature of that particular group. The Endoled function (E-Deep) means that the surgeon can operate with more concentrated and deep lighting, especially optimal in endoscopies.
Preconfiguration for 4K camera:
The U29 comes prepared for the incorporation of a native resolution 4K camera (not included and at an additional cost) that can be adapted to Full HD with a combination of easily adaptable buttons. It also incorporates an RS232 interface to link it with external integration systems in order to optimize its connectivity. Please contact us if you want to know more about this before your purchase.
Ergonomic design:
It is very easy to handle and place in the correct position thanks to its compact and ergonomic design. In addition, the ultra-flat shape of the dome facilitates its integration into the surgical area and provides great comfort to the surgeon.
Adjustable functions:
- Color temperature in 2 sections, 4,500 or 5,000ºK.
- Diameter of the illuminated field.
- Light intensity between 5 and 100%.
Certificates:
- CE medical product in accordance with Directive 93/42/EEC.
- In accordance with standard IEC 60601-2-41.
Technical specifications:
- Luminous intensity: 160,000 lux at 1 m.
- Number of LEDs: 29.
- Dome diameter: 52 cm.
- Color temperature: 2 selections, 4,500 or 5,000ºK.
- Color rendering index: 96 Ra.
- Diameter of the illuminated field: 140 - 230 mm.
- Diameter of the light field where the illuminance reaches 10% of Ec: 200 mm.
- Depth of illumination IEC 60601-2-41 (L1+L2) at 60%: 490 mm.
- Depth of illumination IEC 60601-2-41 (L1+L2) at 20%: 1350 mm.
- Total radiated energy when the light reaches the maximum level: 580 W/m².
- Ratio between radiated energy Ee and illuminance Ec: 3.68.
- LED lifespan: over 60,000 hours.
- Adjustable luminous intensity: 5-100%.
- Power consumption: 48 W, 56 VA.
- Weight: 45 kg.

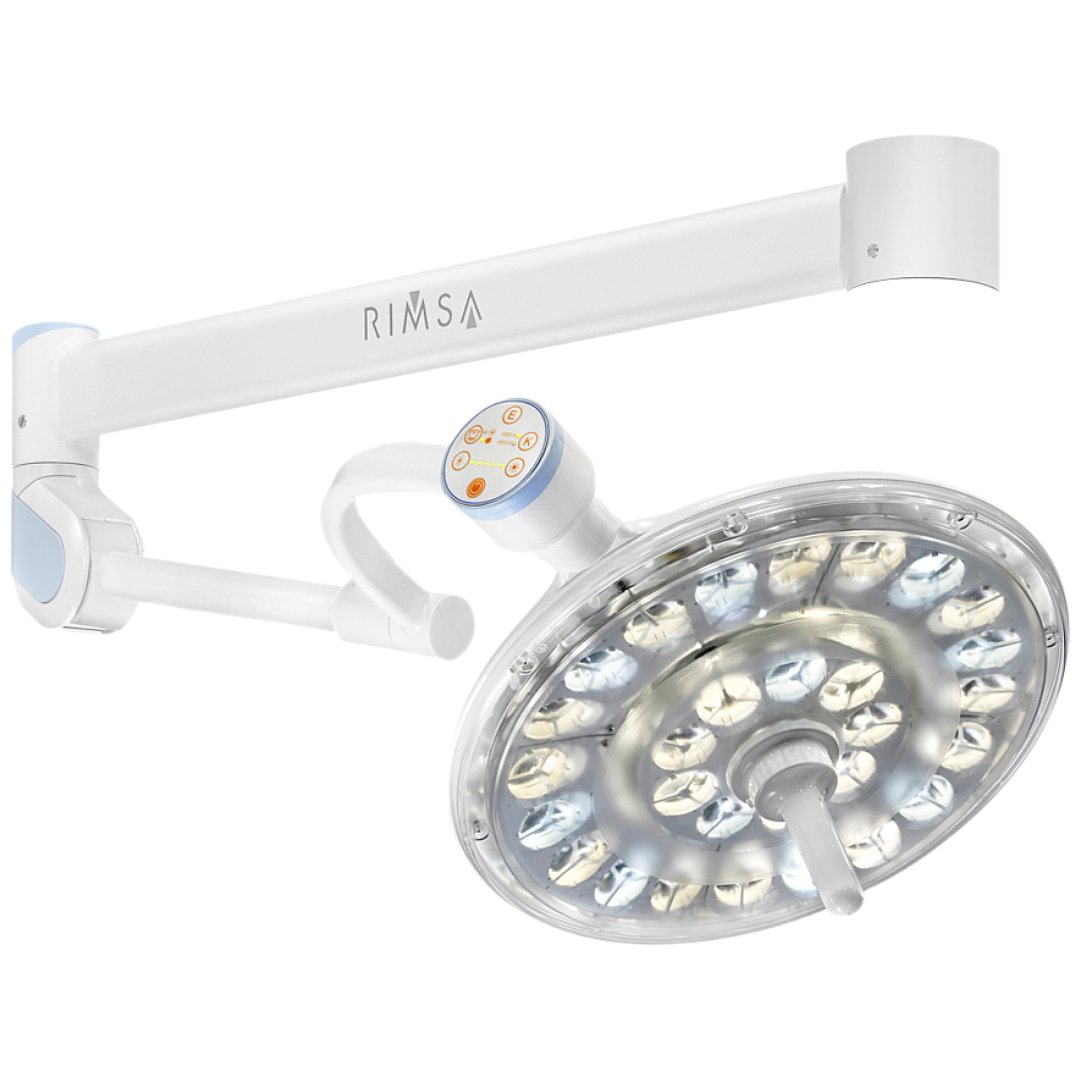

Support: ceiling mount (up to 3 m high).
*Installation not included.
