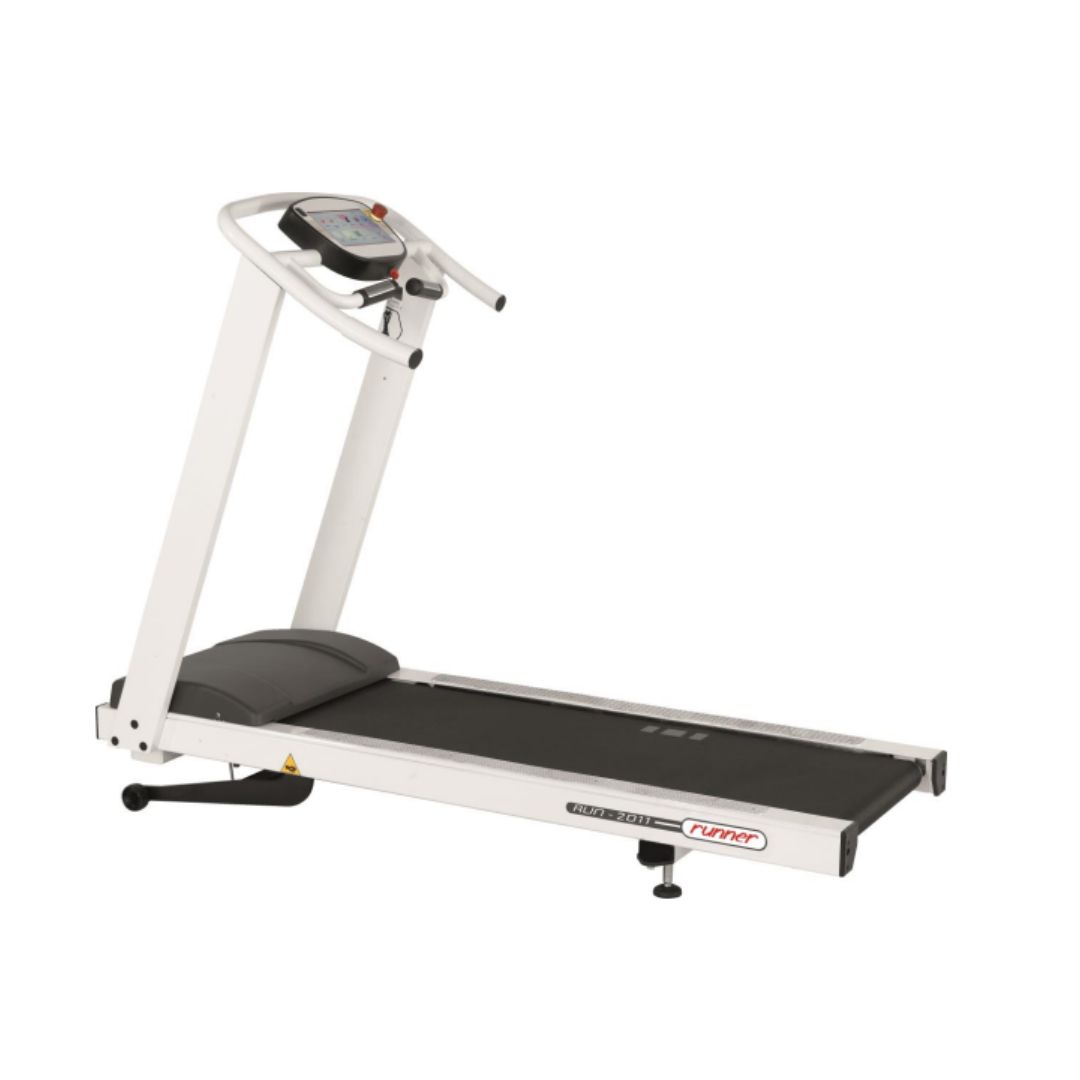

Treadmill RUN2011/T-PC with remote control console, 70 x 188 x 142 cm

Device intended for stress tests for medical diagnosis. The RUN2011/T-PC treadmill has been manufactured with a wide surface and a powerful motor to be used by all types of patients. It is equipped with a 10.1-inch touchscreen that is remotely controlled and has a wide range of speeds, between 0.1 and 20 kilometers per hour. It is compatible with electrocardiogram devices from various brands, such as Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed and CubeStress Cardioline, among others.

It has been manufactured following the specifications of ISO13485, it is classified as a class IIa medical product and has a CE conformity certificate 93/42/EEC. In addition, its electronic, mechanical and electrical components have 2 years warranty, and the structure, 10. For all these reasons and for the features it offers, it is an ideal model for professional facilities such as hospitals, outpatient clinics and clinics.

General Features
- Width: 70 cm
- Length: 188 cm
- Height: 142 cm
- Weight: 145 kg

Technical Specifications
- Durable 10.1-inch touchscreen
- PC iMX6 DL 1 GB, Micro SD 8GB, O.S. Linux
- Analog interface RS323 with optical isolation for connection with ECG through the Trackmaster protocol (compatible with ECG Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara)
- Speed range: 0.1 - 20 km/h
- Incline: 0%, +22%
- Speed increase: 0.1 km/h
- Incline increase: 0.5 - 1%
- Electronic variation of speed and incline
- Belt self-centering system
- Belt self-lubrication system
- Walking surface: 140 x 48 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 1.5 kW
- Power supply: 220~240Vac, 50/60Hz, 10Amp
- Auxiliary tilt circuit: 18 Vac
- Console auxiliary circuit: 12 Vdc
- Motor: 2 HP AC
- Power absorbed at maximum speed: 2000 VA
- Nominal power absorbed: 1500 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 150 kg
- Button and handle with magnet for emergency stop
- CE conformity certificate 93/42/EEC
- Compatibility with Polar H7, H9 and H10 BLE (Bluetooth Low Energy) chest straps through certified dongle (not included). The strap can only be used if an ECG device is available.

Standard Accessories (included)
- Wheels to move the treadmill
- Service equipment
- Power cord
- RS232 cable

Optional Accessories (not included and at an additional cost)
- Incline -3%, +19%
- Long handrails without holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0639)
- Long handrails with holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0654)
- Axillary support (maximum weight 150 kg) (Ref. 4063EE0623)
- Adjustable front and side handrails (maximum weight 150 kg) (Ref. 4063EE0706)
- Harness system for long handrail (maximum weight 150 kg) (Ref. 4063EE0640)
- Special support and vest for harness system (maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp (maximum weight 150 kg) (Ref. 4063EE0692)
- Bluetooth dongle for Polar chest strap (Ref. 4063EE0713)


Console Functions
- Remote use through the RS232 interface
