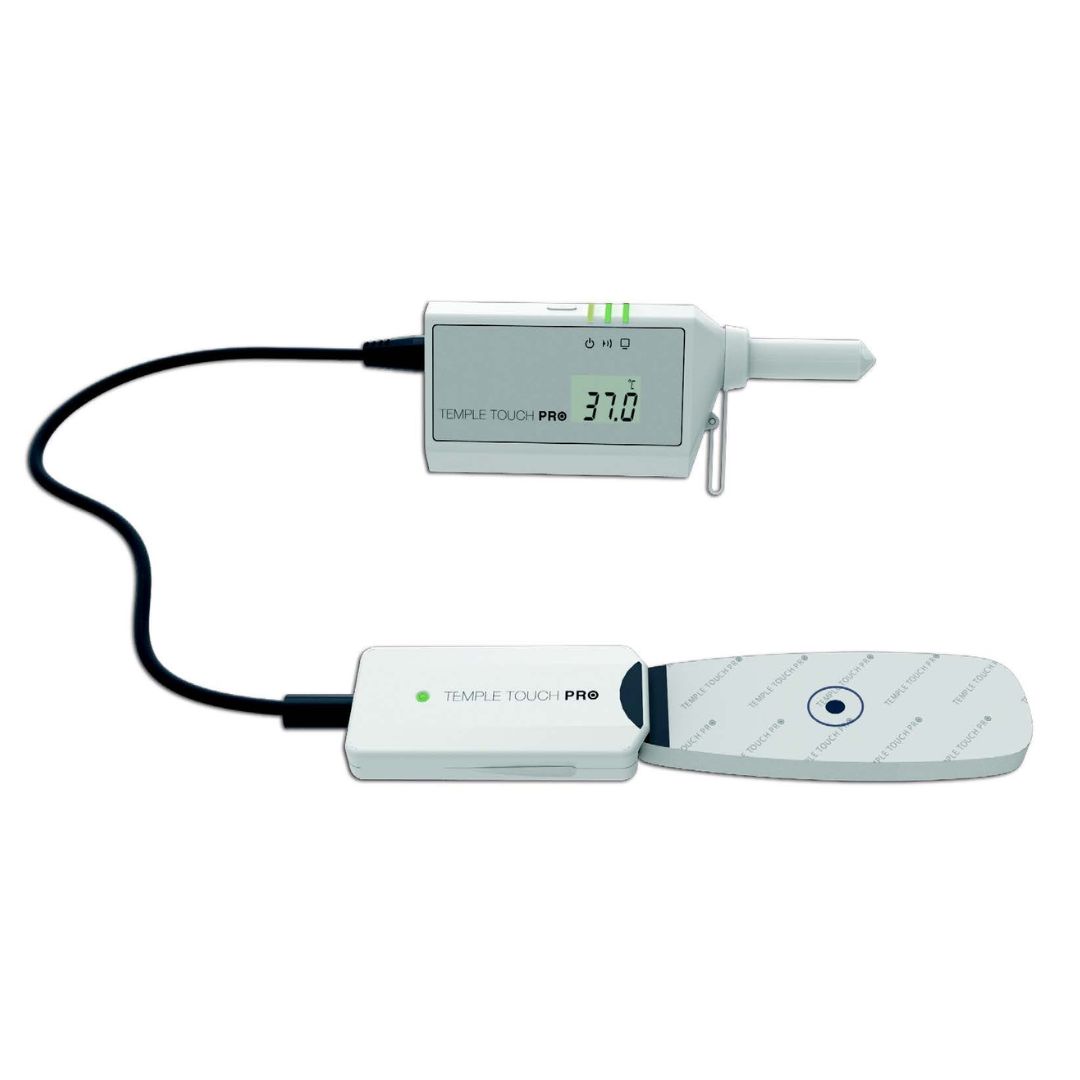

Temple Touch Pro™ Central Temperature Monitoring System

The Temple Touch Pro™ device represents an advancement in monitoring central temperature in the healthcare field. It works by adhering to the patient's temple to measure the blood flow of the temporal artery and detect the heat of the skin above it. Based on these parameters, it calculates an accurate reading of the patient's central temperature, offering an effective, comfortable, and non-invasive alternative to traditional measurement methods.

Features
- High precision guaranteed: Meets ASTM E 1112-00 & EN 12470-4 requirements: 25°C to 45°C ± 0.2°C (77°F to 113°F ± 0.4°F)
- Easy and comfortable to use: non-invasive method of adherence to the temporal artery
- Low maintenance: functional check recommended every 2 years
- Quick response time: calculation of an average central temperature in less than 180 seconds
- Wide measuring range: from 25ºC to 45ºC or from 77ºF to 113ºF
- Non-sterile
- Not compatible with flammable anesthetic mixtures with air or nitrous oxide
- Works with TTP™ SU sensors (not included) (Ref. 94273TTP-3ASU)

Components
- TTP™ Sensor Connection Unit (SCU): cable with connector compatible with temple sensor (SU).
- TTP™ Monitor Connection Unit (MCU): transmitter of data collected by the SCU to the central monitor.

Technical specifications
- Monitor Connection Unit (MCU): 10.9 x 4.2 x 2.2 cm, 44.4 g, 3-year lifespan. 40 cm cable.
- Sensor Connection Unit (SCU): 3.8 x 1.8 x 0.7 cm, 7.5 g, 3-year lifespan. 40 cm cable.
- Electrical characteristics: 90-260 VAC, 47~63Hz. Output 5V DC. The monitoring system must be used with a suitable medical grade AC / DC adapter.

Included accessories
- 2.4 m SCU extension cable
- 40 cm monitor extension cable
- AC adapter model: GSM36U05-P1J of 3 m

Classification
- Medical equipment in terms of electrical discharges, fires, and mechanical hazards according to IEC 60601-1; CAN /CSA-C22.2.
- Classified according to IEC 60601-1 Standards (and other national versions) as Class II, Type CF, Defibrillation Testing Equipment, Ordinary.
- In accordance with EN 12470 standard.
- Classified only with regard to electrical discharges, fires, and mechanical hazards, according to IEC 60601-1 and Canadian / CSA C22.2. No. 601.1. ANSI / AAMI ES 60601-1; 2005.
- Classified under the Medical Devices Directive as a Class IIa device.
- CE Certificate No. 668204, issued by BSI No. 2797
- EN 60601-1
- EN 60601-1-2
- RoHS Directives (2002/95/EC, 2011/54/EU, 2005/618/EC)
- Manufacturer certified by ISO 13485

Optional accessories (not included and with additional cost)
- HotDog adapter cable (Ref. 94273TTP-MNTCBLPH)
- Draeger monitor adapter cable (Ref. 94273TZR-8280040006)
- 5-pin Mindray monitor adapter cable (Ref. 94273TZRDT-YSI400)
- 2-pin Mindray monitor adapter cable (Ref. 94273TZRMR-YSI400)
- Philips monitor adapter cable (Ref. 94273TZRHP-YSI400)
- GE Healthcare monitor adapter cable (Ref. 94273TZRMQ-YSI400)
- Spacelabs monitor adapter cable (Ref. 94273TZRSL-YSI400)
- Siemens monitor adapter cable (Ref. 94273TZRSM-YSI400)
