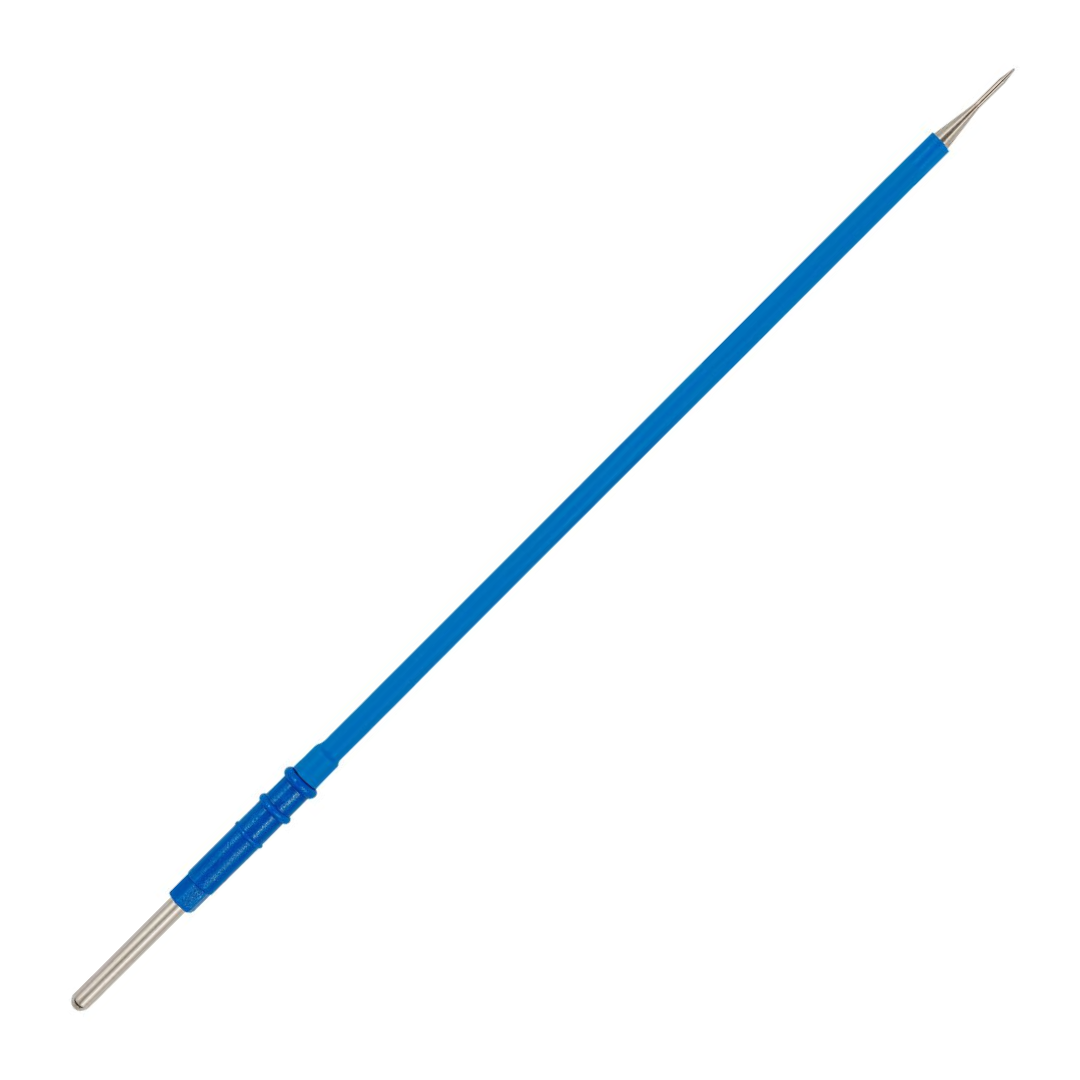

Needle electrode for electrosurgical unit, 150 mm

Disposable electrode designed for Blayco® electrosurgery equipment and electrosurgical unit models that have a standard 2.36 millimeter connection. It is made of high-quality stainless steel and does not contain latex-derived components, so it is hypoallergenic. In addition, its production is certified by ISO 13485 and its design adheres to Directive 93/42/EEC, making it perfectly safe and suitable for use in surgery.

General features
- Compatible with Blayco® electrosurgical unit handles and other devices with a 2.36 mm connection
- Hypoallergenic due to its latex-free manufacturing
- Design adheres to the specifications of Directive 93/42/EEC, classified as a Class IIb sterile product
- Production certified by ISO 13485

Technical specifications
- Stainless steel cable dimensions: 2.36 mm
- Distance between the two opposite sides of the hexagonal connection: 3.2 mm
- Active part length: 11.6 mm
- Total length: 150 mm
- Maximum voltage: 2.9 KVp
- Sterilization method: Ethylene oxide
- Shelf life: 3 years from date of manufacture

Materials
- Electrode filament: AISI 304 stainless steel
- Mold: ABS
- Protector: PVC

Biocompatibility
- ISO 10993-5: non-cytotoxic
- ISO 10993-10: non-sensitizing
- ISO 10993-10: negative intracutaneous irritation test
