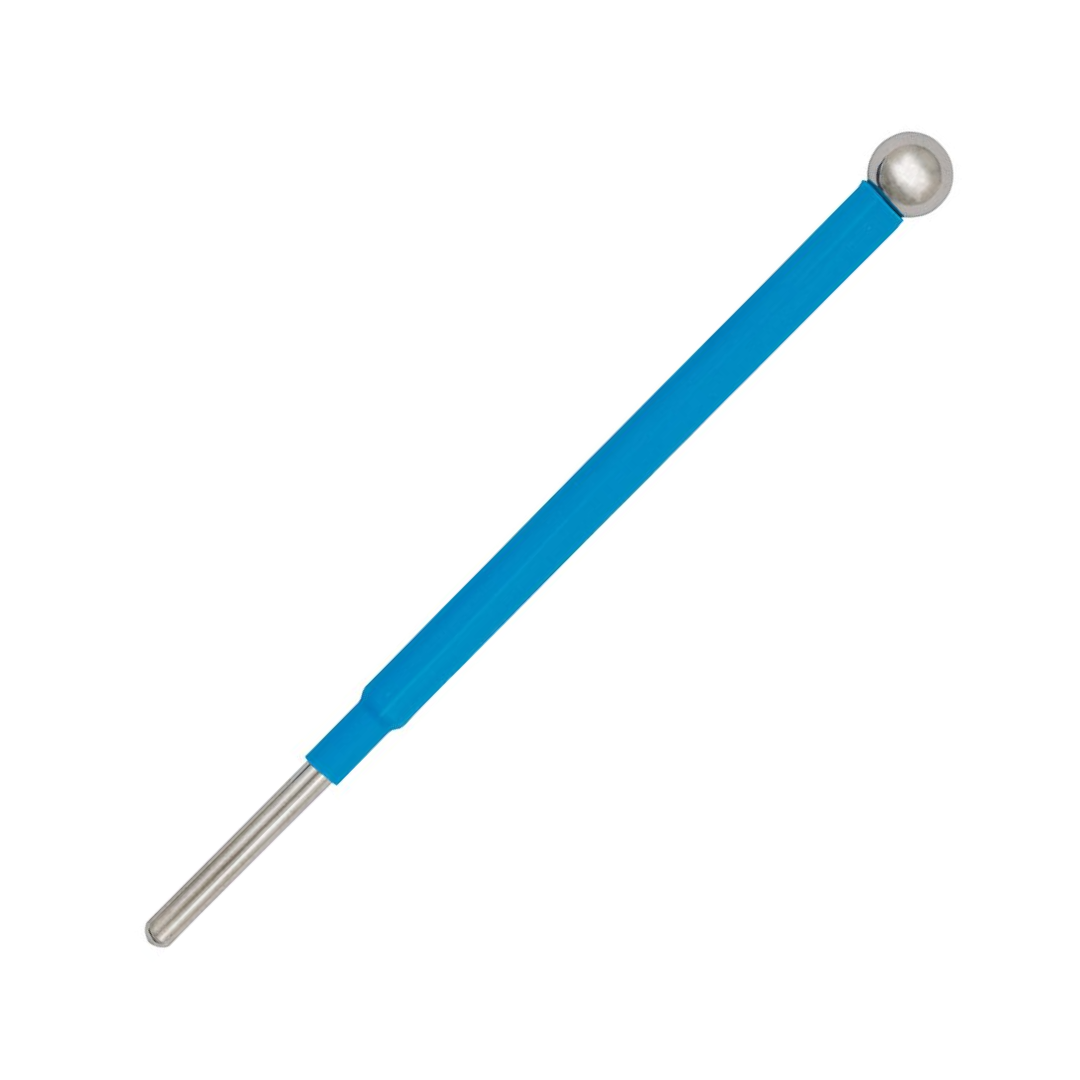

Ball-shaped electrode for electrosurgical unit, 80 mm

Disposable and sterile ball-shaped electrode compatible with Blayco® electrosurgery devices and other electrosurgical units that have standard 2.36 millimeter connections. Manufactured without latex-derived materials and with a high-quality stainless steel tip to ensure comfortable and professional use. Certified for safety and quality by Directive 93/42/EEC and ISO 13485 standard.

General Features
- Compatible with all Blayco® electrosurgical unit handles and other devices with standard 2.36 mm connections
- Made without latex-derived materials
- Manufactured according to Directive 93/42/EEC, classified as a sterile Class IIb product
- Produced by a manufacturer certified by ISO 13485 standard

Technical Specifications
- Stainless steel cable dimensions: 2.36 mm
- Electrode insertion diameter: 2.88 mm
- Active part dimensions: ø 6 mm
- Total length: 80 mm
- Maximum voltage: 2.9 KVp
- Sterilization method: ethylene oxide
- Shelf life: 3 years from manufacture date

Materials
- Electrode filament: AISI 304 stainless steel
- Mold: ABS
- Protector: PVC

Biocompatibility
- ISO 10993-5: non-cytotoxic
- ISO 10993-10: non-sensitizing
- ISO 10993-10: negative intracutaneous irritation test
