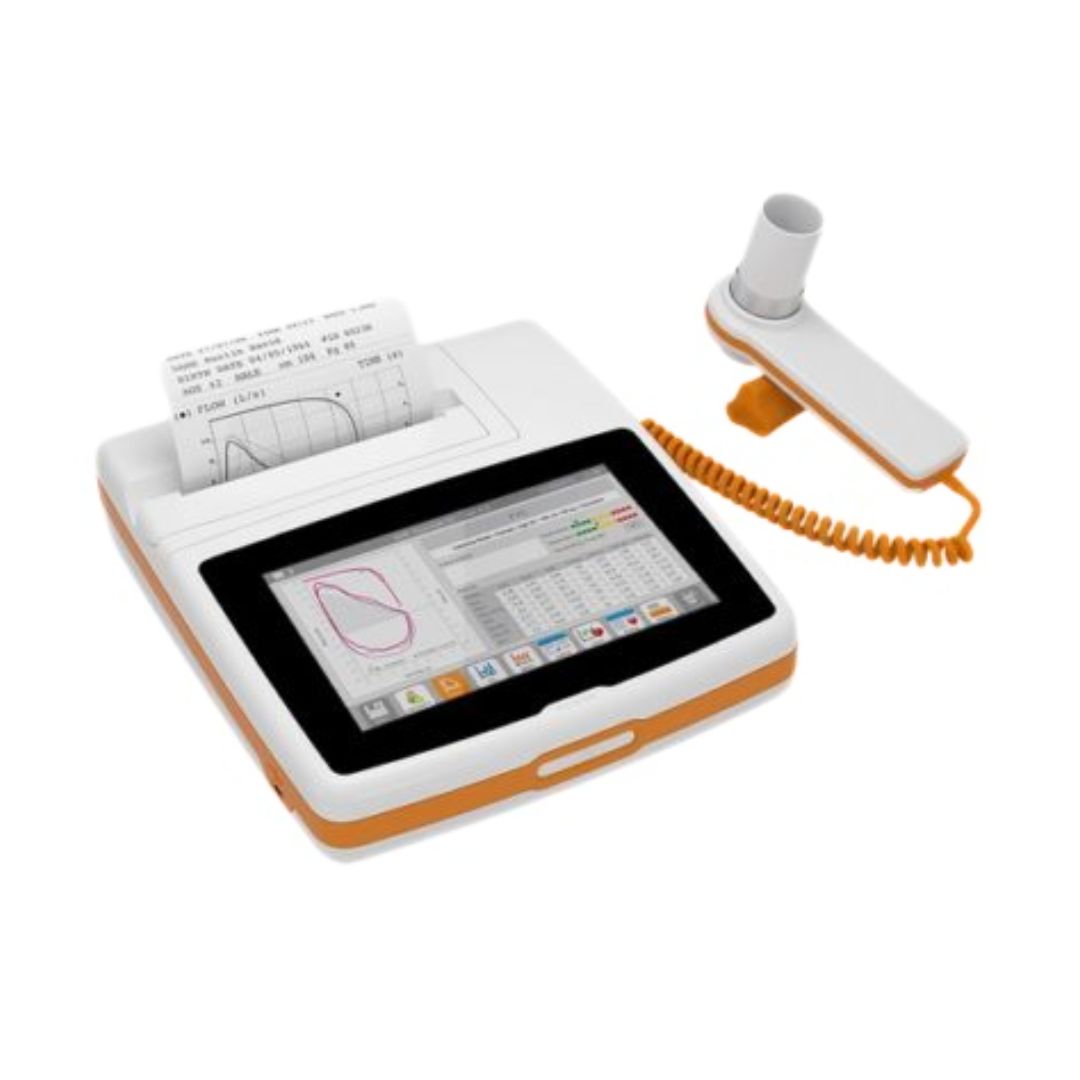

Spirolab New Spirometer with disposable turbines, color touch screen, printer and software.

Spirolab spirometer with 7" color touchscreen and built-in black and white printer. It guarantees a quick, simple, and rigorous diagnosis and has high-performance software for PC.

Features:
- Comparison of bronchodilators with a wide range of selectable parameters: FVC, VC, MVV and PRE/POST.
- Long-lasting rechargeable battery.
- Allows up to 10,000 spirometry tests.
- Real-time monitoring from a PC via Bluetooth connection is possible.
- Fast and quiet built-in B/W printer with customizable print format. The device also has a direct connection to an external PostScript USB printer.
- Suitable for pediatric patients, no adapter needed.
- Selectable internal software languages: GB, FR, IT, ES, DE and PT.
- WinspiroPRO software languages: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP and CN.
- Disposable FlowMIR turbines that comply with the ATS/ERS standard. Each turbine is factory calibrated and individually packaged in a sterile environment.

Certificates:
- COMPLIANCE WITH ATS/ERS 2019 and other standards such as ISO 26782 (for spirometry), ISO 23747 (for PEF), ISO 80601-2-61 (for Oximetry)
– ATS/ERS 2019 for volume accuracy
– ATS/ERS 2005
– ISO 26782:2009
– ISO 23747:2015
– IEC 60601-1:2005 + A1: 2012
– ES 60601-1-2:2015
– IEC 60601-1-6:2010
– IEC 60601-1-8:2006+AMD1:2012
– IEC 60601-1-9:2007+AMD1:2013
– ISO 10993-1:2018
– ISO 80601-2-61:2017

Technical specifications:
- Power supply: rechargeable battery with approximately 10 hours of autonomy.
- Temperature sensor: semiconductor (0-45°C).
- Flow sensor: bidirectional digital turbine.
- Flow range: ±16 L/s ±5% or 200 mL/s.
- Volume accuracy: ±3% or 50 ml.
- Dynamic resistance: <0.5 cm H2O/L/s.
- Connectivity: USB 2.0, Bluetooth 2.1.

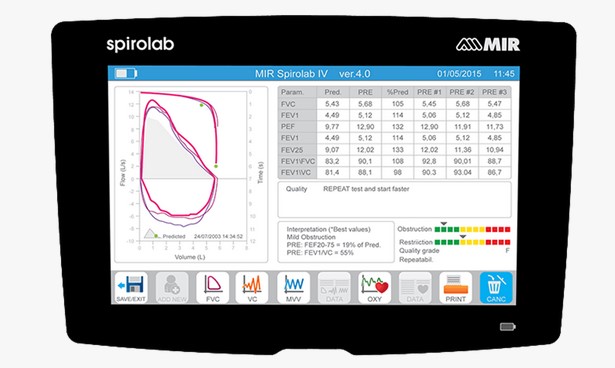

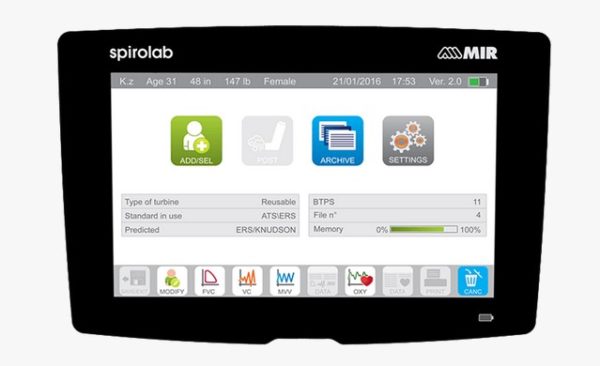

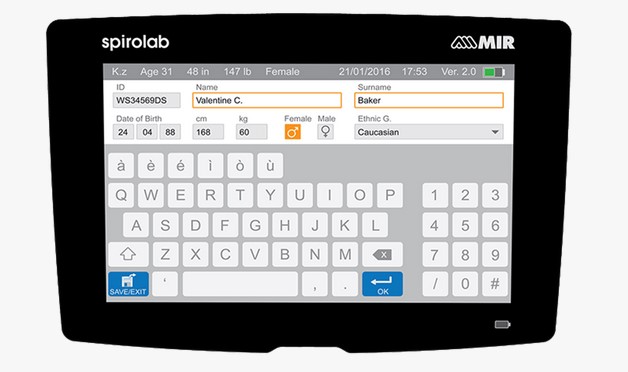

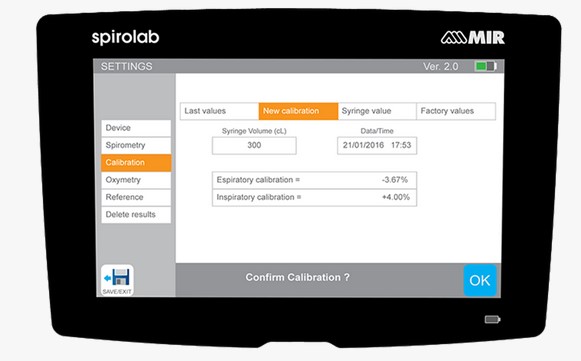

- Display: 7" color LCD touchscreen, 800x480 pixel resolution.
- Nozzles: Ø30 mm (1.18 inches).
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).
- Operating systems compatible with WinspiroPRO software: Windows 2000, XP, Vista (32/64 bit), 7 (32/64 bit), 8 and 8.1 (32/64 bit), 10 (32/64 bit), RAM 512 MB.
- Dimensions: 220x210x51 mm.
- Weight: 1450 g (3.1 lb).

Includes
- One winspiroPRO software PC CD.*
- One USB cable.
- 60 disposable turbines.
- One Miniflowmeter with cable.
- One battery charger/adapter.
- One roll of thermal paper.
- Two replacement fuses (2A, 4A).
- One nose clip.
- One CD with user manual.
- Carrying case.

* The software license requires annual renewal (at an additional cost) (Ref. 1190RENOVSUSOFTWARE). Please, contact us if you wish to purchase a new software license.
