Reference. 1097680911081E2

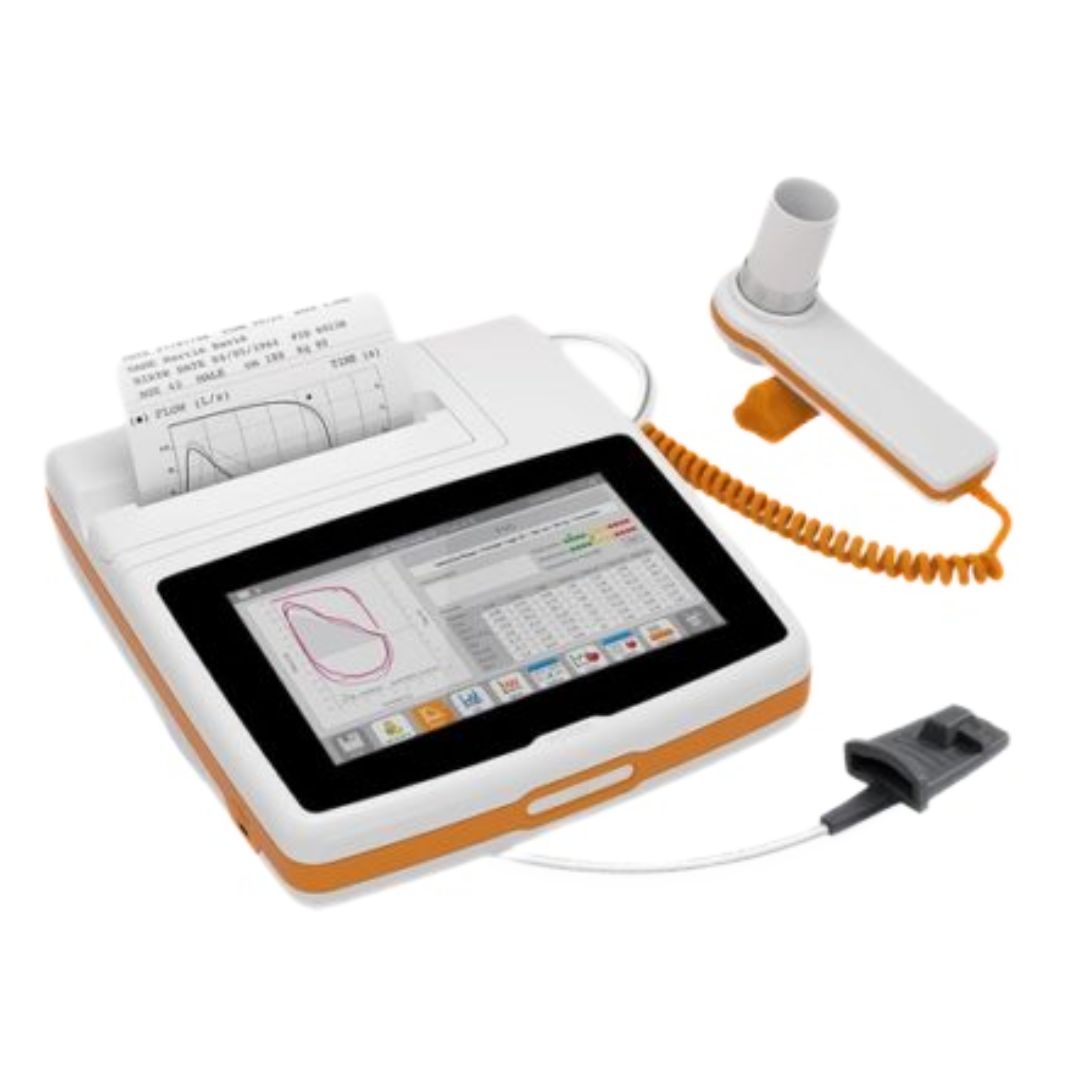

Spirolab New Oxi Spirometer with disposable turbines, 7" touch screen, integrated printer and oximetry option
Desktop spirometer with 7-inch touchscreen, with integrated printer and Oximetry option. Its structure is lightweight to facilitate its mobility and includes a carrying case and long-lasting battery.
Description
The Spirolab New Oxy is a portable desktop spirometer with a 7 inch high definition touchscreen with Bluetooth. It is a perfect spirometer for asthma treatments that also incorporates a fast and quiet printer with customizable print format.
Features
- Long-lasting rechargeable battery.
- Real-time monitoring is possible from a PC via Bluetooth connection.
- FVC, FEV1, IVC, MVV, PRE/POST bronchodilator comparison with a wide range of selectable parameters.
- Fast and quiet integrated B/W printer with customizable print format. The device also features direct connection to a USB printer.
- Allows up to 10,000 spirometry tests or 500 hours of oximetry recording.
- Disposable FlowMIR turbine that meets the ATS/ERS standard. Each turbine is factory calibrated and individually packaged in a sterile environment.
- Suitable for pediatric patients, no adapter needed.

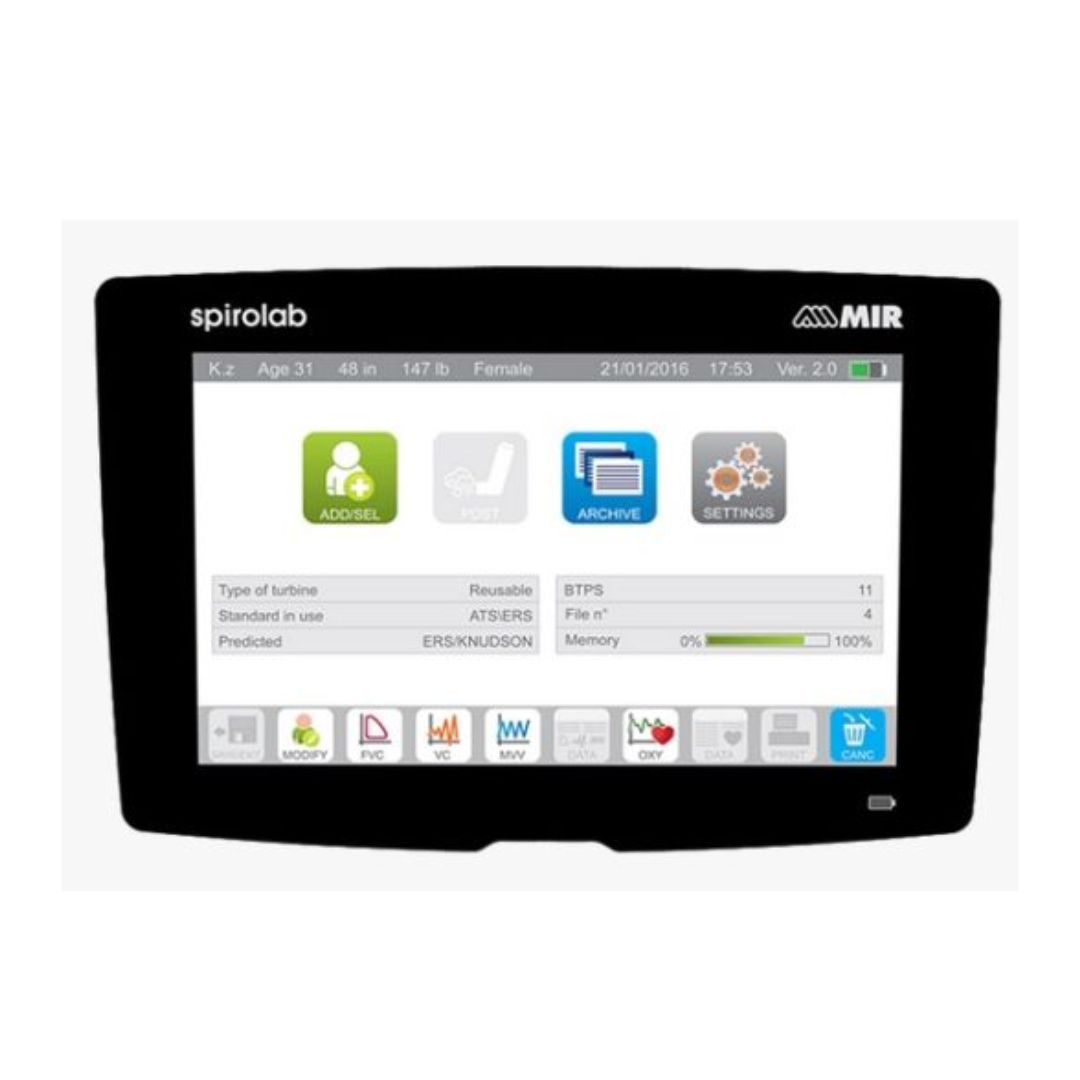

- Fast and intuitive. Each function can be activated by a simple touch on the intuitive menu bar, always present on the screen.
- Oximetry option available with finger probe for adults/ pediatric.

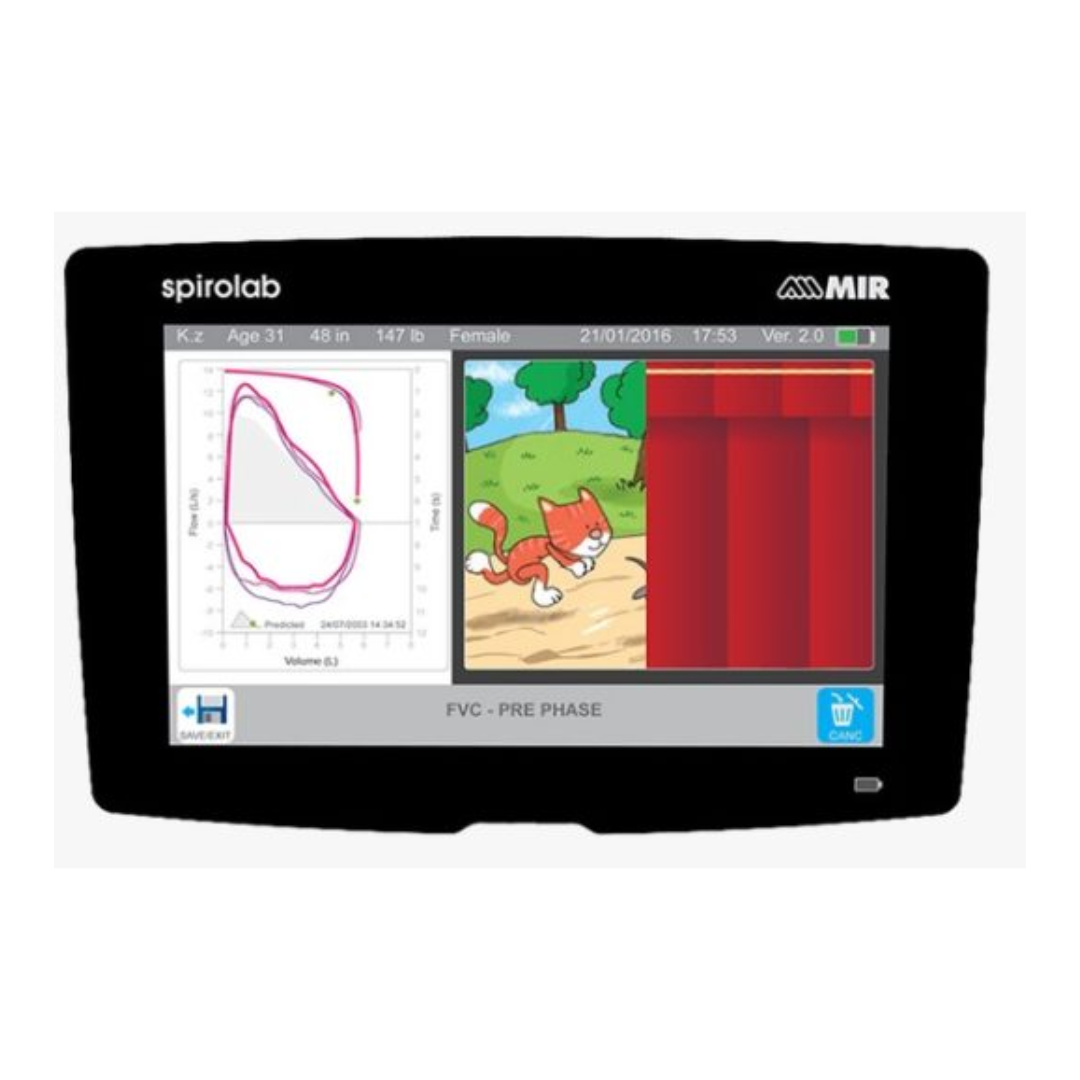

- Suitable for children. It has a patented pediatric incentive directly on the screen to improve patient compliance during the spirometry test.
Certificates
- Complies with the electromagnetic compatibility standard EN 60601-1-2.
- Electrical protection level Class II according to standard EN 60601-1.
Technical specifications
- Power supply: rechargeable battery and electric current.
- Temperature sensor: semiconductor (0-45°C).
- Dynamic resistance:
- Flow sensor: bidirectional digital turbine.
- Flow range: ±16 L/s ±5% or 200 mL/s.
- Volume accuracy: ±3% or 50 ml.
- Mouthpiece: Ø30 mm.
- SpO2 range: 0-99%.
- SpO2 accuracy: ± 2% between 70-99% SpO2.
- Pulse frequency range: 18-300 LPM.
- Pulse frequency accuracy: ± 2 LPM or 2%, whichever is greater.
- Connectivity: USB 2.0, Bluetooth 2.1.
- Display: 7” color touchscreen LCD, 800 x 480 pixel resolution.
- Weight: 1450 g.
- Operating systems compatible with WinspiroPRO software: Windows 2000, XP, Vista (32/64 bits), 7 (32/64 bits), 8 and 8.1 (32/64 bits), 10 (32/64 bits), RAM 512 MB.
- Dimensions: 220 x 210 x 51 mm.
- WinspiroPRO software languages: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, and CN.
- Selectable internal software languages: GB, FR, IT, ES, DE, and PT.
- Made in Italy.
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).

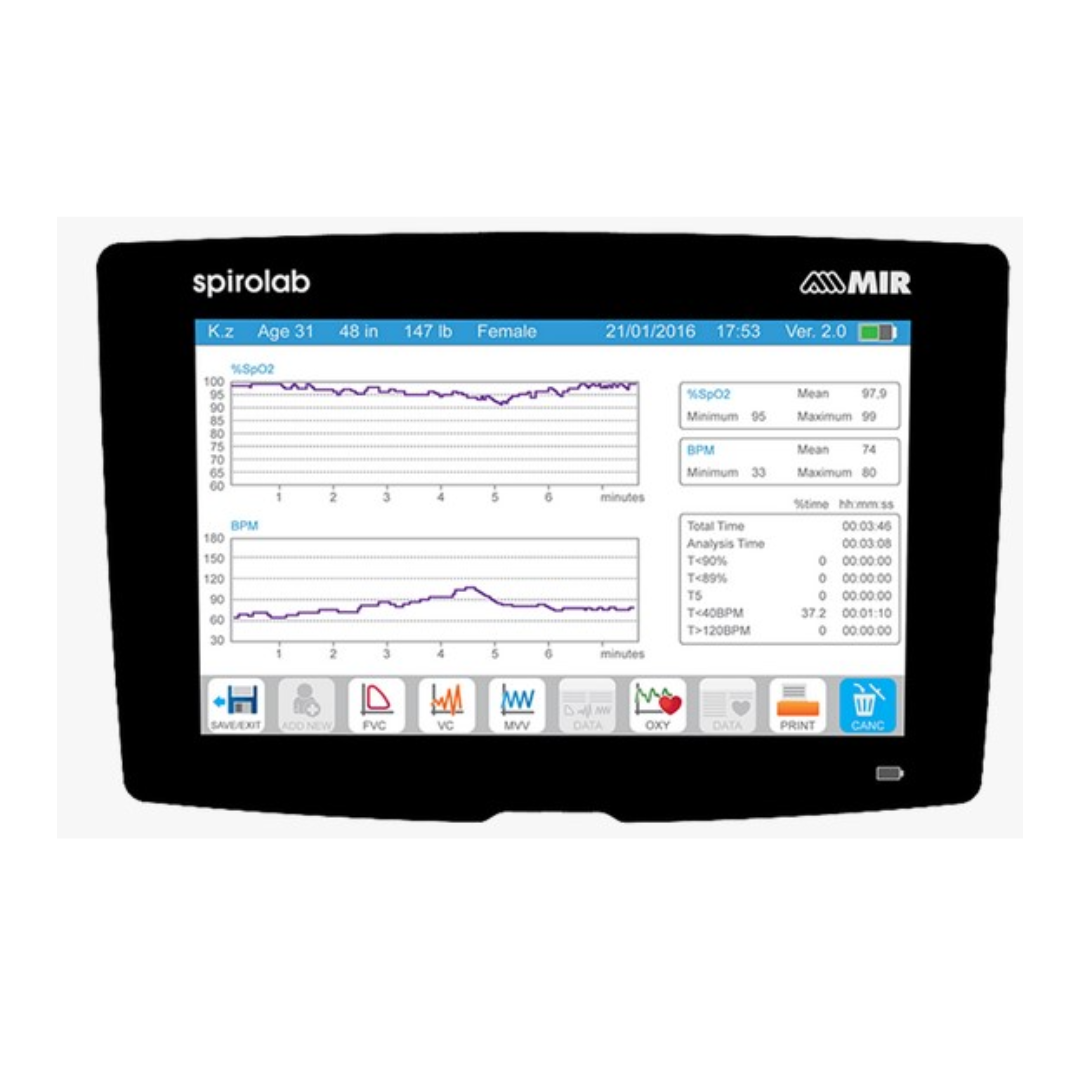

- Oximetry parameters: %SpO2 and Pulse frequency (min., max., average), Test duration, Total SpO2 events, T90% (time SpO2≤89%), T89% (time SpO2 ≤88%), T40 (bradycardia duration with pulse frequency 120 LPM).
Includes:
- WinspirPRO software PC CD.*
- USB cable.
- 60 disposable turbines.
- Miniflowmeter with cable.
- Battery charger/ power adapter.
- Thermosensitive paper roll.
- 2 spare fuses (2A/ 4A).
- Nose clip.
- Reusable oximetry sensor.
- CD with user manual.
- Carrying case.
* The software license must be renewed annually (at an additional cost).
Features
- Long-lasting rechargeable battery.
- Real-time monitoring is possible from a PC via Bluetooth connection.
- FVC, FEV1, IVC, MVV, PRE/POST bronchodilator comparison with a wide range of selectable parameters.
- Fast and quiet integrated B/W printer with customizable print format. The device also features direct connection to a USB printer.
- Allows up to 10,000 spirometry tests or 500 hours of oximetry recording.
- Disposable FlowMIR turbine that meets the ATS/ERS standard. Each turbine is factory calibrated and individually packaged in a sterile environment.
- Suitable for pediatric patients, no adapter needed.
- Fast and intuitive. Each function can be activated by a simple touch on the intuitive menu bar, always present on the screen.
- Oximetry option available with finger probe for adults/ pediatric.
- Suitable for children. It has a patented pediatric incentive directly on the screen to improve patient compliance during the spirometry test.
Certificates
- Complies with the electromagnetic compatibility standard EN 60601-1-2.
- Electrical protection level Class II according to standard EN 60601-1.
Technical specifications
- Power supply: rechargeable battery and electric current.
- Temperature sensor: semiconductor (0-45°C).
- Dynamic resistance:
- Flow sensor: bidirectional digital turbine.
- Flow range: ±16 L/s ±5% or 200 mL/s.
- Volume accuracy: ±3% or 50 ml.
- Mouthpiece: Ø30 mm.
- SpO2 range: 0-99%.
- SpO2 accuracy: ± 2% between 70-99% SpO2.
- Pulse frequency range: 18-300 LPM.
- Pulse frequency accuracy: ± 2 LPM or 2%, whichever is greater.
- Connectivity: USB 2.0, Bluetooth 2.1.
- Display: 7” color touchscreen LCD, 800 x 480 pixel resolution.
- Weight: 1450 g.
- Operating systems compatible with WinspiroPRO software: Windows 2000, XP, Vista (32/64 bits), 7 (32/64 bits), 8 and 8.1 (32/64 bits), 10 (32/64 bits), RAM 512 MB.
- Dimensions: 220 x 210 x 51 mm.
- WinspiroPRO software languages: GB, FR, IT, ES, DE, PT, PL, NL, LV, SE, CZ, RU, TR, JP, and CN.
- Selectable internal software languages: GB, FR, IT, ES, DE, and PT.
- Made in Italy.
- Spirometry parameters: FVC, FEV1, FEV1/FVC, FEV1/VC, PEF, FEF25, FEF50, FEF75, FEF25-75, FEF75-85, Lung Age, Extrapolated Volume, FET, Time to PEF, FEV0.5, FEV0.5/FVC, FEV0.75, FEV0.75/FVC, FEV2, FEV2/FVC, FEV3, FEV3/FVC, FEV6, FEV1/FEV6, FEV1/PEF, FEV1/FEV0.5, FIVC, FIV1, FIV1/FIVC, PIF, FIF25, FIF50, FIF75, FEF50/FIF50, VC, IVC, IC, ERV, IRV, Rf, VE, VT, tI, tE, VT/tI, tE/tTOT, MVV (measured), MVV (calculated).
- Oximetry parameters: %SpO2 and Pulse frequency (min., max., average), Test duration, Total SpO2 events, T90% (time SpO2≤89%), T89% (time SpO2 ≤88%), T40 (bradycardia duration with pulse frequency 120 LPM).
Includes:
- WinspirPRO software PC CD.*
- USB cable.
- 60 disposable turbines.
- Miniflowmeter with cable.
- Battery charger/ power adapter.
- Thermosensitive paper roll.
- 2 spare fuses (2A/ 4A).
- Nose clip.
- Reusable oximetry sensor.
- CD with user manual.
- Carrying case.
* The software license must be renewed annually (at an additional cost).
