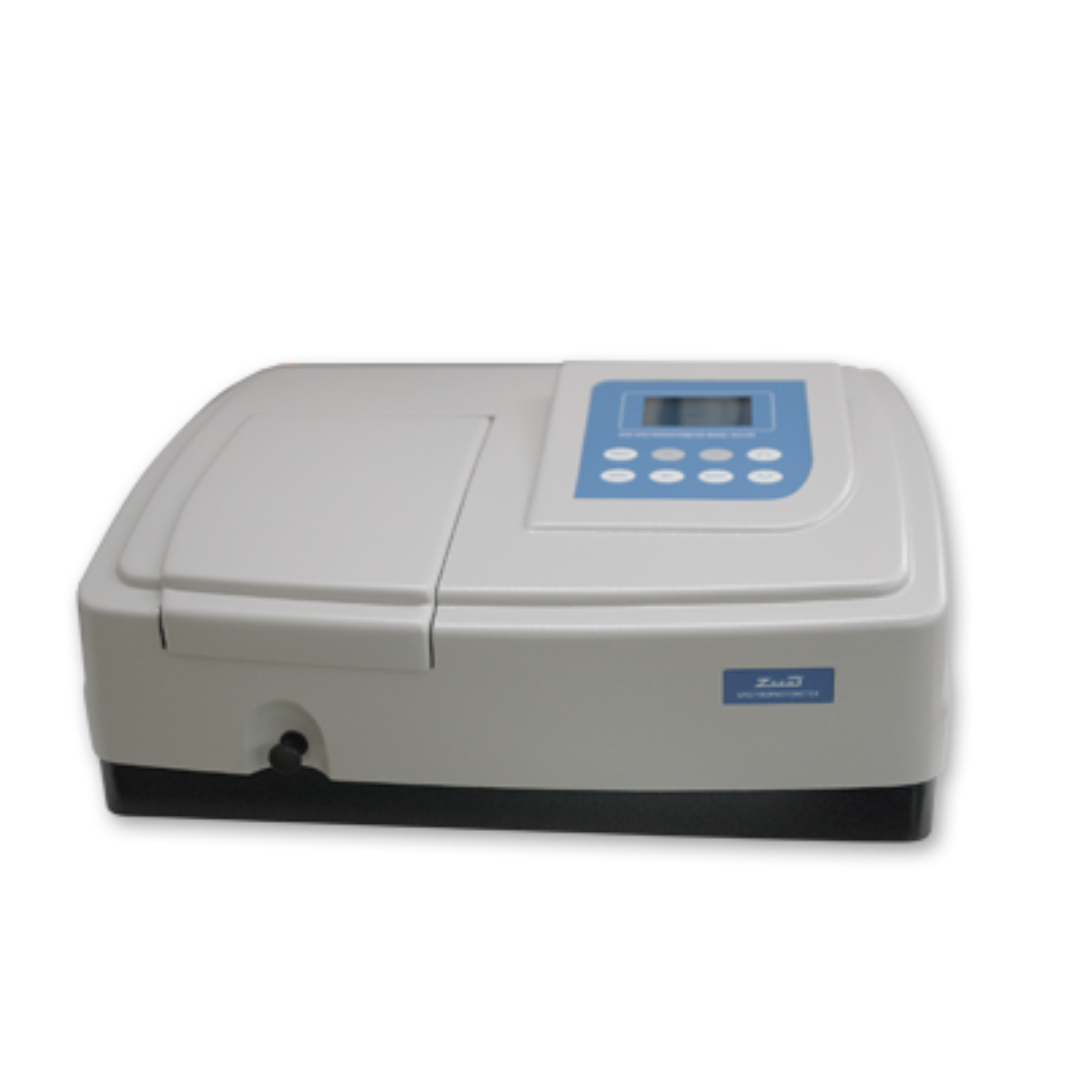

Spectrophotometer, 470x370x180mm

Designed for research laboratories as it allows the performance of qualitative and quantitative analyses in the visible and UV-visible range, respectively.

Features
- Memory that can store up to 200 absorbance and transmittance data. The memory also allows to save and retrieve up to 200 different standard curves.

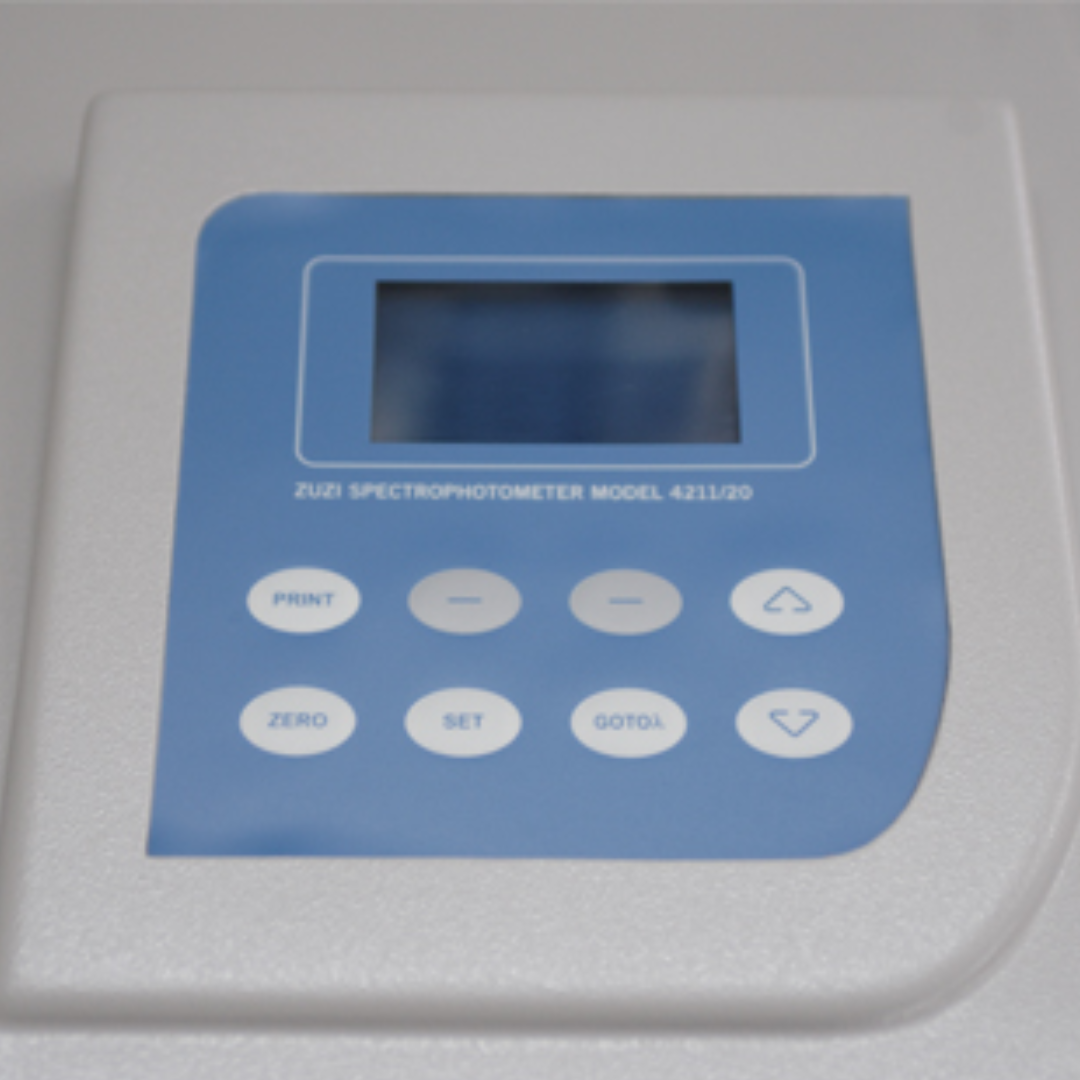

- Large LCD screen (128x64 bits) for easy reading, which displays the results of the different measurements as well as the concentration curves and their equations.
- Selection of the working wavelength via the keyboard.
- Tungsten and deuterium lamps can be switched on and off independently to extend their average life.
- Application software that provides total control of the functions and operation of the spectrophotometer from a computer and allows the obtaining of enzymatic kinetics curves.

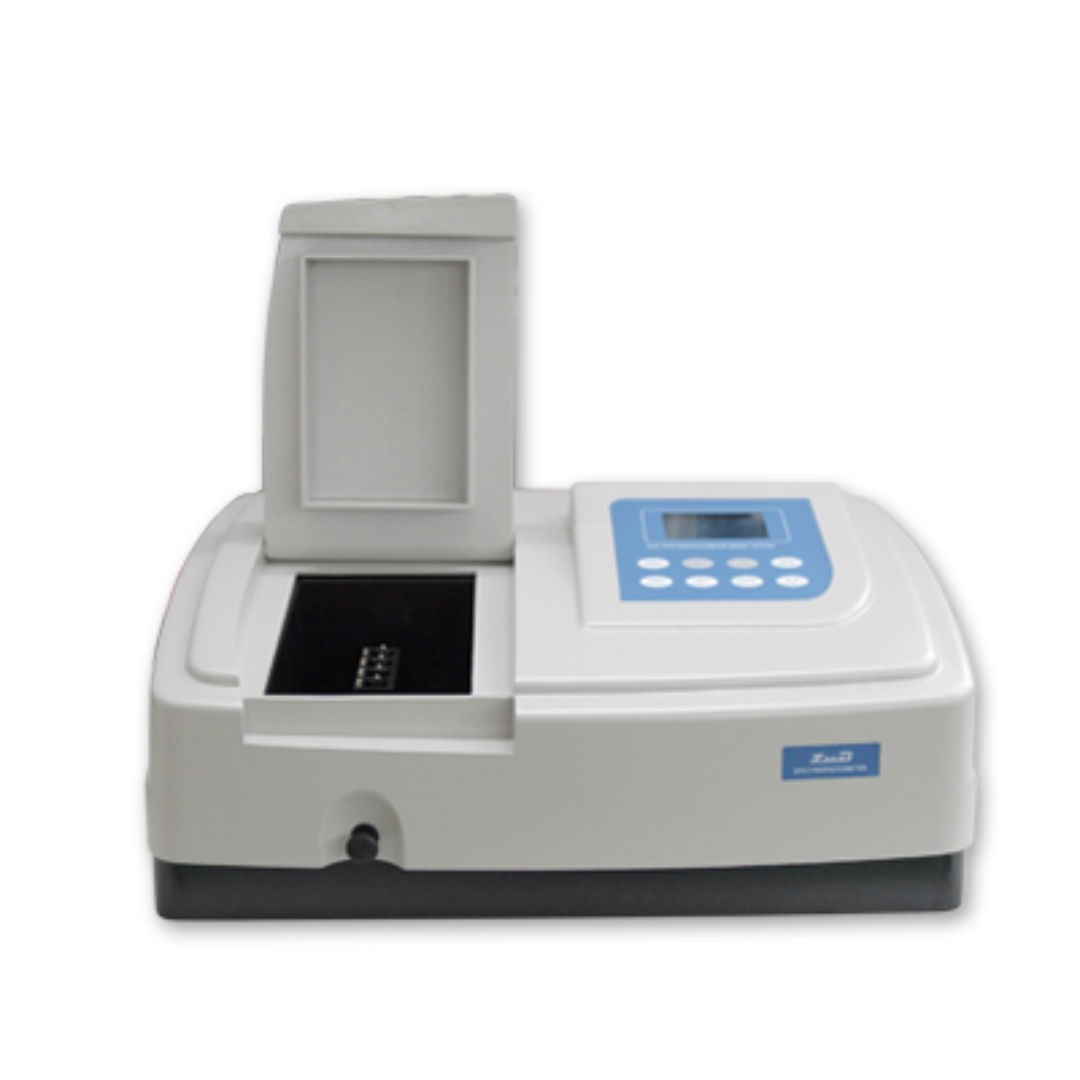

- Space for samples with an external manual exchanger that allows storing up to 4 cuvettes with a 10mm light path.

Technical specifications
- Bandwidth: 4 nm.
- Wavelength range: 200 - 1000 mm.
- Optical system: Single beam, 1200 lines/mm grating.
- Wavelength accuracy: ± 1 nm.
- Wavelength reproducibility: 0.5 nm.
- Photometric range: -0.097 to 2.5 A; 0 to 125% T.
- Photometric accuracy: ± 0.5% T.
- Wavelength resolution: ± 1 nm.
- Photometric reproducibility: ± 0.3% T.
- Stray light: 0.3% T.
- Stability: ± 0.002 A/h at 500 nm.
- Lamps: Tungsten and Deuterium.
- Sample compartment: four standard cuvettes of 100 mm light path.
- Output: USB and parallel port (printer).
- Detector: Silicon Photodiode.
- Power supply: AC 220 V / 50 Hz.
- Weight: 12 kg.
- Dimensions: 470 x 370 x 180 mm.

Functions
- Basic mode: features absorbance and transmittance measurement at a certain wavelength.
- Quantitative mode: calculation of the concentration of different samples from the equation of a standard curve (C=k·A+b). Two methods:
- Coefficient: the value of the coefficients k and b of the equation are entered via the keyboard.
- Standard curve: allows to use up to 9 standard samples to establish the equation of the standard curve.

Certificate
- CE Certificate.
