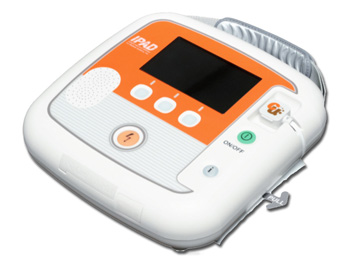

Semiautomatic defibrillator CU-SP2

CU-SP2 is the latest generation of smart public access defibrillators with innovative features:

Automatic volume adjustment
It detects ambient noise and automatically adjusts the volume of its announcements to make them audible over the background noise.

Intelligent electrodes - smart storage
The pre-connected "smart" electrodes are stored in an easily accessible compartment at the bottom of the unit, ensuring their use in the shortest possible time. In addition, the visual front indicator shows whether the connected electrodes are within their expected lifespan. The indicator will change when the electrodes have only 3 months of life left before their expiration date, giving you time to arrange replacements. It will change again when the expiration date is reached.

CPR Detection
CPR is vital to ensure that the victim has the best chances of survival. iPAD CU-SP2 detects if CPR is being performed with the appropriate indications, if not, it encourages its performance.

Easy communication with CU-EX1 software.
Allows you to view and analyze information such as "on" time, the victim's heart rhythm, and discharges. iPAD CUSP2 stores 3 events in internal memory (up to 17 hours per event).

Wireless ECG transmission device (CU-EM1) - optional
In monitor mode, the iPAD CU-SP2 uses Bluetooth to receive ECG data from CU-EM1 and displays it on the LCD screen.

Printer - optional
iPAD CU-SP2 supports connection to an external Bluetooth printer.

16 available languages (to be indicated)

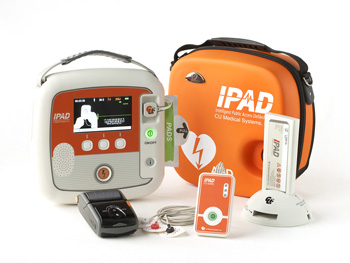

Selectable software languages: US, GB, FR, IT, ES, DE, PT, NL, SE, PL, DK, NO, CZ, GR, AE, KR, IL. It comes with SAVE PADS for adults, carrying case, disposable lithium battery pack, paper manual (GB, IT) and CD manual in the above languages, except PL and GR.

Technical specifications
Defibrillator
• Operating mode: semi-automatic
• Waveform: biphasic e-cube (truncated exponential type)
• Energy: 150J fixed
- Adult: nominal 150J at 50 ohm load
- Infant / child: nominal 50 joules at 50 ohms
• Charge control: controlled by automated patient analysis system.
• Charging time: within 10 seconds from the voice instruction "an electric discharge is needed"
• Sealing certification:
- IPX5 water jet test by IEC60529 (IP55)
- IP5X dust protected according to IEC60529

User interface
• User support: detailed voice prompts and flashing indicators
• CPR guide: voice prompts on how to perform CPR on adults and children
• Controls: on / off button, "i" button, discharge button
• Indicator: LCD screen (device status, battery status, patch status)
• Detection: expiration date of the pads, connection status of the pads

CPR Monitoring
• Automatic volume adjustment

Data recording and transmission.
• IrDA port: wireless event data transmission to PC, SD card
• Internal memory (Nand-flash): ECG, Event
• Storage capacity: multiple recording 5 events / Max 3 hours
• PC data review program: CU-EX1

Patient analysis system
• Patient analysis: Shocking rhythms: ventricular fibrillation, tachycardia
• Sensitivity / specificity meets AAMI DF80 guide

High capacity disposable battery.
• Type: DC 11.1 Volt 1.9 Ah, rechargeable Li-ion
• Capacity: minimum 60 shocks or 3 hours of operation.
