Reference. 4047SATSO
Saturn LED surgery lamp with color adjustment, 50,000 lux at 1 m. Ceiling mount

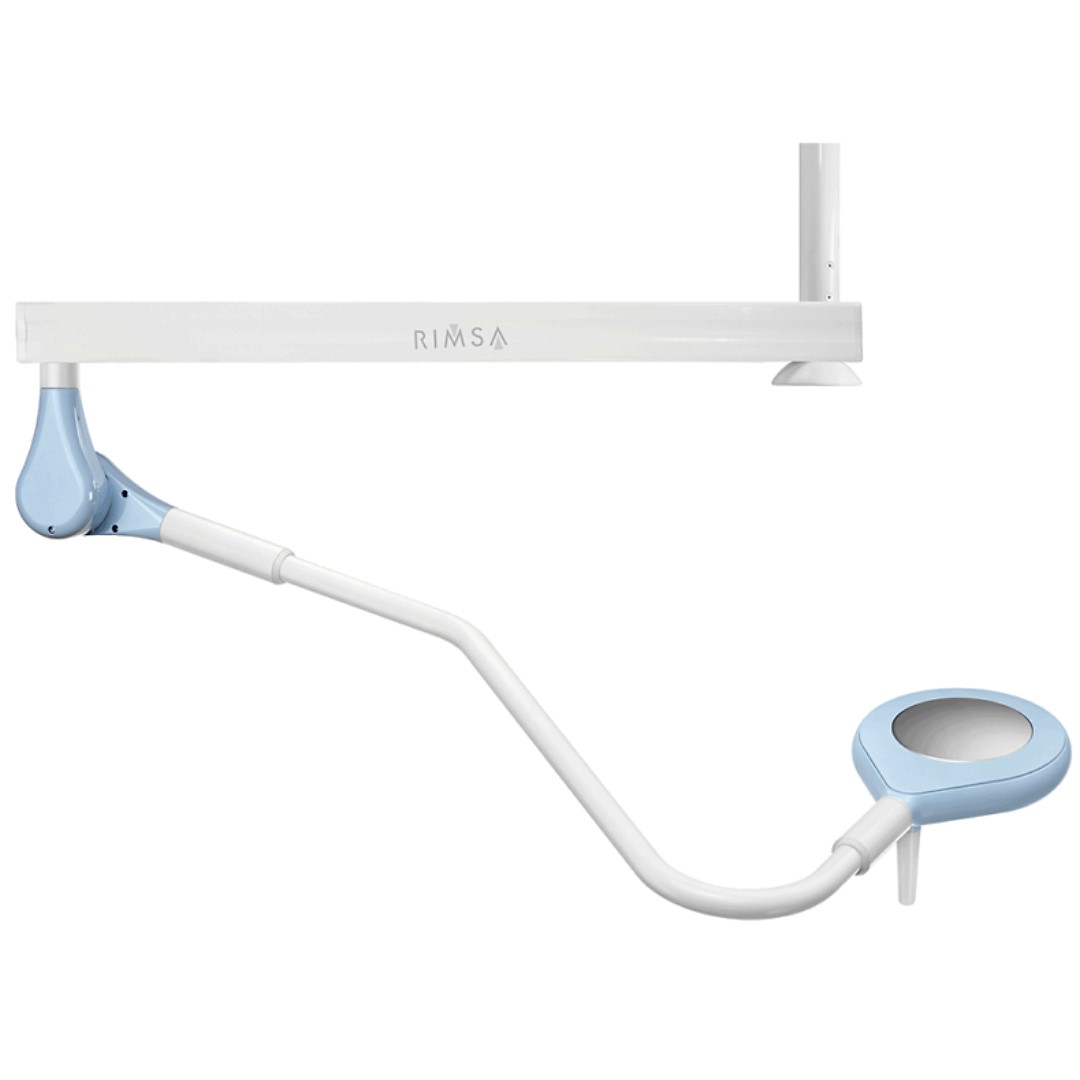

Saturn LED surgical lamp with color adjustment. Ceiling mount
Personal advice
Description

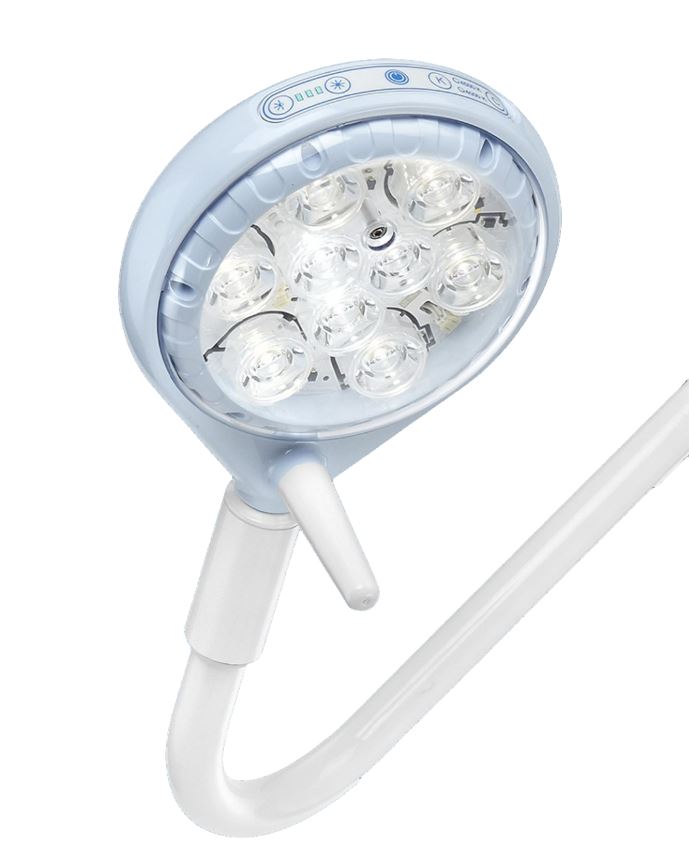

The Saturn operating lamp is ideal for small surgeries and gynecology or exploratory consultations. It is designed with a 9-lens LED lighting technology that are placed very close together for a more direct and focused light. Thanks to its lightweight structure made of superior quality aluminum, it can be easily moved and positioned according to the needs of the procedure.
Features:
- Provides a powerful light that does not generate shadows.
- Heat is dissipated through the dome due to its aluminum cover.
- Allows the selection of 2 different color temperatures: 4,000 and 4,500 °K.
- It has a luminous intensity of 50,000 lux at 1 m adjustable at different levels using the dome keyboard.
Certificates: Class I medical device in accordance with IEC 60601-1 IEC 60601-2-41, MDD 93/42 CEE and 2007/47 / EC.
Technical specifications:
- Luminous intensity: 50,000 lux at 1 m.
- Dome diameter: 19.5 cm.
- Color temperature: 4,000-4,500 ºK.
- Color rendering index: 95 Ra.
- Illuminated field diameter: fixed.
- Depth of illumination at 60%: 110 cm.
- Depth of illumination at 20%: 180 cm.
- Total radiated energy: 186 W/m².
- LED lifespan: up to 60,000 hours.
- Luminous intensity adjustment: 20-100%.
- Power consumption: 19 W-40 VA.

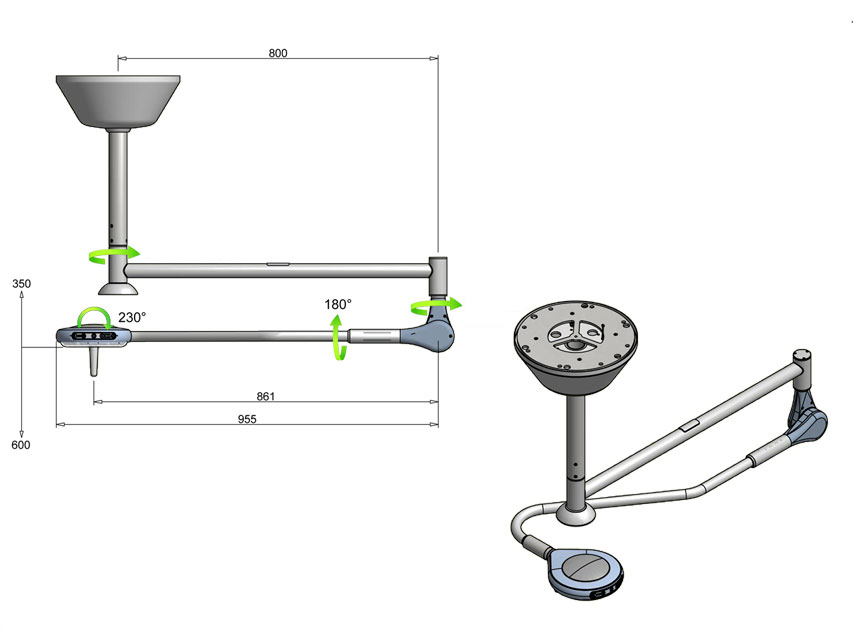

Support: ceiling mount up to 3 m.
*Installation not included.
*Contact us for installations on ceilings over 3 meters.
