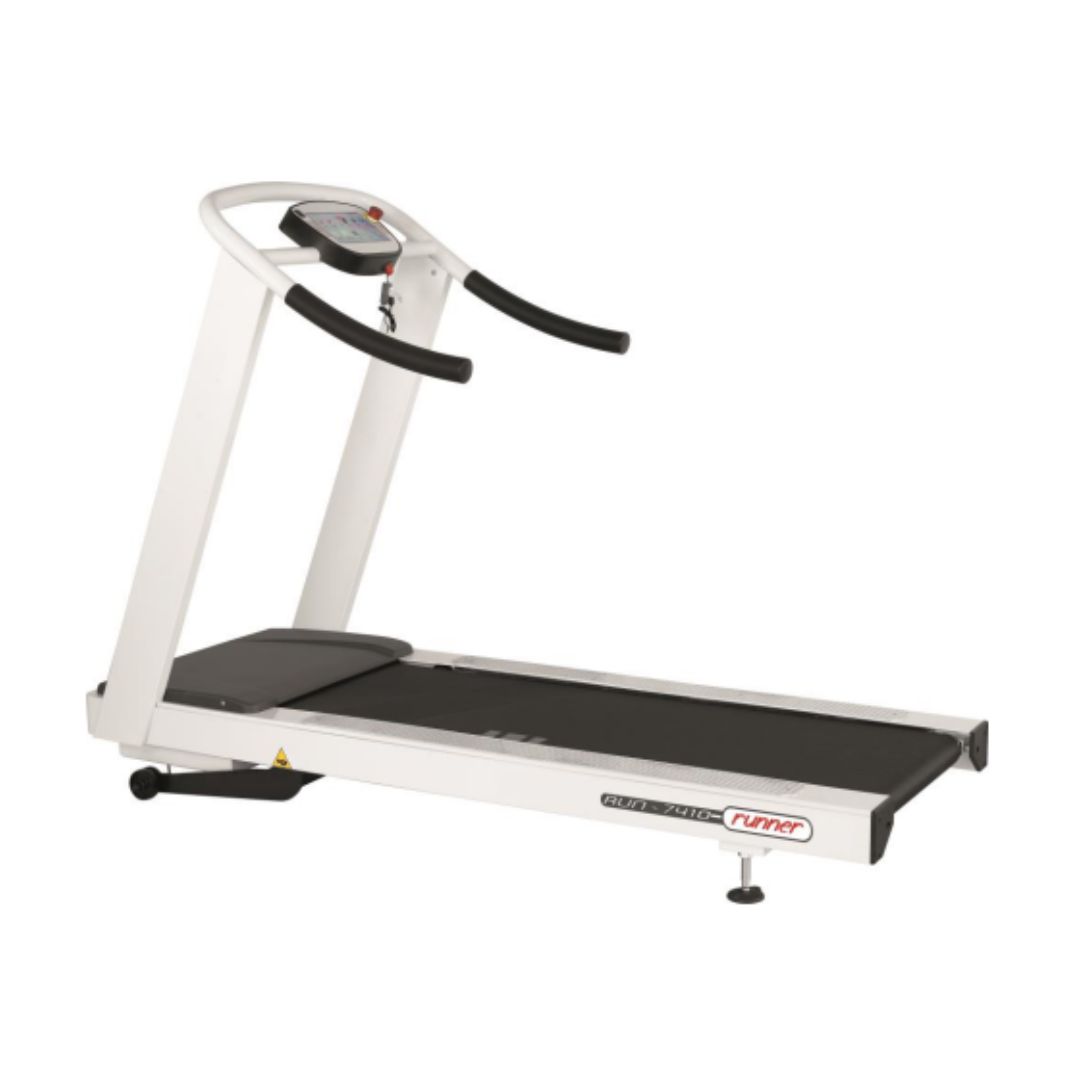

RUN7411/TJ-PC Treadmill with programmable console, 81 x 260 x 150 cm

Treadmill for the health environment designed according to ISO13485 standard and categorized as a class IIa medical product. It operates thanks to a powerful latest-generation motor that allows it to support up to 220 kilograms in weight and reach 25 kilometers per hour. It has an interactive touchscreen that can be used remotely or manually and that incorporates the most common endurance tests in medical diagnosis, such as the Cooper, VAMEVAL, ACIP, Bruce or Ellestad tests. In addition, it is compatible with a wide range of electrocardiograms and has a very low noise emission level, making it ideal for health facilities where stress tests must be carried out without disturbing the tranquility of the place.

The device comes with a 10-year warranty on its external structure and a 2-year warranty on its electronic, electrical and mechanical systems.

General Features
- Width: 81 cm
- Length: 260 cm
- Height: 150 cm
- Weight: 210 kg

Technical Specifications
- Durable 10.1 inch touch screen
- PC iMX6 DL 1 GB, Micro SD 8GB, S.O. Linux
- Analog RS323 interface with optical isolation for connection to ECG via the Trackmaster protocol (compatible with ECG Amedtec, Beneware, BTL, Cardioflex, Cardiolex, Cosmed, CubeStress Cardioline, Customed, Edan, Egoline, Fukuda, Imed-Cardiax, Labtech, Medical Econet, Neurosoft, Norav, Schiller, Sentinel 10, Teka, Vyaire, XScribe Mortara)
- Double walking direction (forward/backward)
- Forward speed range: 0.1 - 25 km/h
- Backward speed range: 0.1 - 5 km/h
- Inclination: 0%, +20%
- Speed increase: 0.1 km/h
- Inclination increase: 0.5 - 1%
- Electronic variation of speed and inclination
- Treadmill self-centering system
- Treadmill self-lubrication system
- Walking surface: 204.5 x 54 cm
- Toroidal transformer: 1700 VA
- Single-phase inverter: 230V ~ 2.2 kW
- Power supply: 220~240Vac, 50/60Hz, 12Amp
- Inclination auxiliary circuit: 18 Vac
- Console auxiliary circuit: 12 Vdc
- Motor: 3 HP AC
- Power absorbed at maximum speed: 2500 VA
- Nominal power absorbed: 2000 VA
- Noise: < 30 dB
- Cushioned platform
- Maximum user weight: 220 kg (without optional components)
- Button and handle with magnet for emergency stop
- CE conformity certificate 93/42/EC
- Compatibility with Polar H7, H9 and H10 BLE (Bluetooth Low Energy) chest bands through certified dongle (not included). The band can only be used if an ECG device is available.

Standard accessories (included)
- Wheels to move the treadmill
- Service equipment
- Power cable
- RS232 cable

Optional accessories (not included and with additional cost)
- Long handrails without holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0643)
- Long handrails with holes for axillary support (maximum weight 150 kg) (Ref. 4063EE0645)
- Axillary support (maximum weight 150 kg) (Ref. 4063EE0621)
- Harness system for long handrails (maximum weight 150 kg) (Ref. 4063EE0640)
- Special support and vest for harness system (maximum weight 150 kg) (Ref. 4063EE0642)
- Ramp (maximum weight 220 kg) (Ref. 4063EE0691)
- Bluetooth dongle for Polar chest band (Ref. 4063EE0713)

Console Functions
- Remote use via the RS232 interface
- Manual use and indicator of time, distance and calories
- 10 profiles (default)
- 100 free profiles
- Adjustment for Cooper, VAMEVAL, ACIP, modified Astrand, Bruce, modified Bruce, Ellestad and free tests (Test 01 - Test 116)
