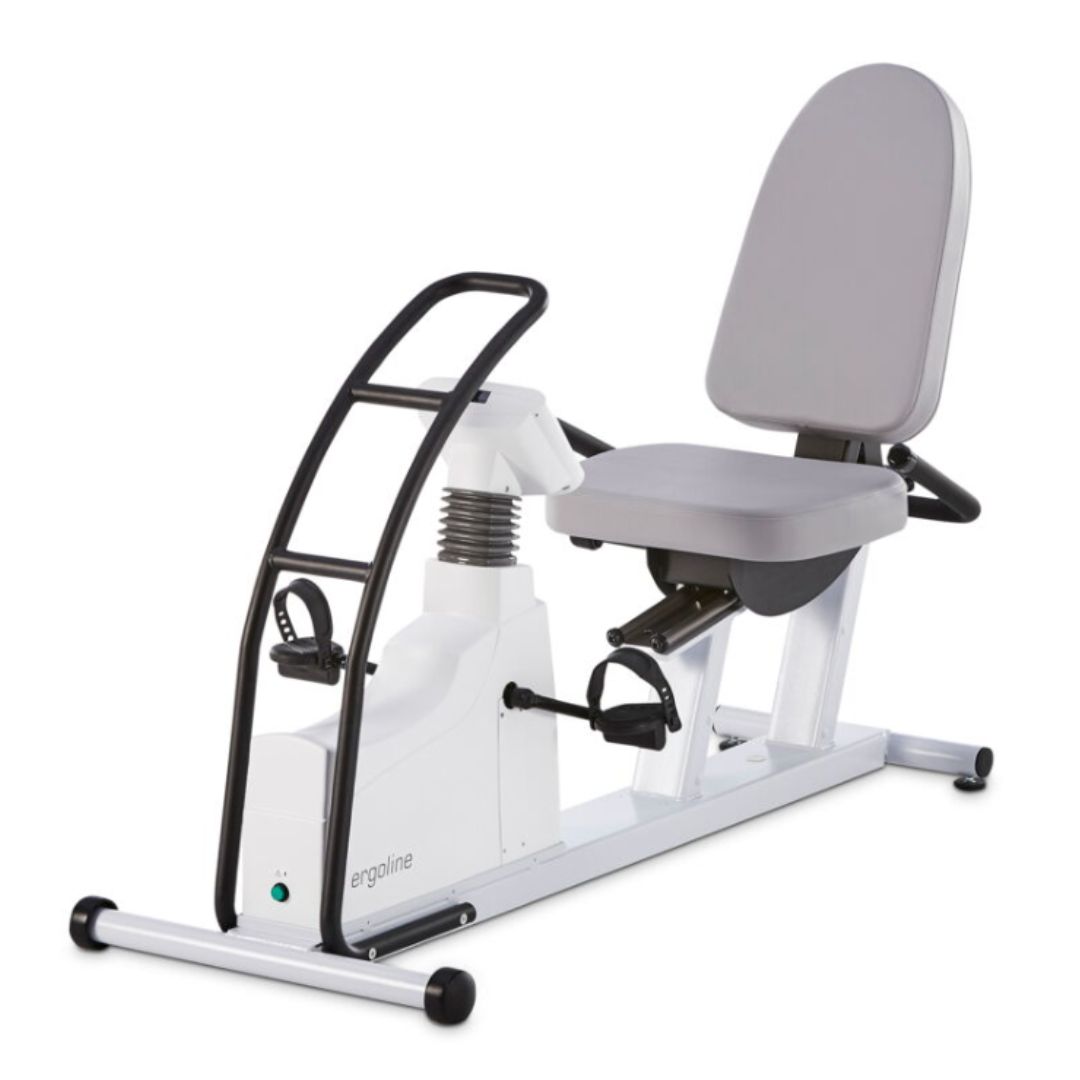

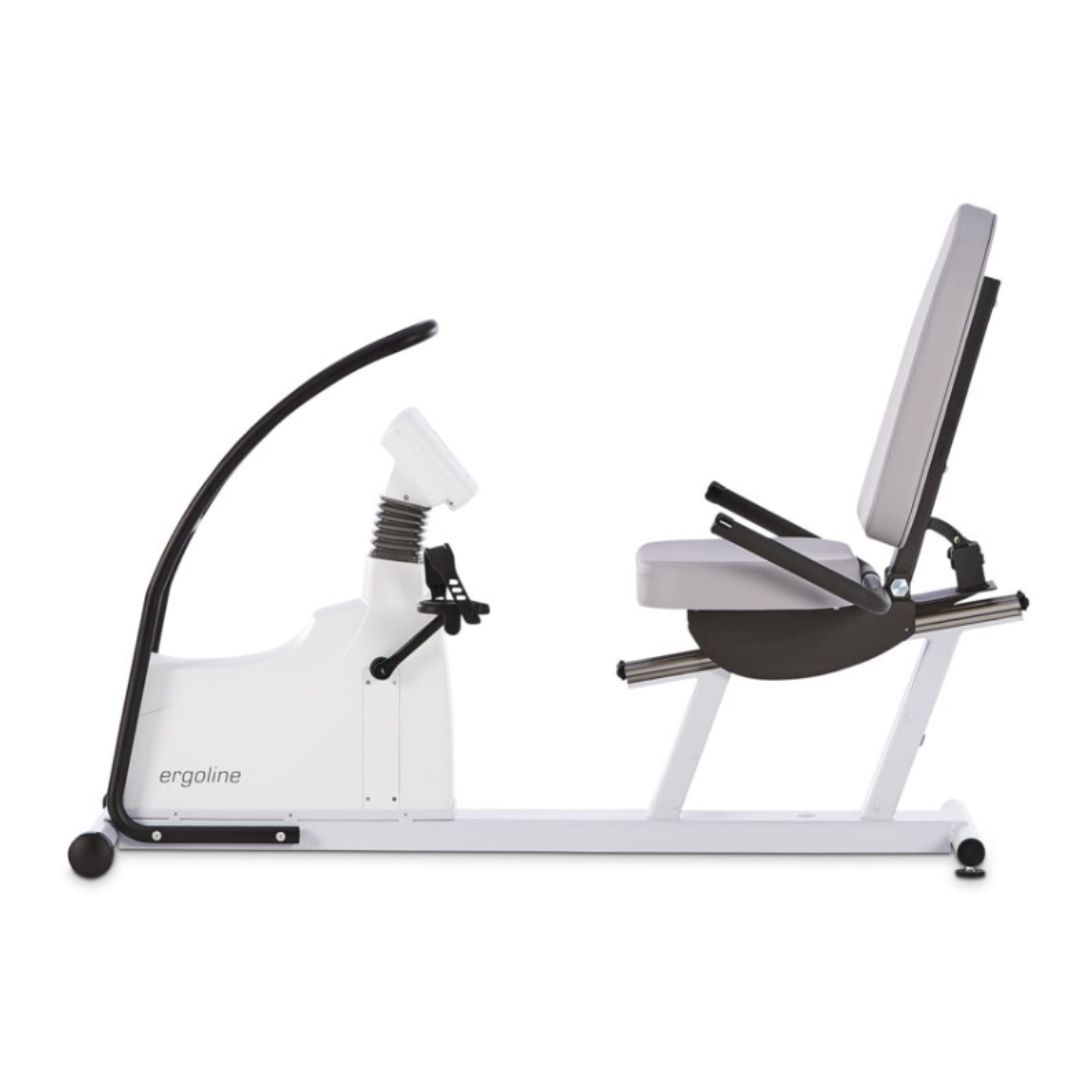

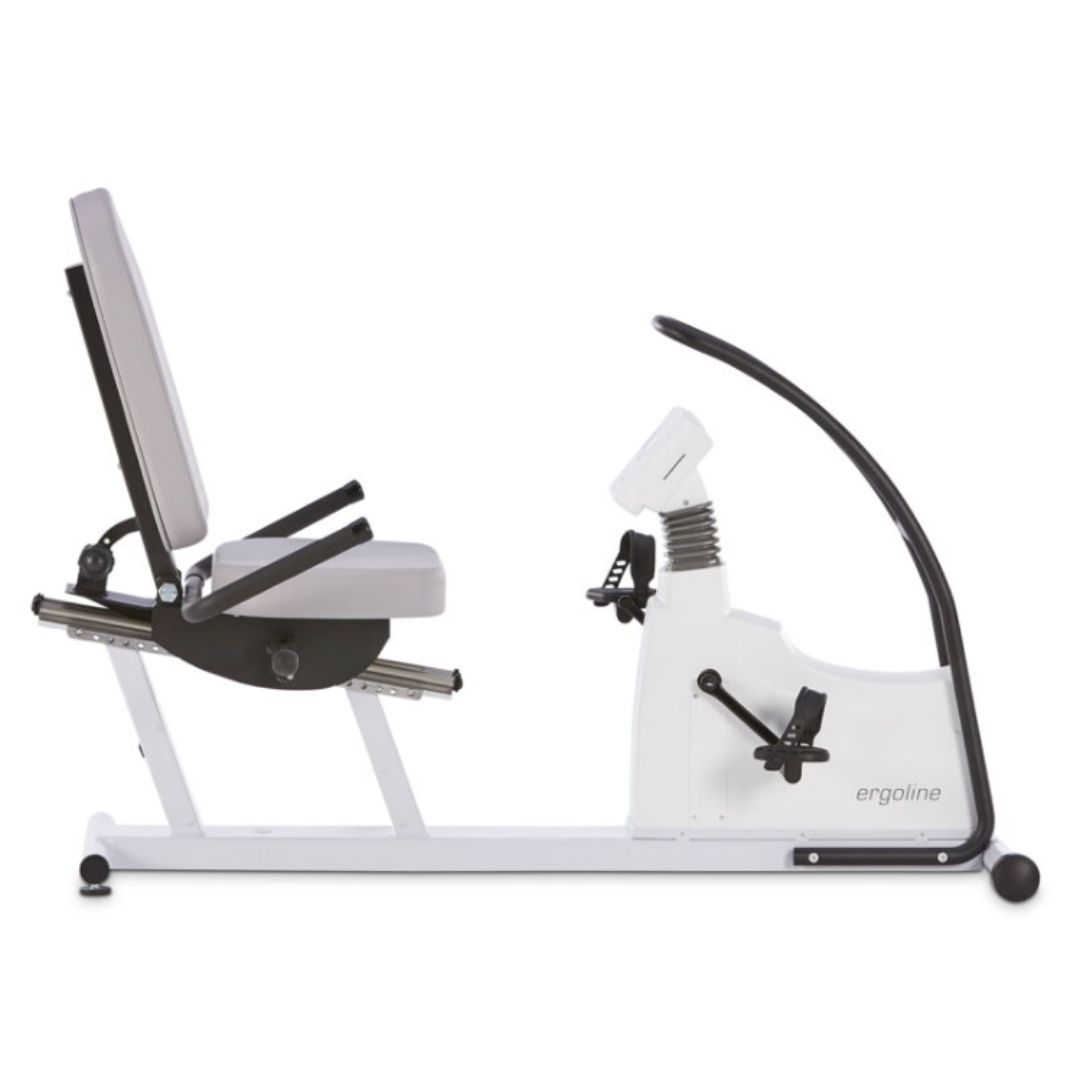

Recumbent Ergometer Ergoselect 600. SpO2 Option

The Ergoselect 600 reclining ergometer with a load capacity of up to 300 kg is ideal for checking physical activity and cardiovascular training in patients with severe obesity. Its features such as three-stage backrest adjustment, special pedals capable of adjusting the pedaling distance, and additional damping, allow it to be individually adjusted to the individual needs of each patient, especially those of advanced age or patients with mobility limitations.

Features:
- Maximum patient load capacity of up to 300 kg. The stable and high-quality construction ensures perfect operation, even with continuous load. A solid arch of steel tubes offers the patient secure support during ascent and descent. The powder-coated surface is hygienic and resists impacts, scratches, and the action of disinfectants and cleaners.
- Flexible seat adjustment. The seat position can be quickly and easily adjusted over a wide range through a simple lifting of the locking lever, even while the user is seated. The high backrest provides ideal relief for the lumbar and pelvic regions during training or an ergometric test. In addition, it is possible to adjust the tilt of the backrest.
- Additional padding. By placing the additional pads (not included in the price), the seat height can be easily adapted to the patient's height.
- Special pedal devices. The use of pedal devices with lateral regulation allows the separation to be optimally adjusted for each patient.
- Control unit. The LCD screen is attractive thanks to its easy reading. The intuitive operation allows independent ergometry protocols to be executed or a simple manual adjustment of the load.
- Precise load regulation. The use of a high-quality electronic regulation system and reliable components not only meets the standards for medical ergometers, but comfortably exceeds them; and it does so over the entire load range (from 6 to 1000 watts).
- ECG connection / Universal interfaces. The main market manufacturers support a control option for ergoline ergometers in their stress ECG or ergospirometry systems. Ergoline ergometers offer a wide range of interfaces for this. In addition to the existing RS-232 and USB ports in the standard system, analogue and wireless connection options are also available via Bluetooth / WLAN.
- Low frame.
- SpO2 option. Soft sensor included.

Technical data:
- Brake system: Computer-controlled Foucault brake.
- Load: 6 - 999 watts, independent of speed.
- Precision: According to DIN VDE 0750-238 standard.
- Revolutions range: 30 - 130 rpm.
- Longitudinal seat adjustment: For a height of 120 - 210 cm.
- Patient weight (max.): 300 kg.
- Seat width: 54 cm.
- Indicator / Patient display: Load, revolutions, time, blood pressure, heart rate (LCD).
- Keyboard: Membrane keyboard.
- Free programming: 10.
- Fixed stage protocols (WHO, Hollmann, etc.): 5.
- Manual load adjustment.
- Digital interface (RS-232, USB).
- Measurements:
   • Length: 165 cm.
   • Width: 75 cm.
   • Height: 108 cm.
   • Weight: 86 kg.
- Power supply: 90-265 V / 50-60Hz / 60VZ max.

Included accessories:
- User manual.
- Power cord.
- XR450/600 USB communication cable.
- 24-month warranty.
