Radial Shockwave Team Wave, 185mJ 22Hz
Radial Shockwave Team Wave, 185mJ 22Hz
Personal advice
Description

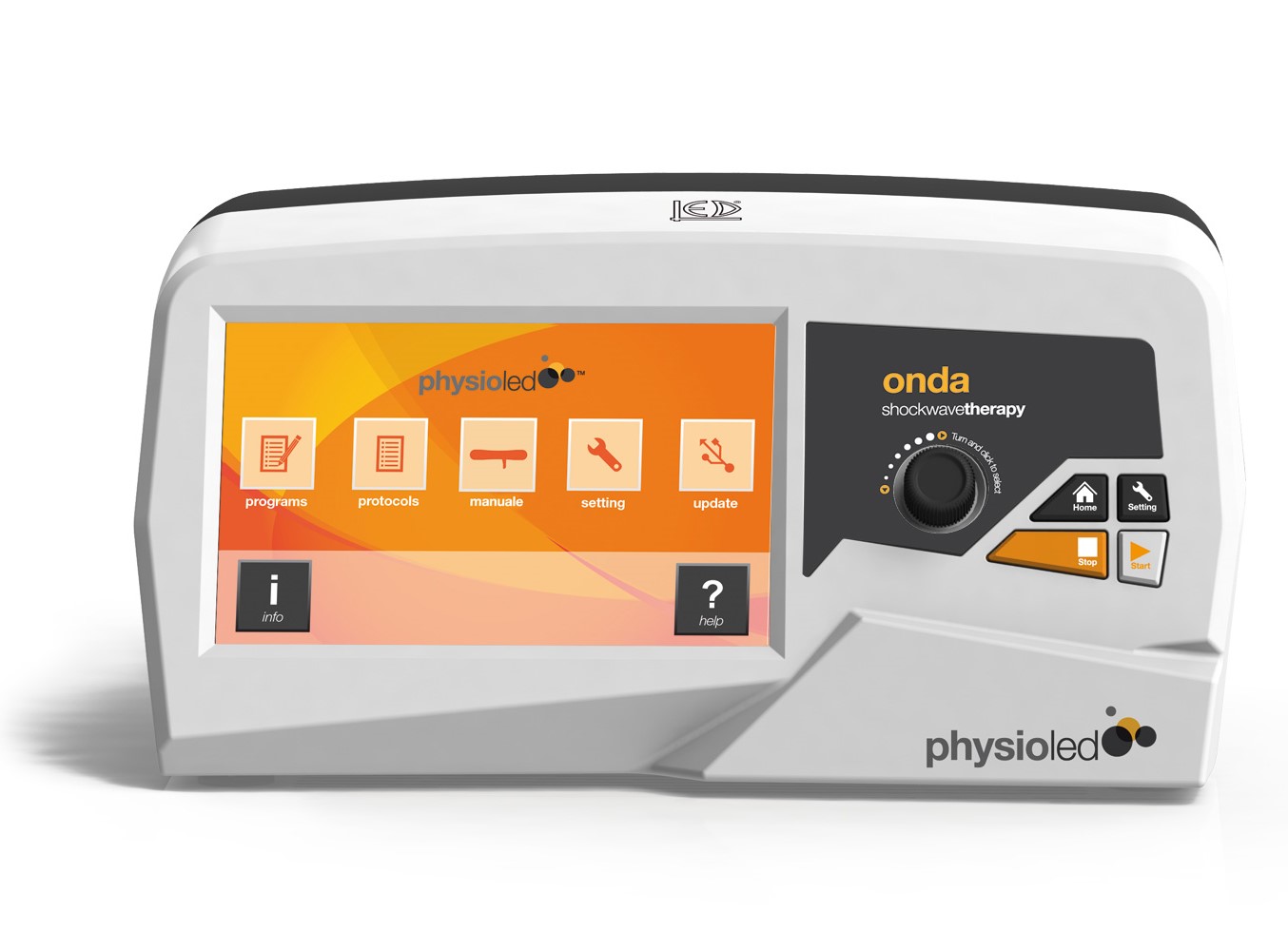

Onda is a state-of-the-art equipment designed for therapies with non-focal (radial) shock waves in the field of physiotherapy and injury rehabilitation. The technology it uses is based on generating an acoustic wave characterized by a high peak of adjustable energy within a certain frequency range. It represents an optimal combination of high performance, innovation, and practicality, delivering up to 185 mJ (comparable to about 6 bar of the pneumatic system) of variable frequency energy with a compact design for maximum portability.
Functioning:
An accelerated projectile in the handle, through electromagnetic impulse, generates a mechanical pressure wave that is transferred to the treated part, radiating its tissue. The mechanical energy triggers biostimulation reactions in the area, positively influencing a wide range of orthopedic, physiotherapy, and analgesic treatments. It reduces the sensation of pain thanks to a better distribution of pressurized waves, allowing the professional to obtain better therapeutic responses. Furthermore, the high intensity of emission allows acting on the osteotendinous calcifications to improve the biological recovery process.
Therapeutic indications:
- Bursitis
- Coxarthrosis
- Epicondylitis/epitrochleitis
- Shin pain due to fractures
- Reactive periostitis
- Rhizarthrosis
- Tendonitis and tendinopathies
- Tenoperiostitis
Technical specifications:
- Energy: 60÷185mJ.
- 4 working modes: continuous, 4, 8 and 12 pulses.
- Working frequency: 1÷22Hz.
- Power supply: 90-240V, 50-60Hz.
- Maximum absorbed power: 250VA.
- Applicators: 6, 15 and 25 mm.
Includes:

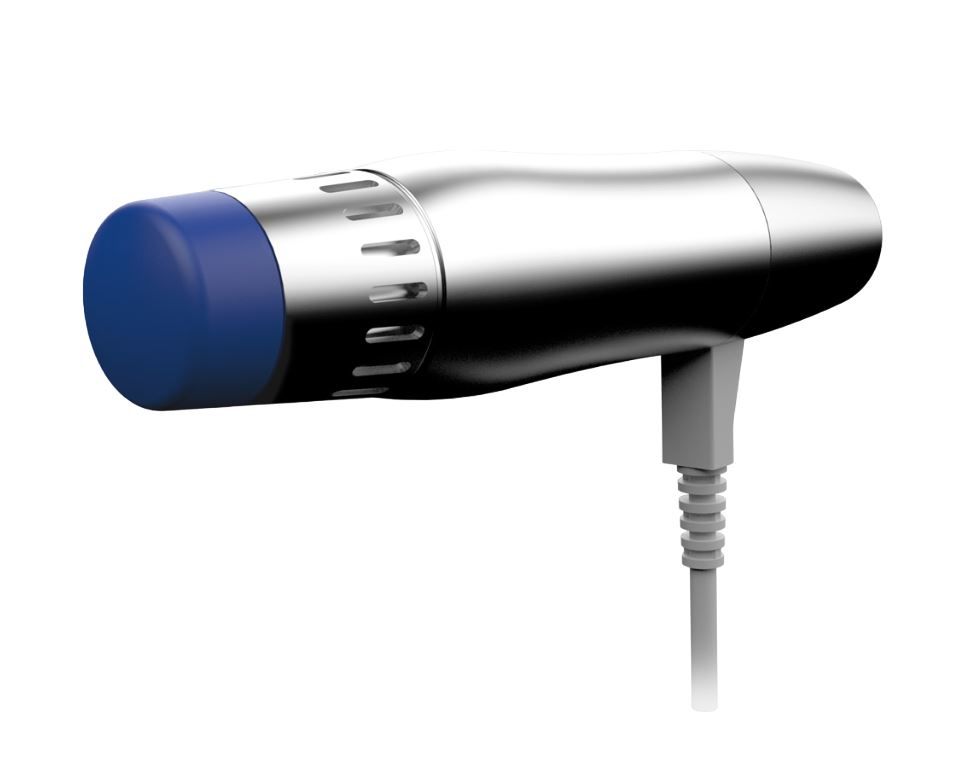

- 1 handpiece (Ref. 4050ONDM0-576)
- 5 protective covers for handpiece.
- 1 head of 6mm diameter.
- 1 head of 15mm diameter.
- 1 head of 25mm diameter.
- 1 foot control.
- 2m SIEMENS-IEC power cable.
Functioning:
An accelerated projectile in the handle, through electromagnetic impulse, generates a mechanical pressure wave that is transferred to the treated part, radiating its tissue. The mechanical energy triggers biostimulation reactions in the area, positively influencing a wide range of orthopedic, physiotherapy, and analgesic treatments. It reduces the sensation of pain thanks to a better distribution of pressurized waves, allowing the professional to obtain better therapeutic responses. Furthermore, the high intensity of emission allows acting on the osteotendinous calcifications to improve the biological recovery process.
Therapeutic indications:
- Bursitis
- Coxarthrosis
- Epicondylitis/epitrochleitis
- Shin pain due to fractures
- Reactive periostitis
- Rhizarthrosis
- Tendonitis and tendinopathies
- Tenoperiostitis
Technical specifications:
- Energy: 60÷185mJ.
- 4 working modes: continuous, 4, 8 and 12 pulses.
- Working frequency: 1÷22Hz.
- Power supply: 90-240V, 50-60Hz.
- Maximum absorbed power: 250VA.
- Applicators: 6, 15 and 25 mm.
Includes:
- 1 handpiece (Ref. 4050ONDM0-576)
- 5 protective covers for handpiece.
- 1 head of 6mm diameter.
- 1 head of 15mm diameter.
- 1 head of 25mm diameter.
- 1 foot control.
- 2m SIEMENS-IEC power cable.
