Description

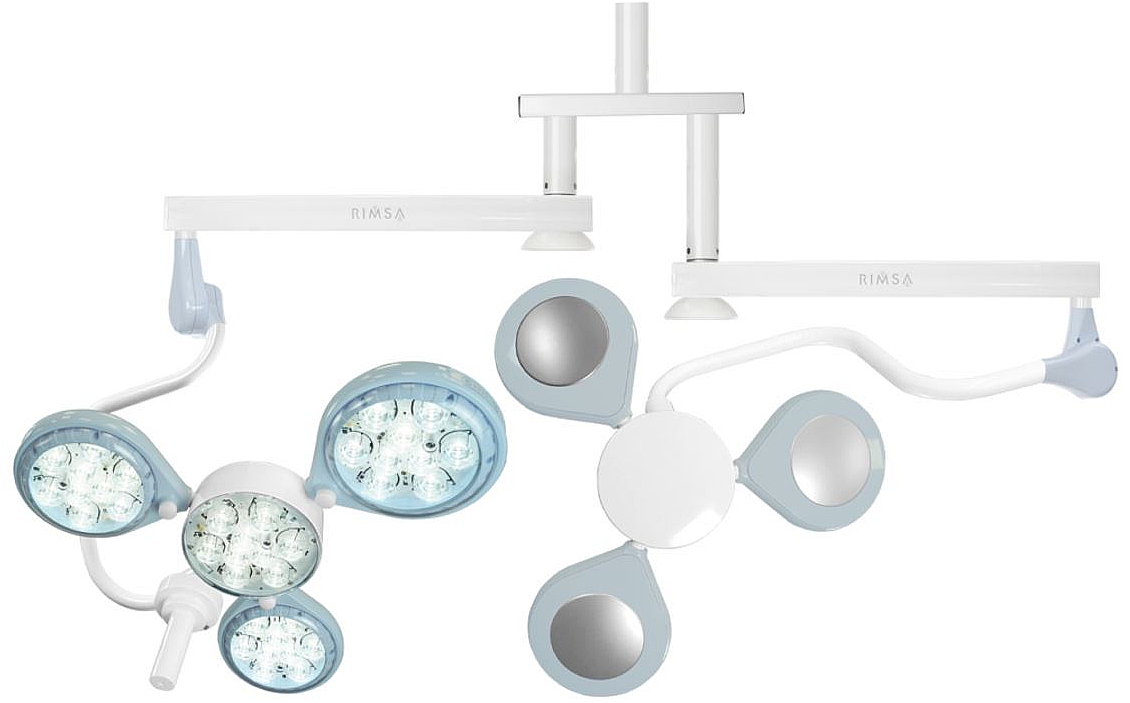

Quattroluci LED Lamp with double arm of 4 domes each, a design specifically designed to combine the placement of the two arms at different angles in order to provide far-reaching and shadowless illumination. It is developed with LED lighting technology that offers a light intensity of 160,000 lux at 1 m, adjustable by the keys incorporated in each dome. This technology offers exceptional performance thanks to the independent placement of the LEDs, which guarantees the continuity of the lenses individually in case one of them fails.
Thanks to its high power and low current absorption, it provides a cold white light with minimal heat emission on the operating field.
Features:

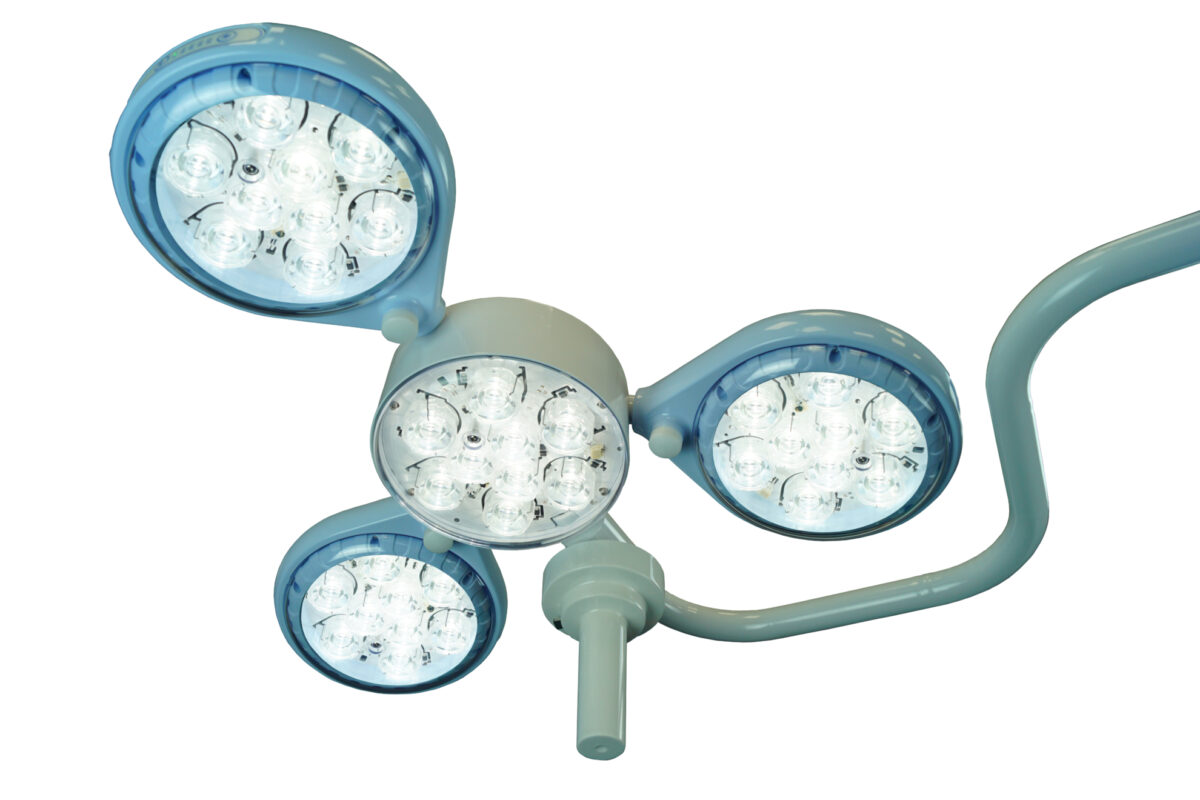

- Each dome is configured with 9 strategically arranged LED lenses for powerful and rigorous illumination.
- The domes are made of highly resistant polycarbonate for greater durability and less wear and tear from use.

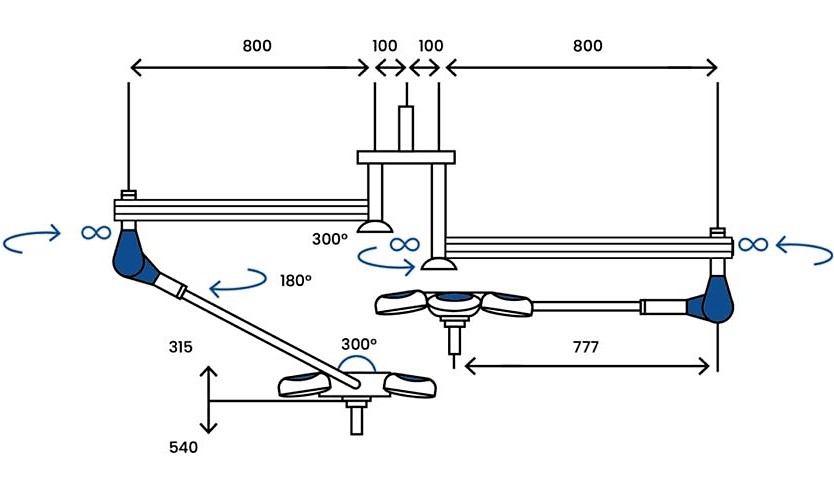

- The articulated arm can be rotated on 4 axes to achieve a wide range of positions.
- The domes are ultra-flat in order to provide ergonomics in position changes.
- The placement of the domes can be manually configured thanks to the handles they have on the bottom.
Technical specifications for each arm:
- Light intensity: 160,000 lux at 1 m.
- Dome diameter: 60 cm.
- Color temperature: 4,500ºK.
- Color rendering index: 94 Ra.
- Illuminated field diameter: 300 mm.
- Depth of illumination at 60%: 110 cm.
- Depth of illumination at 20%: 174 cm.
- Total radiated energy: 570 W/m².
- LED lifespan: over 60,000 hours.
- Light intensity adjustment: 15-100%.
- Voltage: 100-240 V.
- Frequency: 50/60 Hz.
- Power consumption: 61 W, 104 VA.
- Number of LEDs: 36.
- Weight: 22 kg.
Support: ceiling mounting up to 3 m.
*Installation not included.
