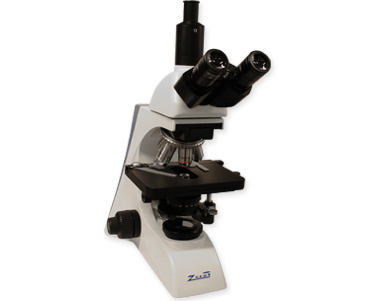

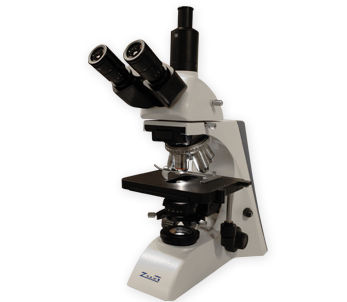

Professional trinocular microscope, model 505T. Objectives: 4x,10x,20x,40x,100x

The 505T Series trinocular microscope is an excellent choice for professionals in research laboratories, hospitals and universities.
This trinocular model allows for the connection of cameras for real-time documentation and analysis, without losing the possibility of direct observation.
It stands out for its infinity-corrected plan-apochromatic optics, providing clear and sharp images.
Its ergonomic design ensures comfortable use, while the inverted quintuple revolver and the wide graduated stage offer great functionality for various applications.

Features:
- 360° rotating trinocular head and tilted 30°.
- WF10x/20 mm eyepieces with diopter correction in both eyepieces.
- Inverted quintuple revolver.
- Infinity corrected plan achromatic objectives (4x, 10x, 20x, 40x, 100x).
- Wide graduated stage with double clamp.
- Abbe condenser with iris diaphragm.
- 3W LED Koehler illumination, with cool and high intensity light.

Included accessories:
- User manual.
- Protective cover.
- 2A fuses (x2).
- Allen key.

Technical specifications:
- Models: 505T (Trinocular)
- Eyepieces: WF10x/20 mm (ø 23 mm).
- Interpupillary distance: 48 – 75 mm.
- Objectives: Infinity corrected plan achromatic (4x, 10x, 20x, 40x, 100x immersion).
- Stage: Graduated, 175 x 145 mm, with 78 x 55 mm movement.
- Condenser: Abbe N.A. 1.25.
- Illumination: Koehler
- Filters: Blue (32 mm).
- Power supply: 100-240 VAC / 50-60 Hz.
- Dimensions: 220x 370x480mm.
- Weight: 8.6 kg.
