Description

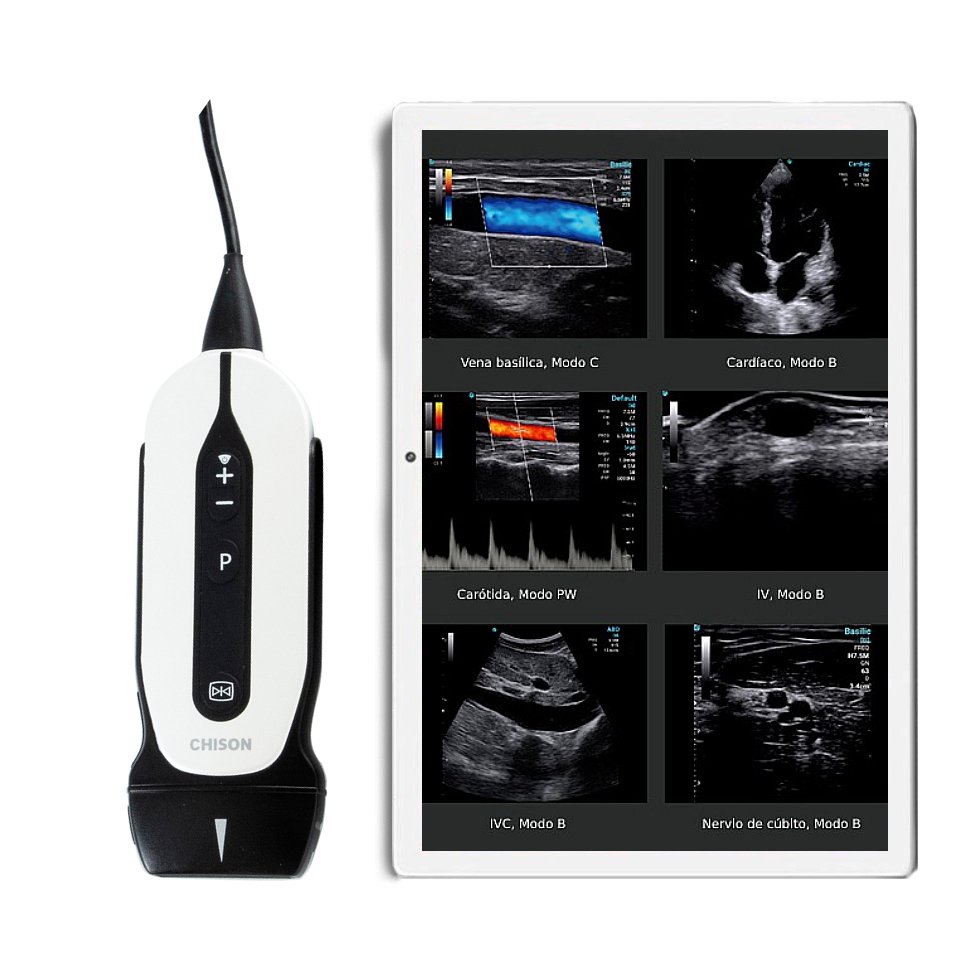

Portable Doppler color ultrasound Chison SonoEye P2 with 7.5 MHz linear probe, which only operates when connected to smartphones or tablets. Its comfortable design and great portability make it an ideal device for diagnosis anywhere. The SonoEye operates through the SonoEye app for humans or veterinarians, which can be downloaded for free at www.chisonsonoeye.com. In this way, this latest generation device can be used in both human and animal patients, depending on the application selected.
Free Android tablet for convenient monitoring of results!
Indicated for: vascular, MSK, nerves, lungs, small organs, and emergency medicine.
New improved version that includes:
- RT IMT: automatic recognition, real-time measurement, and manual adjustment of position and size.
- SonoIMT: automatic generation of the IMT trend chart with a dedicated report.
- SonoColor: more efficient Color mode that now also allows monitoring blood speed.
- 2D Steer: not only improves image quality, such as in small vessels, nerves, and MSK, but also improves needle visualization in echo-guided procedures.
- Dual B Mode: displays a double screen to compare the real-time image with a previously saved one.
- Doppler image processing has been improved with the incorporation of DPD and CPA modes.
- Improved heart rate measurement that provides exceptional speed compared to other conventional ultrasounds.
- Compilation of a complete and professional obstetric report with LMP, GA (AUA), and EDD (AUA).
- SonoEye App now also available for iOS in addition to Android, giving greater flexibility and allowing use from a multitude of tablet models: HUAWEI MatePad 10.4 (BAH3-W59), HUAWEI MatePad Pro 10.8 (MRX-W09), TECLAST T30, TECLAST T30 Pro, Samsung Galaxy Tab S6 (SM-T860), HONOR ViewPadV6 (KJR-W09), HONOR Pad View7 (KRJ2-W09), Xiaomi Pad 5, TECLAST M40 Air, iPad Pro 12.9inch (2nd generation), iPad Pro 11inch (2nd generation), iPad Air (4th generation), and iPad (8th generation).
- Through the main menu and selecting the "about" category, it is possible to access remote help service.
- SonoRemote: remote function specifically interesting for ambulances as it allows sending images from the vehicle to the medical team located in the hospital and having contact and diagnosis during the patient's transfer.

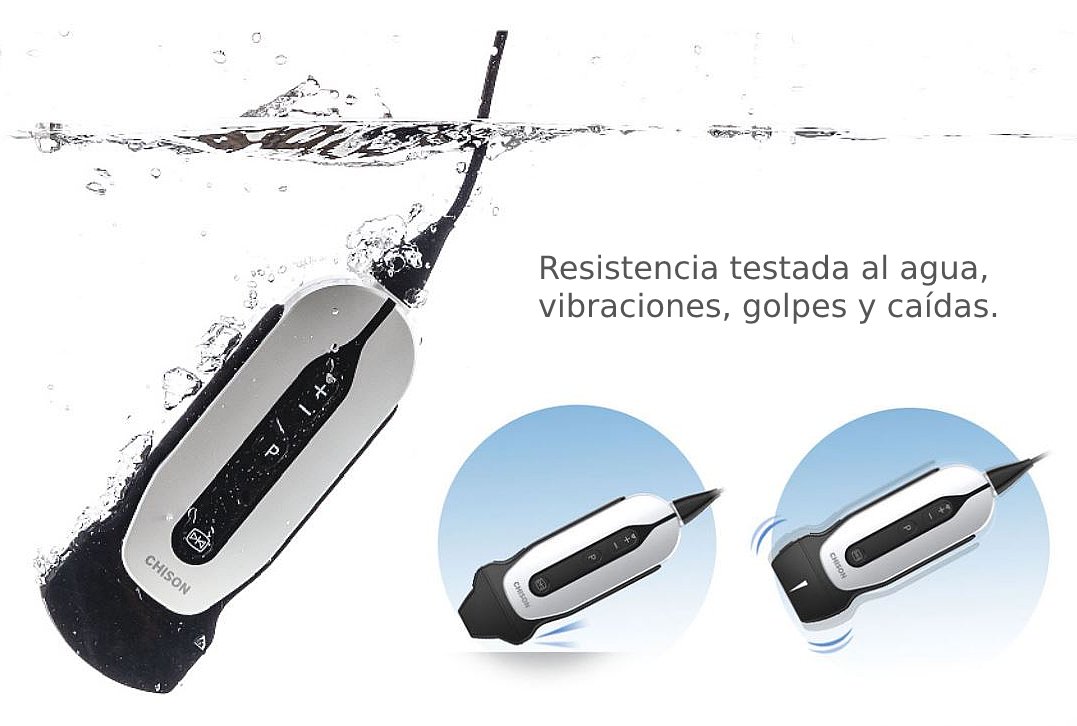

- Water-resistant device with IP67 protection, certification that guarantees safe immersion under almost one meter for a maximum of 30 minutes. It also ensures tested resistance to possible vibrations, shocks, and falls.
- Improves the length measurement tool and incorporates an angle measurement function.
- On the new improved website, you can access information about the product, technical support, or the Sonoclub section, an online educational platform that includes explanatory videos, seminars for different medical applications, and catalogs of the different models. It also has individual cases shared by expert doctors, all through a free subscription to the website chisonsonoeye.com.

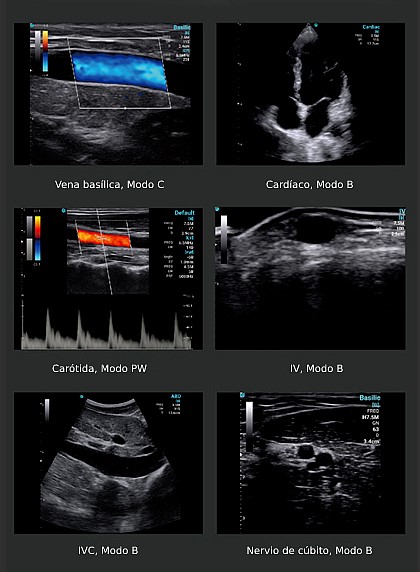

- It is designed for diagnostic ultrasound images in B (2D), B/M, CFM (color flow mapping), combined (B+CFM), PW (pulsed wave), and harmonic image fusion modes.
- Programmable buttons for custom functions: gain, depth, focus, freeze, save, etc.
Certificates: CE Class II A medical product.
Technical specifications:
- Probe type: linear.
- Frequency: 7.5 MHz.
- Frequency range: 7.0-12.0 MHz.
- Scanning depth: 1.0-14.8 cm.
- Footprint (probe contact area with the patient): 40 mm (43.5x9 mm).
- Field of view: NA.
- Doppler mode support: B+C, B/M, C mode, PW mode.
- Optimal image: AI O (all others, like composite i-IMAG E, etc. set by AI O).
- Dimensions: 64x170x24 mm.
- Weight without cable: 130 g.
It comes with a carrying case and user manual in ES, GB, and IT.
