Description

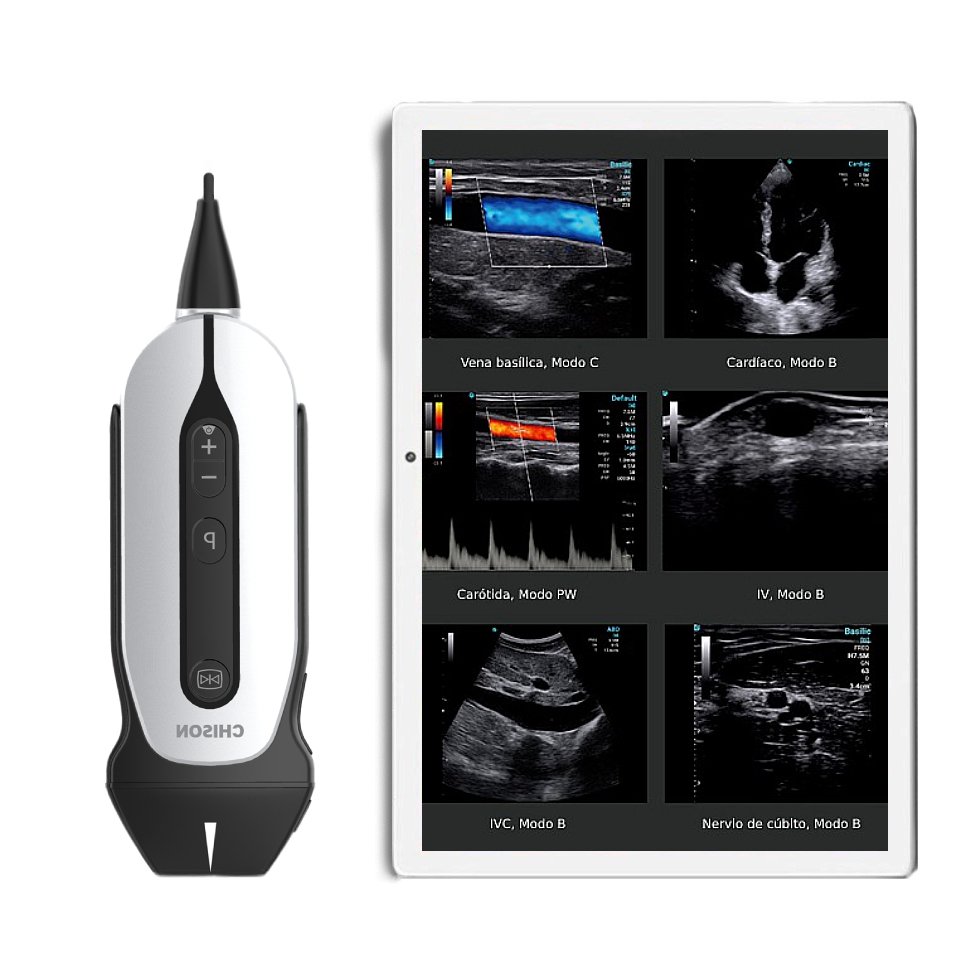

The Chison SonoEye P1 is a state-of-the-art portable color Doppler ultrasound machine that, thanks to its portable design, guarantees a comfortable diagnosis anywhere. It works with the SonoEye application for humans or veterinarians, which can be downloaded for free at www.chisonsonoeye.com. In this way, the ultrasound can be used in both human patients and animals depending on the selected application.
It is equipped with a linear probe of up to 14 MHz suitable for vascular, MSK, nerves, small parts, and EM.
Free Android Tablet for convenient monitoring of results!
New improved version that includes:
- RT IMT: automatic recognition, real-time measurement, and manual adjustment of position and size.
- SonoIMT: automatic generation of the IMT trend chart with a dedicated report.
- SonoColor: More efficient Color mode that now also allows monitoring blood speed.
- 2D Steer: not only improves image quality, such as in small vessels, nerves, and MSK, but also improves needle visualization in echo-guided procedures.
- Dual B Mode: displays a double screen to compare the real-time image with one previously saved.
- Doppler image processing has been improved with the incorporation of the DPD and CPA modes.
- Improved heart rate measurement that gives exceptional speed compared to other conventional ultrasounds.
- Preparation of a complete and professional obstetric report with LMP, GA (AUA) and EDD (AUA).
- SonoEye App now also available for iOS in addition to Android, providing greater flexibility and allowing use on a multitude of tablet models: HUAWEI MatePad 10.4 (BAH3-W59), HUAWEI MatePad Pro 10.8 (MRX-W09), TECLAST T30, TECLAST T30 Pro, Samsung Galaxy Tab S6 (SM-T860), HONOR ViewPadV6 (KJR-W09), HONOR Pad View7 (KRJ2-W09), Xiaomi Pad 5, TECLAST M40 Air, iPad Pro 12.9inch (2nd generation), iPad Pro 11inch (2nd generation), iPad Air (4th generation) and iPad (8th generation).
- Improves the length measurement tool and incorporates an angle measurement function.
- Through the main menu and by selecting the "about" category, it is possible to access remote help service.
- SonoRemote: remote function especially interesting for ambulances as it allows sending images from the vehicle to the medical team located in the hospital and having contact and diagnosis during patient transfer.

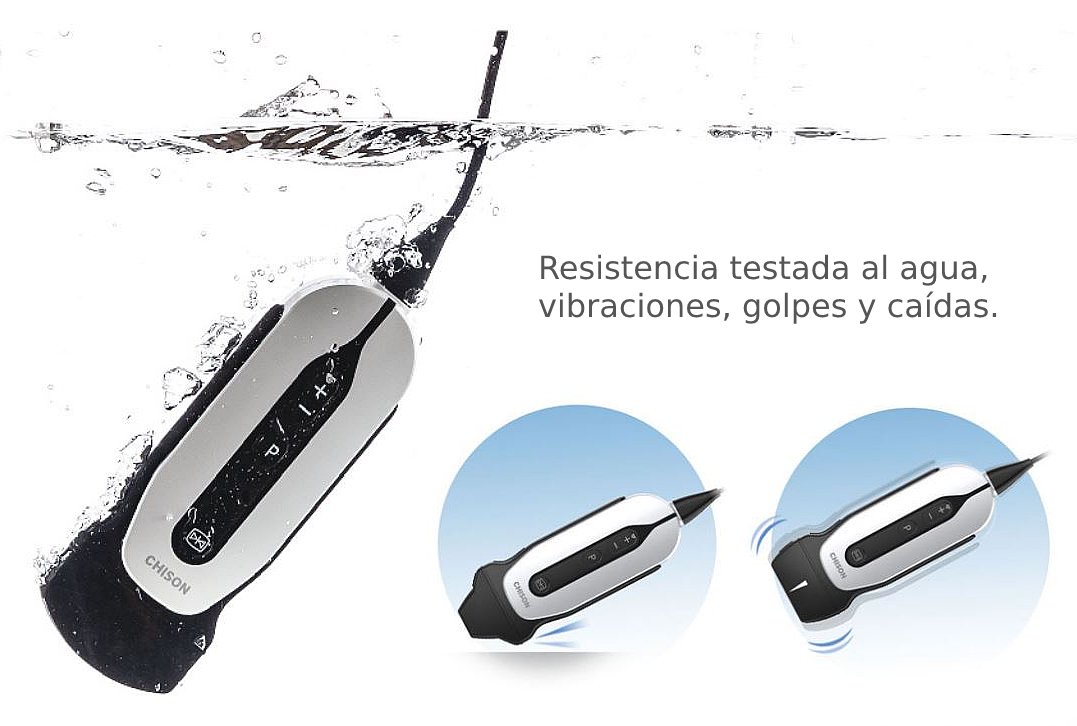

- Water-resistant device with IP67 protection, certification that guarantees safe immersion under almost one meter for up to 30 minutes. It also ensures tested resistance to possible vibrations, shocks, and falls.
- On the new improved website, you can access information about the product, technical support, or the Sonoclub section, an online educational platform that includes explanatory videos, seminars for different medical applications, and catalogs of the different models. In addition, it also has particular cases shared by expert doctors. All this through a free subscription on the website chisonsonoeye.com.

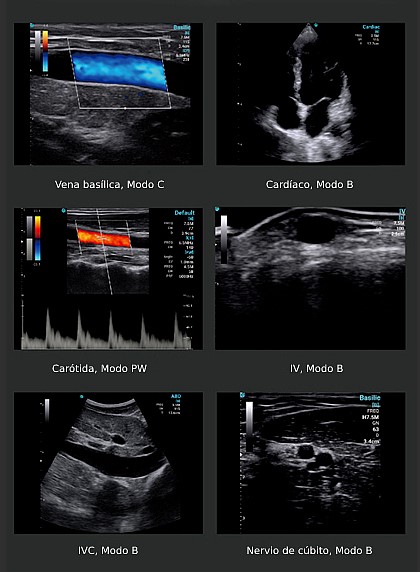

- It is designed for diagnostic ultrasound images in B (2D), B/M, CFM (color flow mapping), combined (B+CFM), PW (pulsed wave), and harmonic image fusion modes.
- Programmable buttons for custom functions: gain, depth, focus, freeze, save, etc.
Certificates: CE Class II A medical product.
Technical specifications:
- Probe type: linear.
- Frequency: 14 MHz.
- Image processing:
• B Mode:
- Gain: 0-255.
- TGC: 8 segments.
- Depth: maximum 14.8 cm.
- Frequency: 4.5-10.0 MHz / FHI 7.0 MHz- FHI 12.0 MHz.
- Number of foci: 1.
- Focus position: 16 steps.
• C Mode:
- Gain: 0-255.
- Frequency: 6.5 MHz.
- Direction: -20-20.
- PRF: 700-6000 Hz.
• PW Mode:
- Gain: 0-255.
- Frequency: 5.0 MHz.
- Angle: -70-70.
- Base: -3-3 (7 steps).
- SV: 1-8 mm.
- PRF: 700-6000 Hz.
• B/W Mode:
- Gain: 0-255.
- MV: 1-4.
- Display modes: B+C, B/M.
- Power supply: DC 5V.
- Power consumption: ≤10VA.
- Optimal image: AI O (all others, such as composite i-IMAG E, etc. set by AI O).
- Cable length: 3 m.
- Dimensions: 64x171x24 mm.
It comes with a carrying case and user manual in ES, GB, and IT.
It is equipped with a linear probe of up to 14 MHz suitable for vascular, MSK, nerves, small parts, and EM.
Free Android Tablet for convenient monitoring of results!
New improved version that includes:
- RT IMT: automatic recognition, real-time measurement, and manual adjustment of position and size.
- SonoIMT: automatic generation of the IMT trend chart with a dedicated report.
- SonoColor: More efficient Color mode that now also allows monitoring blood speed.
- 2D Steer: not only improves image quality, such as in small vessels, nerves, and MSK, but also improves needle visualization in echo-guided procedures.
- Dual B Mode: displays a double screen to compare the real-time image with one previously saved.
- Doppler image processing has been improved with the incorporation of the DPD and CPA modes.
- Improved heart rate measurement that gives exceptional speed compared to other conventional ultrasounds.
- Preparation of a complete and professional obstetric report with LMP, GA (AUA) and EDD (AUA).
- SonoEye App now also available for iOS in addition to Android, providing greater flexibility and allowing use on a multitude of tablet models: HUAWEI MatePad 10.4 (BAH3-W59), HUAWEI MatePad Pro 10.8 (MRX-W09), TECLAST T30, TECLAST T30 Pro, Samsung Galaxy Tab S6 (SM-T860), HONOR ViewPadV6 (KJR-W09), HONOR Pad View7 (KRJ2-W09), Xiaomi Pad 5, TECLAST M40 Air, iPad Pro 12.9inch (2nd generation), iPad Pro 11inch (2nd generation), iPad Air (4th generation) and iPad (8th generation).
- Improves the length measurement tool and incorporates an angle measurement function.
- Through the main menu and by selecting the "about" category, it is possible to access remote help service.
- SonoRemote: remote function especially interesting for ambulances as it allows sending images from the vehicle to the medical team located in the hospital and having contact and diagnosis during patient transfer.
- Water-resistant device with IP67 protection, certification that guarantees safe immersion under almost one meter for up to 30 minutes. It also ensures tested resistance to possible vibrations, shocks, and falls.
- On the new improved website, you can access information about the product, technical support, or the Sonoclub section, an online educational platform that includes explanatory videos, seminars for different medical applications, and catalogs of the different models. In addition, it also has particular cases shared by expert doctors. All this through a free subscription on the website chisonsonoeye.com.
- It is designed for diagnostic ultrasound images in B (2D), B/M, CFM (color flow mapping), combined (B+CFM), PW (pulsed wave), and harmonic image fusion modes.
- Programmable buttons for custom functions: gain, depth, focus, freeze, save, etc.
Certificates: CE Class II A medical product.
Technical specifications:
- Probe type: linear.
- Frequency: 14 MHz.
- Image processing:
• B Mode:
- Gain: 0-255.
- TGC: 8 segments.
- Depth: maximum 14.8 cm.
- Frequency: 4.5-10.0 MHz / FHI 7.0 MHz- FHI 12.0 MHz.
- Number of foci: 1.
- Focus position: 16 steps.
• C Mode:
- Gain: 0-255.
- Frequency: 6.5 MHz.
- Direction: -20-20.
- PRF: 700-6000 Hz.
• PW Mode:
- Gain: 0-255.
- Frequency: 5.0 MHz.
- Angle: -70-70.
- Base: -3-3 (7 steps).
- SV: 1-8 mm.
- PRF: 700-6000 Hz.
• B/W Mode:
- Gain: 0-255.
- MV: 1-4.
- Display modes: B+C, B/M.
- Power supply: DC 5V.
- Power consumption: ≤10VA.
- Optimal image: AI O (all others, such as composite i-IMAG E, etc. set by AI O).
- Cable length: 3 m.
- Dimensions: 64x171x24 mm.
It comes with a carrying case and user manual in ES, GB, and IT.
