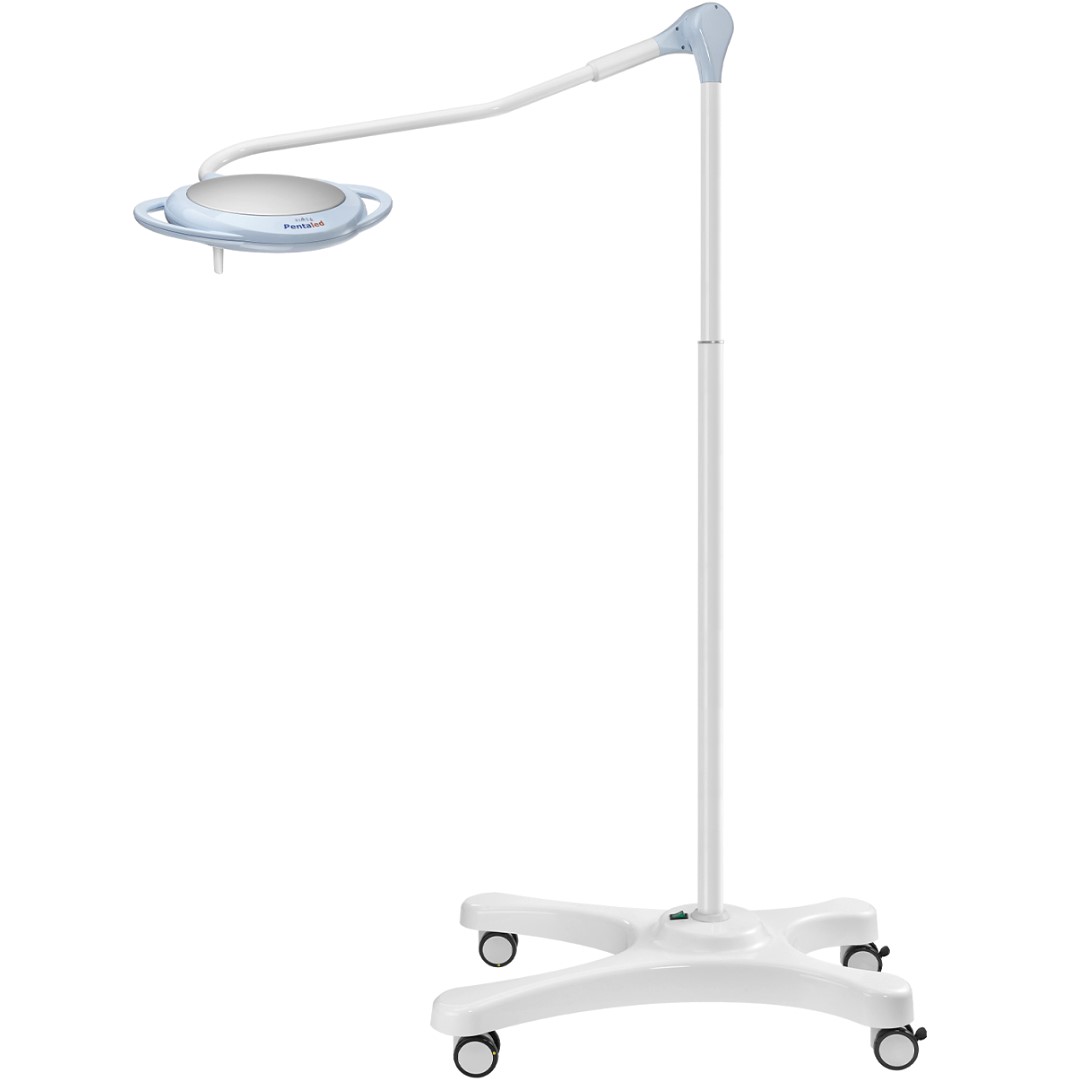

Pentaled 12 surgery lamp, 100,000 lux at 1 m. Wheeled base

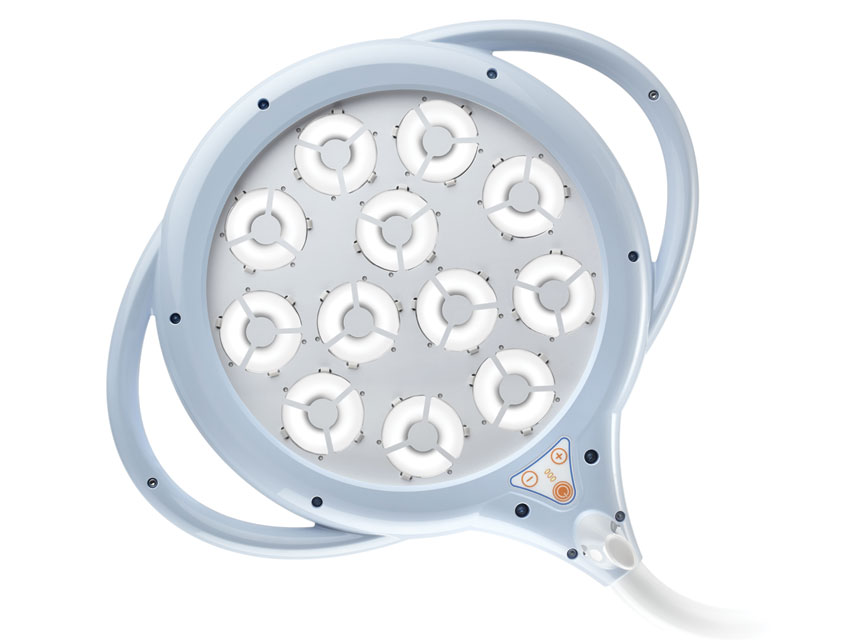

The Pentaled 12 is an innovative surgical lamp designed with 12 LED lenses that guarantee high luminous power and provide homogeneous light. It allows adjusting the position of the articulated arm according to the needs of the procedure, being able to move it vertically. In addition, it is possible to modulate the level of light intensity through a practical digital control located in the dome.

Latest generation LED technology:
The LED lenses provide rigorous and powerful illumination with an excellent color reproduction index so that the professional can visualize the real color of the tissues. They also ensure energy savings since, in this case, they have a lifespan of up to 60,000 hours of operation.

Indirect light:
The Pentaled 12 offers indirect light specifically designed not to dazzle or strain the professional's eyes during the procedure. This system provides greater homogeneity in lighting and expands the light field of each LED to improve the definition of the illuminated area. In addition, the generation of shadows and the emission of heat on the operating field are reduced, consequently reducing energy consumption.

Certificates: CE Class I medical product in accordance with Directive 93/42/EEC, standard IEC 60601-2-41.

Technical specifications:
- Light intensity: 100,000 lux at 1 m.
- Dome diameter: 40 cm.
- Color temperature: 4,500 °K.
- Color reproduction index: 95 Ra.
- Illuminated field diameter: fixed.
- Light field diameter at 50% of light intensity: 85 mm.
- Light field diameter at 10% of light intensity: 140 mm.
- Illumination depth at 60%: 75 cm.
- Illumination depth at 20%: 150 cm.
- Total radiated energy: 370 W/m².
- LED lifespan: up to 60,000 hours.
- Light intensity adjustment: 20-100%.
- Electrical consumption: 20 W-40 VA.
- Weight: 21 kg.

Support: Rolling base.
