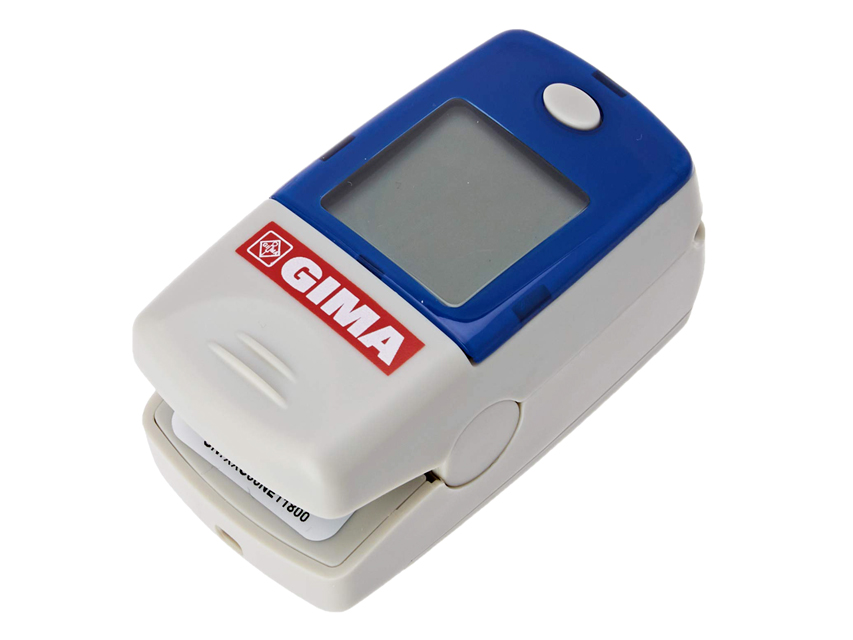

Pediatric Pulse Oximeter Oxy-5

The OXY-5 is a pediatric finger oximeter designed to monitor blood oxygen saturation and heart rate through the patient's finger (8-16 mm) in medical and hospital settings.

Features:
- Measurement of SpO2 and heart rate.
- Pulse rate bar chart.
- Visualization of the perfusion index. PI. (numerical value indicating the blood perfusion condition at the sensor site).
- High accuracy and repeatability.
- Accurate reading from the first moment thanks to a unique noise rejection system.
- Extra stability against movement during measurement.
- Automatic on and off.
- Low battery alarm.
- Manual in 9 languages.
- 50 hours of operation with charged batteries.
- Includes plastic case, batteries and cover.

Technical specifications:
- Pulse frequency:
  • range: 30-240 bpm.
  • accuracy: ± 2 bpm (2%).
  • resolution: 1bpm.
- SpO2:
  • range: 35% -99%.
  • accuracy: ± 2% (75-99%) / ± 3% (50-75%).
  • resolution: 1%.
- Perfusion Index:
  • range: 0-20%.
  • accuracy: ± 0.1% (0.2-2%) / ± 0.2% (2-10%).
  • resolution: 0-1%.
- Alarm: SpO2: lower limit 90%.
- Pulse frequency: low: <50 bpm - high> 120 bpm.
- Power supply: 2 1.5V AAA alkaline batteries.
- Certification CE 0476 CERMET, standard IEC 60601-1-2 Class II.
- LCD Display: oxygen saturation, pulse frequency, low battery indicator.
- Size: 6.6 x 3.6 x 3.3 cm.
- Weight: 60 g including batteries.
