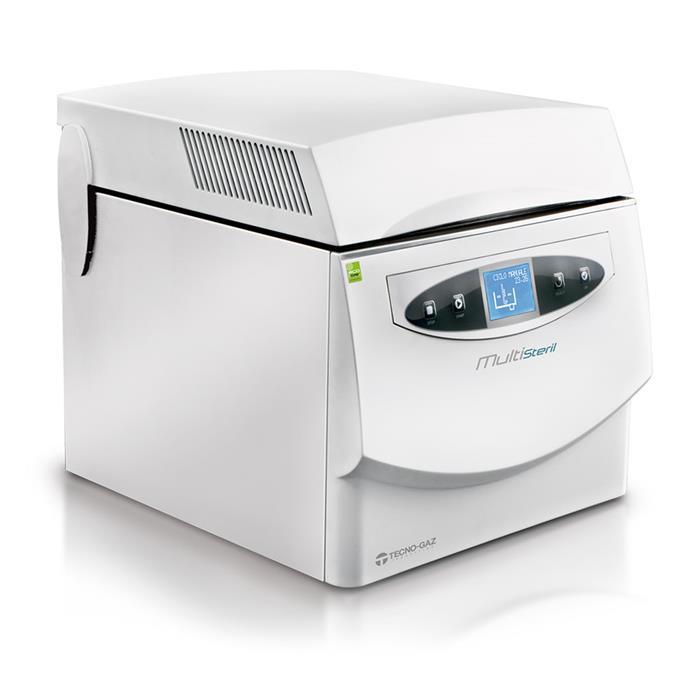

Multifunctional Multisteril Fast device. Complete instrument washer.

MultiSteril Fast is a revolutionary multifunctional device capable of automatically carrying out the main phases of cleaning and preparation for the subsequent sterilization cycle.

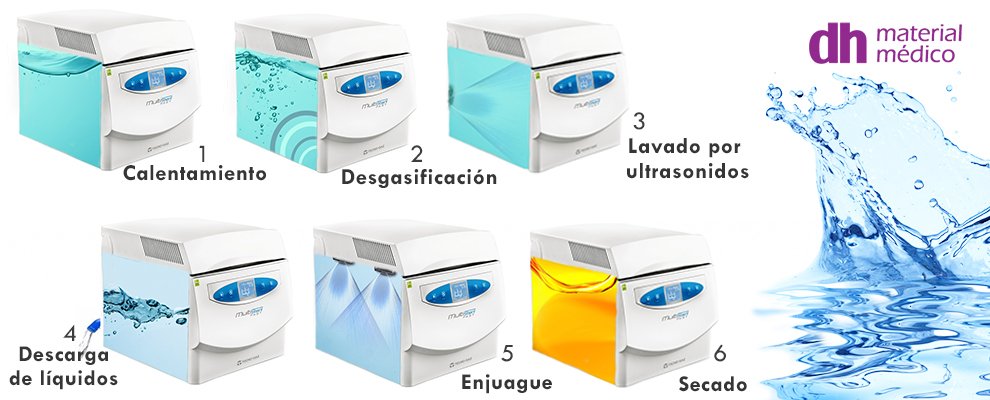

The complete MultiSteril Fast instrument cleaning system is capable of disinfecting, washing, rinsing, and drying the instruments, all without human intervention, without professional risk and with a reduction in total time to just about 20 minutes.

Advantages
MultiSteril Fast revolutionizes the role of the operator in charge of the sterilization cycle, as they only have to introduce the instruments into the tray and remove them at the end of the cycle. There are no manual responsibilities, and there is no risk. The process is automatic and controlled.
The operator does not have direct involvement, saving a lot of time that can be used for other activities in the clinic.
• Unparalleled speed: Cycle duration of just 20 minutes
• Improved instrument rotation and availability
• Time saving for assistants as all disinfection, cleaning, rinsing and drying phases are automatic, without human intervention
• Guarantee of correct execution of the protocol with a reproducible and continuous quality, avoiding negligence or errors originated during manual work
• There is no risk of contamination during material handling
• Reduction of the necessary space to just 40 cm
• Reduction of the overall cost

Installation and supply:
MultiSteril Fast only requires an electrical and a hydraulic connection. The equipment already has an integrated container for the disinfectant liquid and the device itself takes care of its dosing (at 1%).

MultiSteril Fast comes with the following accessories:
• Stainless steel instrument basket
• Steel cup for drills and small instruments
• Connection tubes
• Tray filters

Technical specifications:
• Operating temperature: 5º-30º C
• Max relative humidity at 30ºC: 80%

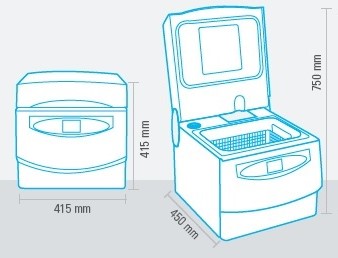

• Dimensions: 415 x 415 x 450mm
• Height with the lid open: 750mm
• Weight: 20kg
• Power supply: 230V / 50/60Hz
• Fuses: 6.3A (5x20)
• Ultrasounds: 4 transducers, 39KHz frequency
• Water supply:
   - Water pressure: 1.5/2Bar
   - Max temperature: 30ºC
   - Feed tube dimensions: 3/8G / length 3m
• Tank made of AISI 316 stainless steel
• Tank volume: 9l
• Detergent tank: 1.5l (+0.5l reserve)
• Cycles achievable with the full tank:
   - 1% : 25 cycles
   - 2% : 12 cycles
   - 3% : 8 cycles
   - 4% : 6 cycles
   - 5% : 5 cycles
   - 6% : 4 cycles
• Tank filter: AISI 304 stainless steel
• Discharge filter: AISI 304 stainless steel 19x40mm

Cleaning and disinfection efficacy of the device in combination with the Multisteril liquid concentrate (Ref. 4029DM401ALP) according to European standard EN 15883.


*Installation not included.
