Reference. 1187MDD002
Dosyproof Liquid Dispenser for Bottle, 1-10ml
Dosyproof Liquid Dispenser for Bottle, 1-10ml
Personal advice
Description

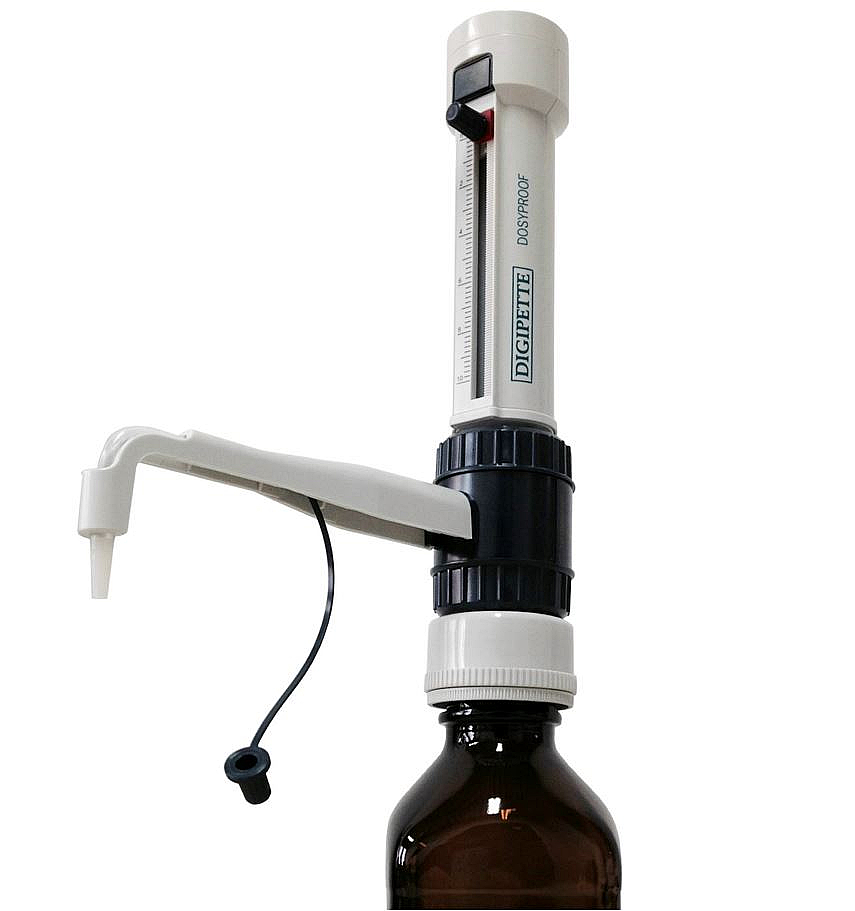

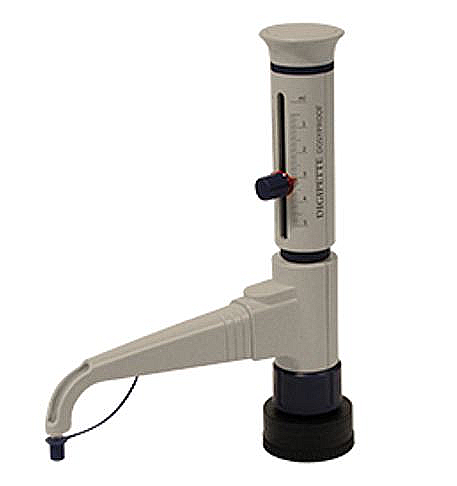

Dosyproof bottle liquid dispenser with a volume range of 1 to 10 ml. It is possible to easily recalibrate it with the supplied calibration tool.
Practical and versatile design:
It has been developed with a double graduated scale to adjust the volume precisely and ensure clear visibility during dispensing. It is compatible with bottles of different heights, especially from 170 to 300 mm, due to the telescopic design of the feed tube. It also allows dispensing into various containers thanks to the 360° rotation of the discharge tube. In addition, for easy and effortless dispensing, the piston has been developed with a smooth movement.
Autoclavable at 120 °C, 1.05 bar (15 psi) for 20 minutes.
Limits for liquid dispensing:
- Density up to 2.2 g/cm³.
- Kinematic viscosity up to 500 mm²/sec.
- Vapor pressure up to 500 mbar.
- Instrument and liquid temperature from 15 to 40 °C.
Certificates: inaccuracy and imprecision values according to EN ISO 8655-5 standard.
Technical Specifications:
- Volume range: 1-10 ml.
- Division: 0.2 ml.
- Inaccuracy %: ± 0.5%.
- Inaccuracy ml: ± 0.05 ml.
- Imprecision %: ± 0.2%.
- Imprecision ml: ± 0.02 ml.
Includes thread adapters of 28, 38, 40 and 45 mm.
Practical and versatile design:
It has been developed with a double graduated scale to adjust the volume precisely and ensure clear visibility during dispensing. It is compatible with bottles of different heights, especially from 170 to 300 mm, due to the telescopic design of the feed tube. It also allows dispensing into various containers thanks to the 360° rotation of the discharge tube. In addition, for easy and effortless dispensing, the piston has been developed with a smooth movement.
Autoclavable at 120 °C, 1.05 bar (15 psi) for 20 minutes.
Limits for liquid dispensing:
- Density up to 2.2 g/cm³.
- Kinematic viscosity up to 500 mm²/sec.
- Vapor pressure up to 500 mbar.
- Instrument and liquid temperature from 15 to 40 °C.
Certificates: inaccuracy and imprecision values according to EN ISO 8655-5 standard.
Technical Specifications:
- Volume range: 1-10 ml.
- Division: 0.2 ml.
- Inaccuracy %: ± 0.5%.
- Inaccuracy ml: ± 0.05 ml.
- Imprecision %: ± 0.2%.
- Imprecision ml: ± 0.02 ml.
Includes thread adapters of 28, 38, 40 and 45 mm.
