Reference. 12831772CM-01-180

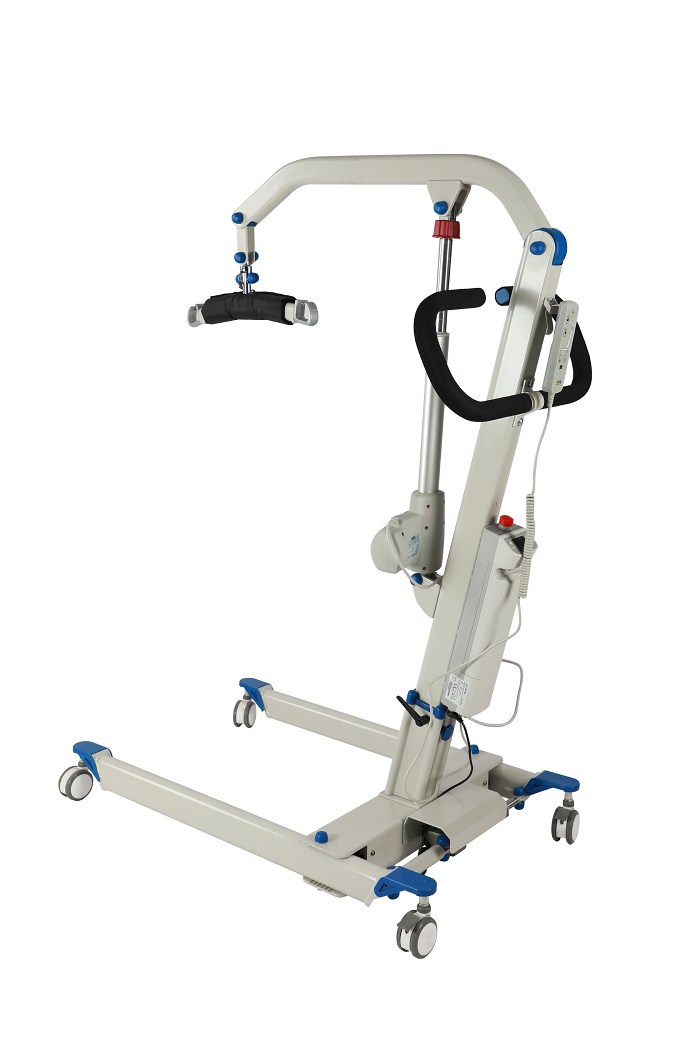

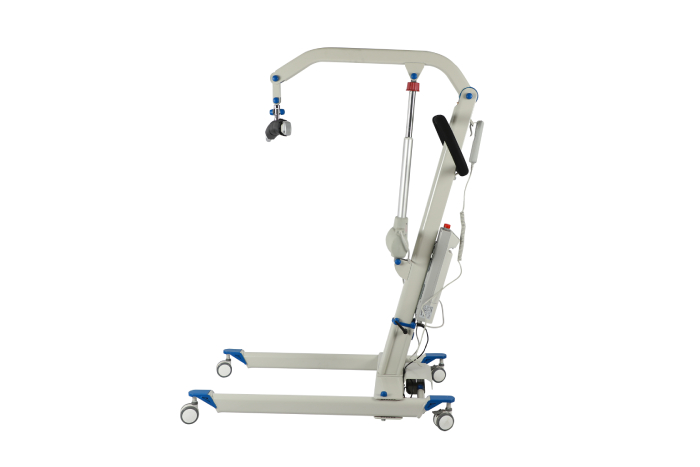

Liftey transfer crane 180 kg
Transfer and lifting crane with high-quality aluminum structure ideal for use in institutions or residences of people with mobility problems, thanks to the high corrosion resistance they offer and their high load capacity: 180 kg.
Personal advice
Description
High-quality aluminum transfer and lifting crane ideal for use in institutions or residences of people with mobility problems, thanks to the high resistance to corrosion that they offer and their high load capacity: 180 kg.
Product details:

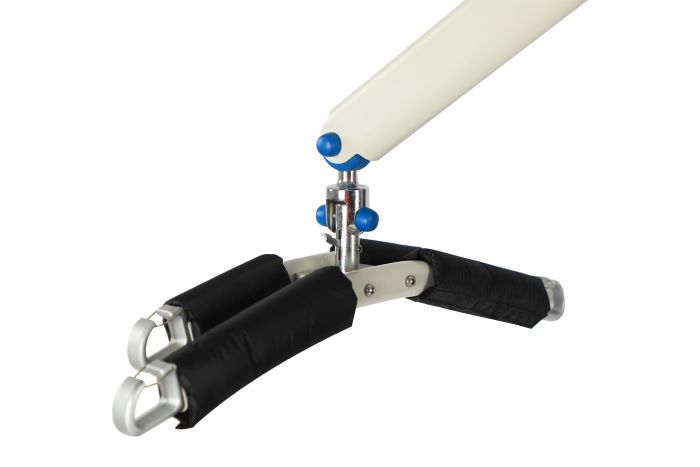

- Equipped with a 4-hook hanger for greater safety and strength.
- It has crossed hooks in order to prevent the harness straps from coming loose.
- Digital display with battery indicator for greater autonomy control.
- Reinforced anchor points, with safety pins.
- Manual emergency descent system and emergency stop included.
- Electronic leg opening through the remote or display.
- The digital display also indicates the progression of the opening and closing of the legs.

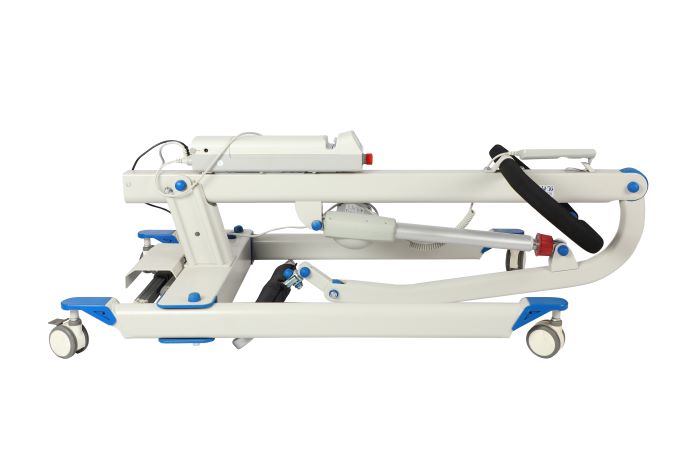

- The height of the legs allows them to be inserted under the vast majority of beds.

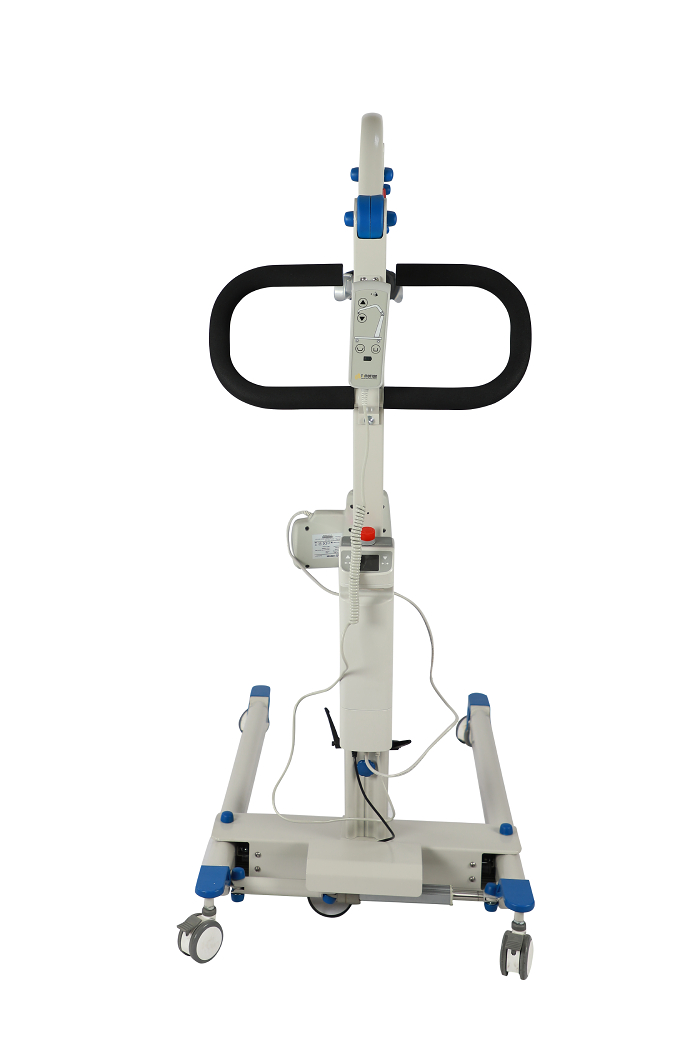

- For easy handling of the crane, it has a large ergonomic handle with rounded edges.
Measurements:
- Total length: 113 cm.
- Minimum height: 64.5 cm.
- Maximum height: 187 cm.
- Free height: 10 cm.
- Maximum supported weight: 180 kg.
- Total weight: 60 kg.
- Leg opening: 64.5 to 88 cm.
Technical specifications:
- Color: gray.
- Mast motor: DC24 10A (permanent magnet with mechanical safety mechanism, safety nut and outer tube)
- Base motor: DC24 2.8A (permanent magnet)
- Battery: 12v 2.9 Ah x 2
- Lifting speed: 7 mm/s without load.
- Charging time: 6 hours.
- Front wheel: 10.2 cm.
- Rear wheel: 12.7 cm. (with included brakes)
- Compatible harnesses:
• Liftey universal harness 150 kg (Ref: 12831770AC-10-X)
• Liftey harness with headrest 150 kg (Ref: 12831172AC)
• Liftey quick-adjust harness 150 kg (Ref: 12831177AC-10-X)
• Liftey bariatric harness 180 kg - 320 kg (Ref: 12831170ACB-02-X)
Product details:
- Equipped with a 4-hook hanger for greater safety and strength.
- It has crossed hooks in order to prevent the harness straps from coming loose.
- Digital display with battery indicator for greater autonomy control.
- Reinforced anchor points, with safety pins.
- Manual emergency descent system and emergency stop included.
- Electronic leg opening through the remote or display.
- The digital display also indicates the progression of the opening and closing of the legs.
- The height of the legs allows them to be inserted under the vast majority of beds.
- For easy handling of the crane, it has a large ergonomic handle with rounded edges.
Measurements:
- Total length: 113 cm.
- Minimum height: 64.5 cm.
- Maximum height: 187 cm.
- Free height: 10 cm.
- Maximum supported weight: 180 kg.
- Total weight: 60 kg.
- Leg opening: 64.5 to 88 cm.
Technical specifications:
- Color: gray.
- Mast motor: DC24 10A (permanent magnet with mechanical safety mechanism, safety nut and outer tube)
- Base motor: DC24 2.8A (permanent magnet)
- Battery: 12v 2.9 Ah x 2
- Lifting speed: 7 mm/s without load.
- Charging time: 6 hours.
- Front wheel: 10.2 cm.
- Rear wheel: 12.7 cm. (with included brakes)
- Compatible harnesses:
• Liftey universal harness 150 kg (Ref: 12831770AC-10-X)
• Liftey harness with headrest 150 kg (Ref: 12831172AC)
• Liftey quick-adjust harness 150 kg (Ref: 12831177AC-10-X)
• Liftey bariatric harness 180 kg - 320 kg (Ref: 12831170ACB-02-X)
