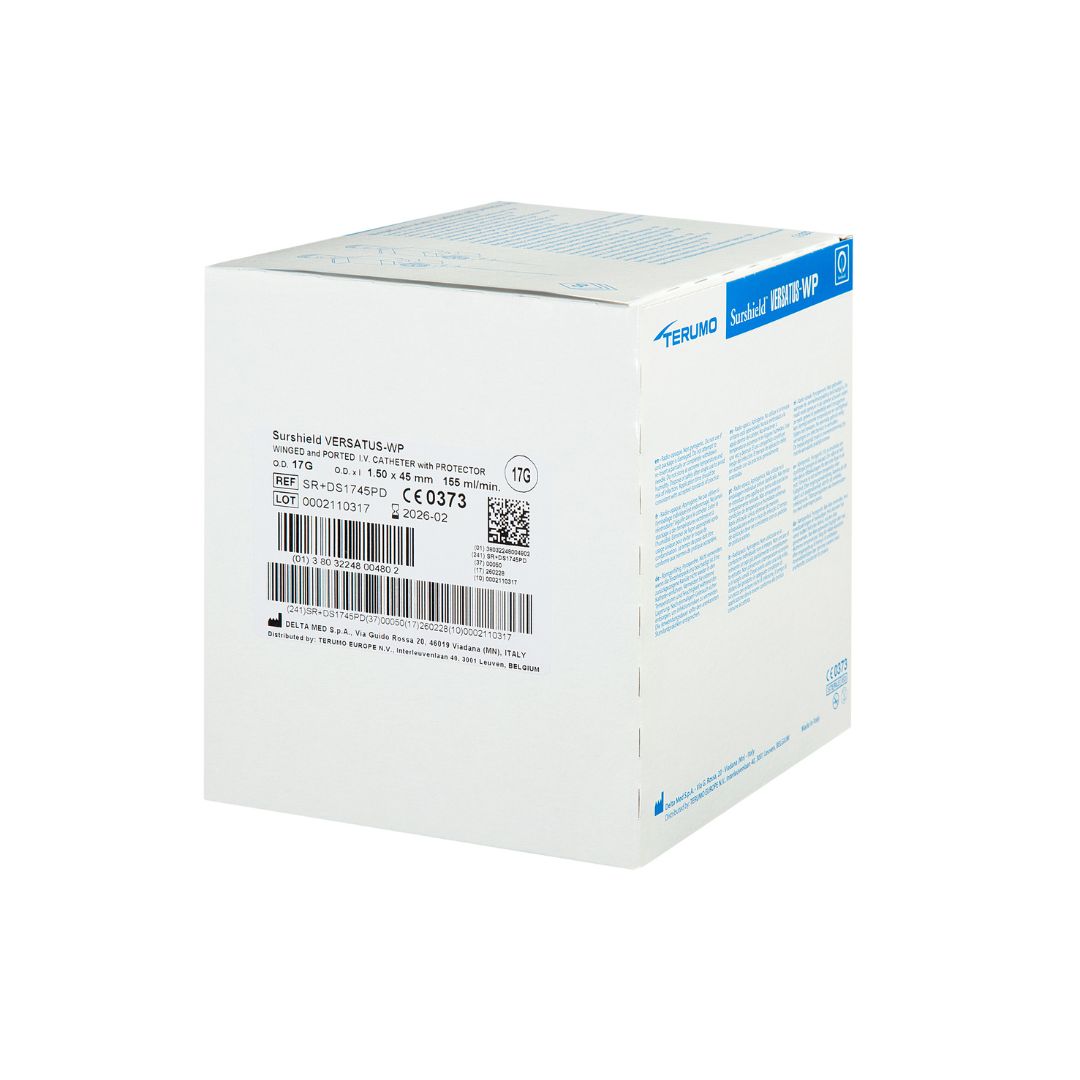

Reference. 10318SRDS1745PD
IV catheter with wings, port, and protector. 1.50 mm/17 G x 45 mm. Box of 50 units.
Peripheral intravenous catheter equipped with wings, port, and protective needle casing. Supplied in a box of 50 units.
Personal advice
Description
These safety peripheral catheters feature an additional port that allows for the addition of another intravenous infusion tube, making them ideal in situations where two different drugs need to be administered simultaneously. In addition, they have a protection system to safeguard the needle once the puncture has been made, so they can be disposed of without the risk of accidental punctures.
Features
- Single catheters equipped with wings, port and protector for the needle
- Indicated for prolonged peripheral intravenous infusions
- Free of latex or PVC
- Sterilized by ethylene oxide
- Classified as a class IIa medical device according to CE certification
Materials
- Polyurethane and barium sulfate catheter
- Catheter cone with wings made of polypropylene
- Sealing pin made with polyoxymethylene
- Needle cannula made of high quality stainless steel
- Needle cone of acrylonitrile butadiene styrene
- Polypropylene cap with built-in Luer Lock system
- Polyethylene ventilation accessory filter
- Body of the ventilation accessory of acrylonitrile butadiene styrene
- Port closure produced with polypropylene
- Injection port valve composed of a silicone tube
- Surshield protective casing of polyamide
- Safety protector for fingers made of polysulfone
- Polycarbonate sliding cap and needle blocker with stainless steel cap
Technical specifications
- Catheter outer diameter: 1.50 mm (17 G)
- Catheter inner diameter: 1.15 mm
- Catheter length: 45 mm
- Reflux speed: 155 ml/min
- Color: white
- Shelf life: 5 years
- Individual packaging: blister
Supplied in a box of 50 units.
