Reference. 123741089

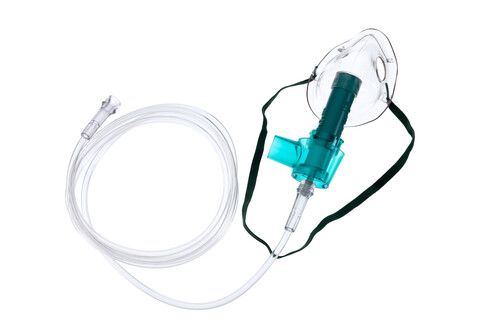

Hudson Venturi pediatric oxygen mask with multi-ventilation tube
Hudson multi-ventilation oxygen mask with a specialized tube for administering precise and controlled oxygen concentrations to pediatric patients with respiratory disorders.
Personal advice
Description
Hudson multi-ventilation oxygen mask with specialized tubing for delivering precise and controlled oxygen concentrations to the smallest patients with respiratory disorders.
To offer greater adaptability to the needs of each child, it can adjust the speed of oxygen flow: delivering a specific oxygen concentration or a fraction of inspired oxygen (FIO2). This process is carried out thanks to the nozzle adapters that are included with the mask.
The rotary mechanism can deliver the following concentrations:
- Green nozzle adapter: 24%, 26%, 28% and 30%.
- White nozzle adapter: 35%, 40% and 50%.
Set contents:
- Multi-ventilation mask.
- 210 cm oxygen tube.
- Nozzle adapters.
- Humidification adapter: for the connection of a high volume nebulizer to humidify the oxygen.
General characteristics:
- Patient type: Pediatric.
- Integrates a locking ring that ensures flow adjustment.
- It has low and medium concentration diluters (color coded) for air intake: the nozzle adapters.
- Made with a very soft and transparent plastic (for procedure supervision); as well as soft and flexible.
- Secure fit with elastic straps.
- Has several exhalation valves for less pressure accumulation.
- To facilitate installation, an oxygen tube is included.
- DEHP free.
- Latex free.
Technical specifications:
- Materials: PVC with metal adjustment clamp.
- Oxygen concentration level: 24% - 50%.

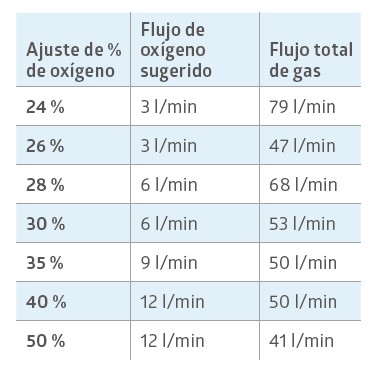

- Flow: depending on the level of oxygen concentration (see image).
To offer greater adaptability to the needs of each child, it can adjust the speed of oxygen flow: delivering a specific oxygen concentration or a fraction of inspired oxygen (FIO2). This process is carried out thanks to the nozzle adapters that are included with the mask.
The rotary mechanism can deliver the following concentrations:
- Green nozzle adapter: 24%, 26%, 28% and 30%.
- White nozzle adapter: 35%, 40% and 50%.
Set contents:
- Multi-ventilation mask.
- 210 cm oxygen tube.
- Nozzle adapters.
- Humidification adapter: for the connection of a high volume nebulizer to humidify the oxygen.
General characteristics:
- Patient type: Pediatric.
- Integrates a locking ring that ensures flow adjustment.
- It has low and medium concentration diluters (color coded) for air intake: the nozzle adapters.
- Made with a very soft and transparent plastic (for procedure supervision); as well as soft and flexible.
- Secure fit with elastic straps.
- Has several exhalation valves for less pressure accumulation.
- To facilitate installation, an oxygen tube is included.
- DEHP free.
- Latex free.
Technical specifications:
- Materials: PVC with metal adjustment clamp.
- Oxygen concentration level: 24% - 50%.
- Flow: depending on the level of oxygen concentration (see image).
